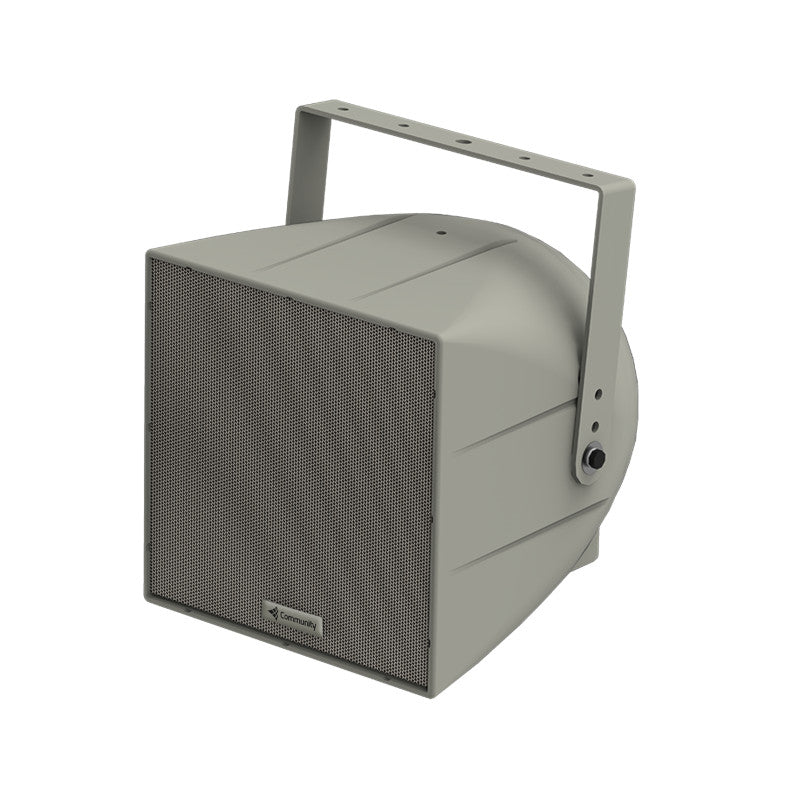

Community R.25-94Z 8-Inch Weather-Resistant Speaker
Community R.25-94Z 8-Inch Weather-Resistant Speaker
SoundPro Item: 62622 | Part Number: R.25-94Z
Usually ships in 5-7 business days
- Optional 200W, 70V autoformer
- Weather-treated drivers and crossovers
- High efficiency, high fidelity, all horn loaded with high power passive crossover
- Weather-resistant, rotomolded UV enclosure with corrosion-resistant zinc-rich epoxy
- Dual-layer powder-coated steel grille and yoke
The compact Community R.25-94Z 8-Inch Weather-Resistant Speaker combines wide frequency response with excellent efficiency and projection ability. The HF driver is coupled to a nominal 90° x 40° horn, and the HF horn assembly is coaxially mounted with the LF driver to minimize interference at crossover. The horn-loaded LF driver delivers better low frequency pattern control, higher sensitivity, higher output, and better vocal projection than typical 8-inch two-way loudspeakers. The R.25 is ideal for use in difficult acoustic environments requiring a small footprint, like stadium concourses and gymnasiums, and offers excellent supplemental reinforcement in larger R SERIES systems.
- Operating ModePassive - Low Impedance or 70V/100V models
- Operating Environment Indoor or Weather-Resistant Outdoor
- Operating Range[2]100 Hz to 16 kHz
- Nominal Beamwidth (HxV)90°x40°
- Transducers
- LF 1 x 8” (203mm) carbon ring, hydrophobic cone, 2.5" (64mm)
- HF 1 x 3/4” (19mm) exit, non-metallic Ferrofluid-cooled comp driver
- DYNA-TECH protection circuitry for drivers
- Continuous Power Handling[3] @ Nominal ImpedancePassive 40V 200W @ 8 Ohms (800W peak)
- Autoformer Taps (R.25-94TZ)
- 70V: 200W,100W, 50W, 25W
- 100V: 200W,100W, 50W
- Nominal Sensitivity[4]
- @ 1W/1m: 97 dB
- @ 2.83V: 97 dB
- Nominal Maximum SPL[5] (Whole Space)
- Peak: 126 dB
- Continuous: 120 dB
- Equalized Sensitivity[6]
- @ 1W/1m: 96 dB
- @ 2.83V: 96 dB
- Equalized Maximum SPL[7]
- Peak: 125 dB
- Continuous: 119 dB
- Required Accessories High Pass Filter - 100 Hz, 24 dB /octave, Digital Signal Processor
- Recommended AmplifiersR.25-94Z: 200W - 400W @ 8 Ohms, (40V - 57V)
- Physical
- Input Connection: 16-2 SJOW cable (12 ft / 4m), with stripped ends
- Controls
- R.25-94Z: None
- R.25-94TZ: 4-position tap selection rotary switch (behind plug)
- Mounting Points: Five (5) M8 rigging points, 1-3/8” pole mount socket
- Environmental: IP55W per IEC 529, designed to MIL-STD-810G
- Dimensions (HxWxD): 11.3x11.3x13.3" (287x287x338 mm)
- Weight
- R.25-94Z: 20 lbs (9.1 kg) with included yoke
- R.25-94TZ: 23 lbs (10.4 kg) with included yoke
