• Community R.35-3896 8-Inch Ultra-Compact 3-Way Speaker
1 1

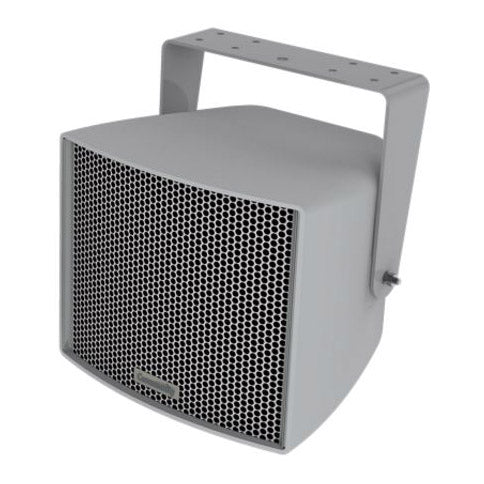

Community R.35-3896 3-Way 8-Inch Weather-Resistant Speaker

Community R.35-3896 3-Way 8-Inch Weather-Resistant Speaker

SoundPro Item: 62623 | Part Number: R.35-3896

$1,050.00
$1,050.00 $1,050.00
Your Price Sold out
MSRP: $1,050.00 | MAP: $1,050.00

Usually ships in 5-7 business days

  • Triaxial 8-inch Carbon Ring Cone loudspeaker
  • MultiSource Waveguide™ technology
  • 1-inch exit HF compression driver into a single coherent source
  • Fully passive
  • Class-leading SPL levels
Log in or register for YOUR best price

The R.35-3896, housed in the same size enclosure as the 10-inch R.35COAX, is a triaxial 8-inch Carbon Ring Cone loudspeaker featuring Community’s exclusive MultiSource Waveguide™ technology which adeptly integrates the output from dual midrange compression drivers and a 1-inch exit HF compression driver into a single coherent source. Fully passive, the R.35-3896 is voiced for flat musical reproduction without EQ and delivers class-leading SPL levels for a loudspeaker of its size.

View full details
  • Operating ModePassive, Selectable Low Impedance or 70V/100V
  • Operating Environment Indoor or Weather-Resistant Outdoor
  • Operating Range [2] 80 Hz to 16 kHz
  • Nominal Beamwidth (HxV) 90° x 60°
  • Transducers
    • LF 1 x 8" (203mm) Carbon ring cone with hydrophobic treatment, 3" (76mm) Voice Coil
    • MR 2 x 2.35" (60mm) MultiSource Waveguide™ compression drivers
    • HF 1 x 1" (25mm) exit polymer diaphragm compression driver
  • Continuous Power Handling[3] @ Nominal ImpedancePassive: 56V; 400W @ 8 Ohms (1600W peak)
  • Autoformer Taps
    • 70V: 200W,100W, 50W, 25W
    • 100V: 200W,100W, 50W
  • Nominal Sensitivity [4]
    • Passive
    • Music: @ 1W: 98dB; @ 2.83V: 98 dB
    • Voice: @ 1W: 100 dB; @ 2.83V: 100 dB
  • Nominal Maximum SPL[5] (Whole Space)
    • Passive
    • Music
      • Peak: 130 dB
      • Continuous: 124 dB
    • Voice
      • Peak: 132 dB
      • Continuous: 126 dB
  • Equalized Sensitivity[6]
    • System
    • Music
      • @ 1W: 97 dB
      • @ 2.83V: 97 dB
  • Equalized Maximum SPL[7]
    • System
    • Music
      • Peak: 129 dB
      • Continuous: 123 dB
  • Required AccessoriesHigh Pass Filter - 80 Hz, 24 dB /octave, Digital Signal Processor
  • Recommended Amplifiers 400W - 800W @ 8 Ohms, (56V - 80V)
  • Physical
    • Input Connection: NL4 Speakon-type connector (low impedance only), and 7-position terminal strip for low impedance or constant voltage operation
    • Controls: Music / Voice switch, 70V/100V operation jumper
    • Mounting Points: Two (2) M8 rigging points
    • Environmental
      • IP55W per IEC 529, designed to MIL-STD-810G Color-matched
      • ABS plastic input panel weather cover with 13.5mm ID gland nut installed in .82" knockout
    • Dimensions (HxWxD): 11x13x13.5" (279x330x343 mm)
    • Weight: 34 lbs (15.4 kg) with included yoke
