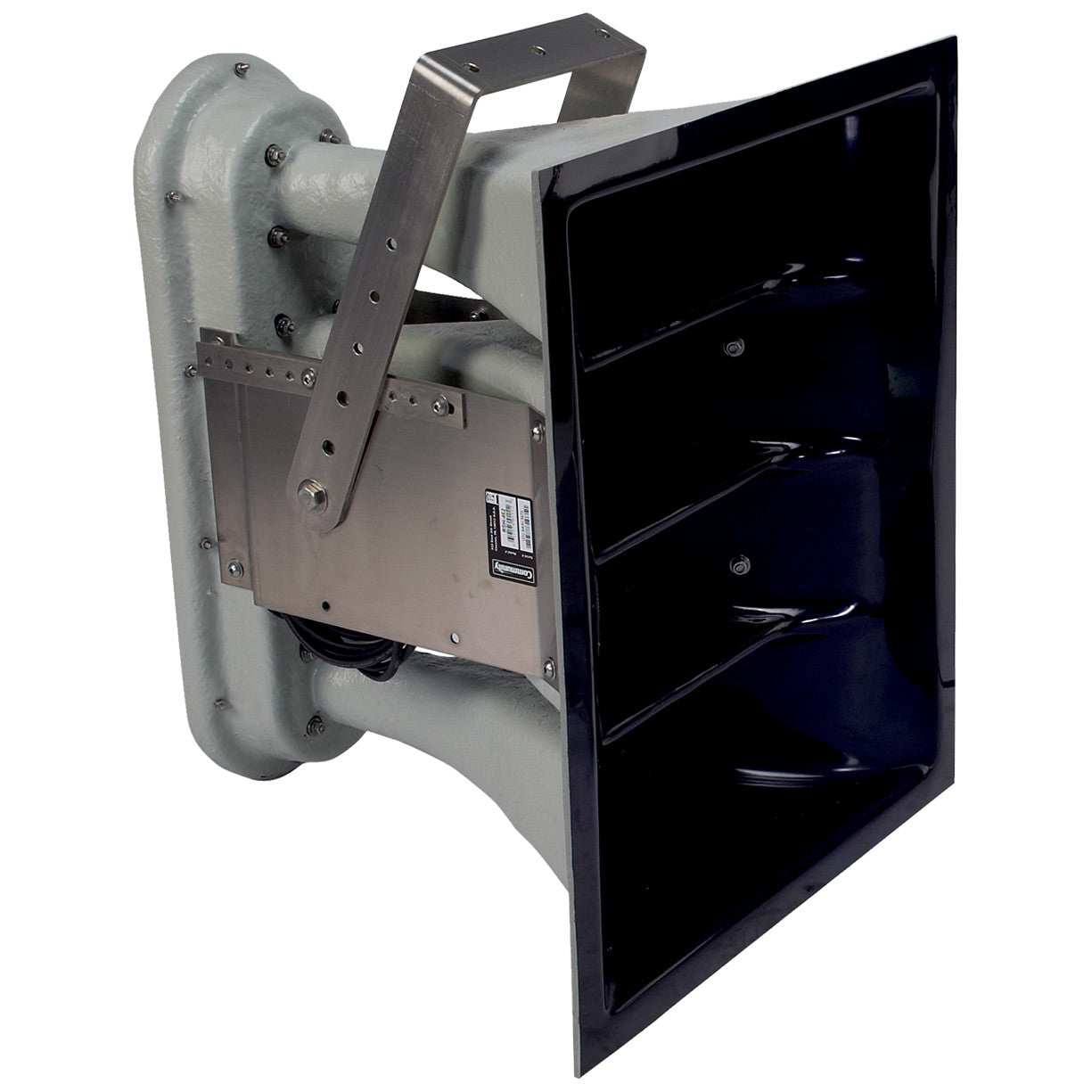

• Community RSH-462 Exponential Focused Array High Level Horn System
1 1

Community RSH-462 Horn Speaker

Community RSH-462 Horn Speaker

SoundPro Item: 63262 | Part Number: RSH-462

$3,852.00
$3,852.00 $3,852.00
Your Price Sold out
MSRP: $3,852.00 | MAP: $3,852.00

Usually ships in 5-7 business days

  • 4x 2-inch (51mm) throat exit
  • High efficiency, high power output
  • Non-metallic diaphragms
  • Highly resistant to harsh environments
  • IP65W rating per IEC 60529
Log in or register for YOUR best price

The RSH-462 is Community’s highest efficiency, longest projection distance loudspeaker system, also designed for use in standalone voice-range sound reinforcement, announcement and signaling applications. It is ideal for very long projection voice and critical emergency warning notification systems. Four inherently weather-resistant M200 midrange compression drivers, mounted on Community’s proprietary FocusedArray™ 60° x 20° exponential waveguide, provide extremely high-output sound reproduction from 400 Hz to 8 kHz with unrivaled vocal clarity and very low distortion. A robust, hot-dipped galvanized steel, locking mounting bracket is included with the RSH-462.

View full details
  • Loudspeaker TypeExponential FocusedArray™ Horn System
  • Operating Range
    • 400 Hz to 8 kHz
    • 600 Hz to 4 kHz (± 4dB)
  • Max Input Ratings
    • 300W continuous, 750W program
    • 49 volts RMS, 110 volts momentary peak
  • Recommended Power Amplifier630W to 900W @ 8 ohms
  • Usable LF Limit400 Hz
  • Throat Entrance Diameter4 x 2”
  • Axial Sensitivity (1W/1m)
    • 118 dB SPL (600 Hz to 4 kHz 1/3 octave bands)
    • 117 dB SPL (250 Hz to 4 kHz speech range)
  • Maximum Output143 dB SPL / 150 dB SPL (peak)
  • Nominal Impedance11 ohms
  • Minimum Impedance10.8 ohms @ 570 Hz
  • Nominal –6dB Beamwidth
    • 60°H (+1° / -4°, 1600 Hz to 4000 Hz)
    • 20°V (+20° / -0°, 1600 Hz to 4000 Hz)
  • Axial Q 27.5 1.6 to 4 kHz
  • Axial DI14.4
  • Required Signal Processing
    • 400 Hz high pass filter (24 dB/Oct)
    • 8 kHz low pass filter (12 db/Oct)
    • (for 4 x M200 driver standalone)
  • Construction
    • Hand laminated, reinforced composite fiberglass
    • Interior: Black gelcoat
    • Exterior: Grey gelcoat
  • Drivers4 x M200 ferrofluid-cooled
  • Environmental PerformanceIEC529 IP66W rating with a minimum 5-degree downward aiming angle
  • Dimensions (HxWxD)28.5x24.5x22.5" (723.9x622.3x571.5mm)
  • Weight (loudspeaker)54.2 lbs (24.58 kg)
  • Weight (loudspeaker with bracket assembly)71.3 lbs (32.34 kg)
  • Shipping Weight82 lbs (37.2 kg)
