• Community V2-26 2x6 2-Way Full-Range Compact Speaker
1 1

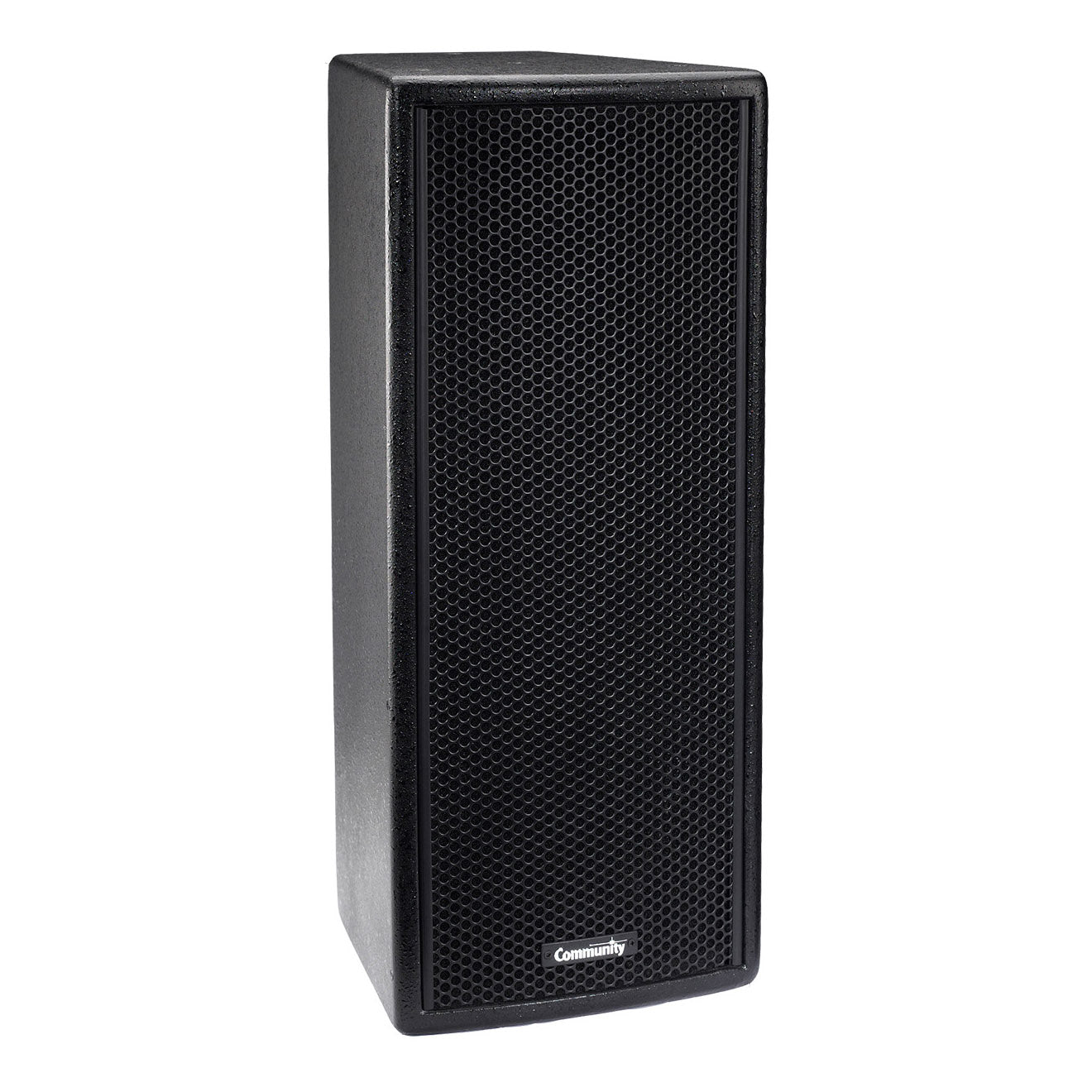

Community V2-26 2x6-Inch Surface Mount Install Speaker | Color: Black

Community V2-26 2x6-Inch Surface Mount Install Speaker | Color: Black

SoundPro Item: 66287 | Part Number: 911.1308.900

$876.00
$876.00 $876.00
Your Price Sold out
MSRP: $876.00 | MAP: $876.00

Usually ships in 5-7 business days

  • High fidelity, broad spectrum sound
  • Rotatable horn for optimal dispersion
  • Carbon Ring Cone Technology and DYNA-TECH™ protection circuitry
  • Ideal for distributed systems or ancillary delay and fill
  • Frequency shaded woofers for smooth vertical pattern control
Log in or register for YOUR best price

The V2-26 is a two-way, full-range loudspeaker system suitable for use in a wide variety of fixed installations. This versatile model is ideal for distributed systems such as those found in cafés, restaurants, shopping centers and airports. With its powerful dual cone drivers, the V2-26 provides additional low frequency and midrange output over that of its sister product, the V2-6. When paired with a subwoofer such as the V2-212S, a V2-26 system will produce high-fidelity, broad spectrum sound that belies its modest size. In addition to distributed systems, the V2-26 is an excellent choice for ancillary delay applications. When used to augment a front-of-house system in venues such as auditoria, theaters and houses of worship, delay loudspeakers can significantly even out the difference in sound pressure level from the front of the room to the rear of the room. Units may be positioned for underbalcony fill, overbalcony fill, or simply placed towards the rear of the seating areas. By deploying V2-26 loudspeakers in such a manner, the system designer will have far greater control over relative levels and relative tonal response when commissioning and equalizing the installation.

The V2-26 may be mounted to a wall or ceiling surface using its included yoke bracket, suspended from its M6 threaded rigging points, or installed using a third-party mounting device. It includes a rotatable horn design that allows optimal dispersion in either vertical or horizontal mounting positions.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
22.5x9.8x10.1" (573x249x258mm)
Electrical
Minimum Impedance
3.5 ohms @ 220 Hz
Audio
Frequency Response
90 Hz to 16 kHz (+/-3dB)
Sensitivity (1W/1m)
92 dB (100 Hz to 12.5 kHz) free space
Crossover Frequency
1.3 kHz
Connectivity
Max Input Ratings
200W continuous, 500W program, 28.3 volts RMS, 56.7 volts momentary peak
Maximum Output
115 dB SPL / 121 dB SPL (peak)
Input Connection
NL4-compatible locking connector with terminal strip in parallel
Construction
Enclosure
Trapezoidal (22.5° included angle) 18mm, 11-ply cross-laminated birch
Finish
Catalyzed polyester two-part paint, black or white
Grille
Powder coated steel, black or white finish
Incl. Bracket
28.1 lbs (12.7 kg)
General
Loudspeaker Type
Compact two-way, full-range, trapezoidal, vented bass, frequency shaded LF, user rotatable horn
Operating Range
70 Hz to 18 kHz (-10dB)
Nominal Impedance
4 ohms
Nominal –6dB Beamwidth
90° H x 70° V (in vertical position)
Recommended Signal Processing
80 Hz, 24 dB/octave Butterworth high pass filter
Drivers
LF 2 x 6.5-inch cone, HF 1 x 1-inch
Driver Protection
DYNA-TECH protection circuitry
Controls
None
Mounting/Rigging Provisions
9 x M6 threaded rigging fittings, 4 x M6 threaded fittings for third-party suspension products
Required Accessories
None
Supplied Accessories
Yoke-style mounting bracket with optional, 10° and 20° standoffs that allow a 10° or 20° downward or upward vertical tilt
Optional Accessories
CMKIT ceiling mount kit, VB-TILT tilting bracket, VB-VY26 vertical yoke bracket, M6EYBLTKIT 6mm eyebolt kit
With Autoformer
30.1 lbs (13.7 kg)
Model Options
V2-26B (low impedance, black finish), V2-26W (low impedance, white finish), V2-26BT (built-in autofomer for 70V100V applications, black finish), V2-26WT (built-in autofomer for 70V100V applications, white finish)
