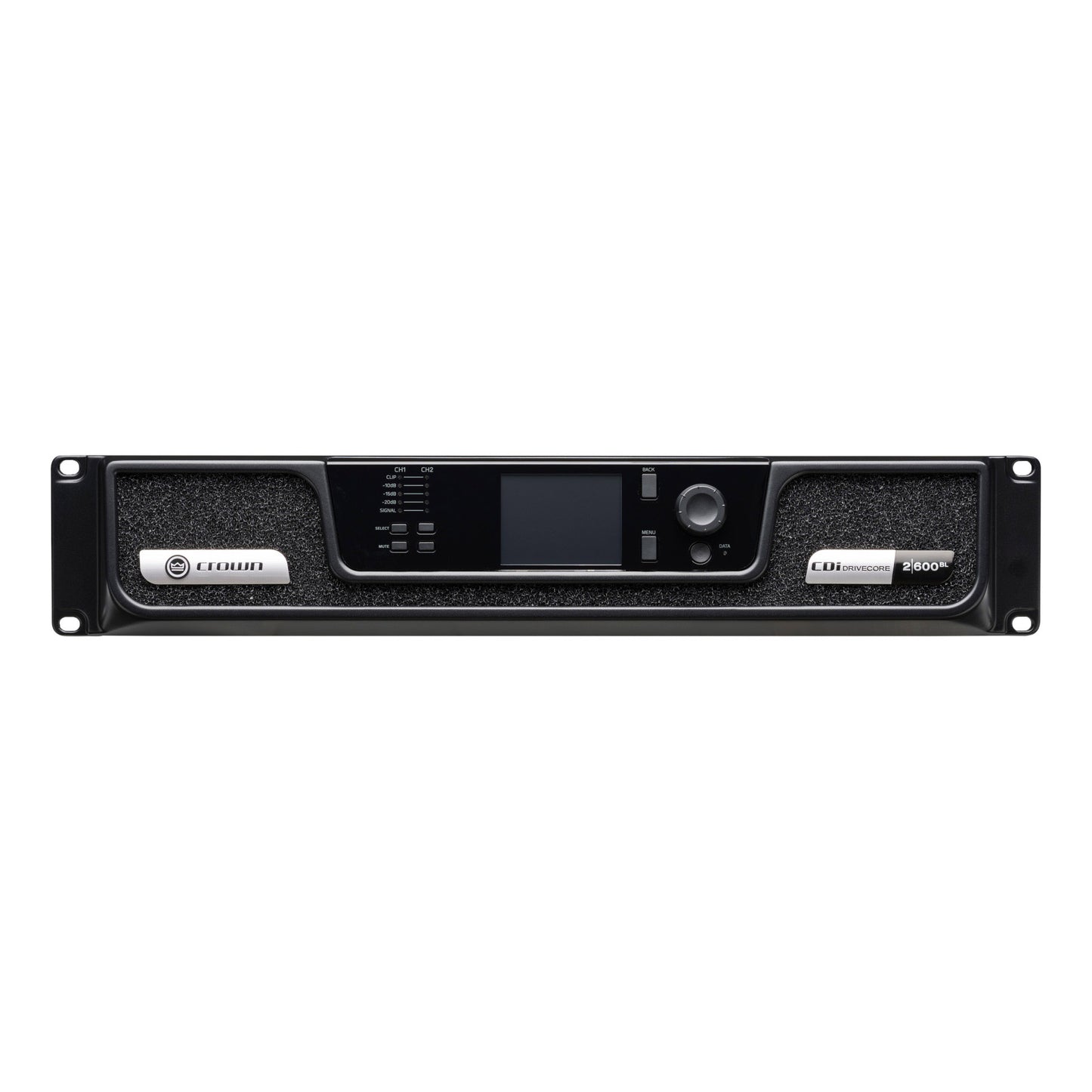

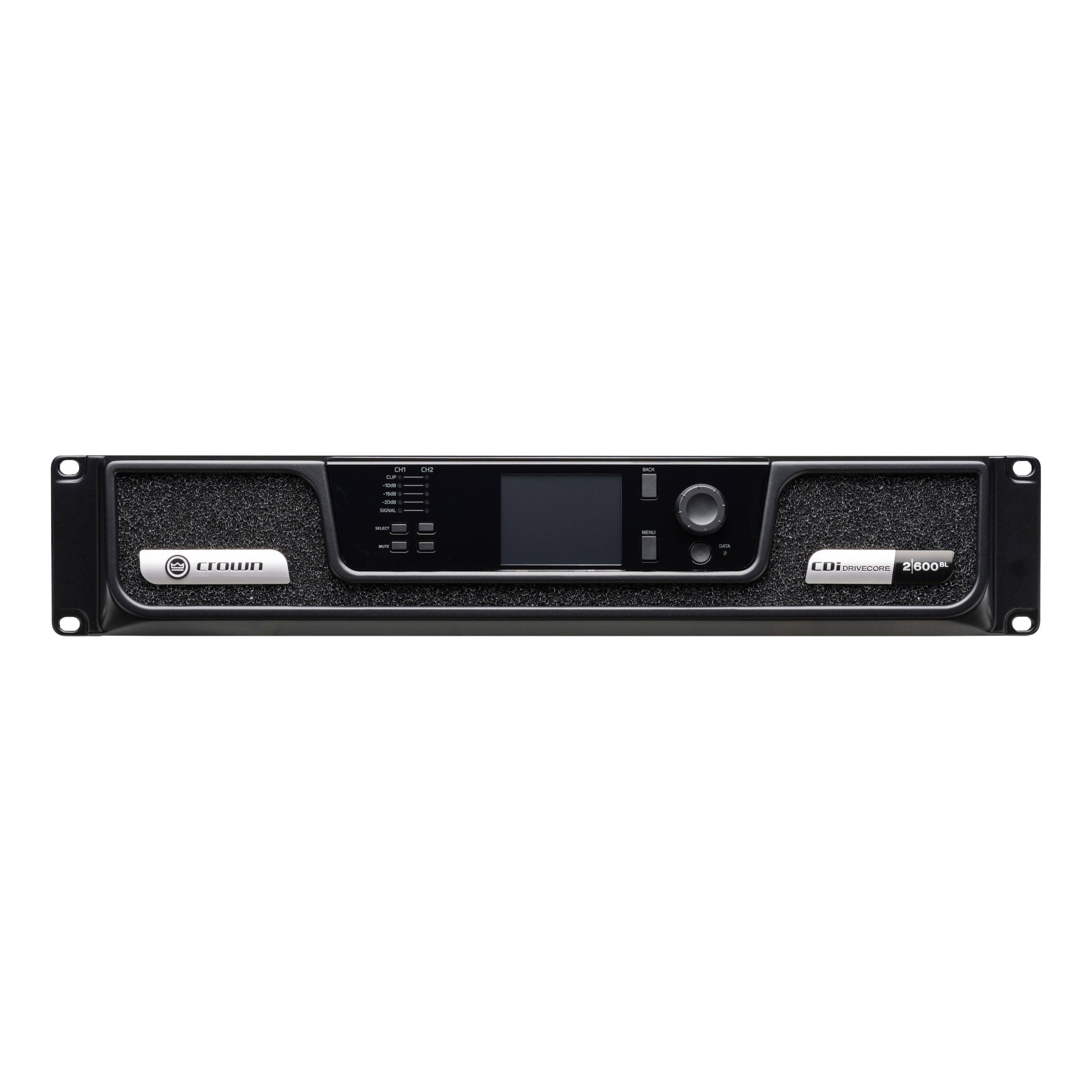

Crown CDi 2|600BL 2-Channel 70V Power Amplifier with BLU Link

Crown CDi 2|600BL 2-Channel 70V Power Amplifier with BLU Link

SoundPro Item: 81513 | Part Number: NCDI2X600BL-U-US

$2,555.00
$2,555.00 $2,555.00
Your Price Sold out
MSRP: $2,555.00 | MAP: $2,555.00

Usually ships in 5-7 business days

  • DriveCore™ technology
  • Network control and monitoring
  • DSP capabilities include input router, input and output delay, input and output parametric EQ, crossover, levelMAX limiter
  • BLU link
  • Direct drive 70/100Vrms output
  • GPIO/AUX port
  • Pre-loaded speaker tunings
Log in or register for YOUR best price

The Crown CDi 2|600BL 2-Channel 70V Power Amplifier with BLU Link provides an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from Crown's flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more. Designed for ease-of-use in a variety of applications, the CDi amps include network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. They also comes with BLU link, adding the ability to send and receive channels over HARMAN's digital audio BUS. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

View full details
  • DSP96kHz, 32-bit floating point
  • Voltage gain34 dB (at max level setting)
  • Frequency response+/-0.5dB (8Ω, 20Hz - 20kHz
  • BLU link signal to noise ratio>108dB (ref rated power, 100V, 20Hz-20kHz)
  • THD0.35% (at full rated power, from 20Hz-20kHz)
  • Analog input signal to noise ratio>104dB (ref rated power, 100V, 20Hz-20kHz)
  • Damping factor>1000 (20Hz to 20kHz)
  • Crosstalk>80 dB (below rated power, 20Hz to 1kHz)
  • Common mode rejection>70 dB (20Hz to 1kHz, typical)
  • Input impedance (nominal)20 kΩ balanced, 10 kΩ unblanced
  • Load impedance (stereo/dual mode)2Ω - 16Ω; 70Vrms and 100Vrms
  • Load impedance bridge mono4Ω - 16Ω; 140Vrms and 200Vrms
  • Max input level+20dBu (low amp gain mode)
  • Required AC mains (+/-10%)100V – 240V~ 50/60Hz
  • Coolingcontinuously variable speed forced air, front to back airflow
  • Max fan noise51dBA (re dB SPL @ 1M)
  • Power supply connectorstandard IEC type 320 inlet for detachable connector 100-240V~
  • Dimensions19" x 3.5" x 12.25"
  • Weight14.56 pounds (6.6 kg)
