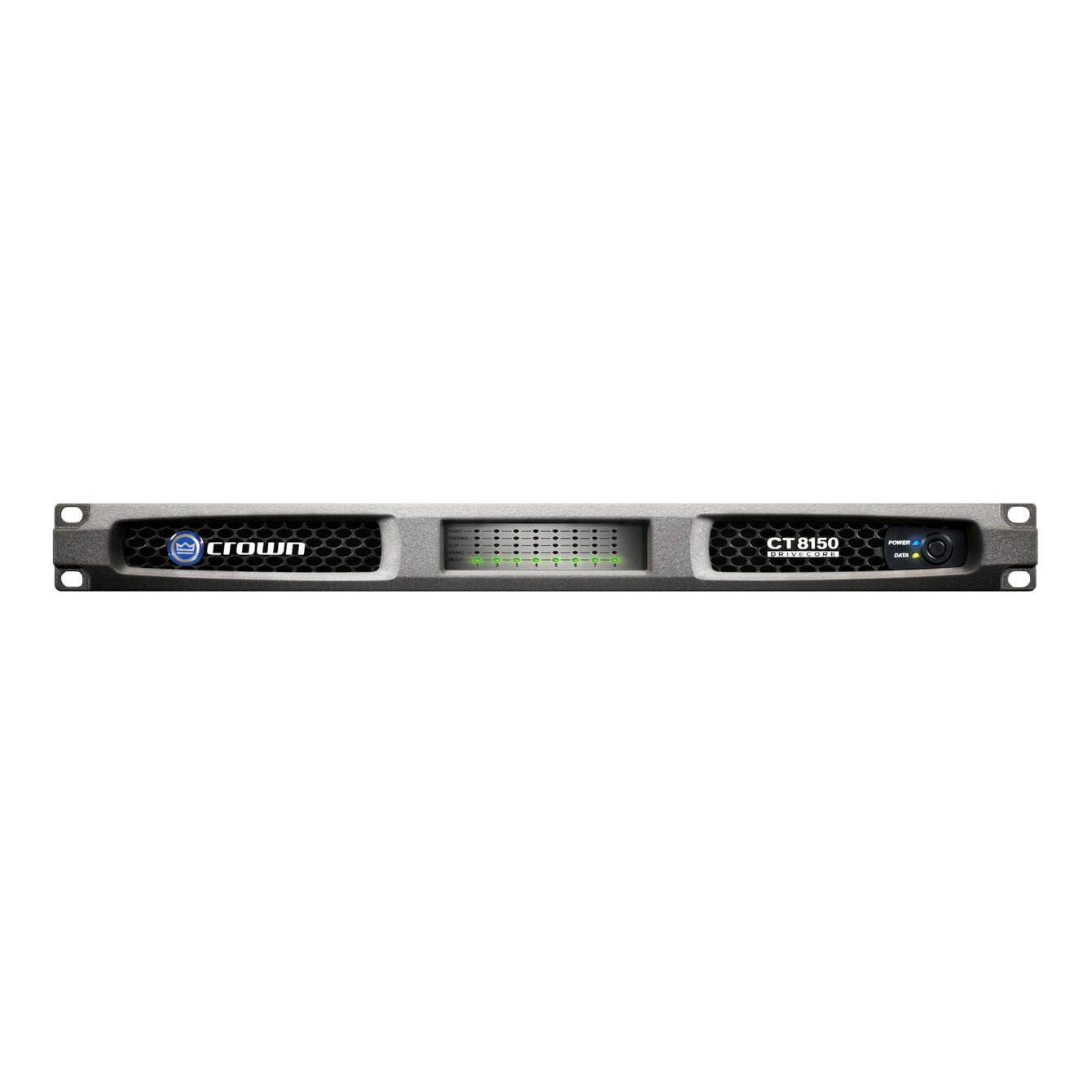

Crown CT 8150 8-Channel 125W Power Amplifier
Crown CT 8150 8-Channel 125W Power Amplifier
SoundPro Item: 47535 | Part Number: NCT8150A-U-US
Usually ships in 5-7 business days
- 8 channels
- 125W at 4Ω and 8Ω
- Flexible input routing
- Convection cooled
- Universal power supply
- Integrated life-safety features
- Up to 8X125W in 1U chassis with no fan
- DriveCore™ technology provides over 90% efficiency with no compromise in performance
- Patented feedback and protection circuits
- Amplifier is stable for 2-16 Ohm loads
- XFMR 4/8 needed for 70V/100V applications
The CT 8150 from Crown is an eight-channel, 125W power amplifier. Powering this remarkable amplifier is the pioneering technology of DriveCore™, which integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design.
- Sensitivity1.4V
- Rated power output (all channels driven)125W per CH @ 4 ohms, 125W per CH @ 8 ohms
- Signal to noise ratio110 dB (below rated power 20 Hz to 20 kHz, A-weighted)
- THD< 0.05% (full rated power, 20 Hz - 20 kHz)
- Intermodulation distortion< 0.05% (from 0 dB down to -30 dB)
- Frequency response+/- 0.5 dB (at 1W, 4/8 ohms)
- Crosstalk> 70 dB (below rated power) 20 Hz to 1 kHz
- Common mode rejection (20Hz to 1kHz)> 55 dB, typically > 70 dB
- Voltage gain27 dB
- DC offset+/- 20mV
- IEC power connector15A
- Dimensions1.75" x 19" x 15.2"
- Weight10 pounds (4.54 kg)
