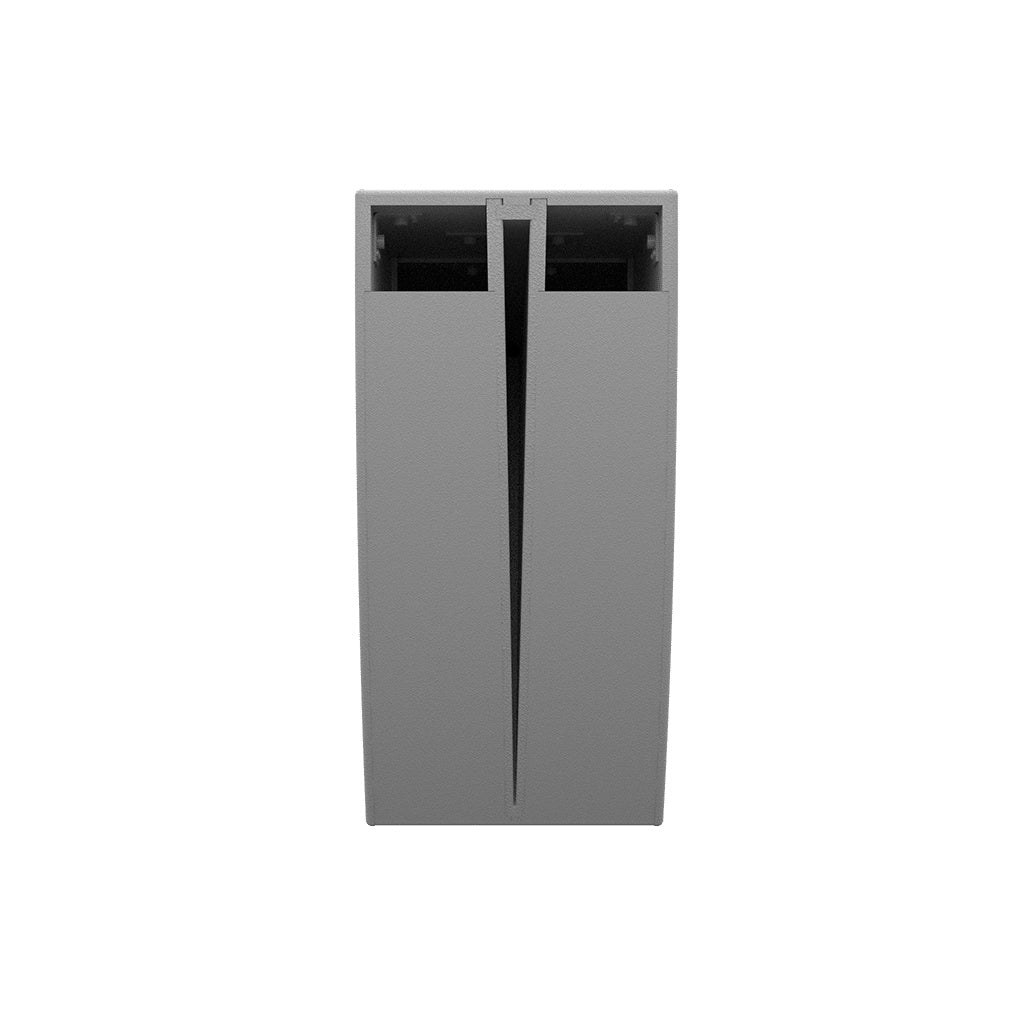

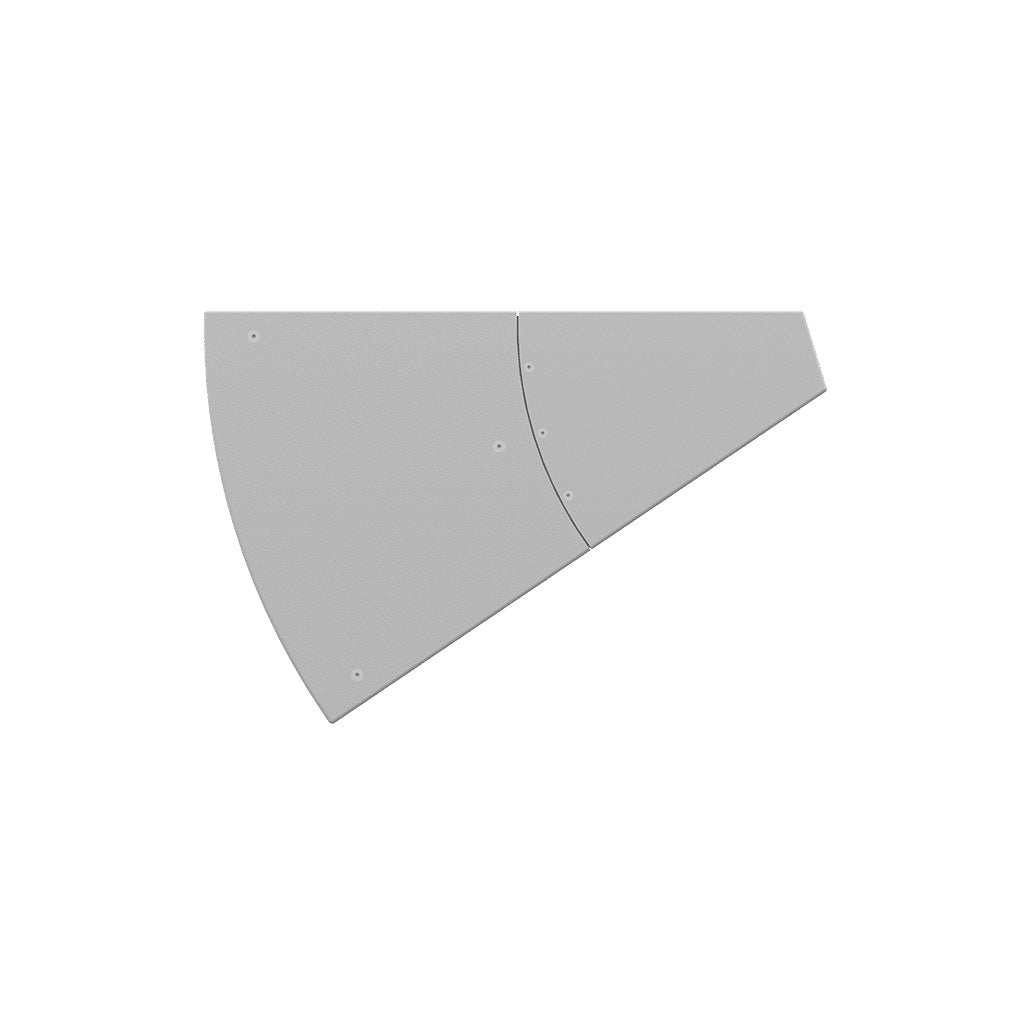

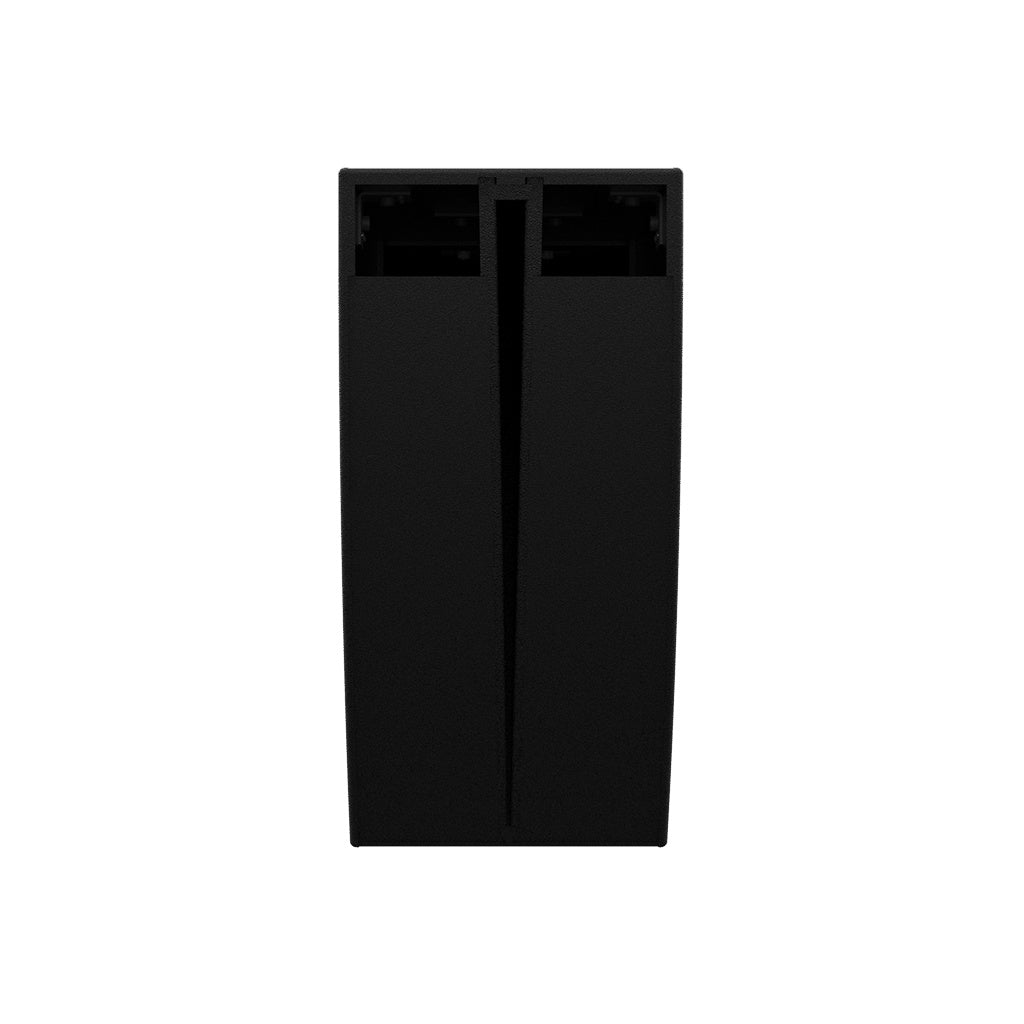

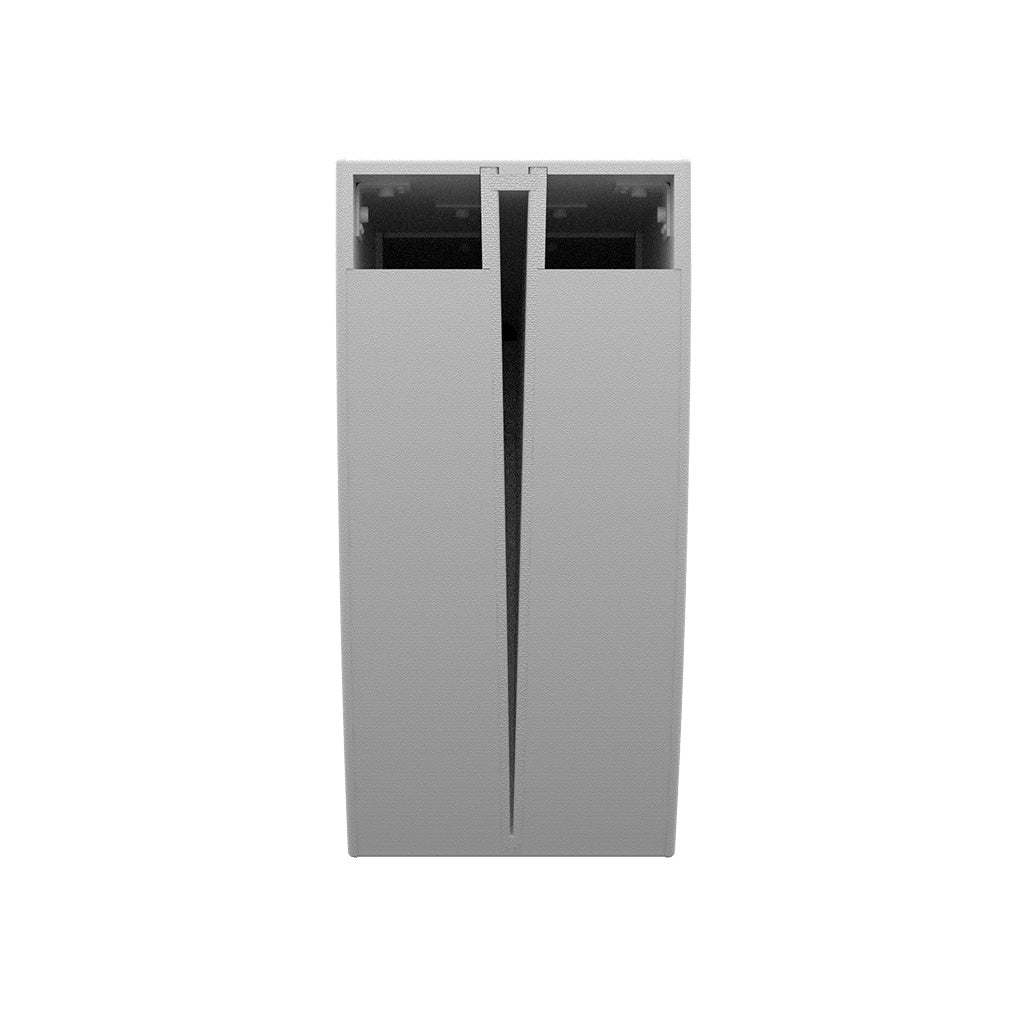

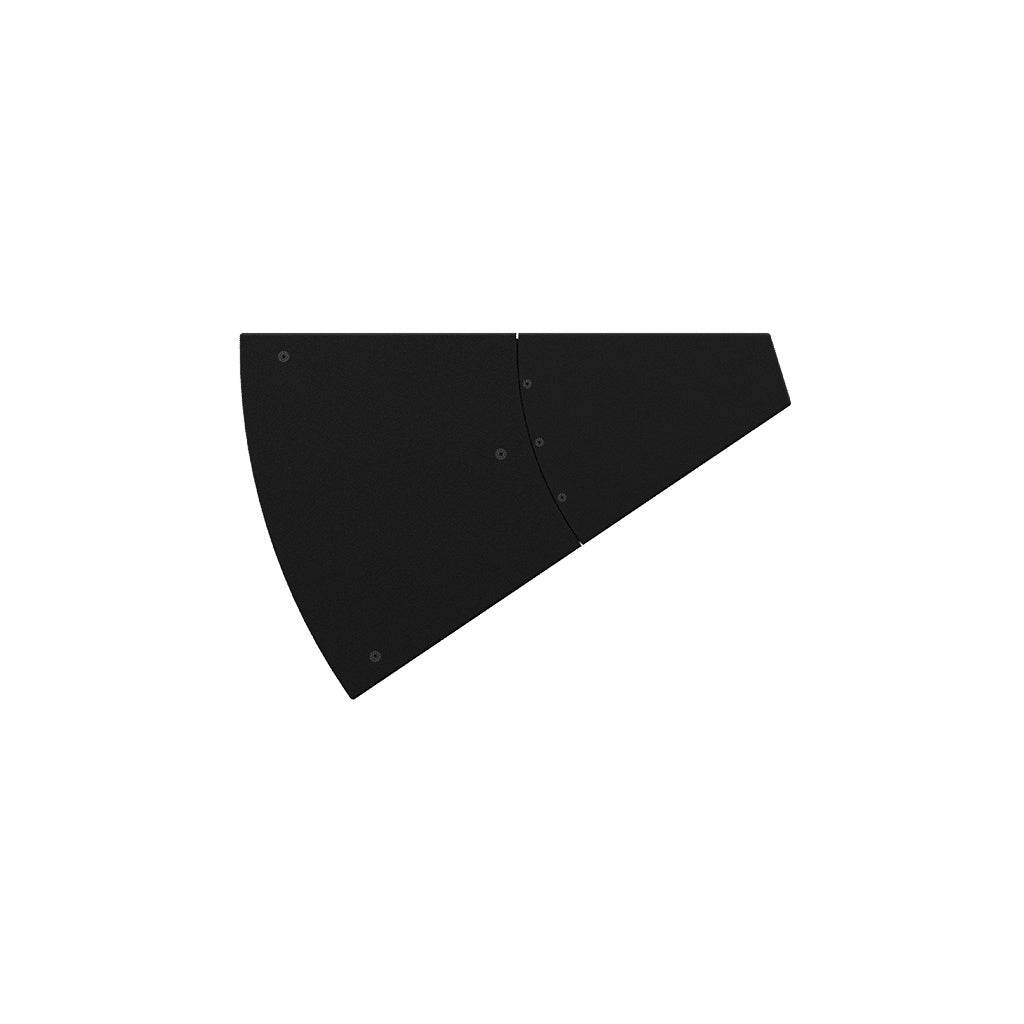

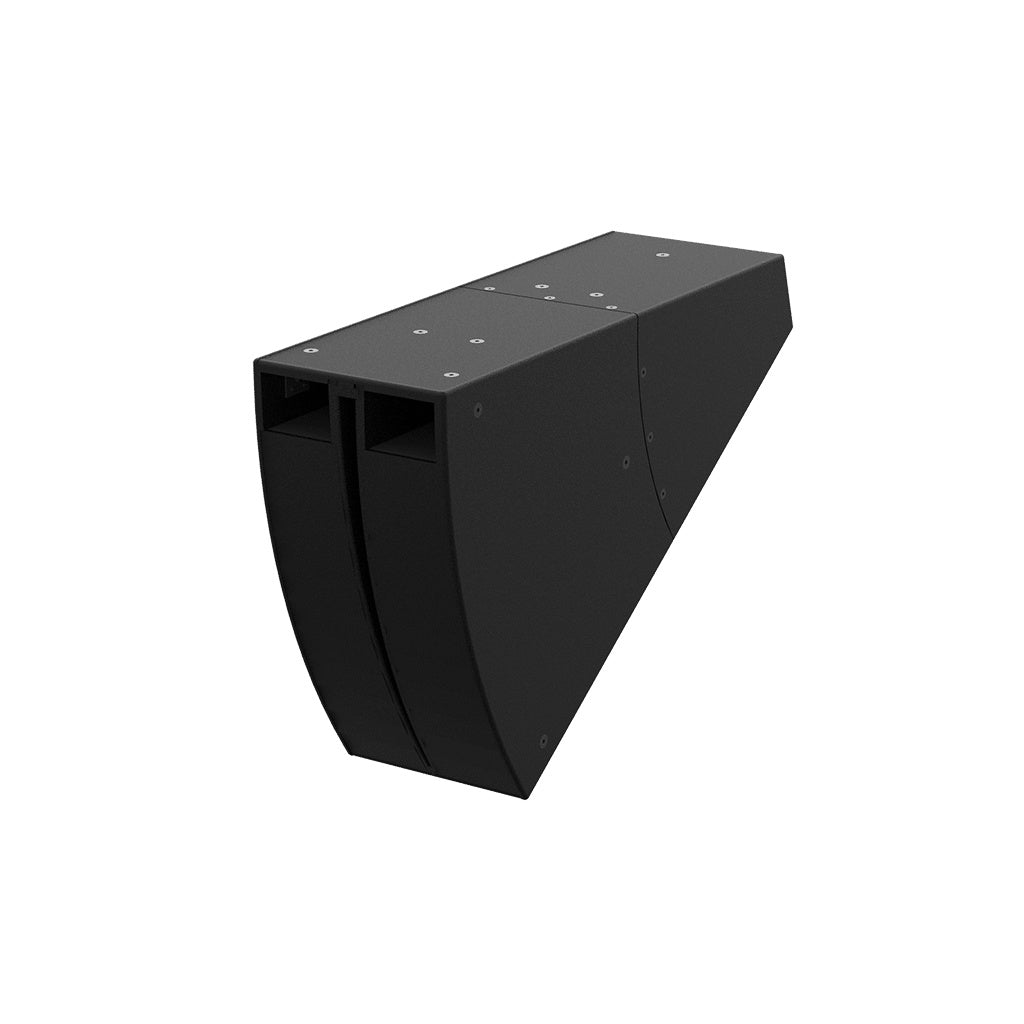

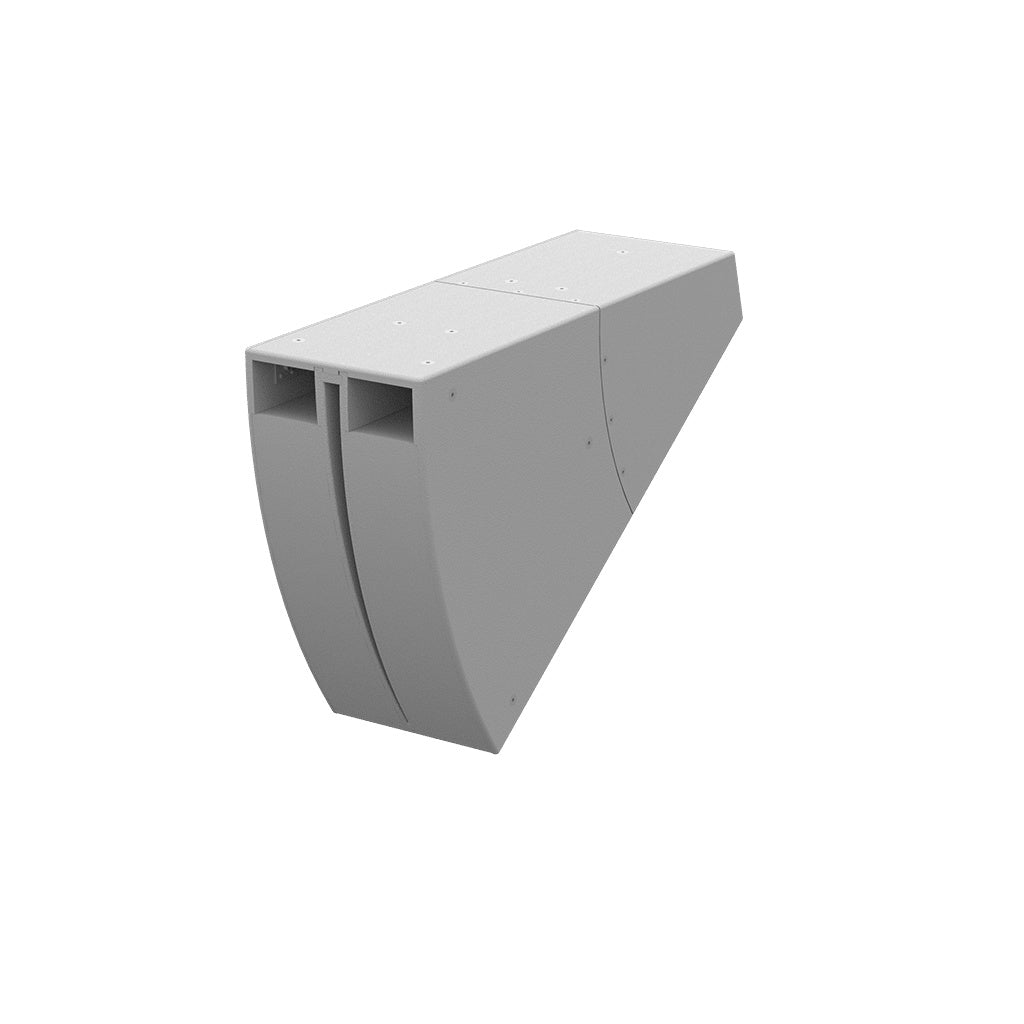

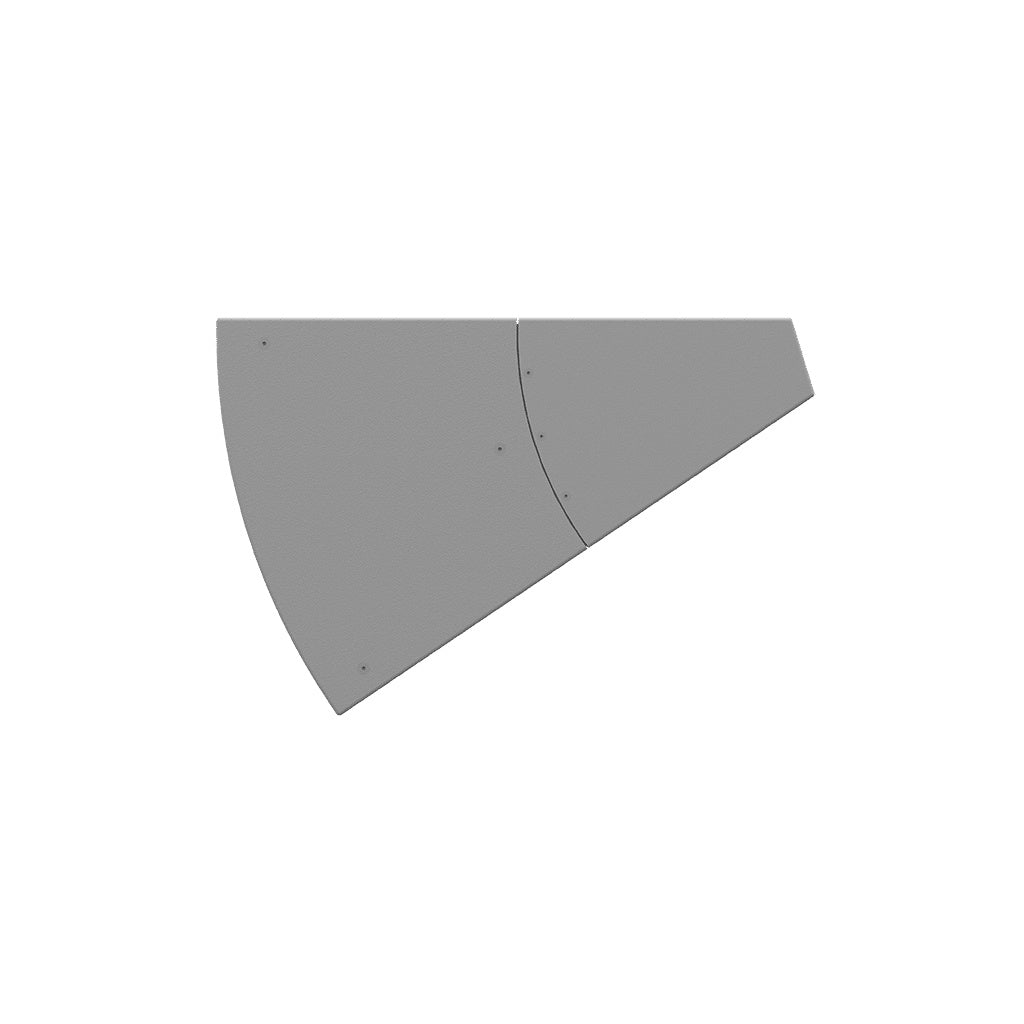

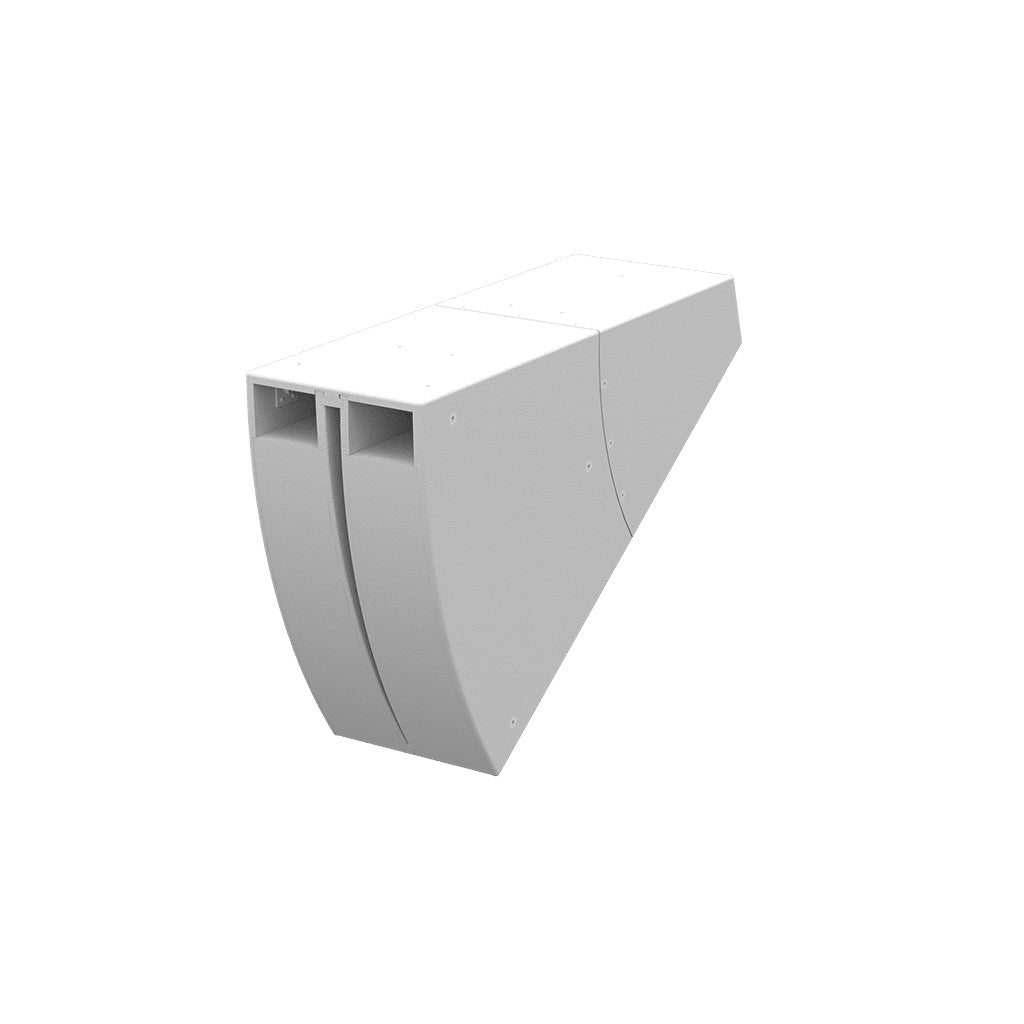

Danley SF1 Point Source Loudspeaker With Asymmetrical Horn

Danley SF1 Point Source Loudspeaker With Asymmetrical Horn

SoundPro Item: 204130 | Part Number: SF1-B

$4,963.75
$5,225.00 $4,963.75
Your Price Sold out
MSRP: $5,225.00 | MAP: $4,963.75

Usually ships in 5-7 business days

  • Asymmetrical vertical pattern aids even coverage
  • Wide horizontal dispersion suits broad audience areas
  • Synergy crossover supports coherent summation
  • Horn-loaded design improves distant intelligibility
  • Acoustic filtering helps limit unwanted distortion
Log in or register for YOUR best price

The Danley SF1 is built for installations and production environments where standard box speakers struggle to cover the room evenly. Its two-way design uses dual 8" low-frequency drivers and a 1" high-frequency compression driver in a horn-loaded format intended to maintain coherence across the listening area. For venues with unusual geometry or audience areas that vary significantly in depth, the SF1 addresses coverage consistency with an asymmetrical vertical pattern designed to keep front rows and far seats more balanced.

Danley’s approach places the drivers within the horn and uses a synergy crossover network to align frequency bands so they combine in time as they exit the enclosure. That design helps reduce off-axis irregularities and supports clear projection at distance, making the SF1 a strong fit for speech-focused systems, performance spaces, and other applications where intelligibility and tonal consistency matter across a wide audience area. Nearly 180-degree wide coverage further supports rooms that need broad horizontal reach without relying on excessive cabinet counts.

View full details

Specifications

General
Brand
Danley
MPN
SF1
Product Type
Loudspeaker
Performance
Coverage Pattern
160 horizontal 60 vertical
Operating Frequency Range
37 Hz – 14.7 kHz +/- 3dB; 31 Hz – 18 kHz – 10dB
Continuous Output
113 dB SPL
Peak Output
119 dB SPL
Sensitivity
89 dB SPL (2.83 Volts into rated Z, at 1 meter) Measured in whole space
Rated Impedance
4 ohms
Power Rating
500 Watts cont., 2000 Watts peak
Drivers
Driver Complement
Low/Mid 2 x 8″; High 1 x 1″
Physical
Dimensions
25″H x 12″W x 38″D
Weight
75 lbs
