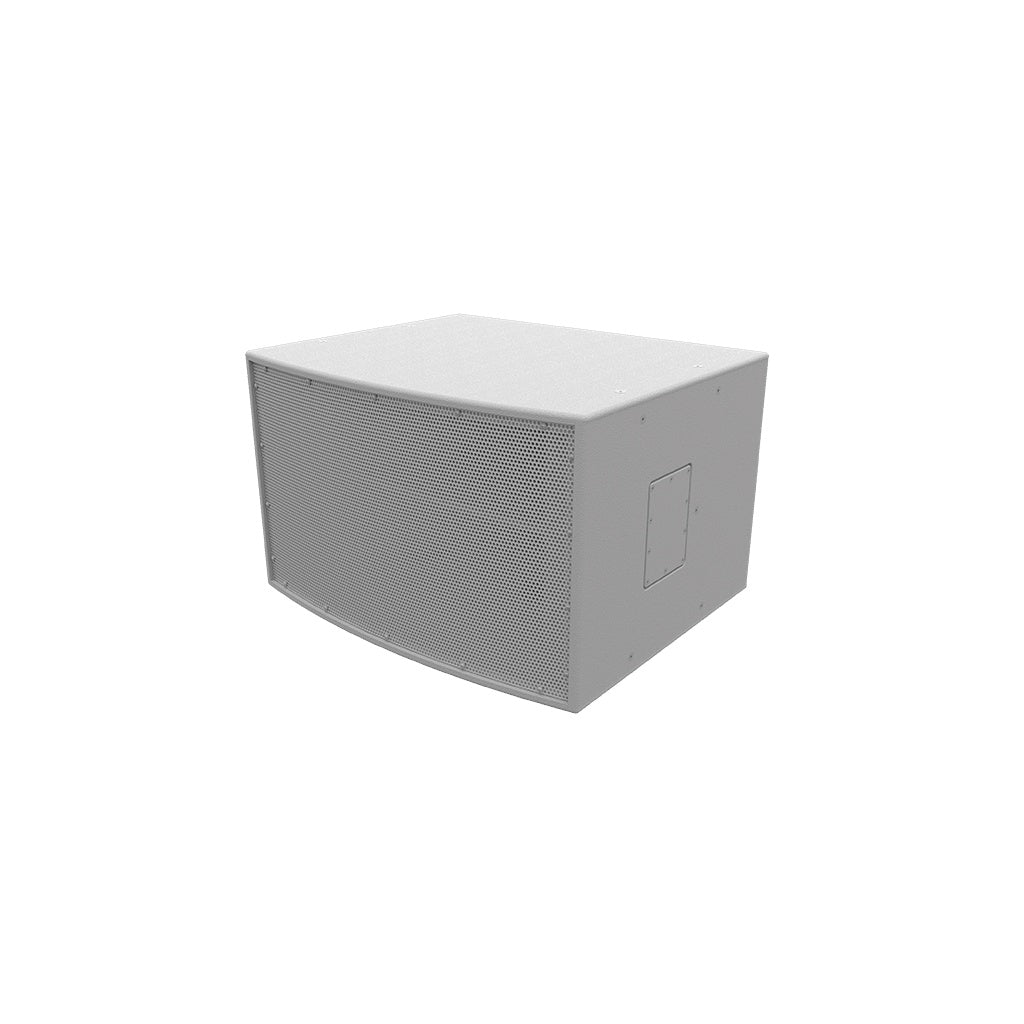

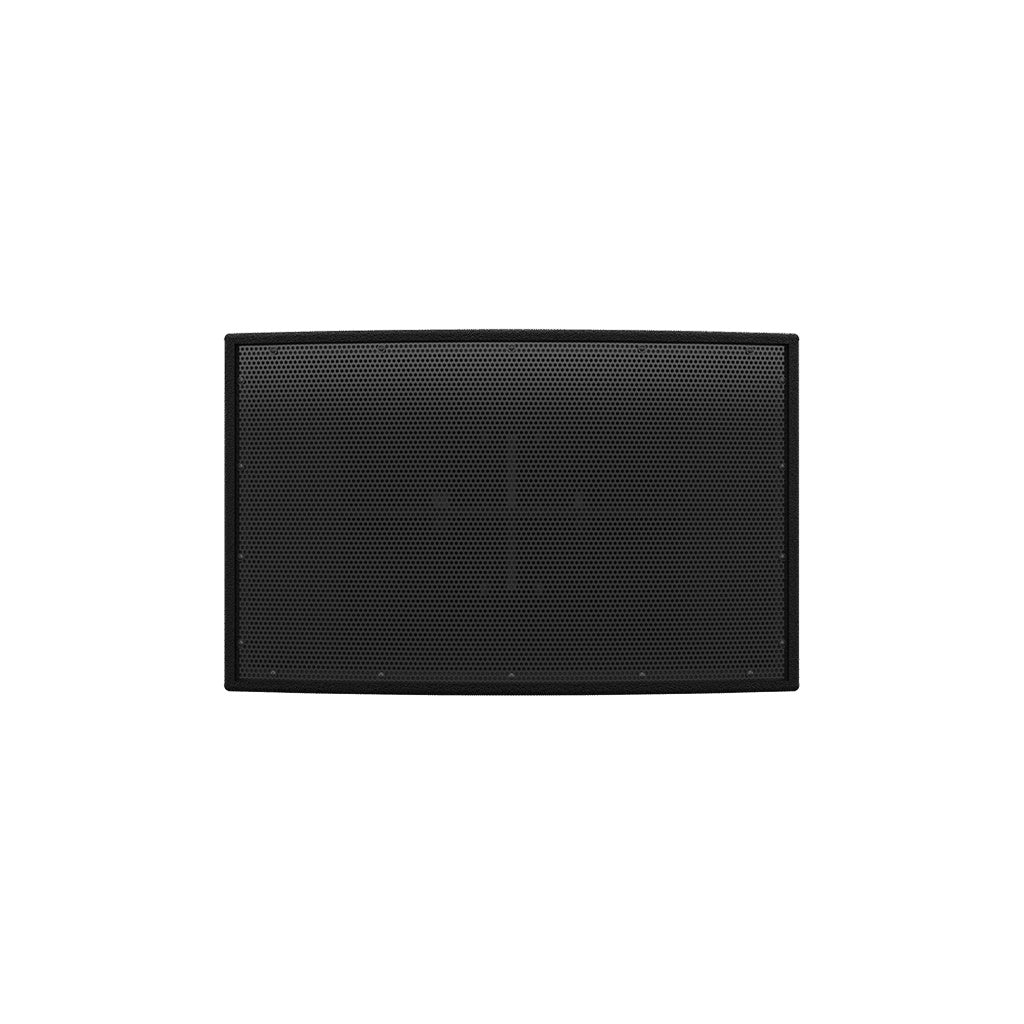

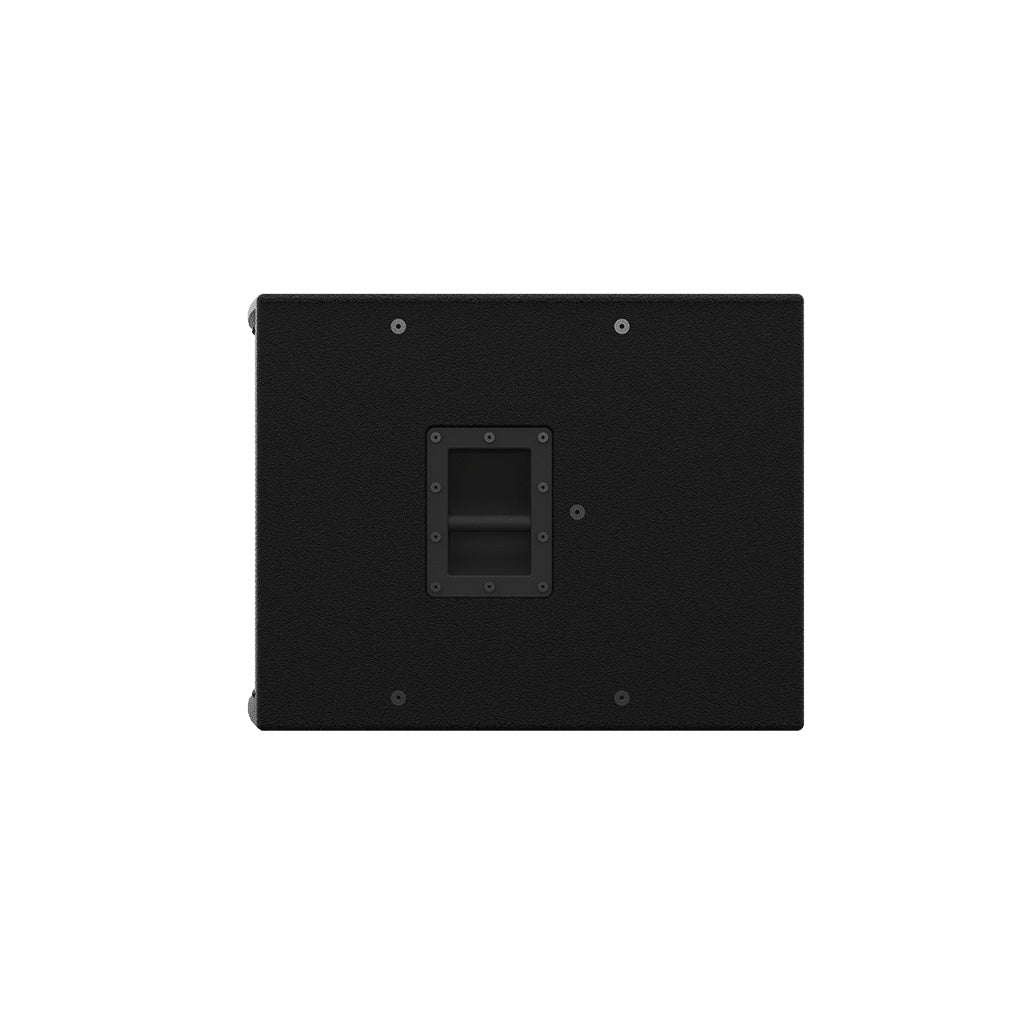

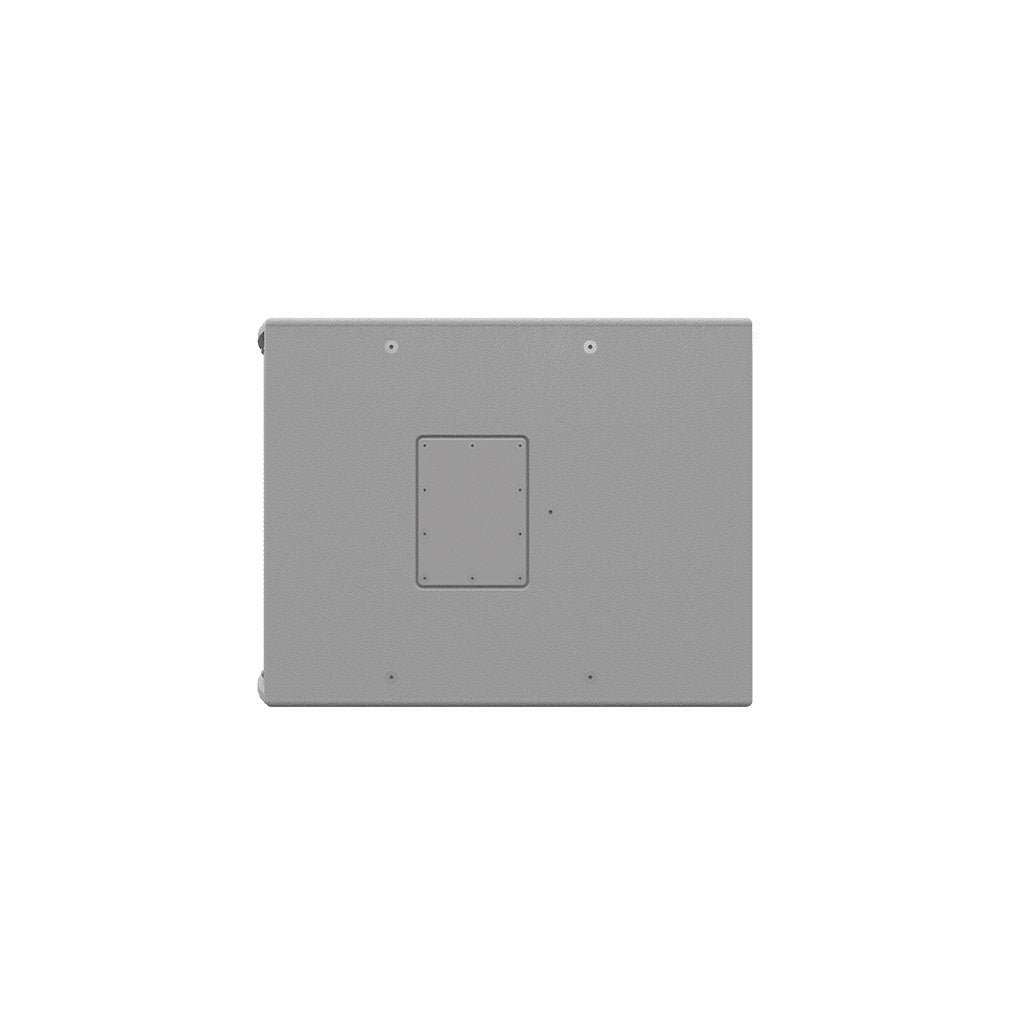

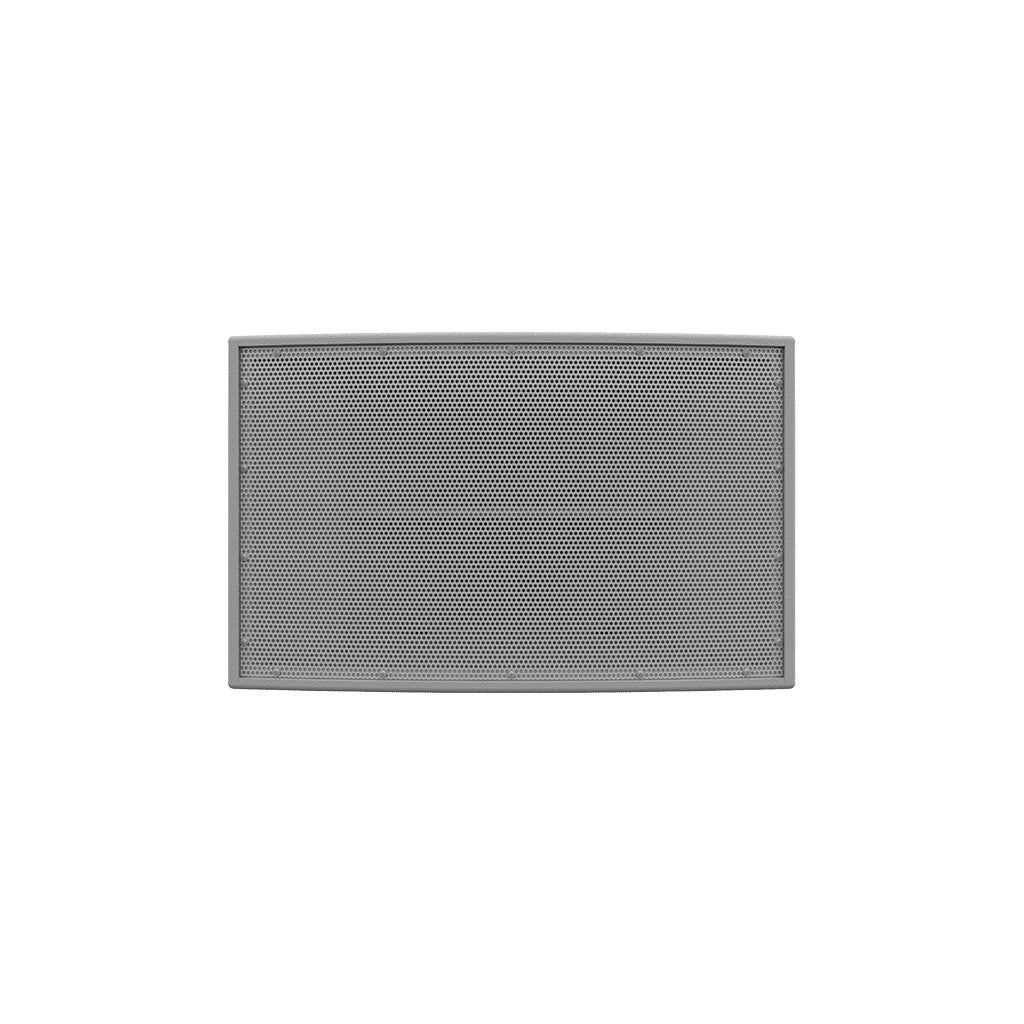

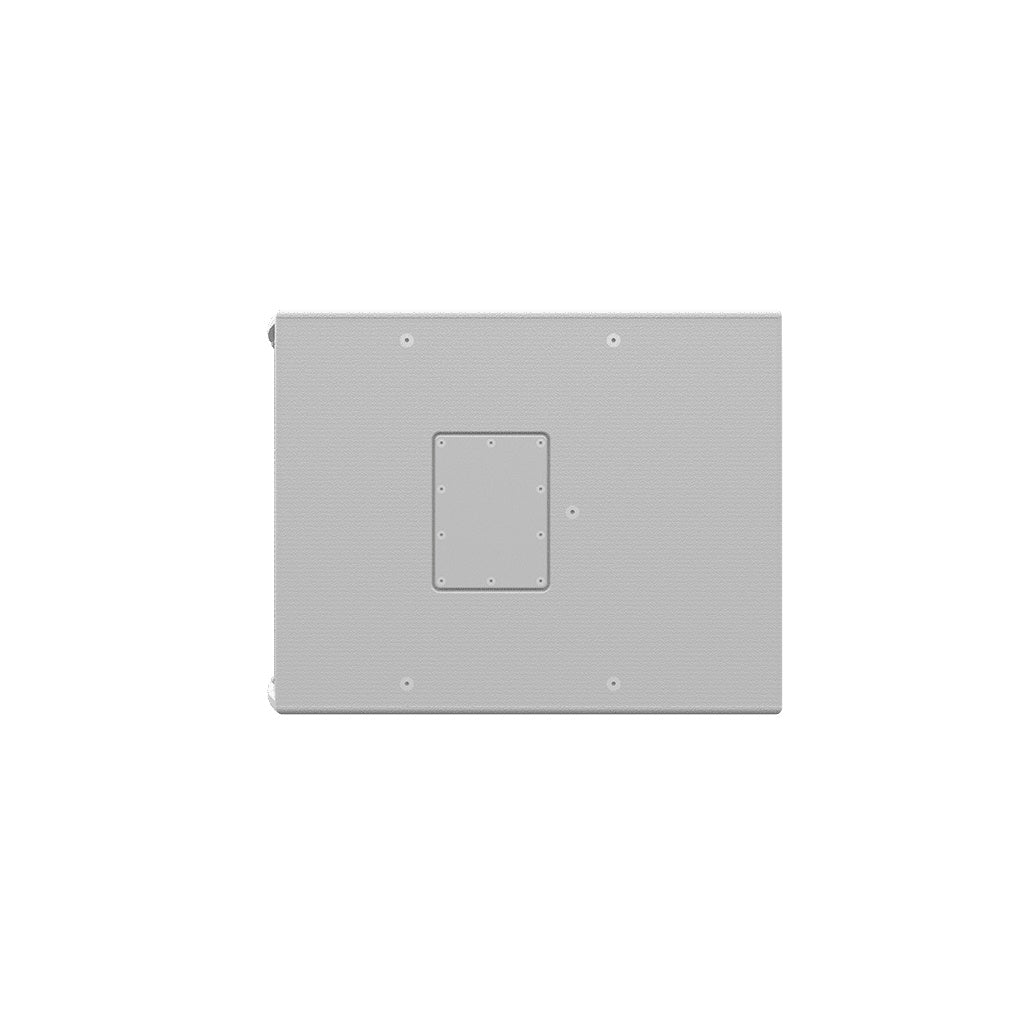

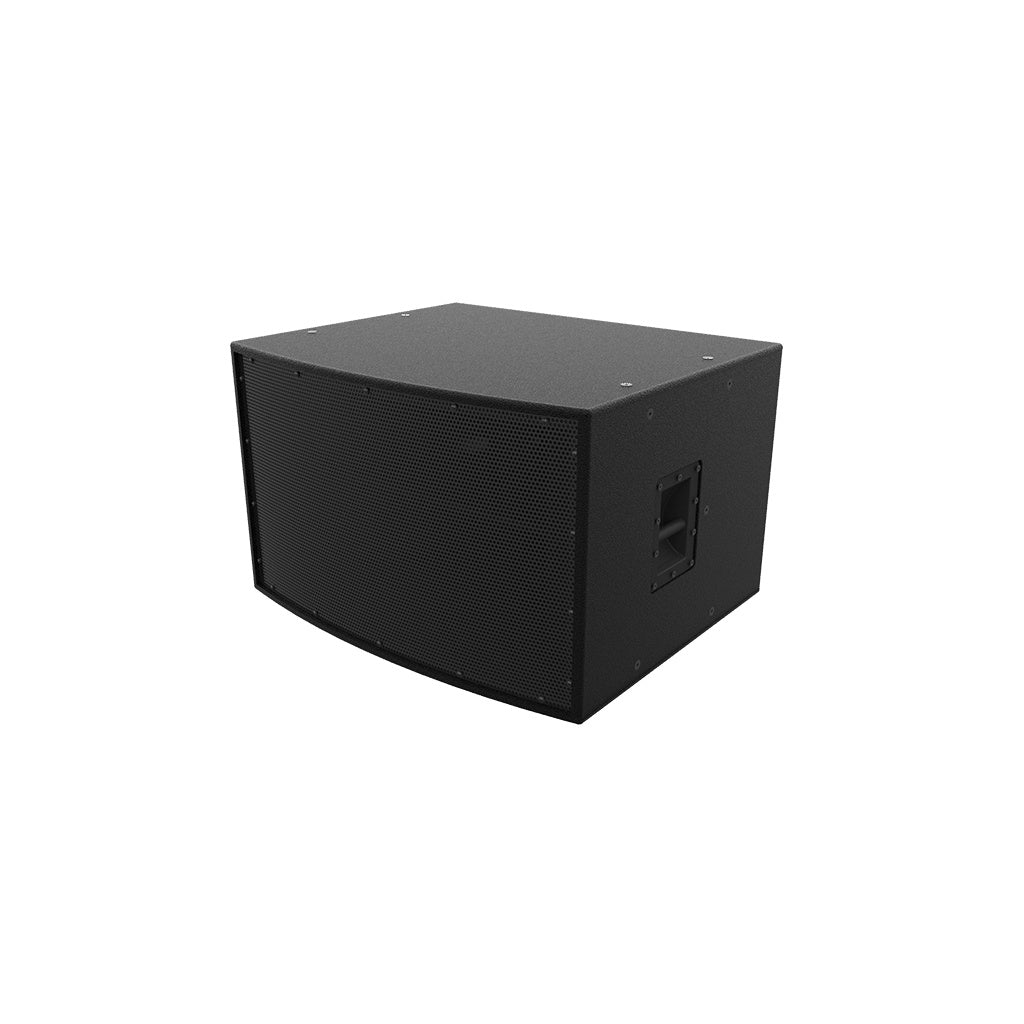

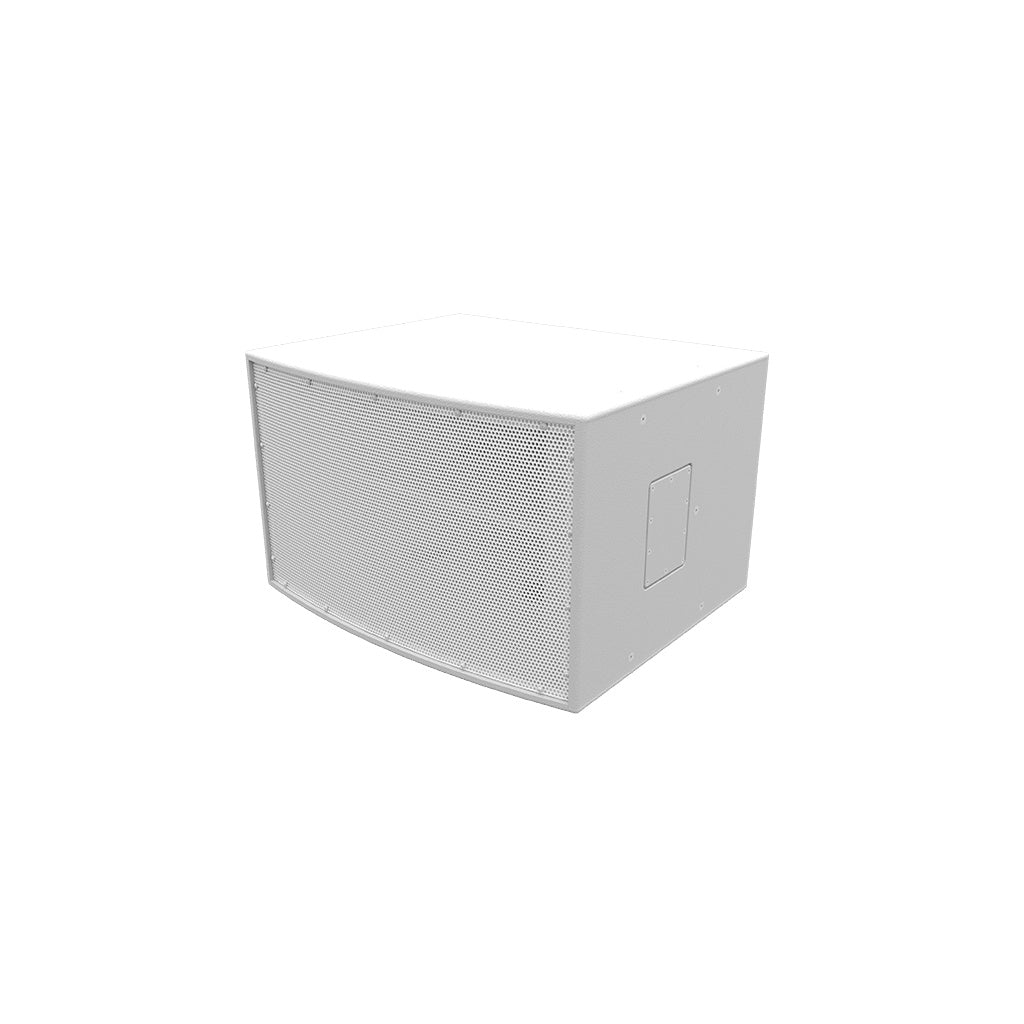

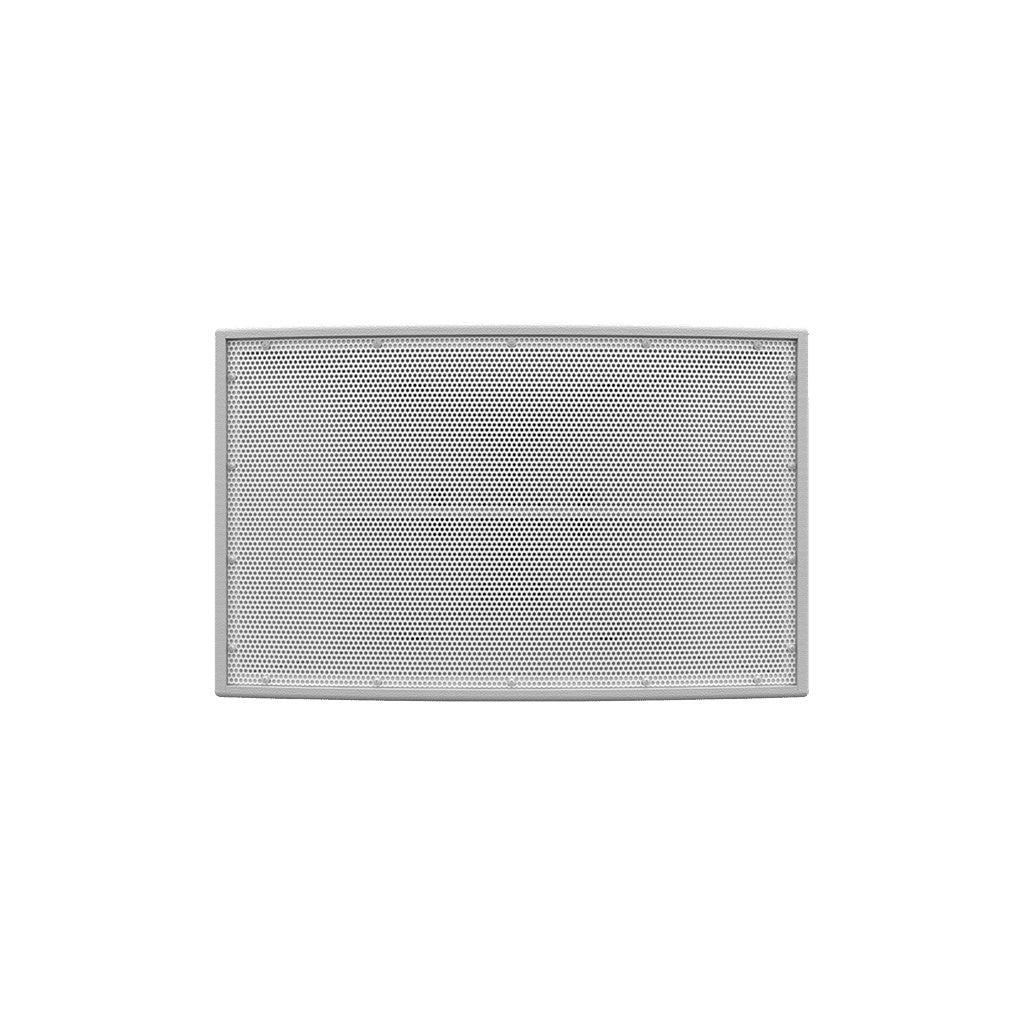

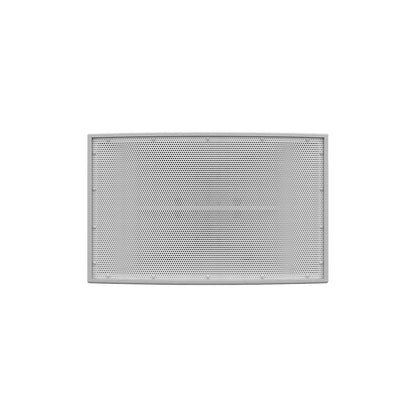

Danley SH62 Long-Throw Loudspeaker With 60° X 20° Coverage

Danley SH62 Long-Throw Loudspeaker With 60° X 20° Coverage

SoundPro Item: 204183 | Part Number: SH62-I-B

$14,541.65
$15,307.00 $14,541.65
Your Price Sold out
MSRP: $15,307.00 | MAP: $14,541.65

Usually ships in 5-7 business days

  • 60° x 20° pattern supports controlled projection
  • 138 dB continuous output for demanding spaces
  • 144 dB peak handles high-level program material
  • Passive or bi-amp setup adds system flexibility
  • Broad bandwidth supports speech and music use
Log in or register for YOUR best price

The Danley SH62 is a high-output full-range loudspeaker built for applications where long throw performance and a compact footprint both matter. Its 60° horizontal by 20° vertical coverage pattern helps direct energy where it is needed, making it a practical choice for rooms and venues that demand controlled projection over distance. With an operating range of 70 Hz to 18 kHz within ±3 dB and extension to 50 Hz to 20 kHz at -10 dB, it covers a broad bandwidth for speech and music reinforcement.

For demanding live sound and installed audio systems, the SH62 delivers substantial acoustic output with 138 dB SPL continuous and 144 dB SPL peak. Sensitivity is rated at 105 dB SPL at 1 meter, supporting strong output capability from available amplifier power. The driver complement includes dual 15" low-frequency drivers, six 6" mid-frequency drivers, and dual 1.4" high-frequency drivers in a single enclosure. Danley also notes the SH62 can be configured for passive and bi-amp modes, giving system designers additional flexibility when integrating it into larger sound reinforcement deployments.

View full details

Specifications

General
Brand
Danley
MPN
SH62
Product Type
Full-range loudspeaker
Performance
Coverage Pattern
60° horizontal x 20° vertical
Operating Frequency Range
70 Hz – 18 kHz +/- 3 dB; 50 Hz - 20 kHz -10 dB
Continuous Output
138 dB SPL
Peak Output
144 dB SPL
Sensitivity
105 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in whole space
Rated Impedance
4 Ohms
Power Rating
2000 Watts Cont.; 8000 Watts Peak
Drivers
Driver Complement
Low: 2 x 15″; Mid: 6 x 6″; High: 2 x 1.4″
Physical
Dimensions
22.5 x 36 x 30 inches; 58 x 92 x 76 cm
Weight
235 lbs; 106.5 Kg
