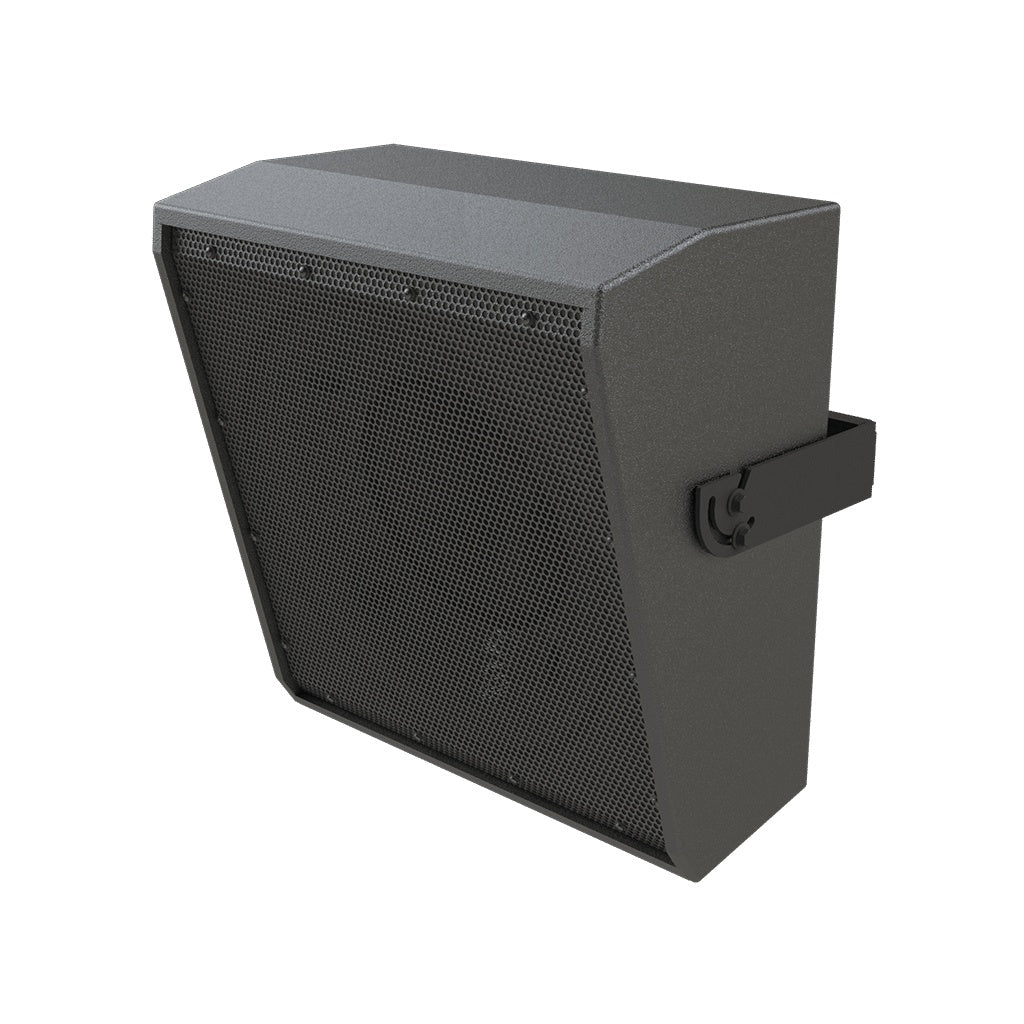

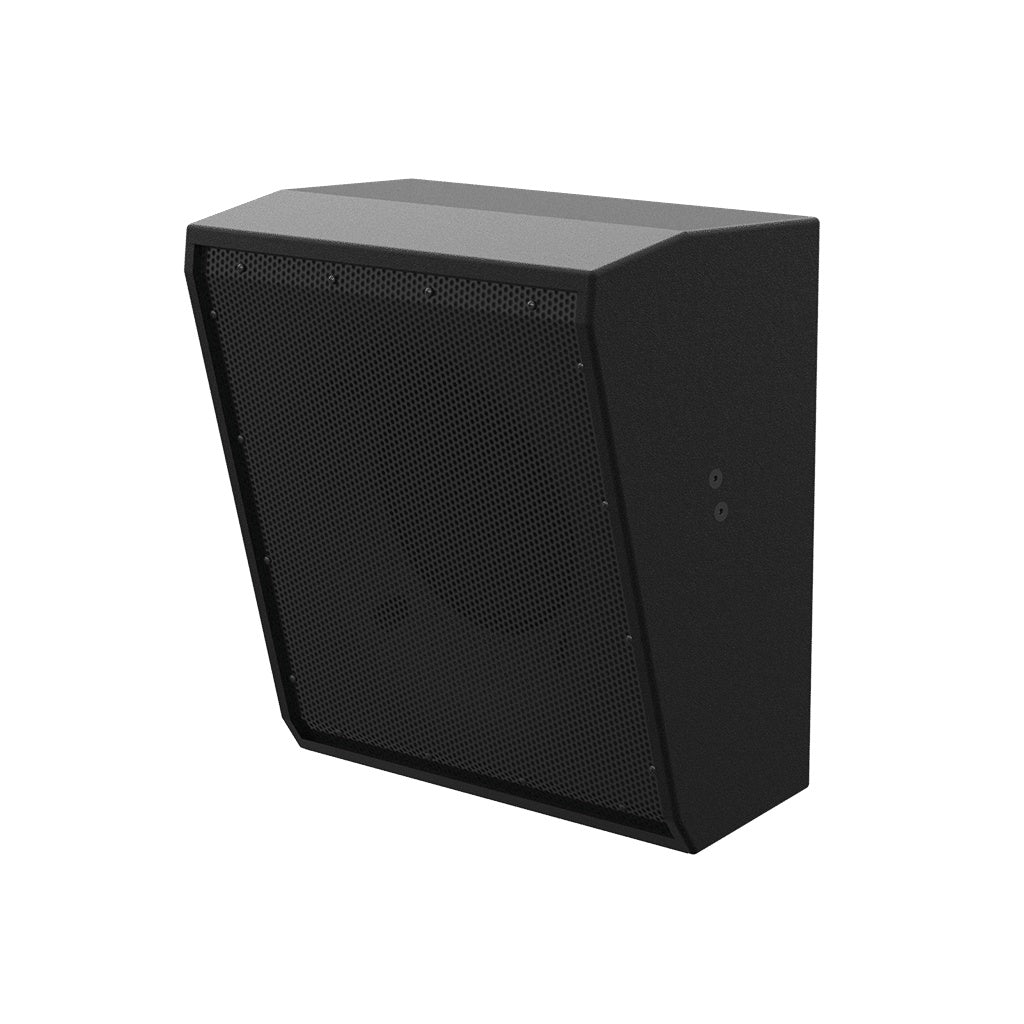

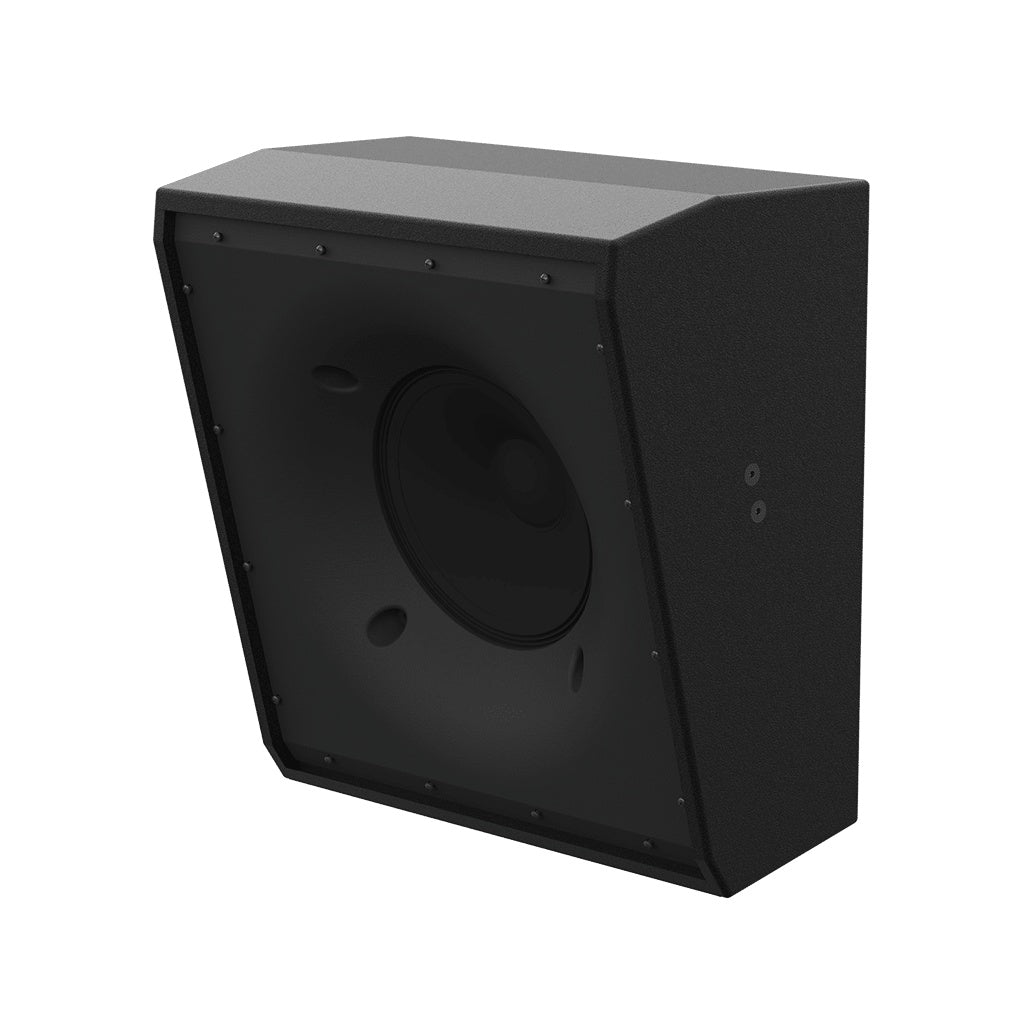

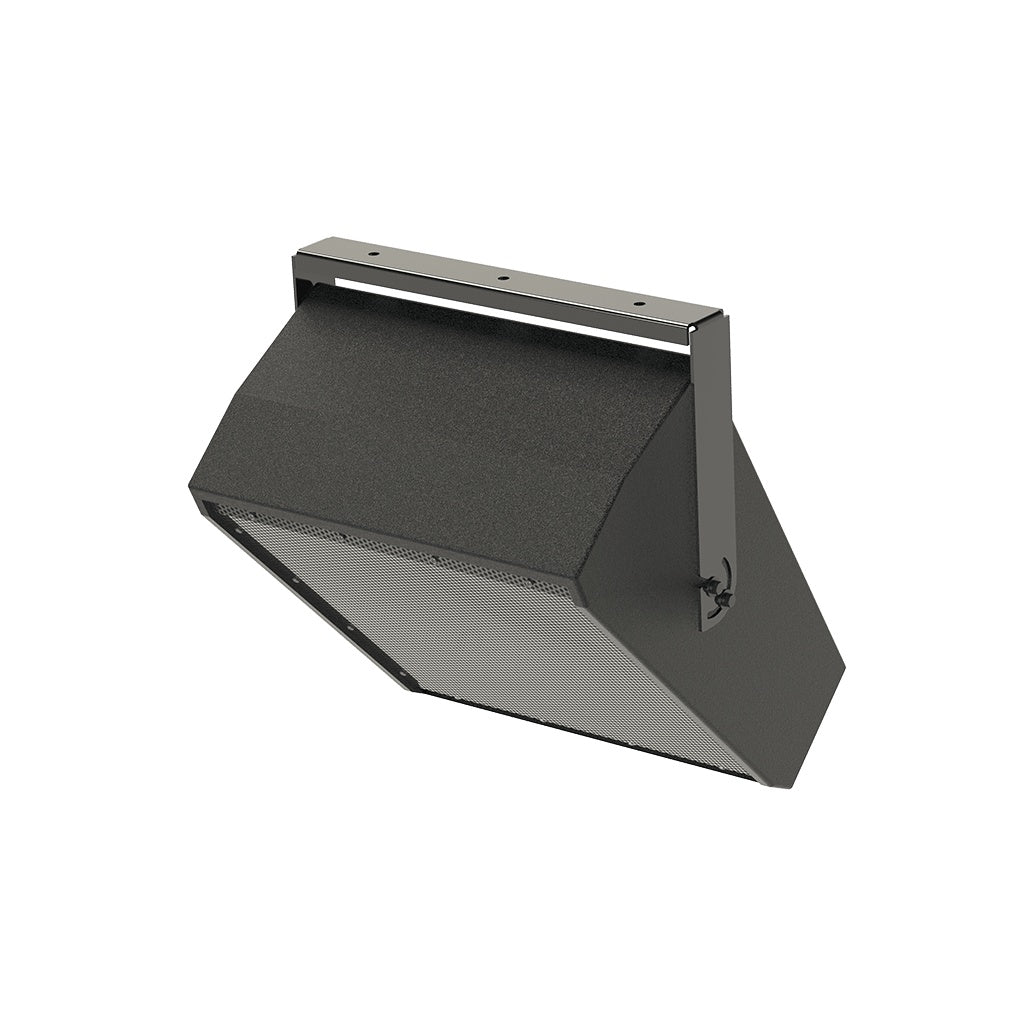

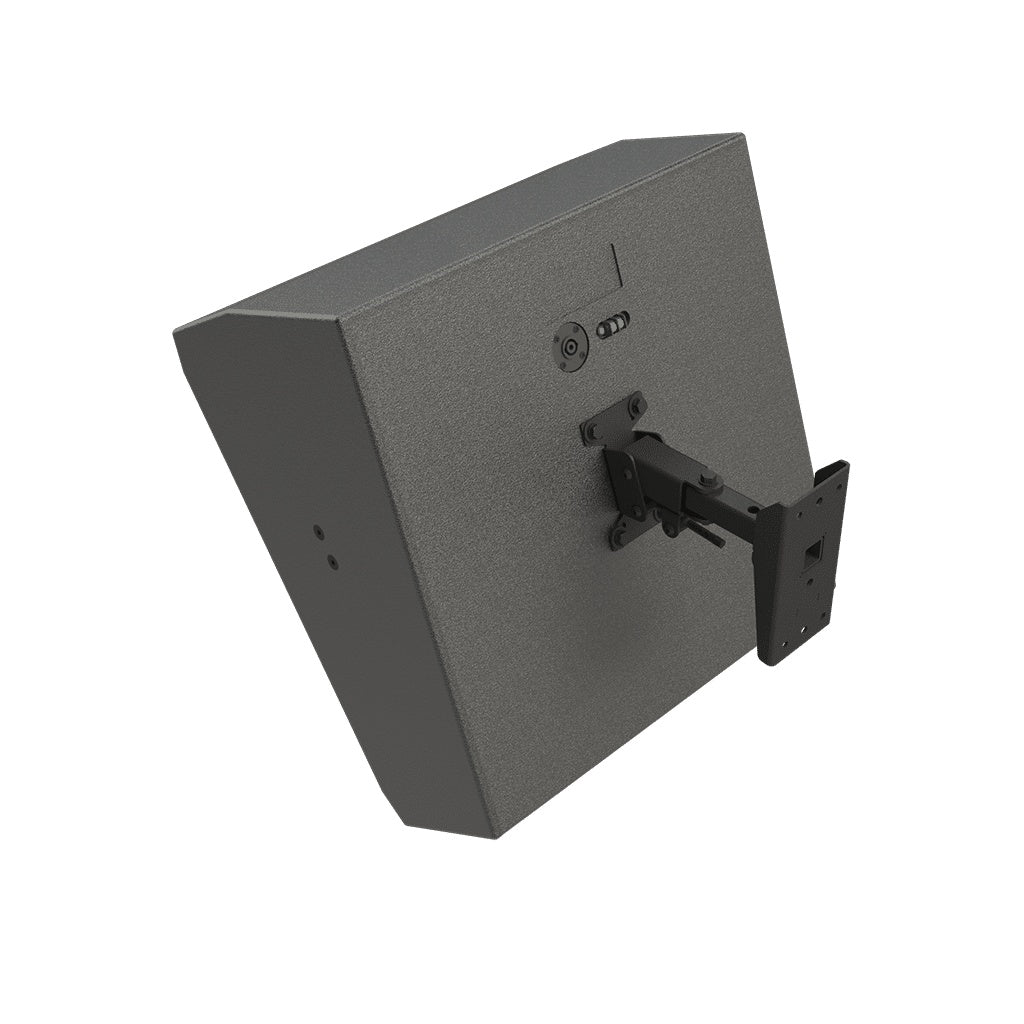

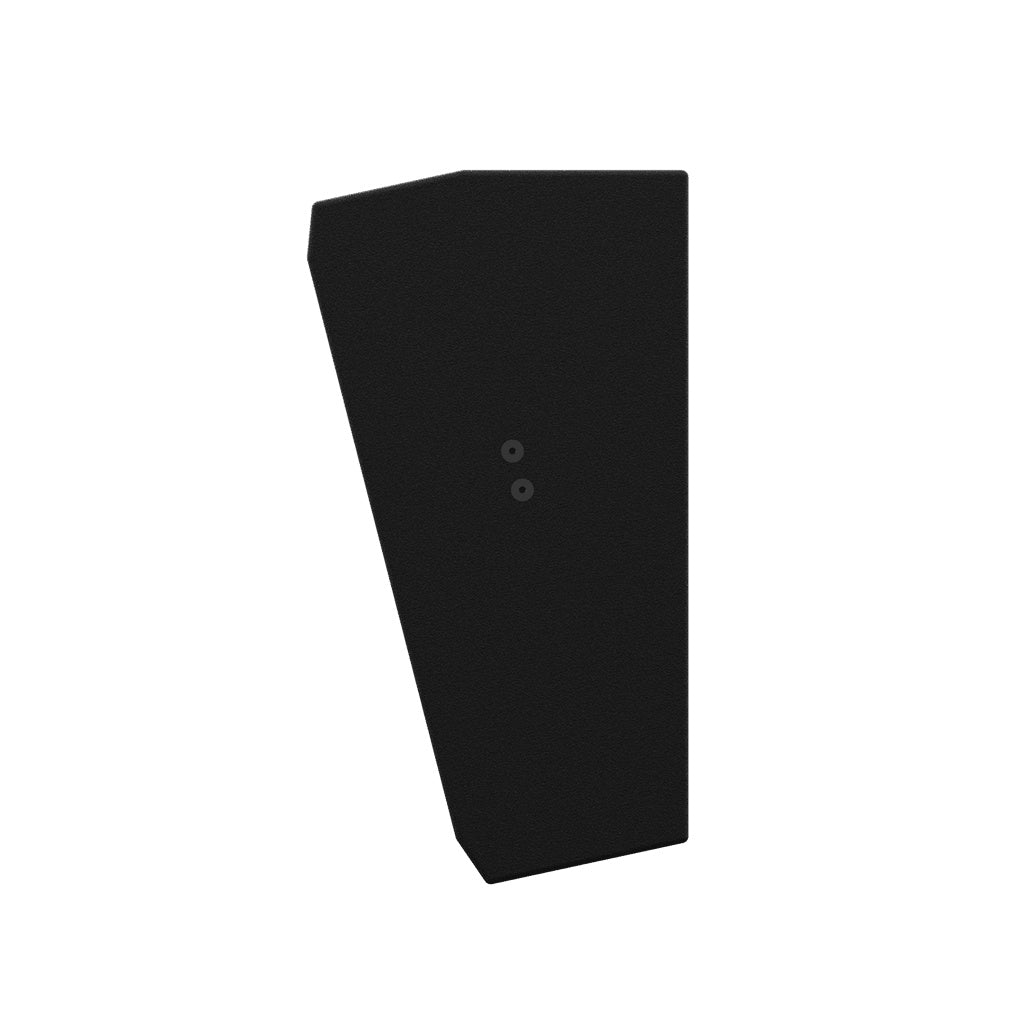

Danley SM90 Passive Coaxial Loudspeaker With 90° Coverage

Danley SM90 Passive Coaxial Loudspeaker With 90° Coverage

SoundPro Item: 119731 | Part Number: SM90-B

$4,172.40
$4,392.00 $4,172.40
Your Price Sold out
MSRP: $4,392.00 | MAP: $4,172.40

Usually ships in 5-7 business days

  • 90° conical pattern for even room coverage
  • Built-in 15° down angle aids system aiming
  • Passive two-way design simplifies integration
  • 12" coaxial driver supports point-source deployment
  • HF Sentinel protection helps safeguard the driver
  • Works for mains, delays, and fill positions
  • Supports wall, ceiling, or suspended mounting
Log in or register for YOUR best price

The Danley SM90 is a passive two-way loudspeaker built for projects that need consistent coverage and straightforward deployment. Its 90° conical pattern helps integrators and production teams cover seating areas evenly, while the built-in 15° down angle supports practical placement in rooms where aiming matters. This makes it a strong fit for small house of worship main PA duties, as well as delay or fill positions in larger systems.

The enclosure is also suited to installed audio work where mounting flexibility is important. Danley notes compatibility with wall and ceiling or suspension mounting brackets, giving designers more options for auditoriums, theaters, and similar venues. With a 12" coaxial driver and 1" high-frequency section with Sentinel protection, the SM90 is positioned for full-range reinforcement where speech clarity and musical content both matter.

View full details

Specifications

General
Brand
Danley
MPN
SM90
Product Type
Passive two-way loudspeaker
Performance
Coverage Pattern
90˚ conical
Operating Frequency Range
63 Hz- 24 kHz +/- 3dB; 40 Hz – 24 kHz – 10dB
Continuous Output
120 dB SPL
Peak Output
126 dB SPL
Sensitivity
95 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in free space
Rated Impedance
8 Ohms
Power Rating
300 Watts Cont. 1200 Watts Peak
Drivers
Driver Complement
1 x 12″ coaxial + 1″ w/ Sentinel protection on HF
Physical
Dimensions
25.5 x 23.5 x 13.25 inches | 64.8 x 59.7 x 33.7 cm
Weight
55 lbs | 24.95 kg
