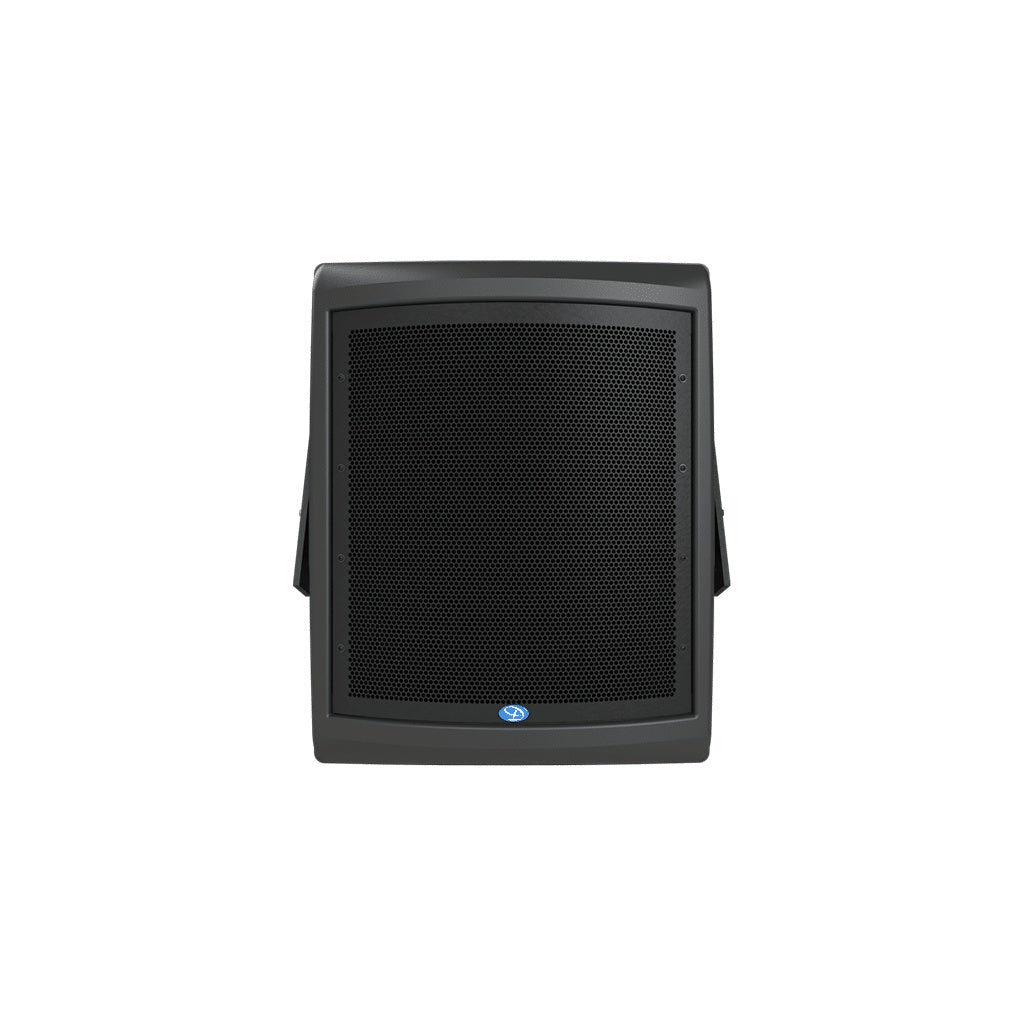

Danley OS80-NL-B Outdoor Coaxial Loudspeaker With 80° Horn | Black

Danley OS80-NL-B Outdoor Coaxial Loudspeaker With 80° Horn | Black

SoundPro Item: 204098 | Part Number: OS80-NL-B

Regular price $3,855.10
Regular price $4,058.00 Sale price $3,855.10
Your Price Sold out
MSRP: $4,058.00 | MAP: $3,855.10

Usually ships in 5-7 business days

  • 80° conical pattern for even area coverage
  • Synergy Horn design supports clear projection
  • Weather-ready enclosure for outdoor installs
  • Sentinel HF protection helps guard drivers
  • Included bracket eases mounting setup

The Danley OS80 is built for outdoor sound reinforcement where intelligibility, pattern control, and output matter. It uses a 12"/1.4" coaxial configuration with Danley’s Synergy Horn approach to deliver a point-source style result from a compact full-range enclosure. For integrators and system designers covering athletic facilities, community spaces, themed environments, and other exposed locations, the OS80 offers controlled 80° conical dispersion and substantial output from a cabinet designed to remain outdoors.

This model is well suited to installations that need long-throw clarity without moving to a much larger loudspeaker format. Danley’s crossover implementation is intended to keep the frequency bands aligned as they combine through the horn, helping reduce off-axis irregularities and preserving articulation across the listening area. The enclosure also incorporates Sentinel high-frequency driver protection circuitry for added protection during overload events. A heavy-duty aluminum mounting bracket and angle strap are included, supporting deployment in demanding venue applications such as sports venues, arenas, racetracks, parks, cruise ships, water attractions, and public gathering spaces.

View full details

Specifications

General
Brand
Danley
MPN
OS80
Product Type
Outdoor loudspeaker
Performance
Coverage Pattern
80° Conical
Operating Frequency Range
128 Hz – 16 kHz – 3 dB; 58 Hz – 18 kHz -10 dB
Continuous Output 1M AES2
127 dB SPL
Peak Output AES2
133 dB SPL
Maximum Linear SPL 1M AES75
Z Peak: 137.9 dB SPL; A Slow: 122.5 dB SPL; C Slow: 124.1 dB SPL
Sensitivity
100 dB (2.83 Volts into rated Z, at 1 meter), measured in free space
Rated Impedance
8 ohms
Power Rating
400 W continuous; 1,600 W peak
Drivers
Driver Complement
Low 1 x 12″; High 1 x 1.4″
Physical
Dimensions
32.25 x 26 x 14.5 inches
Weight
51 lbs
