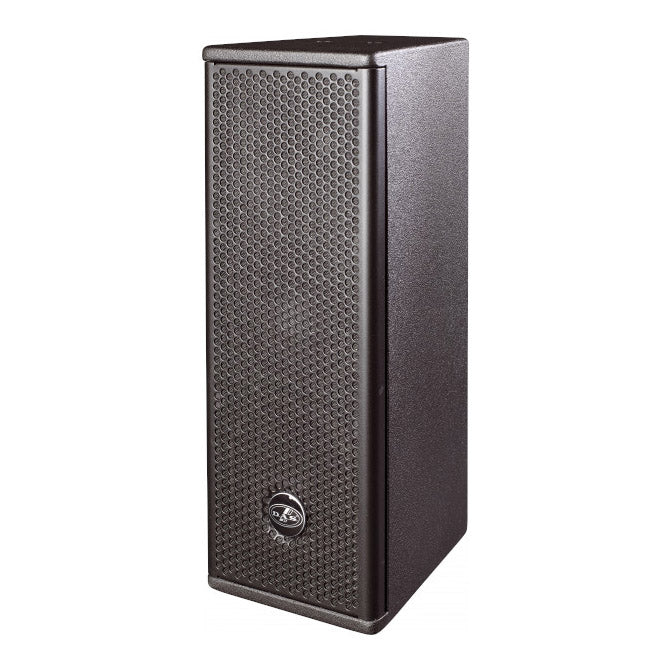

DAS Audio ARTEC-526 2x6-Inch Passive Surface Mount Speaker | Model: ARTEC-526
DAS Audio ARTEC-526 2x6-Inch Passive Surface Mount Speaker | Model: ARTEC-526
SoundPro Item: 19460 | Part Number: ARTEC-526
Usually ships in 5-7 business days
- Twin 6” loudspeakers
- M-34 compression driver
- Vertical or horizontal positioning
- Threaded fixing points for wall mounts
- Ideal for A/V systems, corporate events, conference rooms, classrooms, restaurants and more
The Artec-526 employs twin 6P woofers for low frequency reproduction. The M-34 compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white. Precise coverage and control in either the horizontal and vertical position is possible thanks to the symmetrical 80° horn geometry. The cabinets can be permanently installed by way of the optional “U” brackets and accessories which allow for multiple configurations. Four threaded fixing points for the AXW-1 adjustable wall mount and stand mounting accessories augment adaptability. A robust steel grille internally lined with acoustically transparent filter cloth protects components.
- Frequency Range (-10dB)60Hz - 20,000Hz
- Horizontal Coverage (-6dB)80°
- Vertical Coverage80°
- Nominal Impedance16Ω
- RMS Power Handling400W
- Peak Power Handling1600W
- On-Axis Sensitivity 1W/1m93dB SPL
- Max. Peak SPL at 1m125dB
- Recommended Amplifier
- DX-80-230
- DX-80-115
- Recommended ProcessorDSP-2040
- Connectors
- Audio Input Connector: 1 x speakON NL4
- Audio Output Connector: 1 x speakON NL4
- Components
- LF Driver: 6P
- HF Driver: M-34
- Horn/Waveguide: BC-88
- Enclosure
- Construction: birch plywood
- Geometry: trapezoidal
- Rigging: M10 rigging points
- Finish: ISO-flex paint
- Dimensions (HxWxD): 21.7" x 7.7" x 10.2"
- Weight: 32 pounds
