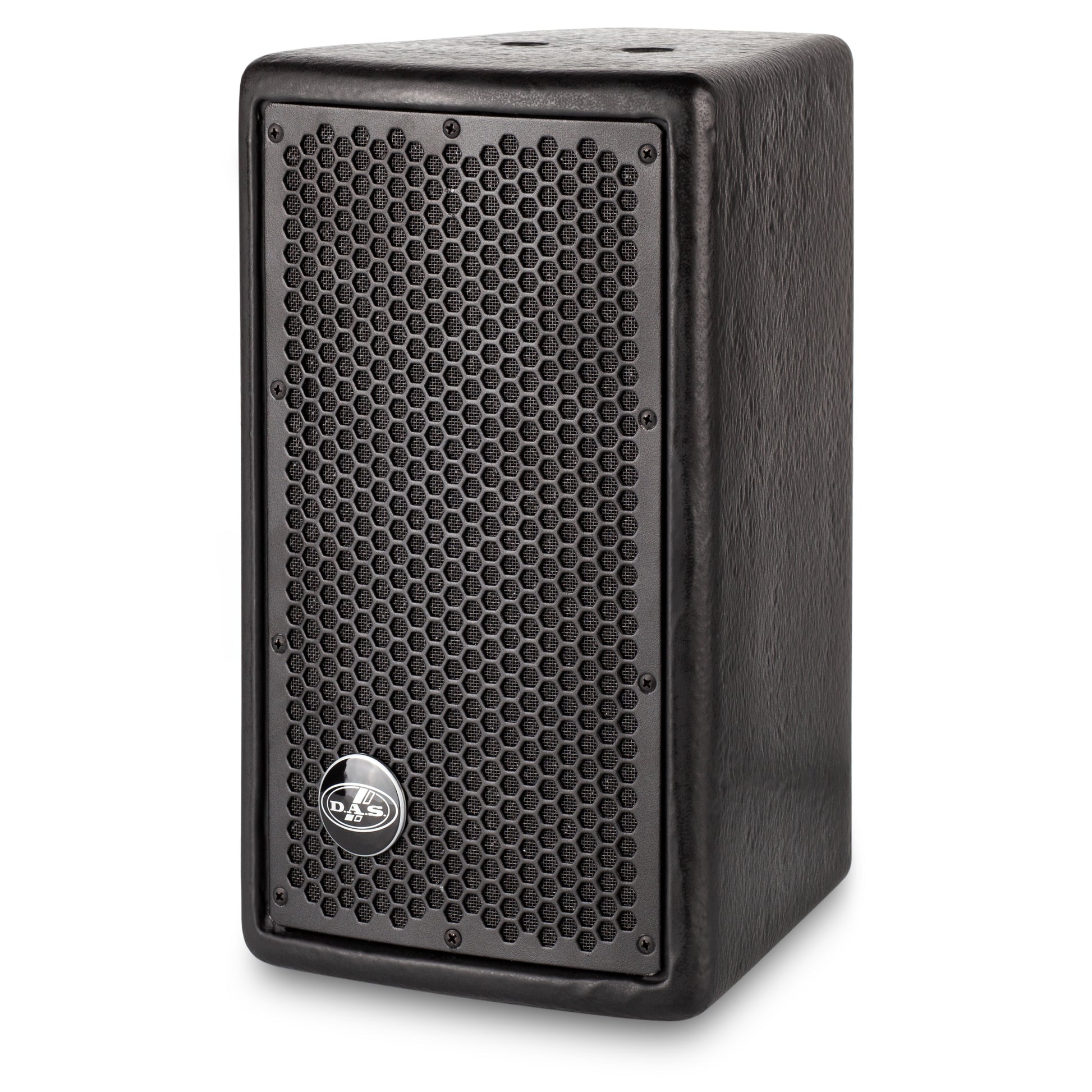

DAS Audio WR-9606 Series Passive Speaker Outdoor 2-Way | 70V/100V Transformer | Black

DAS Audio WR-9606 Series Passive Speaker Outdoor 2-Way | 70V/100V Transformer | Black

SoundPro Item: 130360 | Part Number: WR-9606-TDX

$1,708.10
$1,798.00 $1,708.10
Your Price Sold out
MSRP: $1,798.00 | MAP: $1,708.10

Usually ships in 5-7 business days

  • Rotatable 90 By 60 Degree Horn Directs Coverage For Horizontal Or Vertical Mounting
  • IP56-Rated Enclosure Withstands Outdoor Dust And Water Exposure
  • Birch Plywood Cabinet Minimizes Vibration And Reduces Distortion
  • Covered Barrier Strip Terminals Protect Connections In Exposed Installs
  • M10 Rigging Points Simplify Bracket And Yoke Mounting
  • Pairs With DAS INTEGRAL Amplifiers And Processors For System-Matched Tuning
Log in or register for YOUR best price

The DAS Audio WR-9606 Series is built for integrators specifying permanent outdoor audio in restaurants, hospitality venues, theme parks, stadium concourses, and architectural spaces where equipment faces sun, rain, and dust. Its IP56-rated enclosure and protected termination make it a dependable choice where standard portable cabinets would fail over time.

A 6-inch low-frequency transducer paired with a compression driver on a rotatable 90 by 60 degree horn lets installers aim coverage precisely, whether mounting horizontally over a bar or vertically down a corridor. The trapezoidal birch plywood cabinet keeps the footprint small while controlling resonance, so speech and background music stay defined at distance. M10 rigging points simplify bracket and yoke mounting during install.

Compared with generic outdoor boxes, the WR-9606 pairs with the DAS INTEGRAL amplifier and processor ecosystem for tuned, system-matched deployments. That makes it the right fit for contractors who need consistent voicing across zones and long-term reliability in exposed environments rather than a one-off consumer solution.

Downloads

View full details

Specifications

Certifications
IP Rating
IP56
Dimensions
Dimensions (H x W x D)
15.2" x 8.7" x 10.0" (385 x 220 x 255 mm)
Weight
Net Weight
19.9 lbs (9.0 kg)
Audio
Frequency Range (-10 dB)
76 Hz – 20 kHz
Horizontal Coverage (-6 dB)
90º
Vertical Coverage
60º
RMS Power Handling
100 W
Peak Power Handling
400 W
On-axis Sensitivity 1W/1 m
92 dB SPL
Maximum Peak SPL at 1 m
117 dB
Transformer Taps 70 V
12.5 W – 25 W – 50 W – 100 W
Transformer Taps 100 V
25 W – 50 W – 100 W
Connectivity
Audio Input Connector
Covered Barrier Strip Terminals
Audio Output Connector
Covered Barrier Strip Terminals
Construction
Enclosure Construction
Birch Plywood
Enclosure Geometry
Trapezoidal
Rigging
M10 Rigging Points
Finish
Fiberglass
Color
Black
LF Driver
6B
HF Driver
M-26
Horn/Waveguide
BCT-96
Performance
Recommended Amplifier
INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604
Recommended Processor
INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004
Shipping
Shipping Weight
33.0 lbs
Identifiers
MPN
WR-9606-TDX
