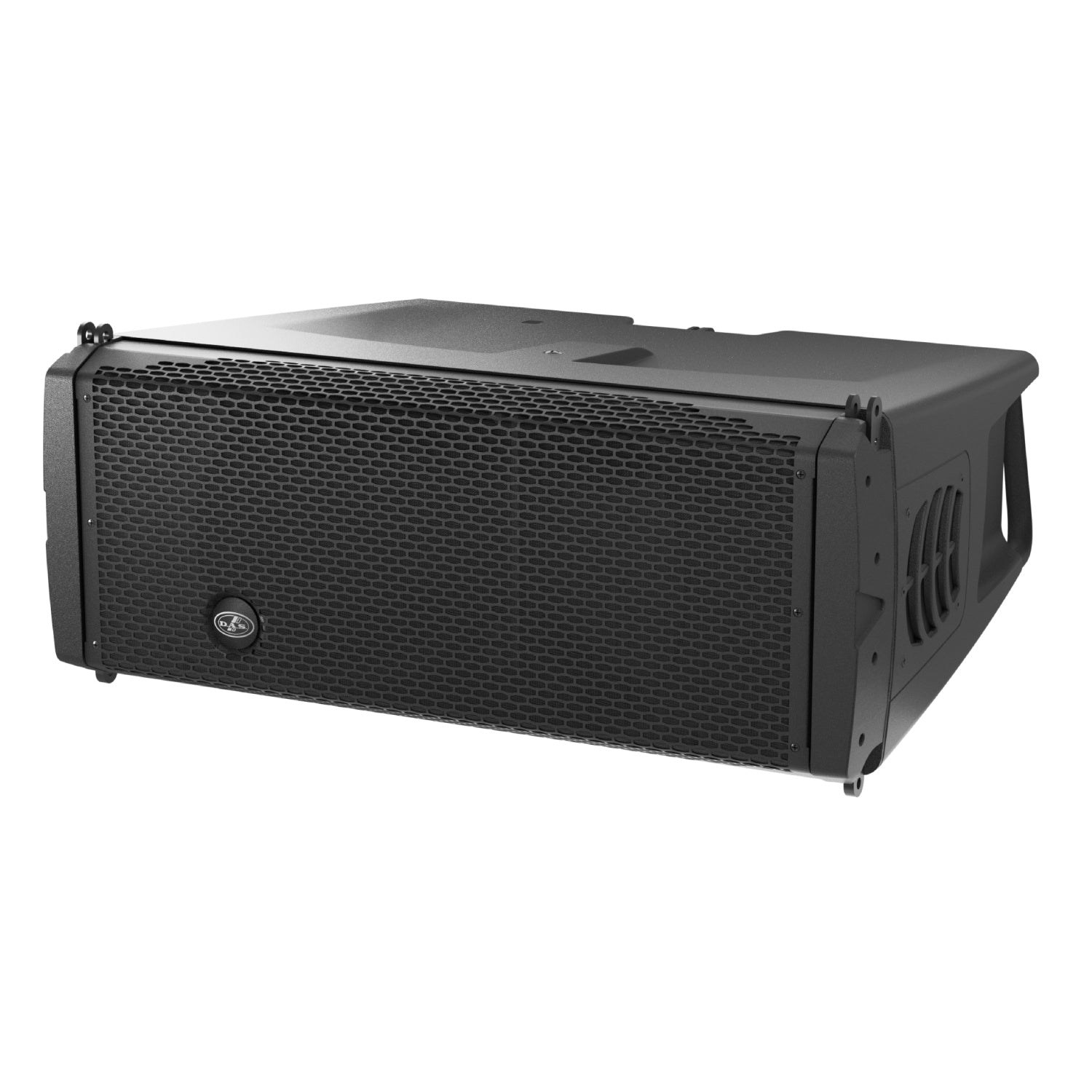

DAS Audio EVENT-30A Powered Line Array With DSP

DAS Audio EVENT-30A Powered Line Array With DSP

SoundPro Item: 204639 | Part Number: EVENT-30A

$3,199.00
$4,877.00 $3,199.00
Your Price Sold out
MSRP: $4,877.00 | MAP: $3,199.00

Usually ships in 5-7 business days

  • Smart Self Tuning Speeds Array Setup
  • FIR DSP Supports Clear Phase Response
  • 90º Coverage Helps Maintain Even Audience Sound
  • Lightweight Build Eases Transport And Rigging
  • Fast Set Splay Allows Quick Angle Selection
Log in or register for YOUR best price

The DAS Audio EVENT-30A is a compact self-powered line array module built for professional sound reinforcement where consistent coverage, manageable weight, and fast setup matter. Its symmetrical two-way design uses dual 10" neodymium low-frequency transducers with dual M-60 compression drivers and a precision waveguide to maintain 90º horizontal coverage while supporting effective coupling in flown arrays. For production providers, integrators, and event teams, it offers a practical balance of output, portability, and deployment speed.

A high-efficiency Class D amplifier platform with universal switch-mode power supply drives the system, while 24-bit DSP with FIR processing supports flat-phase performance and integration within the EVENT series. Smart Self Tuning uses infrared detection to identify cabinet position in the array and automatically apply the appropriate operating preset, helping crews reduce manual configuration time and streamline line array preparation. DAScontrol™ support further simplifies system management in touring, rental, and installed applications.

The reinforced polypropylene enclosure keeps the cabinet durable without adding unnecessary weight, and the Fast Set Splay rigging system allows quick angle selection in 1º increments from 0º to 10º. With a dedicated rain cover over the amplifier module and compatibility with EVENT-26A, EVENT-28A, and EVENT-S218A system designs, the EVENT-30A is well suited to medium to large events and fixed audio deployments that require scalable full-range array performance.

View full details

Specifications

Performance
Frequency Range (-10 dB)
63 Hz – 20kHz
Horizontal Coverage (-6 dB)
90º
Vertical Coverage
Splay Dependent
Maximum Linear SPL 1
138 dB
Maximum SPL 2
142 dB
Electronics And Connectors
Nominal Amplifier Power (Continuous)
1000 W
Nominal Amplifier Power (Peak)
2000 W
Nominal Amplifier Power LF (Continuous)
850 W
Nominal Amplifier Power LF (Peak)
1700 W
Nominal Amplifier Power HF (Continuous)
150 W
Nominal Amplifier Power HF (Peak)
300 W
Input Type
Balanced
Input Impeadance
20 kohms
Input Sensitivity
6.2 V (+18 dBu)
Audio Signal Input Connector
1 x Female XLR
Audio Signal Loop Thru Connector
1 x Male XLR
Control
DAScontrol™
Recommended Signal Processing
INTEGRAL-M26X INTEGRAL-M48D
AC Input Connector
powerCON NAC3MPA
AC Output Connector
powerCON NAC3MPB
Current Draw 230 V / 115 V
1.5 A / 3.0 A
Enclosure
Enclosure Construction
Polypropylene
Enclosure Geometry
Trapezoidal
Rigging
Captive Rigging System
Color
Black
Dimensions ( H x W x D )
307 x 710 x 560 mm 12,1 x 28,0 x 22,0 in
Net Weight
26,5 kg ( 58,3 lb )
Components
HF Driver
M-60
