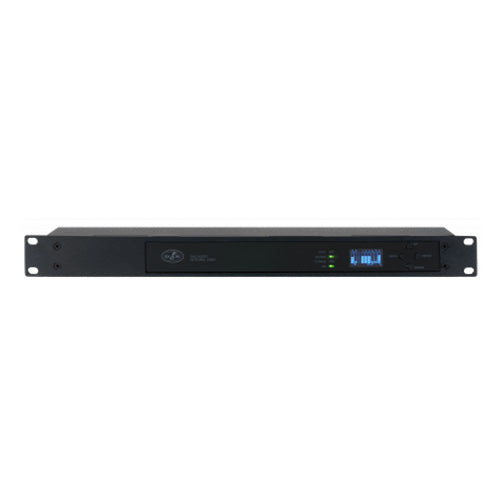

• DAS Audio INTEGRAL-M26X Rackmount Digital Signal Processor

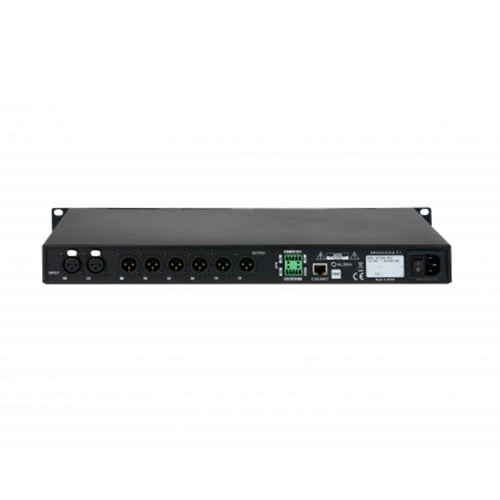

  • DAS Audio INTEGRAL-M26X Rackmount Digital Signal Processor back
1 2

DAS Audio INTEGRAL-M26X Rackmount Digital Signal Processor

DAS Audio INTEGRAL-M26X Rackmount Digital Signal Processor

SoundPro Item: 143634 | Part Number: INTEGRAL-M26X

$1,255.00
$1,750.16 $1,255.00
Your Price Sold out
MSRP: $1,750.16 | MAP: $1,255.00

Usually ships in 5-7 business days

  • 2 Input x 6 Output, 1U Rack-Mount advanced DSP
  • Remote & Direct Control: 1.54” OLED, ALMA™ software via IP
  • 100+ global presets: 200+ output channel presets
  • GPIO External Control with 8 configurable pins
  • 24 Bit @ 48 kHz Converters: 118 dBA Dynamic Range
  • Advanced EQ & Filters: Including up to 48 dB/oct settings
  • Maximum Input / Output level +21dBu
Log in or register for YOUR best price

The DAS Audio INTEGRAL-M26X, a 1U rack-mount digital signal processor, features two analogue input channels and six analogue output channels equipped with balanced XLR connectors. Its compact, cost-effective design makes it a versatile choice for live and installed PA systems.

Remote control and monitoring are possible via ALMA™ software using IP technology, or alternatively, it can be managed using external controllers through OSC messages. Direct unit control is facilitated through a 1.54” OLED display with control buttons for basic parameters. These include input and output levels, preset recalls, mute, source selection, and link manager functions.

The device houses a complete signal processing matrix, offering gain, delay, routing, equalization, and limiters adjustment options. Its internal memory can store over 100 global presets and 200+ output channel presets, including specific presets for all DAS Audio speakers.

External control is further simplified through a General-Purpose Input / Output (GPIO) connector, providing an external 3V3 volt, GND signal, and 8 configurable pins via ALMA™ software.

View full details
  • Electronics and Audio
    • Frequency Response:20 Hz-30 kHz (+0 -0.5 dB)
    • Max Input Level:+22 dBu
    • Max. Output Level:+22 dBu
    • Controls:Power On/Off, Navigation Buttons
    • Sampling Rate:48 kHz
    • Display:OLED 1.54”
    • Cooling:Side-Right-to-Left
    • LED Indicators:On, Comms, Signal, Limit
  • Power
    • AC Input Connector:IEC 15A
    • Power Supply:Universal Mains Switch Mode
    • Operating Range:90 - 250 VAC
  • DSP
    • Analog Input Channels:2
    • Analog Output Channels:6
    • AD Converters:24 Bit @ 48 kHz 118 dBA Dynamic Range
    • DA Converters:24 Bit @ 48 kHz 118 dBA Dynamic Range
    • Internal Precision:32 Bit, 64 Bits Double Precision
    • Latency:1 ms
    • Delay:50ms per input / 135ms per output
    • Equalizer:Bell, Lo/Hi-Shelving, Hos
    • Crossover:Linkwitz-Riley, Butterworth, Bessel
    • High and Low Pass Filters:Up to 48 dB/oct
    • Limiters:RMS
  • Dimensions
    • Dimensions (HxWxD): 1.7x19x8.3” (44x483x210mm)
    • Net Weight:5.5 lbs (2.5 kg)
  • Shipping
    • Carton Dimensions (HxWxD): 17.3x15.7x2.4” (440x400x60mm)
    • Shipping Weight: 8.8lbs (4kg)
