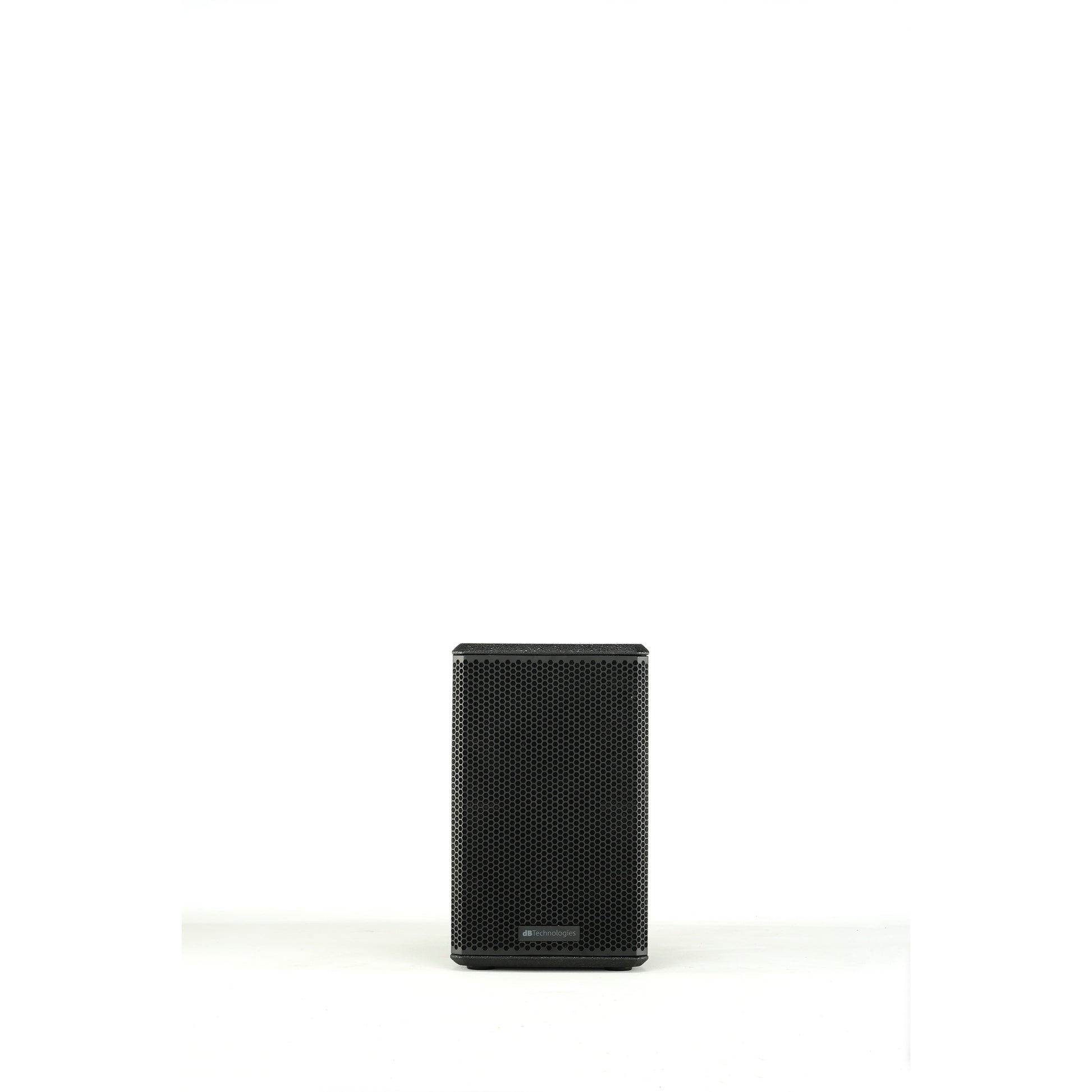

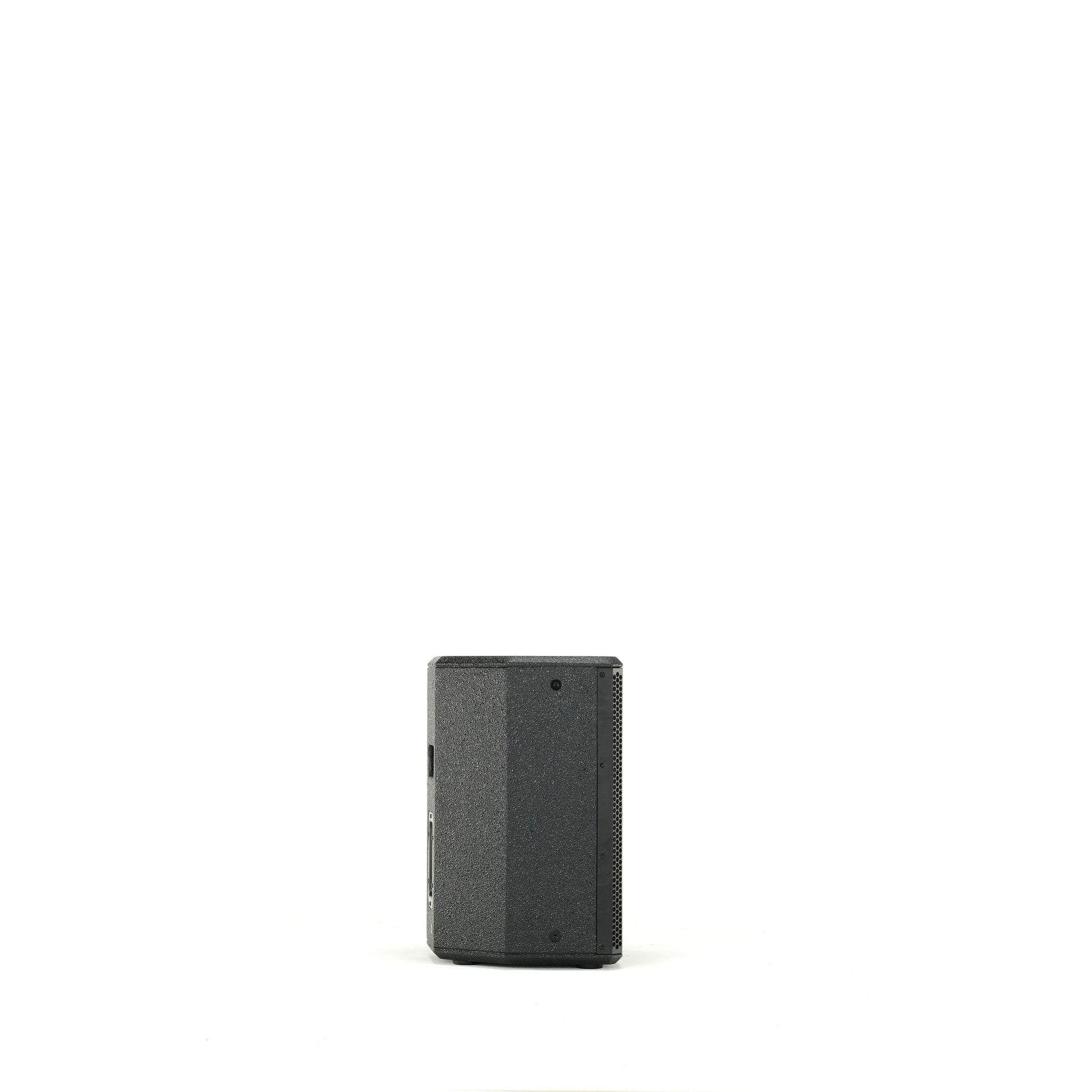

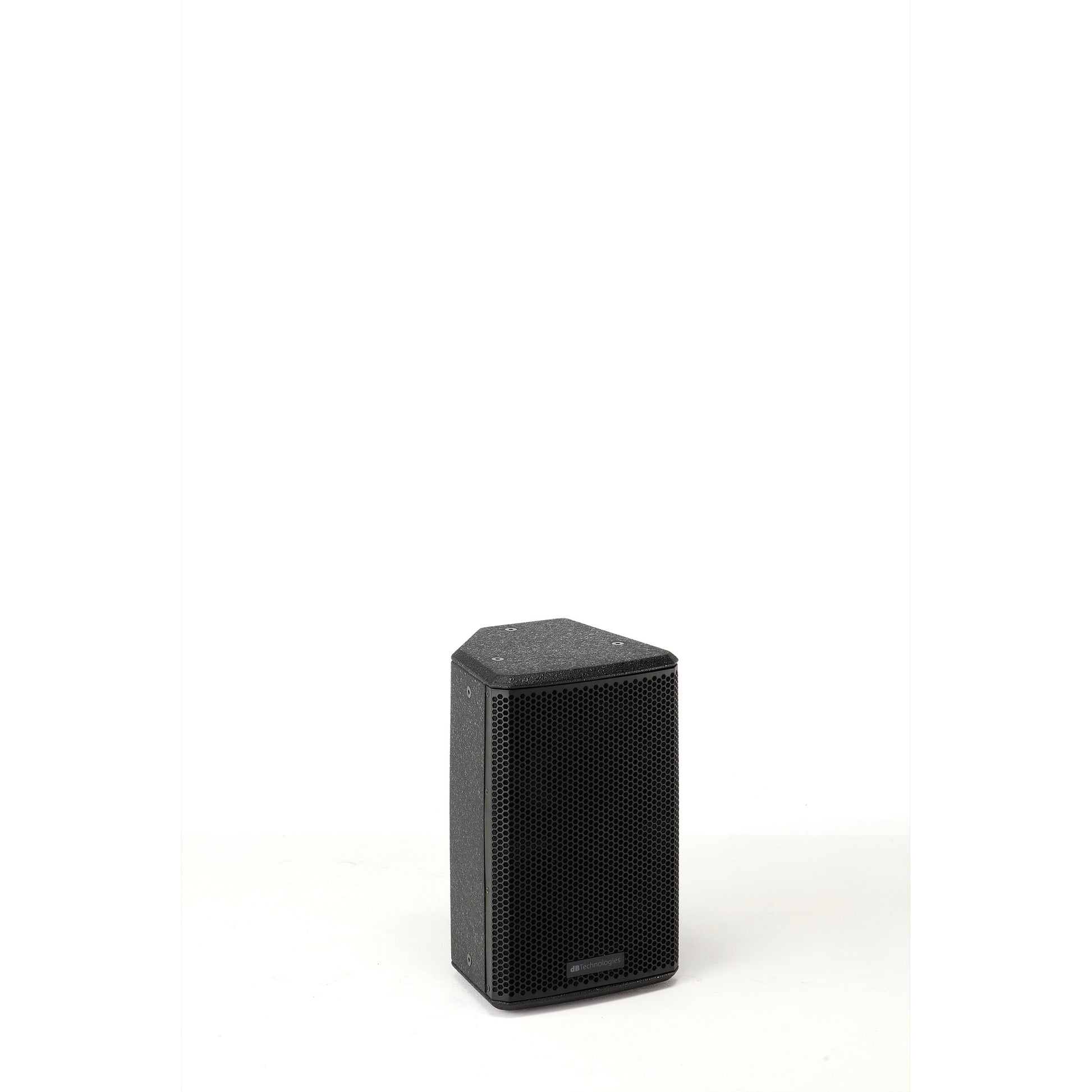

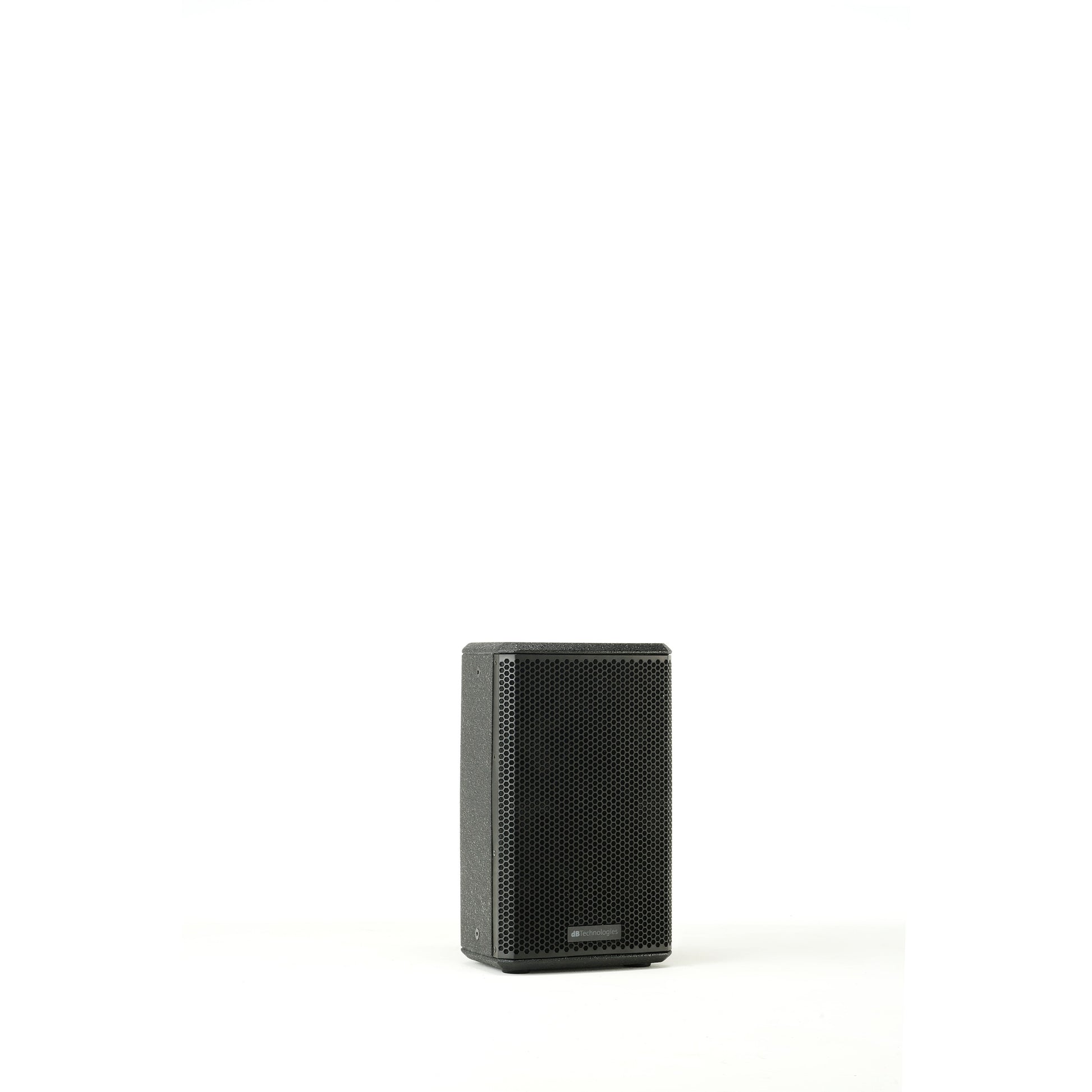

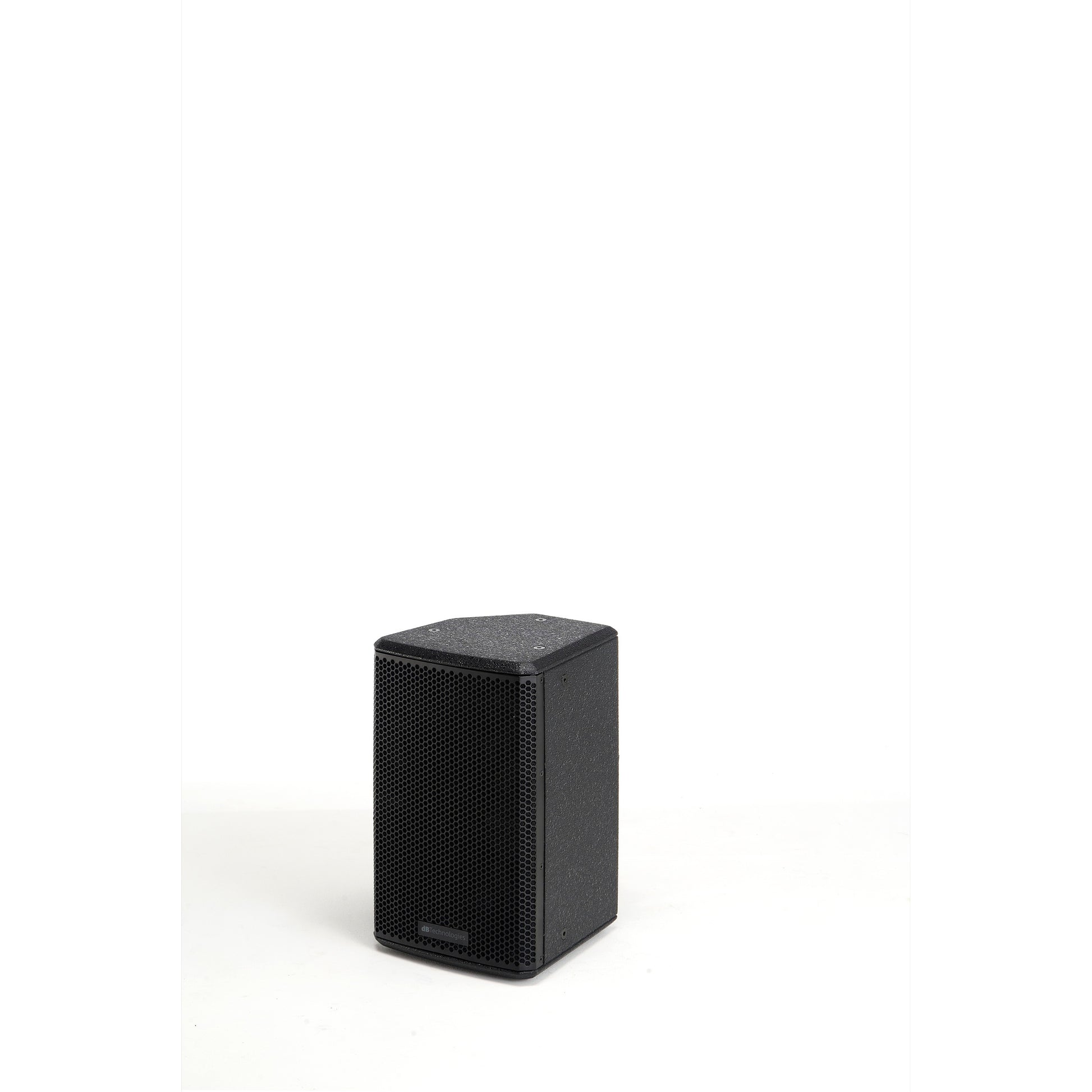

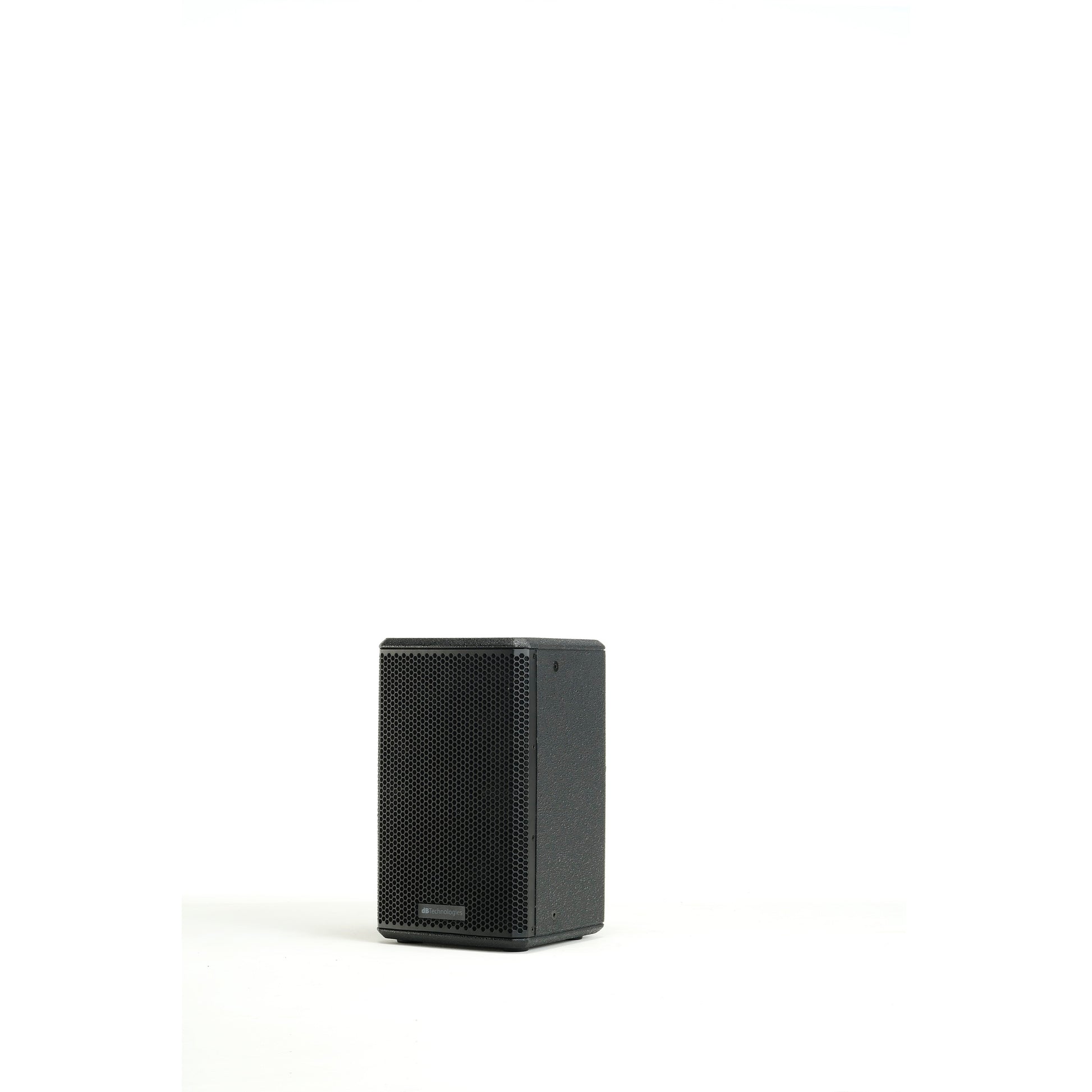

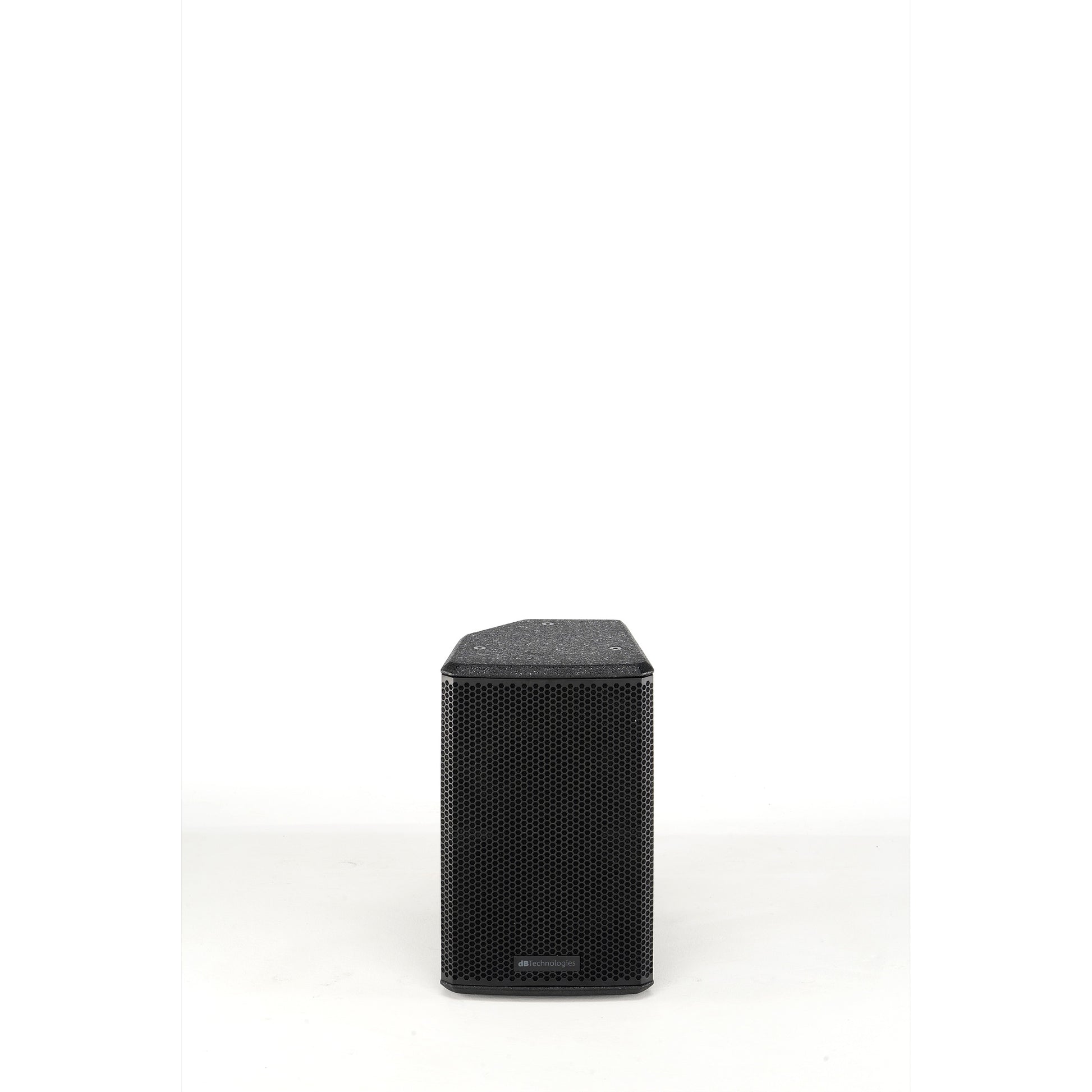

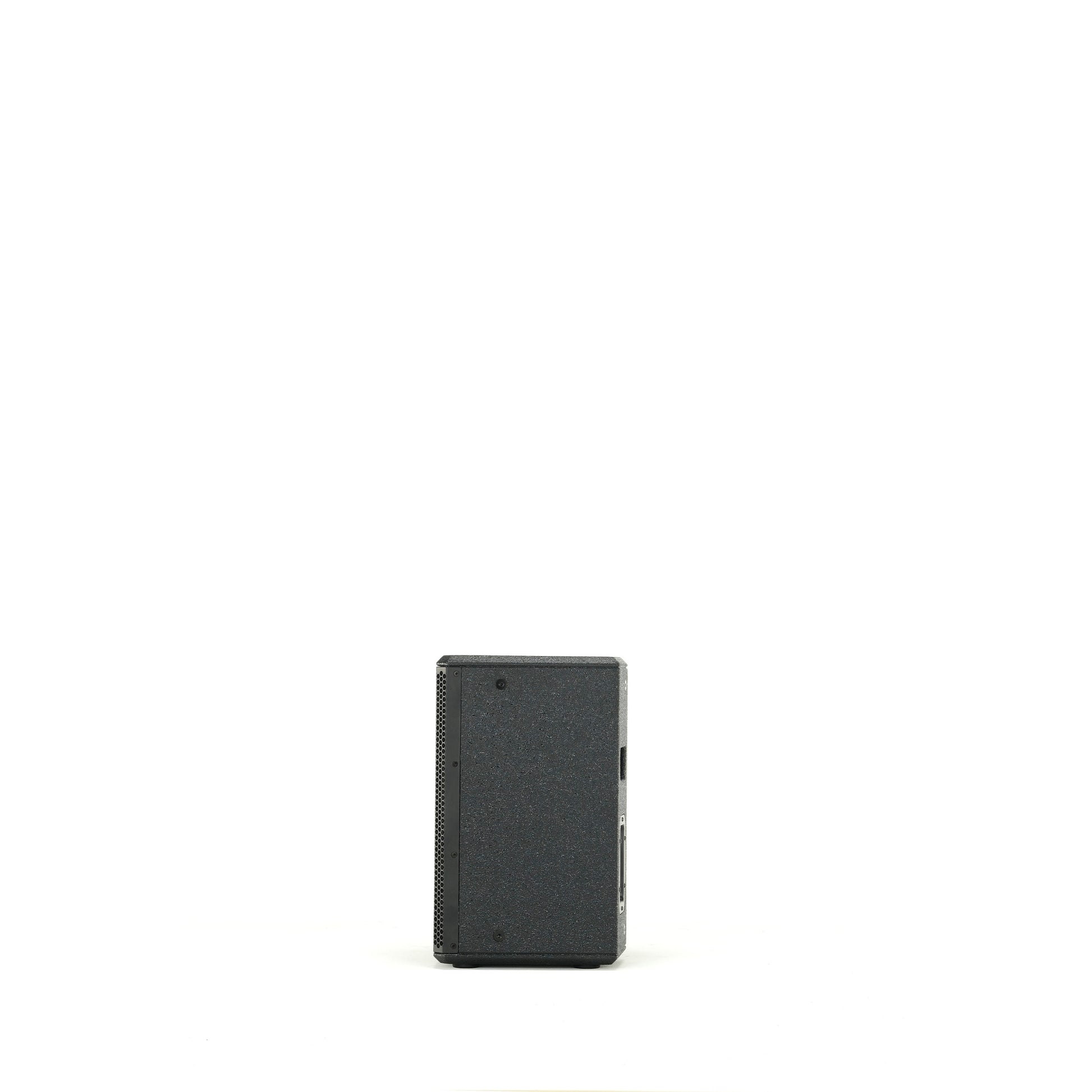

dbTechnologies LVX P8 Passive Speaker

dbTechnologies LVX P8 Passive Speaker

SoundPro Item: 108049 | Part Number: LVX P8

$476.00
$555.00 $476.00
Your Price Sold out
MSRP: $555.00 | MAP: $476.00

Usually ships in 5-7 business days

  • Speaker Type: 2-Way Passive Speaker
  • Max SPL 122 dB
  • Frequency Response [-10 dB]: 74 - 18.000 Hz
  • HF: 1X 1", 1" V.C.
  • LF: 1X 8", 1.5" V.C.
  • Rotatable Horn
  • Weight: 8.1 Kg (17.8 lbs.)
Log in or register for YOUR best price
LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.
Full range LVX P8 provides a 90°x70° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.
The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP10H or vertical brackets (VB-LP810V).

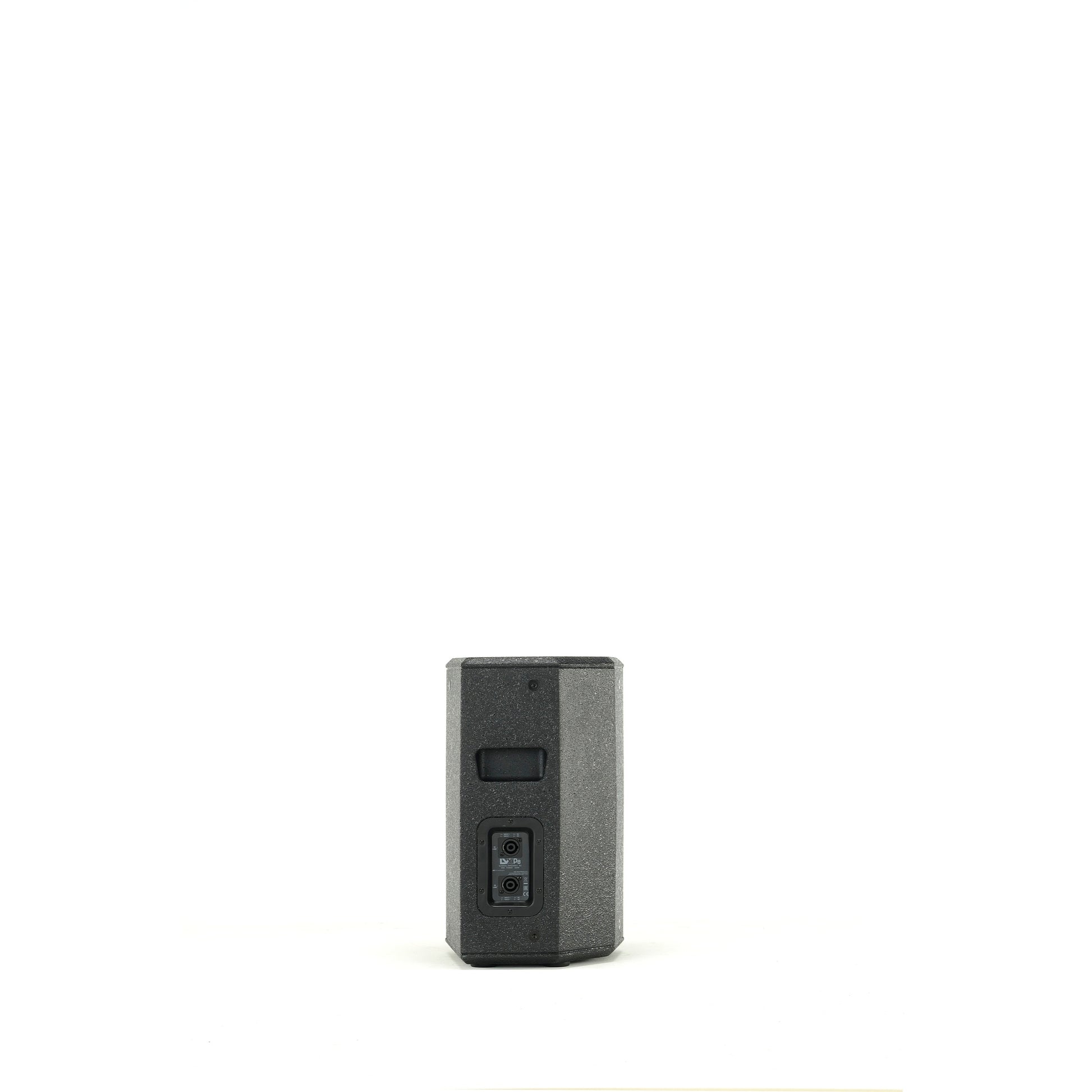

The cabinet features an integrated handle on back side and a 36 mm pole mount plate.
View full details

Specifications

Acoustical data
Peak Power: 400 W
Impedance: 8 Ohms
Frequency Response [- 10 dB]: 74 - 18.000 Hz
Max SPL: 122 dB
HF: 1 “, 1" v.c.
Directivity: 90x70°
Horn: Rotatable
LF: 8 “, 1.5" v.c.
Input
Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
Housing: Plywood
Pole Mount: 36 mm

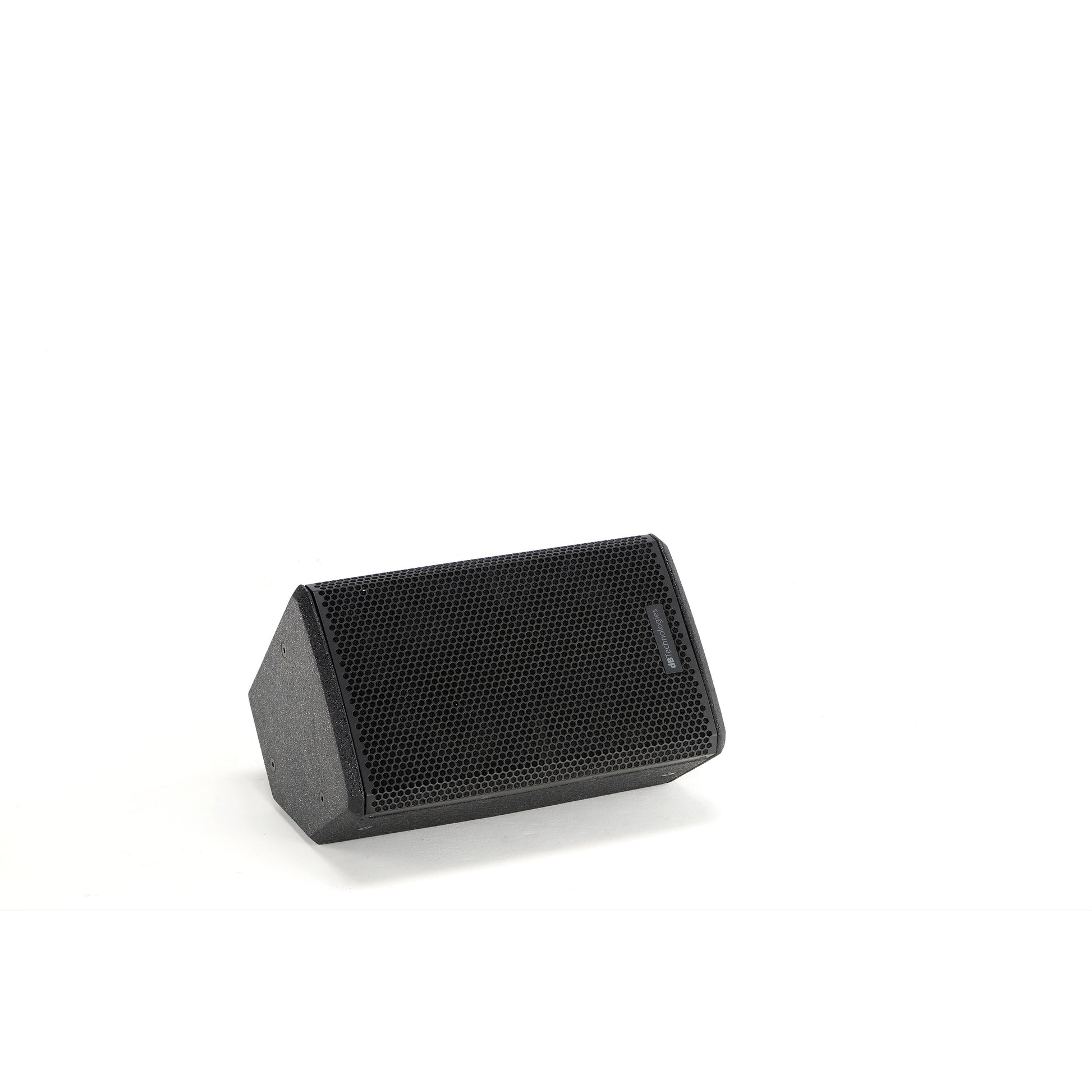

Angle Up: Monitor use 40°
Rigging Points: 12 x M8
Handles: 1 on back side
DImensions ( W x H x D)
255 mm (10.03 in) x 426 mm (16.77 in) x 258 mm (10.15 in)
