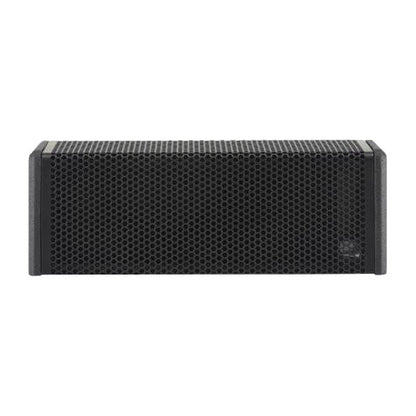

dBTechnologies VIO W10 Ultra-Slim Powered Stage Monitor
dBTechnologies VIO W10 Ultra-Slim Powered Stage Monitor
SoundPro Item: 121642 | Part Number: VIO W10
Pricing available upon request
Pricing available upon request
Usually ships in 5-7 business days
- Active 2-way wedge speaker
- Innovative ultra-slim design
- 400W RMS Class-D amplifier
- Anti-feedback acoustic configuration
- Variable acoustic focus
- Remote control via RDNet
- Exclusive front-rear grille design

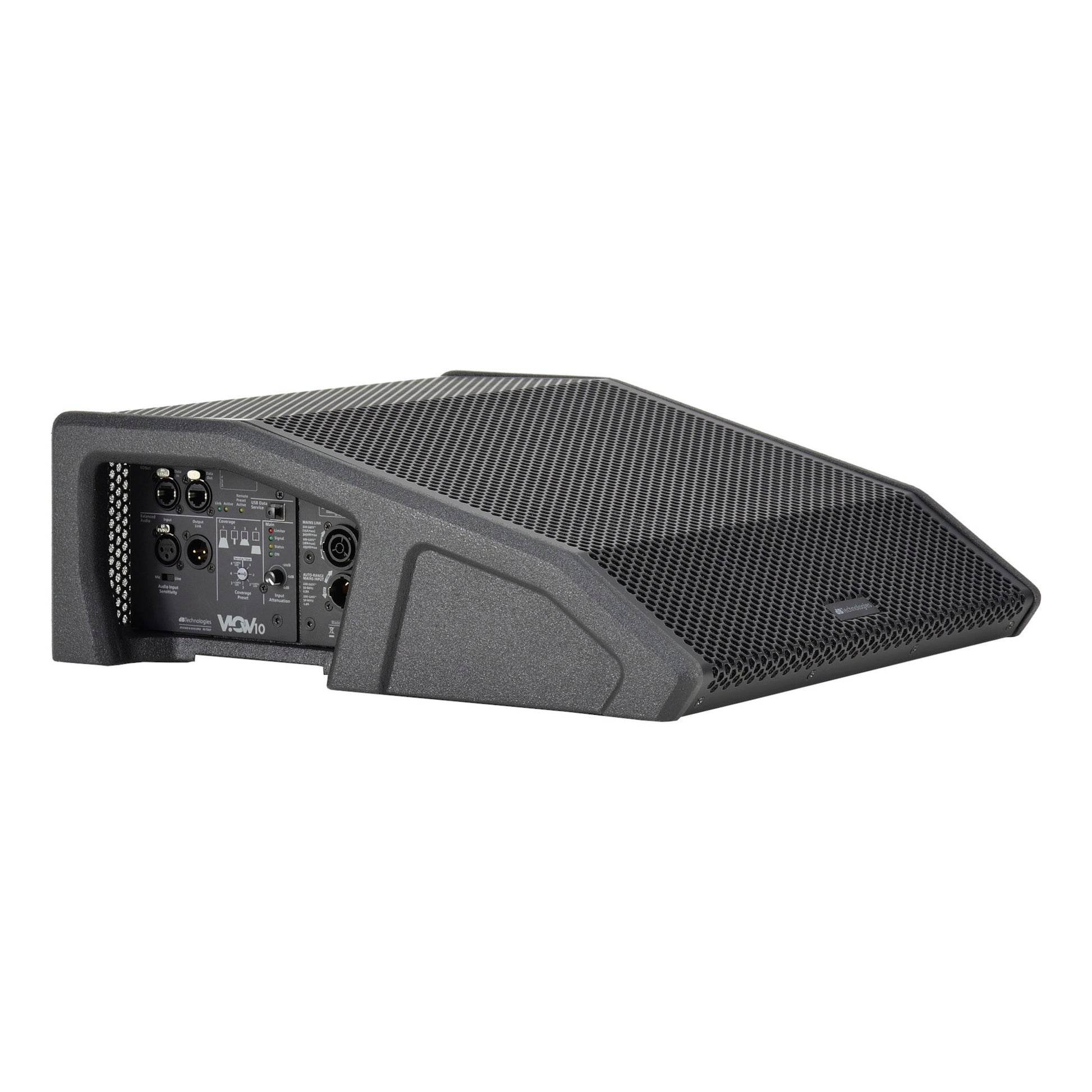

The VIO W10 from dBTechnologies is a Ultra-Slim Powered Stage Monitor.

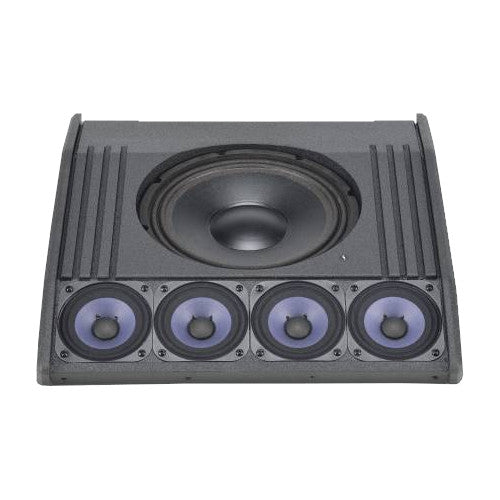

This 2-way wedge is equipped with 4x4” neodymium HF speakers and 1x10” woofer, placed in an exclusive anti-feedback acoustic configuration. The cabinet is driven by a 400 W RMS Digipro G3 amplifier and full remote control is enabled via RD-Net and Aurora Net software.
Digital Sound Processing allows a variable acoustic focus via on-board presets or via software. As a matter of facts, user can easily adapt the wedge performance to the application in use and to the speakers’ needs, choosing among 4 different options: default, close narrow, close wide, far.

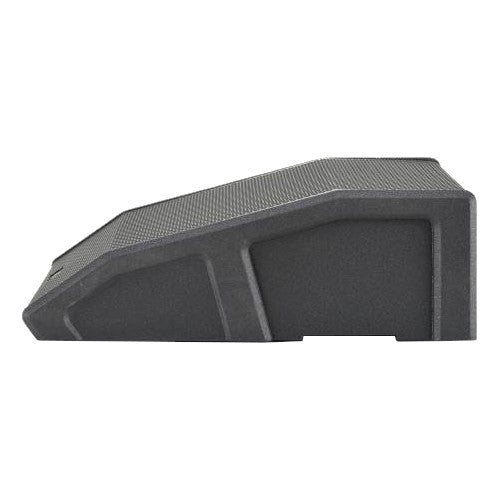

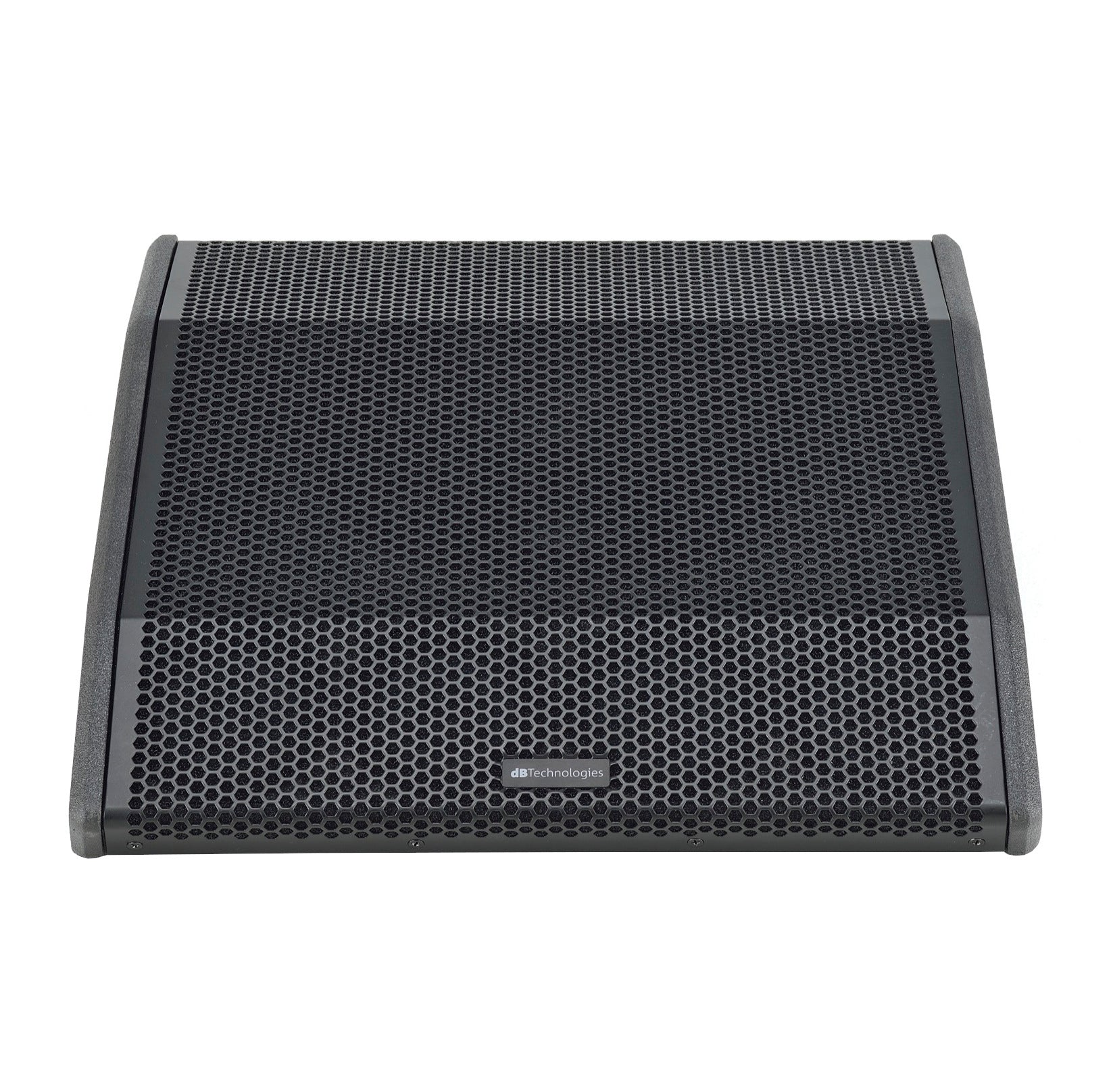

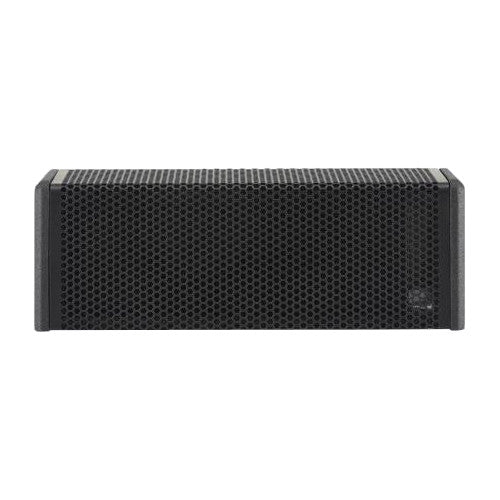

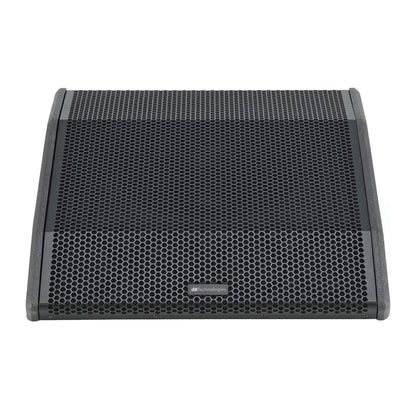

VIO W10’s wooden cabinet comes with a black polyurea finish and an exclusive front-rear-grille design which contributes to a peculiar yet discreet look, with a special attention to details. In facts, an integrated handle is hidden on left side to ease transport and a special groove carved on bottom side facilitates the passage of cables under the cabinet, allowing a clean and tidy look on stage.
- Speaker Type2-way active wedge monitor
- Acoustical Data
- Usable Bandwidth (-10dB): 58 - 15,000 Hz
- Frequency Response (-6dB): 68 - 14,000 Hz
- Max. SPL: 126 dB
- HF: 4x 4" - 1" v.c. Neodymium
- LF: 1x 10" - 2.5" v.c.
- Directivity: both horizontal and vertical directivity are dependent on focus preset
- Amplifier
- Amplifier: 400 W RMS Class D Digipro® G3
- Cooling: convection
- Power Supply: auto-range SMPS
- Processor
- Controller: DSP 28/56 bit
- Converter AD/DA: 24 bit / 48 kHz
- Limiter: Peak, RMS, Thermal
- Processing (filters): Linear Phase FIR filters
- Input

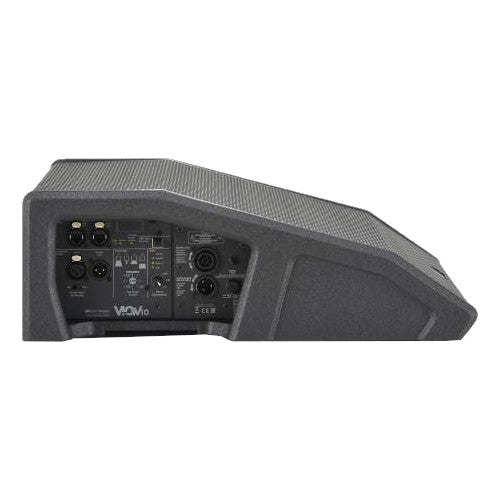

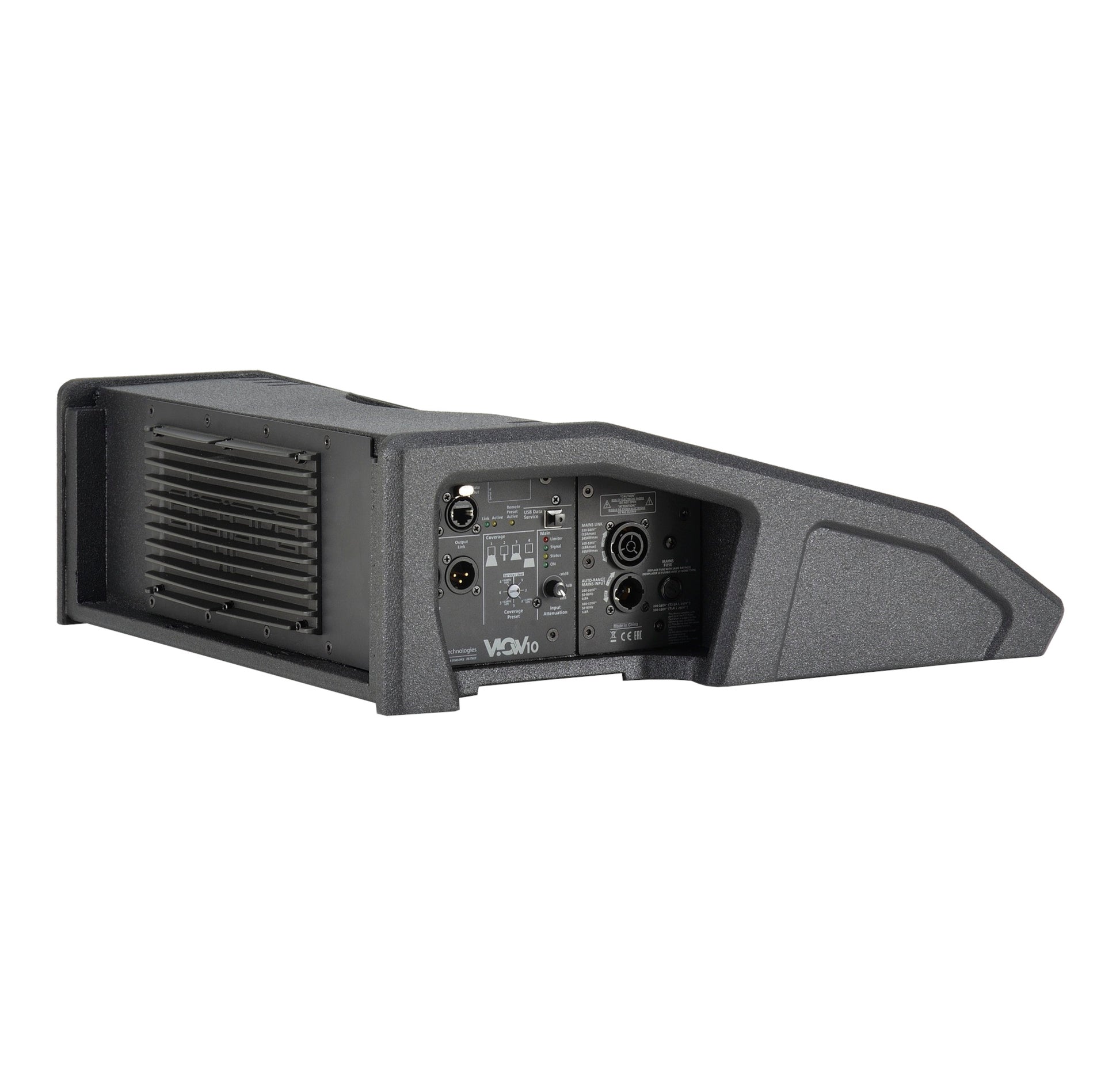

- Signal Input: 1x XLR female, 1x RJ45 Link (RDNet), 1 x USB (Data Service)
- Signal Output: 1xXLR male, 1x RJ45 Link (RDNet)
- Power Socket
- 1x PowerCON TRUE1 In
- 1xPowerCON TRUE1 Out
- Controls
- 1x Rotary Encoder (8 presets)
- 1 x Input Sensitivity Encoder
- 1xMic /line switch
- 1x On LED
- 1x Status -LED
- 1x Signal LED
- 1x Limiter LED
- Mechanics
- Housing: wooden cabinet, polyurea painted
- Handles: 1 on left side
- Dimensions (WxHxD): 17.71x6.49x18.89"
- Weight: 30.2 lbs
