dbx 1261m 12x6 Digital Zone Processor

dbx 1261m 12x6 Digital Zone Processor

SoundPro Item: 43332 | Part Number: DBX1261MV

$1,325.00
$1,325.00 $1,325.00
Your Price Sold out
MSRP: $1,325.00 | MAP: $1,325.00

Usually ships in 5-7 business days

  • 12 inputs / 6 outputs
  • 6 balanced mic/line inputs
  • 4 unbalanced, mono-summed RCA input pairs
  • S/PDIF Input
  • Microphone gain per channel
  • Pre-configured architecture
  • 2 configurable input insert positions
  • 1 configurable output insert position
  • AutoWarmth® per output zone
  • Link bus
  • Can be controlled via Zone Controllers, Ethernet, and other third party control
Log in or register for YOUR best price

The ZonePRO 1261m offers fixed I/O, pre-configured architecture, configurable insert processing and optional duplication of audio channels to another ZonePRO device via a link bus. Can be controlled with Zone Controllers (sold separaetly), and third party control systems via RS-232 or Ethernet as applicable.

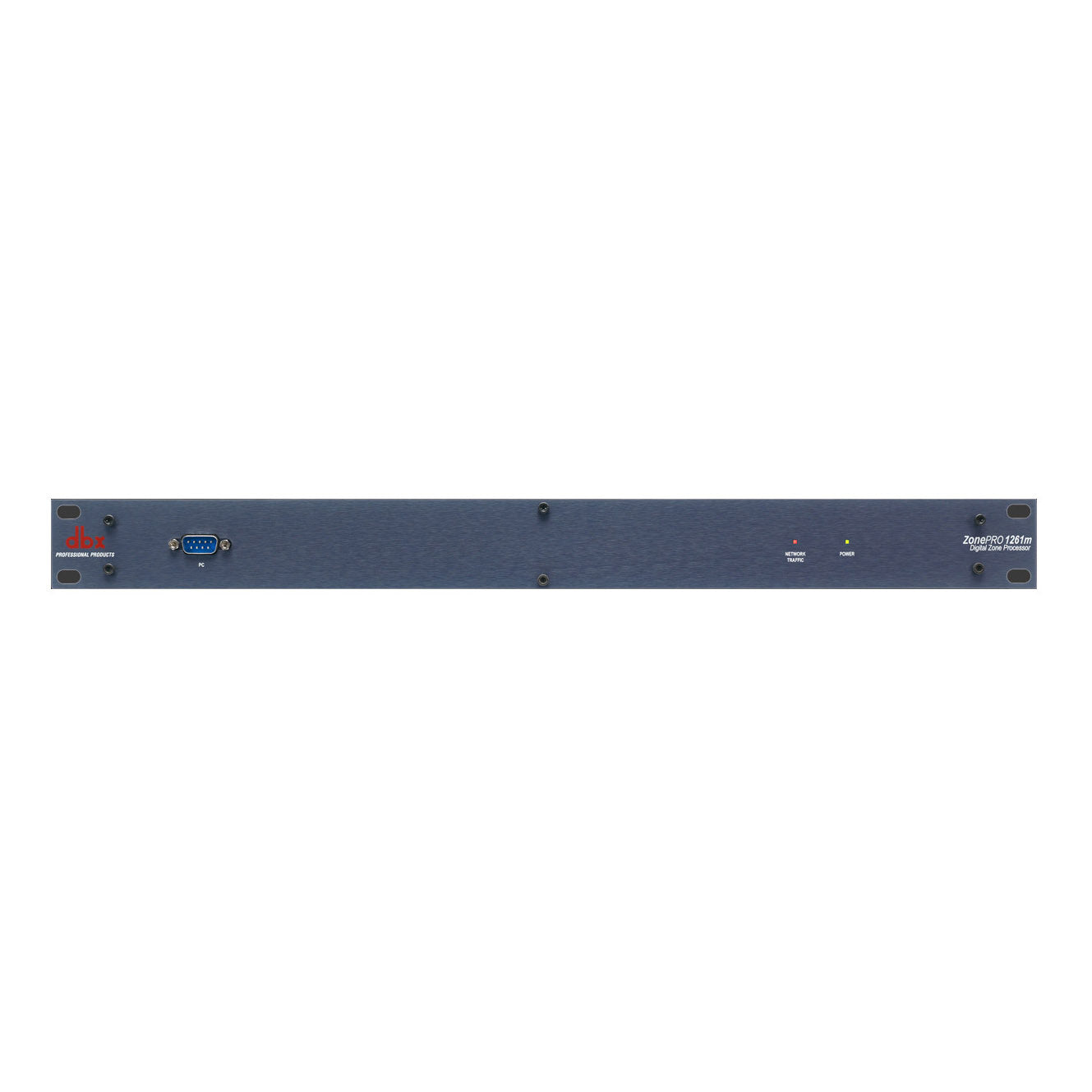

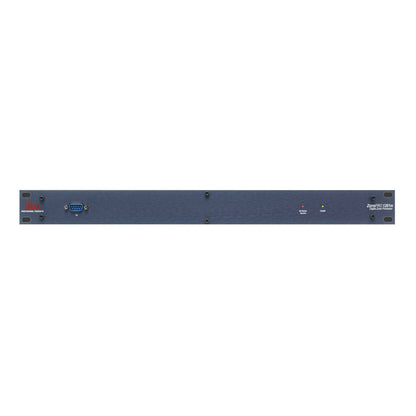

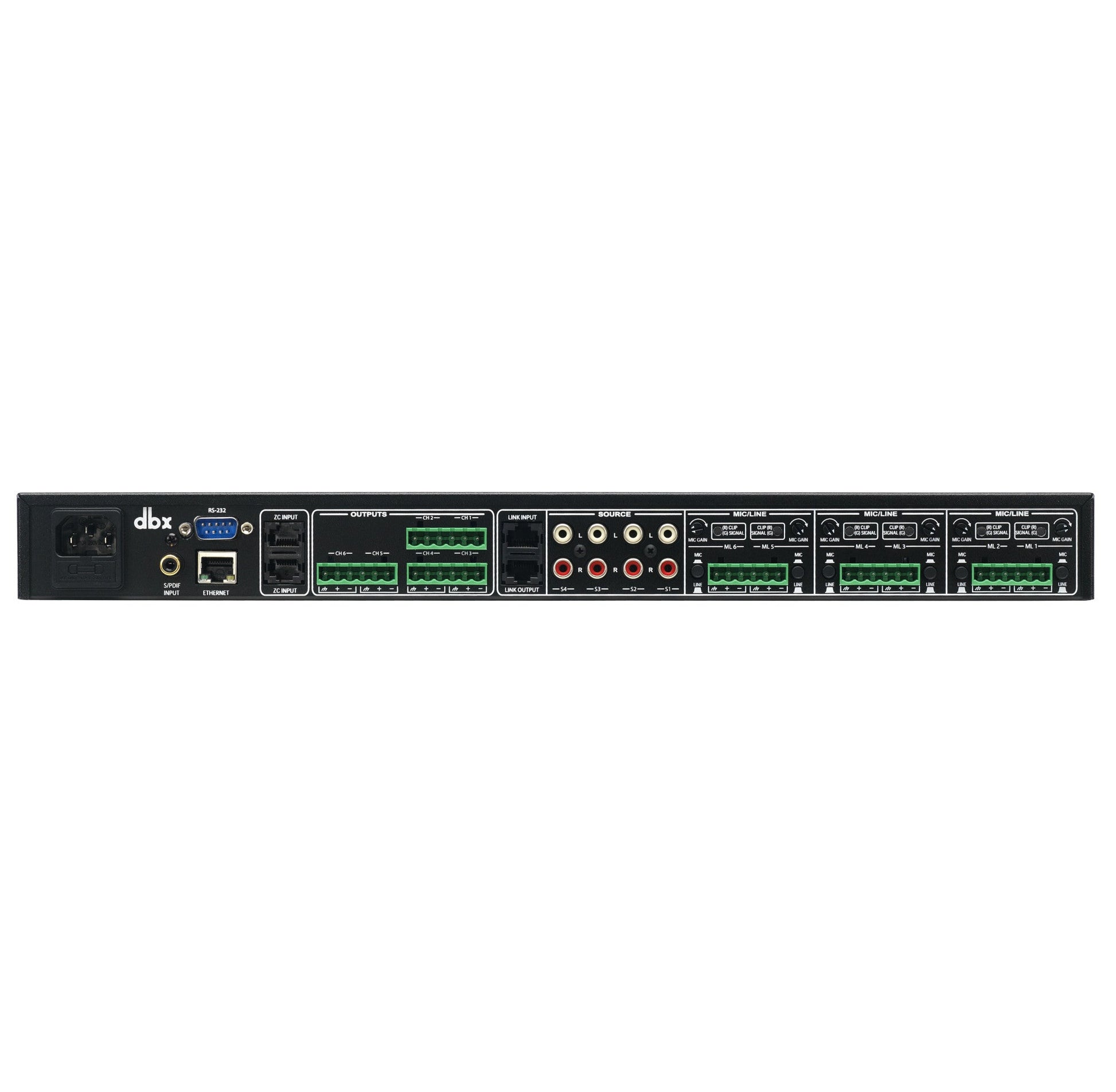

The 1261m features a total of 12 inputs and six outputs. Inputs include six balanced mic/line switchable terminal block inputs, four mono-summed pairs of unbalanced RCA inputs and one S/PDIF input for up to two digital channels. Hardware-controlled microphone gain allows adjustment of microphone gain per channel. The front panel of the 1261m features a power status LED, a network traffic LED, and an RS-232 control port.

The 1261m device has a pre-configured architecture with input processing, a central matrix and output processing. Two input insert positions and one output insert position allow channel-specific insert processing to be configured. AutoWarmth®, a psychoacoustic function that maintains full frequency bandwidth even when the signal level has dropped, is permanently available on each output zone.

A link bus allows duplication of the first six audio channels to another ZonePRO device in applications where additional output zones are required.

View full details
  • Input6 balanced mic/line inputs, 4 unbalanced, mono-summed RCA input pairs, S/PDIF input
  • Input typeEuroblock (mic/line), RCA (source)
  • Input impedanceEuroblock >50kΩ balanced, >25kΩ unbalanced RF filtered; RCA >25kΩ unbalanced, RF filtered
  • Max input+20dBu Mic/Line, +12dBu RCA
  • CMRR> 40dB, typically >55db @ 1kHz
  • Mic preamp gain30 to 60dB
  • Mic preamp EIN< -118dBu, 22Hz-22kHz, 150Ω source impedance
  • Mic preamp phantom power15V
  • Output typeelectronically balanced, RF filtered Euroblock
  • Output impedance120Ω balanced, 60Ω unbalanced
  • Max output+20dBu
  • Sample rate48kHz
  • Dynamic range>110dB A-weighted, >107dB unweighted, 22kHz BW
  • THD+Noise0.003% typical at +4dBu, 1kHz, 0dB gain
  • Frequency response20Hz – 20kHz, +/- 0.5dB
  • Interchannel crosstalk>80dB typical
  • Propagation delay0.8 msec
  • Operating voltage100-240 VAC, 50/60Hz
  • Power consumption27 W
  • BTU<92.13
