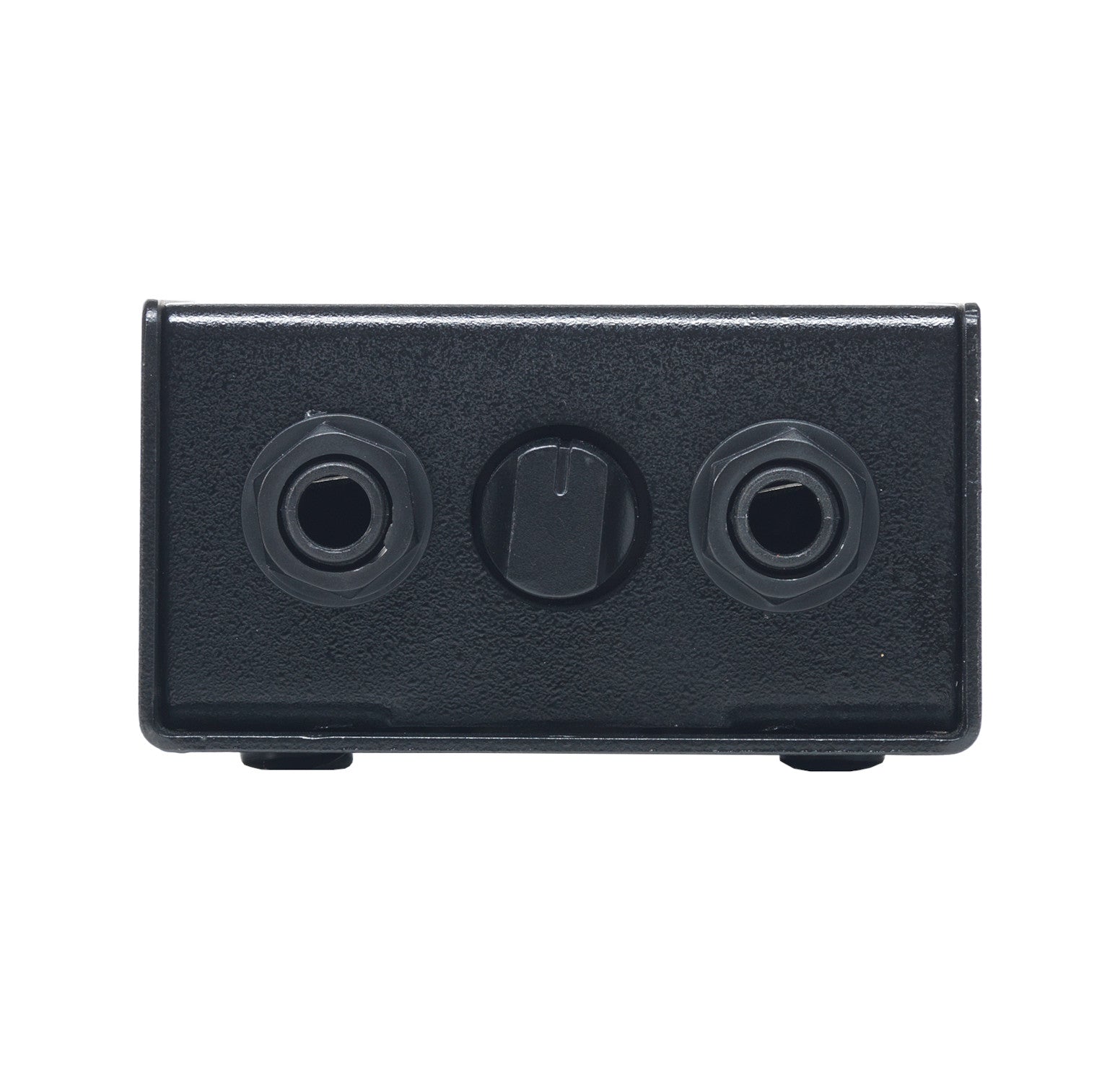

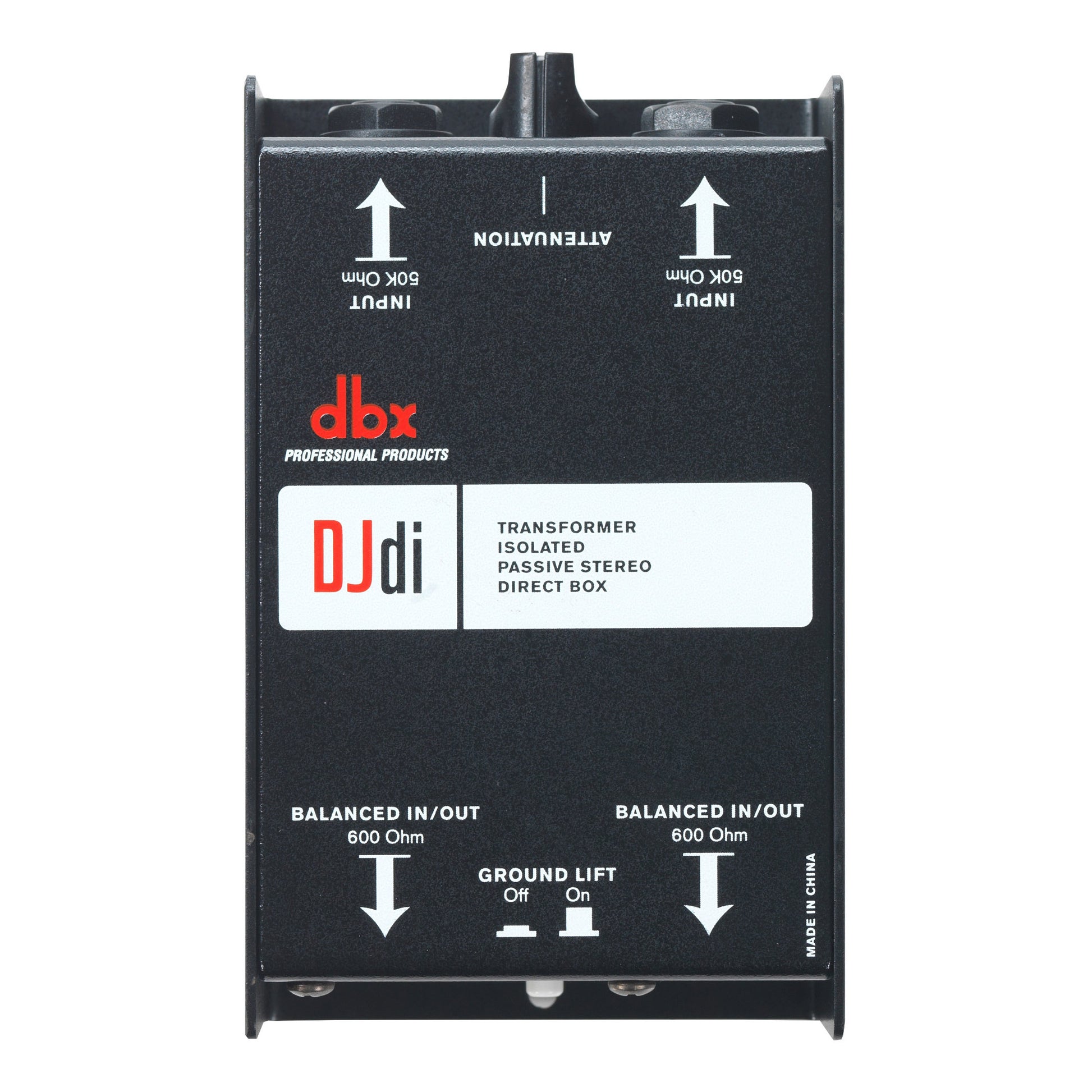

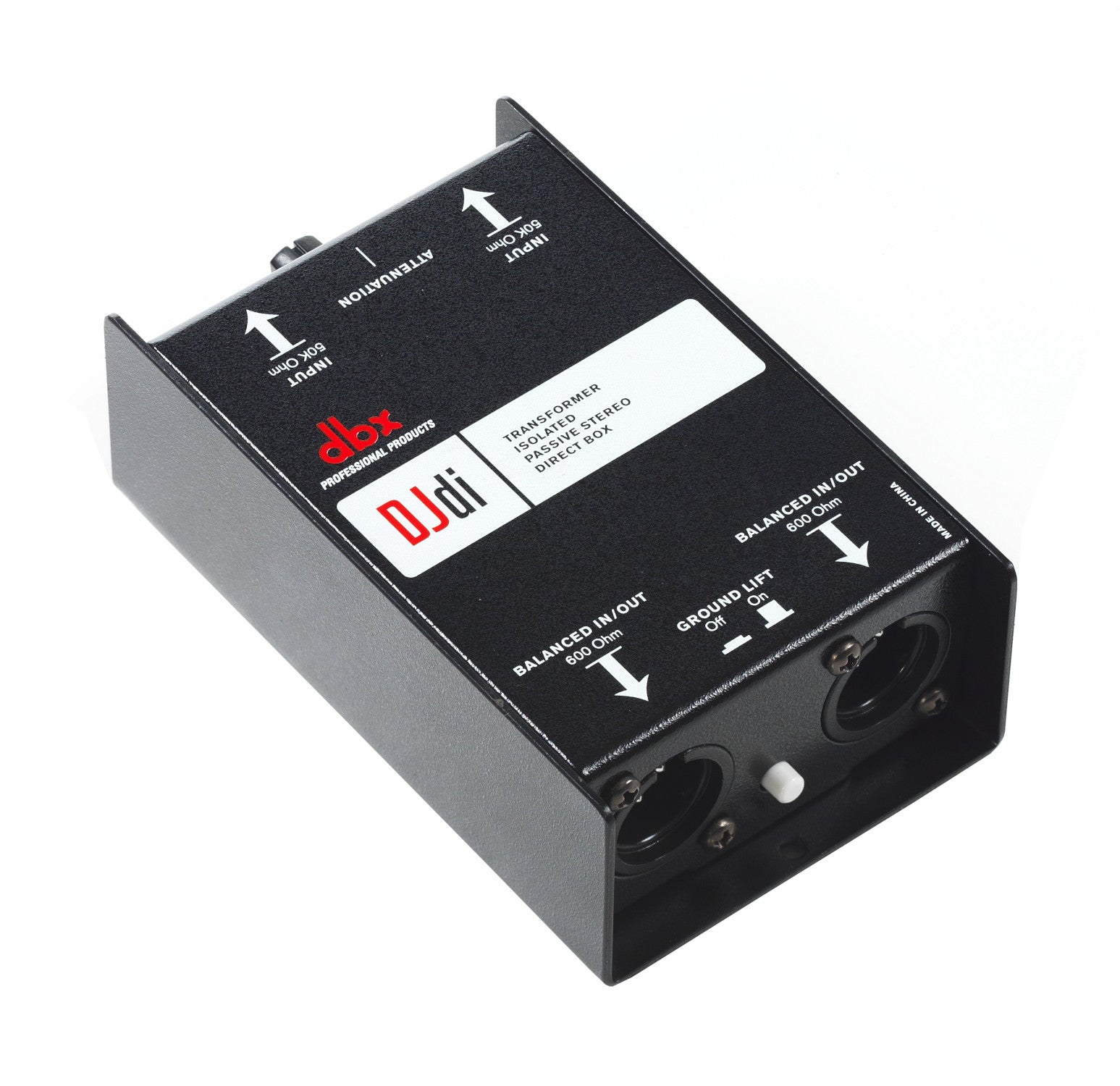

dbx DJDI 2-Channel Passive Direct Box
dbx DJDI 2-Channel Passive Direct Box
SoundPro Item: 41526 | Part Number: DJDI
Usually ships in 5-7 business days
- Dual channel
- 2 1/4" 50k Ohm TS inputs
- 2 XLR transformer-isolated 600 Ohm input/outputs
- Passive circuit design
- Continuously variable input attenuator
- Ground lift switch
The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.
- Audio Circuit TypePassive
- Inputs2
- Input connectors1/4" TS (tip hot, sleeve ground)
- Input typeunbalanced, RF filtered
- Input impedance50 kOhm
- Outputs2
- Output connectorsmale XLR, balanced, pin 2 hot
- Output impedance600 Ohms
- Noise level-104dBu (22Hz-22kHz, input shorted)
- THD+N (10Hz-22kHz)0.23% typical @ +4dBu @1kHz
- Insertion loss21dB typical
