• dbx ZC-2 Wall-Mounted Zone Controller
1 1

dbx ZC-2 Wall-Mounted Zone Controller

dbx ZC-2 Wall-Mounted Zone Controller

SoundPro Item: 47649 | Part Number: ZC-2

$95.00
$95.00 $95.00
Your Price Sold out
MSRP: $95.00 | MAP: $95.00

Usually ships in 5-7 business days

  • Programmable volume and mute control
  • For DriveRack 220i, 260, and ZonePRO products
  • Analog DC voltage
  • Up to 1,000 ft. on CAT 5 cable
Log in or register for YOUR best price

A simple yet elegant solution for contractors, the ZC-2 from dbx offers programmable volume and mute control for the DriveRack 220i, 260, and ZonePRO products.

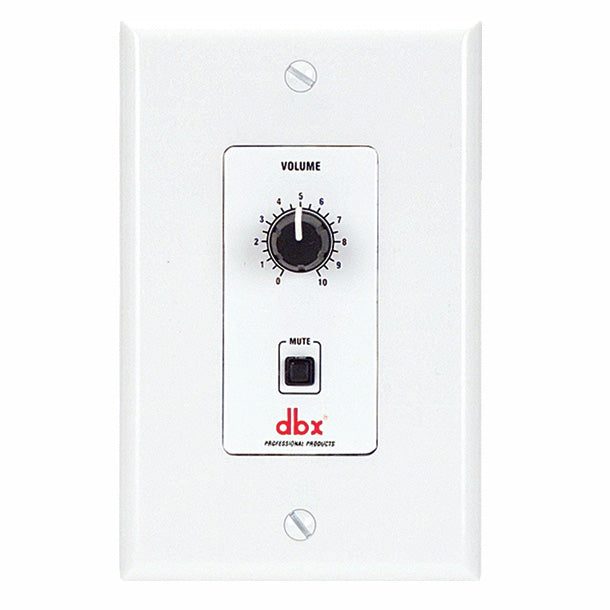

The ZC-2 wall-mounted controller from dbx provides a computer-programmable rotary potentiometer and push-button remote volume control and muting. It’s designed specifically to be compatible with the dbx DriveRack 220i, 260, and ZonePRO devices. The ZC-2 boasts DIP switches that enable identification with connection to the processing device via CAT 5 cable on RJ-45 connectors. (All DriveRack and ZonePRO gear sold separately.)

The dbx Zone Controller Series

Simple yet elegant, the Zone Controller series from dbx expand the capability of dbx’s DriveRack® and ZonePRO™ families. There are several controllers in this series, each using analog DC voltage to deliver logic control. Recommended for use in installed setups, Zone Controllers are an ideal solution for contractor applications.

Each controller is designed to fulfill a unique purpose, from zone source selection, volume adjustment, and muting, to program or scene selection or even fire safety muting. Zone controllers are wired with a standard CAT5 cable and feature universal RJ-45 connectors at distances up to 1000 feet.

More about ZonePRO

ZonePRO products are engineered to streamline your management of commercial audio applications. Thanks to step-by-step setup wizards, this series of products are simple to install and easy to use and are supported by dbx’s reputation for dependable performance.

View full details
  • Connectors(2) RJ-45
  • Series WiringMax Cable Length varies with number of Zone Controllers (for example, 3 Zone Controllers: 600 ft. 6 Zone Controllers: 300 ft)
  • Parallel Wiring Using ZC-BOBup to 6 Zone Controllers: 1000 ft
  • Parallel Wiring CableCAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher
