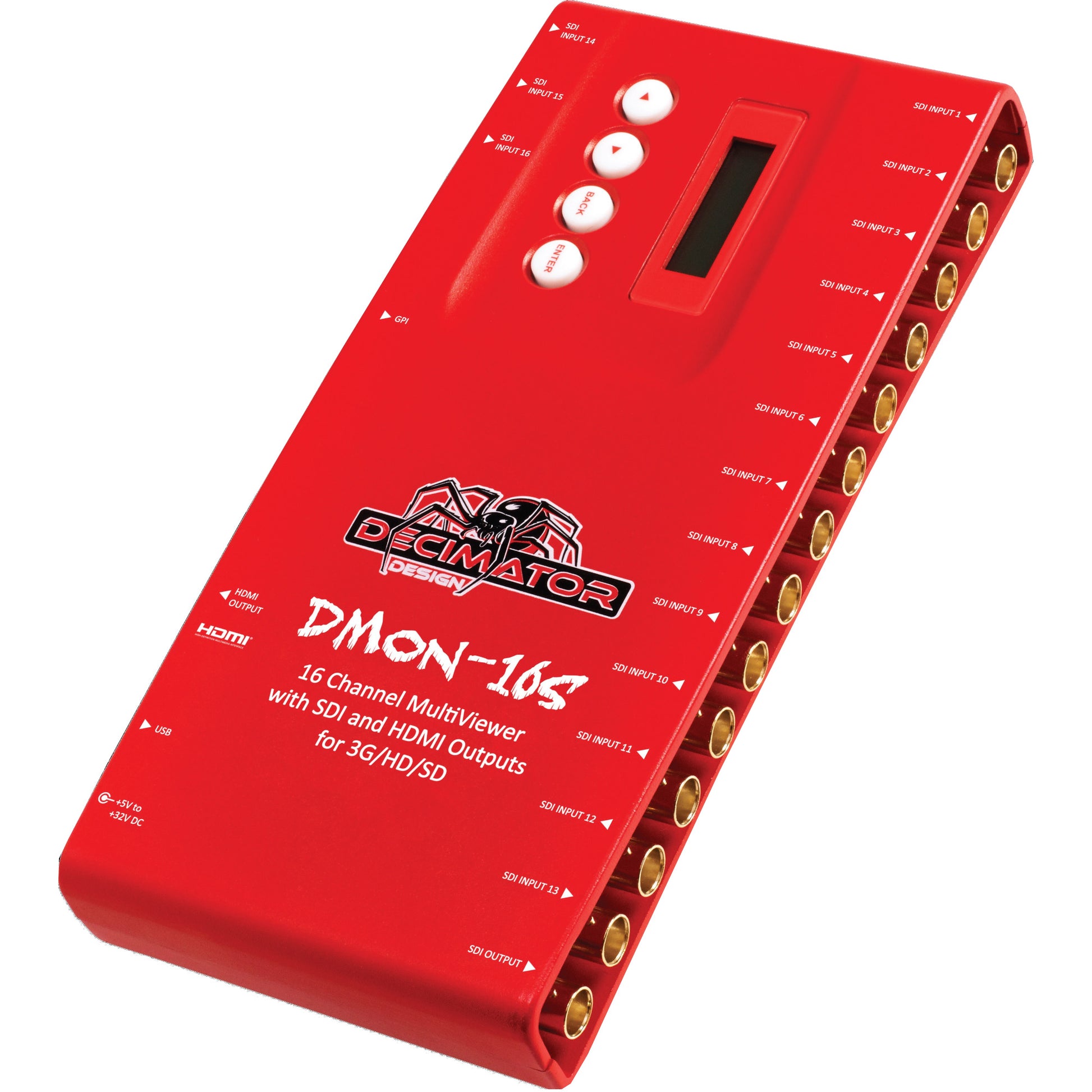

Decimator DMON-16S 16-Channel MultiViewer
Decimator DMON-16S 16-Channel MultiViewer
SoundPro Item: 35213 | Part Number: DMON-16S
Usually ships in 5-7 business days
- Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B
- Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer or 16 to 1 input multiplexer
- Custom Layouts with various standard layouts
- 16 Character UMD overlay per window with individual enables, custom positioning and size
- 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
- Safe Action and Safe Title overlay per window with individual enables and adjustment
- Centre Cross overlay per window with individual enable
- Audio ID overlay
- Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
- Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
- Load and restore Custom Layouts
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen and Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- Linked (3G/HD/SD)-SDI and HDMI outputs
- 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
- Pass-Through mode allowing any of the 16 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
Couldn't load pickup availability
The Decimator DMON-16S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting. Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously with variable aspect ratios per window.
1 to 16 Channel MultiViewer with SDI and HDMI outputs for 3G/HD/SD and Custom Layouts.
- SDI Input & Output Formats
- 3G: SMPTE 424M@2.97 and 2.967Gb/s
- 1080p@60/59.94/50Hz
- HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
- 1080i@60/59.94/50Hz
- 1080p/psf@30/29.97/25/24/23.98Hz
- 720p@60/59.94/50/30/29.97/25/24/23.98Hz
- SD:SMPTE 259M@270Mb/s
- 625i50
- 525i59.94
- HDMI Output Formats
- 1080p@60/59.94/50Hz
- 1080i@60/59.94/50Hz
- 1080p@30/29.97/25/24/23.98Hz
- 720p@60/59.94/50/30/29.97/25
- 625i50
- 525i59.94
- Power
- +5V to +32V DC
- Positive Centre Pin
- LCD / Button Menu Options
- HDMI output type
- Output Select
- Multi-Viewer Output Format
- Multi-Viewer Number of Windows
- Multi-Viewer Layout
- Multi-Viewer Audio Source
- Multi-Viewer Reference
- Full Screen is Scaled
- Input Routing
- GPI mode
- Setup
- Inputs
- 16 x (3G/HD/SD)-SDI
- Input Equalization > 100M using Belden 1694A
- USB for control and updates
- Outputs
- HDMI Type A
- 1 x SDI (3G/HD/SD)-SDI
- Dimensions8.7" x 4.1" x 1.2"
