• Decimator DMON-16SL 16-Channel MultiViewer
1 1

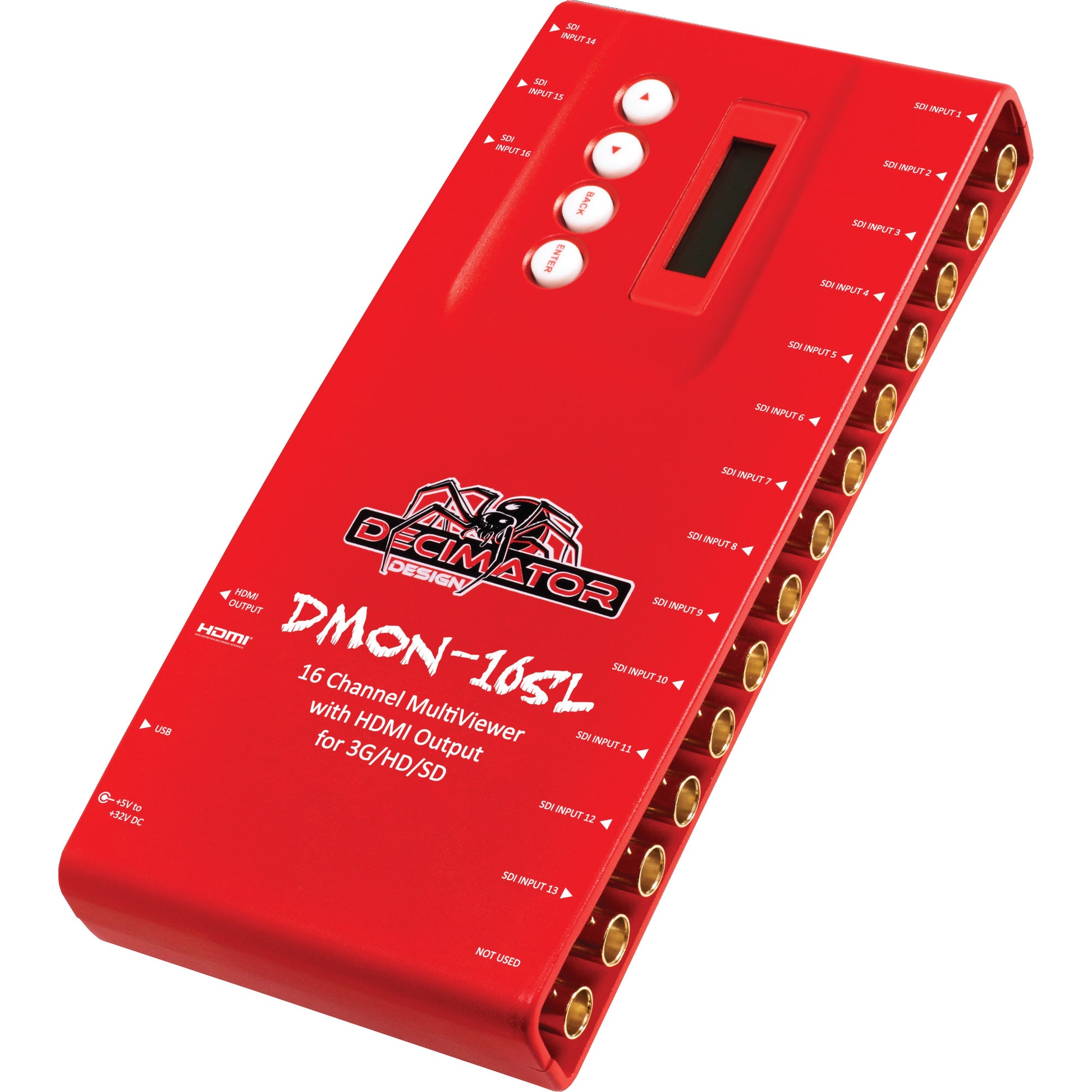

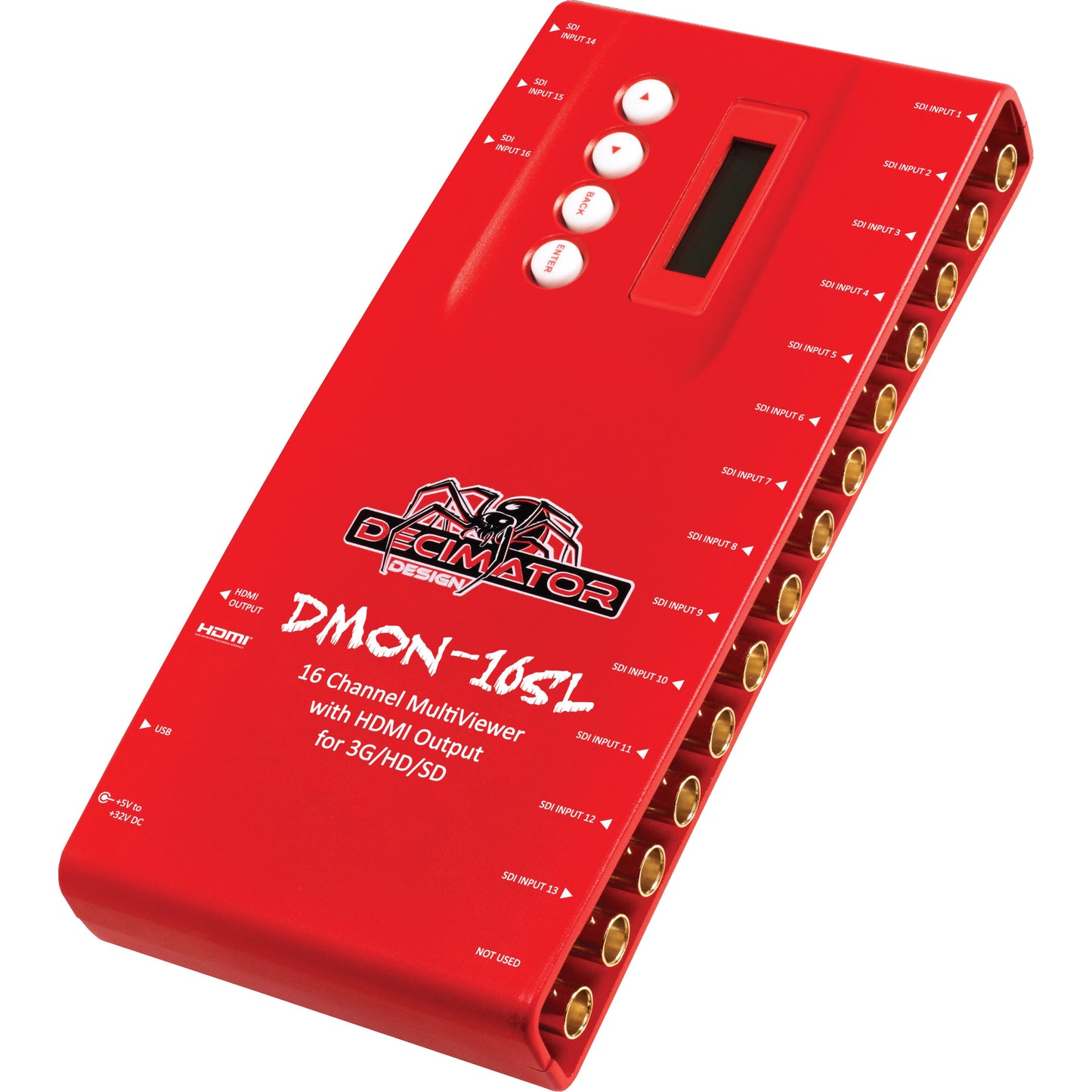

Decimator DMON-16SL 16-Channel MultiViewer

Decimator DMON-16SL 16-Channel MultiViewer

SoundPro Item: 35212 | Part Number: DMON-16SL

$875.00
$875.00 $875.00
Your Price Sold out
MSRP: $875.00 | MAP: $875.00

Usually ships in 5-7 business days

  • (NEW) Support for both 3G level A and B on the inputs.
  • Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer
  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • Audio ID overlay
  • Load and restore Custom Layouts
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen and Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per window
  • Pass-Through mode allowing any of the 16 inputs to be selected and routed to the the HDMI output
  • In Pass-Through mode the selected input is passed through to the HDMI output
Log in or register for YOUR best price

The DMON-16SL is a truly portable converter, that incorporates Decimator's new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

View full details
  • SDI Input Formats
    • 3G: SMPTE 424M@2.97 and 2.967Gb/s
      • 1080p@60/59.94/50Hz
    • HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
      • 1080i@60/59.94/50Hz
      • 1080p/psf@30/29.97/25/24/23.98Hz
    • SD:SMPTE 259M@270Mb/s
      • 625i50
      • 525i59.94
  • HDMI Output Formats
    • 1080p@60/59.94/50Hz
    • 1080i@60/59.94/50Hz
    • 1080p@30/29.97/25/24/23.98Hz
    • 720p@60/59.94/50/30/29.97/95
    • 625i50
    • 525i59.94
  • Power
    • +5V to +32V DC
    • Positive Centre Pin
  • LCD / Button Menu Options
    • HDMI output type
    • Output Select
    • Multi-Viewer Output Format
    • Multi-Viewer Number of Windows
    • Multi-Viewer Layout
    • Multi-Viewer Audio Source
    • Multi-Viewer Reference
    • Full Screen is Scaled
    • Input Routing
    • Setup
  • Inputs
    • 16x (2G/HD/SD) - SDI
    • Input Equalization > 100M using Belde n 1694A
    • USB for control and updates
  • OutputsHDMI Type A
  • Dimensions 8.7" x 4.1" x 1.2"
