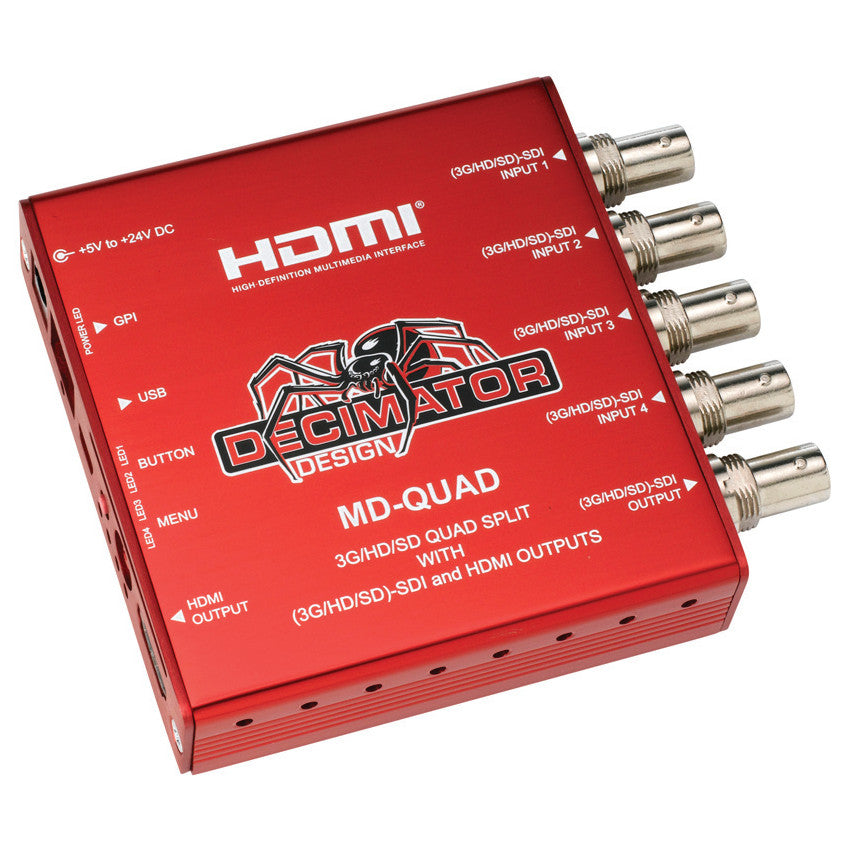

- SDI Formats
- 3G: SMPTE 424M@2.97 and 2.967Gb/s
- 1080p@60/59.94/50Hz
- HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
- 1080i@60/59.94/50Hz
- 1080p/psf@30/29.97/25/24/23.98Hz
- 720p@60/59.94/50/30/29.97/25/24/23.98Hz
- SD:SMPTE 259M@270Mb/s
- 625i50
- 525i59.94
- Inputs
- Input Equalization > 100M using Belden 1694A
- USB for control and updates
- GPI on RJ-45
- Outputs
- 1 x 10-bit (3G/HD/SD)-SDI re-clocked
- HDMI
- Power
- +5V to +24V DC, 6 Watts
- Positive Centre Pin
- LED Status
- Power
- 4 x Signal lock and rate
- Menu Options
- Input status for all 4 inputs
- Output format
- Output selection of Quad Split or input 1, 2, 3, or 4
- Output aspect and type of 16:9 or 4:3 at either 90 or 100% of screen size
- Individual aspect format for each input of Same as output, Letter-box or Pillar-box
- Border Enable
- Quad split mode reference of either Free-run or input 1
- Enables for On-Screen Overlays
- Basic Audio Meter control
- Dimensions3.5" x 3.7" x 0.9"
