Specifications
Audio Performance
Main Output Type
Balanced XLR
Main DAC
ESS ES9017S 32-bit
Main Dynamic Range
Up to 119 dB (A-weighted)
Main Maximum Output Level
+20 dBu (8 Vrms)
Main THD+N
0.001%
Main Frequency Response
20 Hz - 20 kHz
Unbalanced Main Output Type
RCA (Left/Right)
Unbalanced Main Dynamic Range
Up to 118 dB (A-weighted)
Unbalanced Main Maximum Output Level
+14 dBu (4 Vrms)
Unbalanced Main THD+N
0.003%
Mic Input Type
Balanced
Mic Dynamic Range
100 dB
Mic Maximum Input Level
100 mVrms
Mic THD+N
< 0.005%
Instrument Input Type
Unbalanced, mono
Instrument Dynamic Range
111 dB (A-weighted)
Instrument Maximum Input Level
+15 dBu (4.3 Vrms)
Instrument THD+N
0.002%
Line Input Dynamic Range
114 dB (A-weighted)
Line Maximum Input Level
+14 dBu (4 Vrms)
Line THD+N
0.001%
Phono Maximum Input Level
-17 dBu
Phono Gain
+31.7 dB @ 1 kHz
Phono Frequency Response
RIAA curve (vinyl-accurate)
Headphone Dynamic Range
113 dB
Headphone Maximum Output Level
+14 dBu
Headphone Output Power
180 mW @ 32 Ohm / 10 mW @ 600 Ohm
Headphone THD+N
0.001%
Frequency Response (All)
20 Hz - 20 kHz

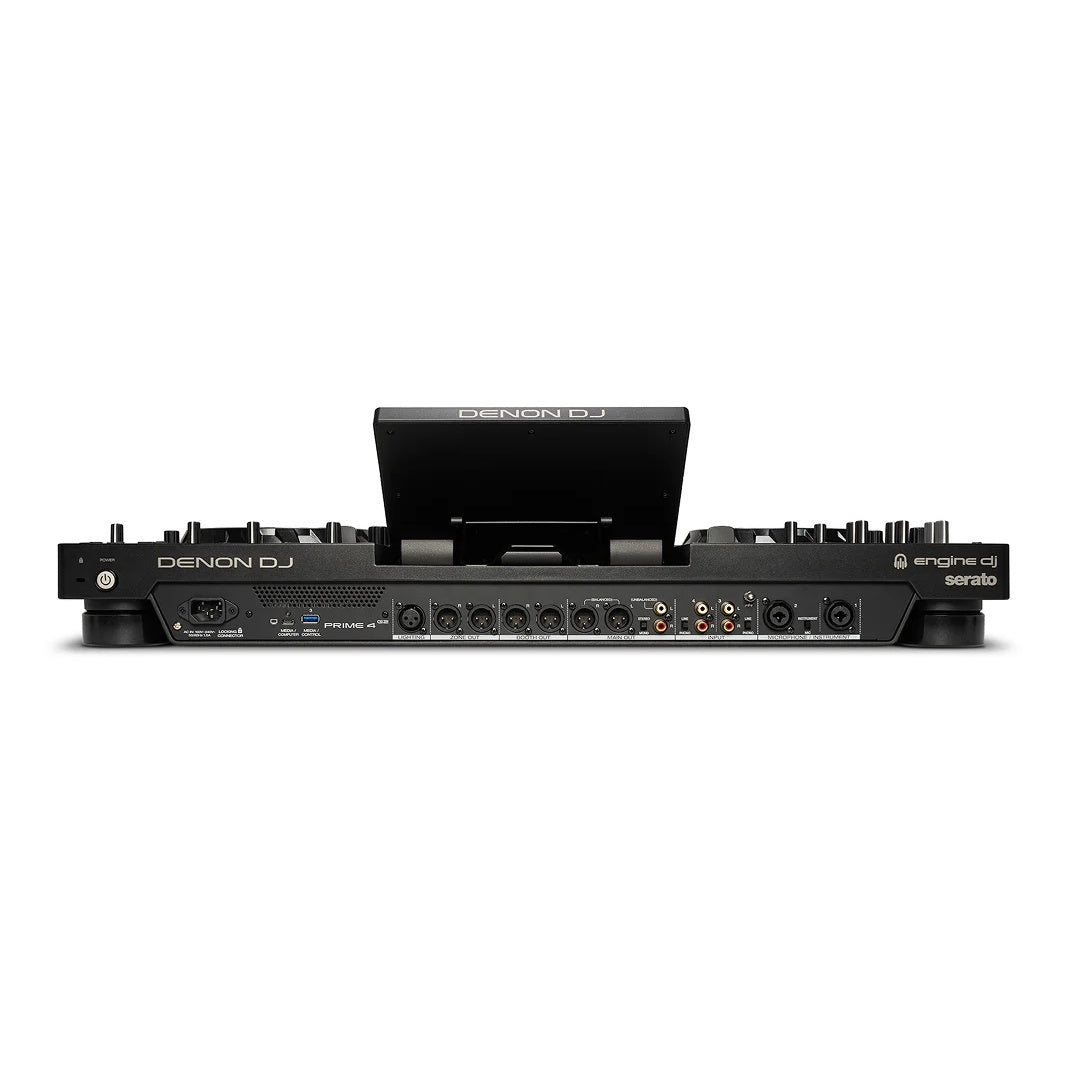

Connectivity
Mic 1 Input
XLR + 1/4" Combo Jack
Mic 2 / Instrument Input
XLR + 1/4" Combo Jack
Line/Phono Inputs
Channel 3 and 4: Stereo Pair RCA
Main Output
2x XLR, Stereo Pair RCA
Booth Output
2x XLR
Zone Output
2x XLR
Headphone Outputs
1/4" Stereo Jack, 3.5 mm Stereo Mini-Jack
Lighting Output
DMX
USB 1
Type-C, USB 2.0 High Speed, 1.0 A
USB 2
Type-A, USB 2.0 High Speed, 1.0 A
USB 3
Type-A, USB 3.0 SuperSpeed, 1.0 A
Computer/Media USB
Type-C with locking thread, USB 3.0 SuperSpeed, 2.0 A
SD Media
SD, SDHC, SDXC
Internal HD
SATA 3.0
Power Connector
Locking IEC
Controls and Display
Main Display
1280x800 multi-touch, optically bonded, 10.1"
Wheel Displays
RGB LED array, 60 LEDs per display
Jog Wheel Size
8"
Performance Pads
16 MPCe velocity and pressure-sensitive with 3D-sensing
Channel Faders
5x 45 mm
Wireless
Wi-Fi
2.4 GHz / 5 GHz, 802.11a/b/g/n/ac, Wi-Fi 5
Bluetooth
v5.4
Lighting
DMX Universes (Onboard)
1 Universe (512 channels)
DMX Universes (With Supported Interfaces)
Up to 2 Universes (1024 channels)
Supported Smart Lighting
Philips Hue, Nanoleaf
Supported Media
File Systems
exFAT (recommended), FAT32
Playable Formats
AAC/M4A, AIF/AIFF, ALAC, FLAC, MP3, MP4, Ogg Vorbis, WAV
AIF/AIFF and WAV Sample Rates
44.1-192 kHz, 16-32-bit
MP3 Bitrate
32-320 kbps
Streaming Services
Amazon Music Unlimited, Apple Music, Beatport, SoundCloud Go+, TIDAL
Processing
Processor
8-core ARM
RAM
4 GB
Electrical
Input Voltage
100-240 V AC
Frequency
50/60 Hz
Power Consumption
100 W
Dimensions
Width
30"
Depth
19.57"
Height
4.13"
Width (cm)
76.2 cm
Depth (cm)
49.71 cm
Height (cm)
10.49 cm
Weight
Product Weight
21.83 lbs (9.9 kg)
