• DPA 3511ES d:dictate Cardioid Microphone Stereo Kit
1 1

DPA 3511ES d:dictate Cardioid Microphone Stereo Kit

DPA 3511ES d:dictate Cardioid Microphone Stereo Kit

SoundPro Item: 27952 | Part Number: 3511ES

$5,795.00
$5,795.00 $5,795.00
Your Price Sold out
MSRP: $5,795.00 | MAP: $5,795.00

Usually ships in 5-7 business days

  • Close-miking
  • Great for high sound levels
  • Factory-matched pair within ±1 dB
  • Accurate sound
  • Colorless sound
  • Modular flexibility
Log in or register for YOUR best price

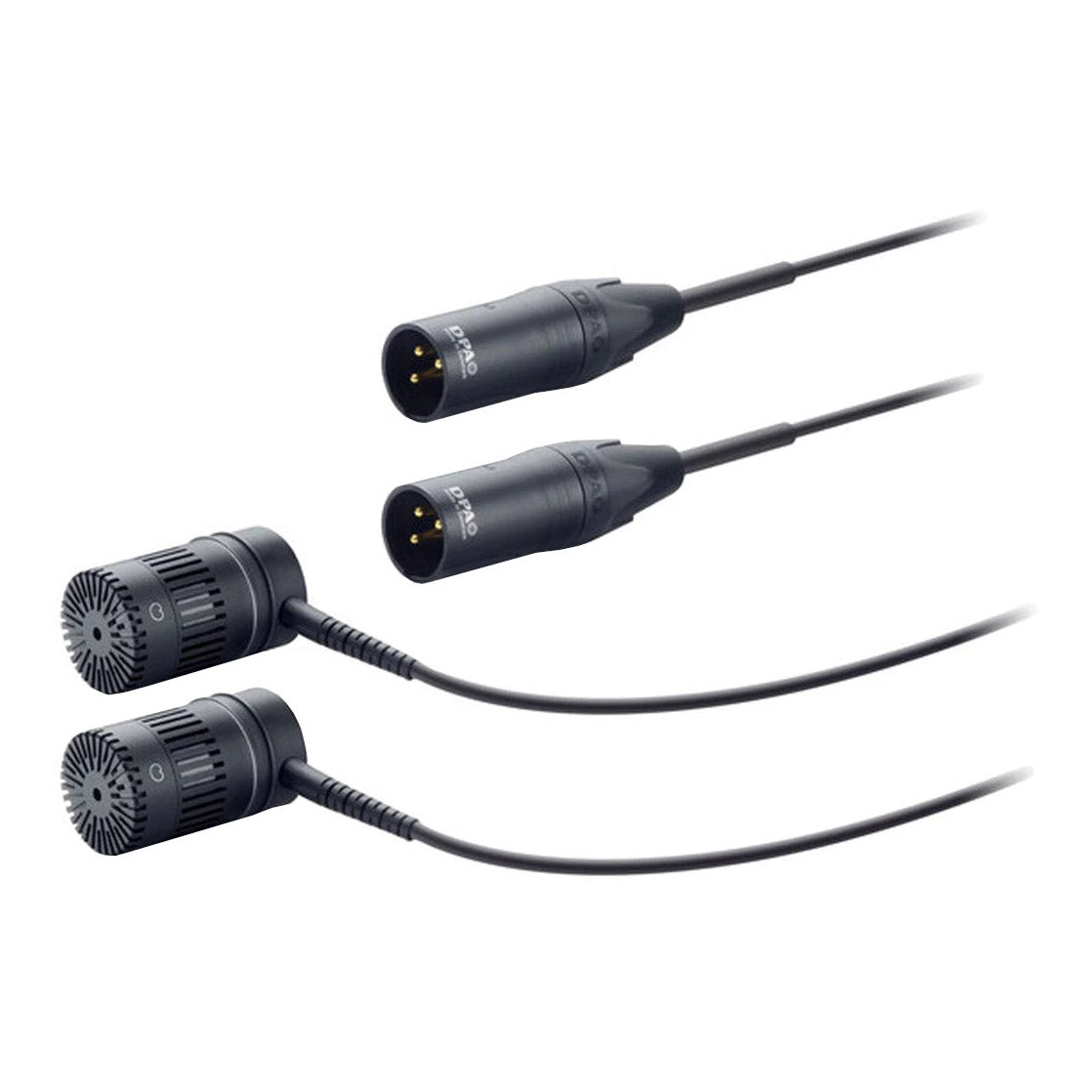

This is a complete stereo kit with two compact d:dicate 4011ES Cardioid Microphones, with active side cables. The mics are carefully factory-matched within ±1 dB on frequency response and sensitivity in the microphone’s entire frequency bandwidth.

Ideal for unobtrusive spot miking, such as hanging or table use, the d:dicate 4011ES Cardioid Microphone, Active Cable is an ultra-compact cardioid microphone from the modular d:dicate Microphones Series. The mic has a length of only 3.5 cm (1.4 in) and a low-key appearance.

The mic features an integrated cable solution. This allows it to be hung from the ceiling and create precise and repeatable positions and angles when spot miking orchestra sections or ambience atmospheres.

View full details
  • Directional patternCardioid
  • Principle of operationPressure gradient
  • Cartridge typePre-polarized condenser
  • Frequency response20 Hz - 20 kHz
  • Effective frequency range, ±2 dB, at 30 cm (11.8 in)40 Hz - 20 kHz
  • Sensitivity, nominal, ±2 dB at 1 kHz10 mV/Pa; -40 dB re. 1 V/Pa
  • Equivalent noise level, A-weightedTyp. 18 dB(A) re. 20 µPa (max. 20 dB(A))
  • Equivalent noise level, ITU-R BS.468-4Typ. 25 dB (max. 27 dB)
  • Distortion, THD < 1%136 dB SPL RMS, 139 dB SPL peak
  • Dynamic rangeTyp. 121 dB
  • Max. SPL, THD 10%144 dB SPL peak
  • Rated output impedance100 Ω
  • Minimum load impedance2 kΩ
  • Cable drive capability100 m (328 ft)
  • Output balance principleImpedance balancing
  • Common mode rejection ratio (CMRR)> 40 dB
  • Power supply (for full performance)P48 (Phantom Power)
  • Current consumption3.5 mA
  • ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • ColorMatte black
  • Weight109 g (3.8 oz)
  • Microphone diameter19 mm (0.75 in)
  • Capsule diameter19 mm (0.75 in)
  • Microphone length35 mm (1.38 in)
  • Maximum output voltage, RMS2.2 V
  • Polarity+V at pin 2 for positive sound pressure
  • Temperature range-40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH)Up to 90%
  • Matching tolerance (frequency response and sensitivity)±1 dB
  • Phase deviation for kit< 10°
