• DPA 4011ES Cardioid Microphone Side Cable
1 1

DPA 4011ES Cardioid Microphone Side Cable

DPA 4011ES Cardioid Microphone Side Cable

SoundPro Item: 38641 | Part Number: 4011ES

$2,225.00
$2,225.00 $2,225.00
Your Price Sold out
MSRP: $2,225.00 | MAP: $2,225.00

Usually ships in 5-7 business days

  • Ultra-compact spot or hanging mic
  • Close-miking
  • Great for high sound levels
  • Accurate sound
  • Colorless sound
  • Modular flexibility
Log in or register for YOUR best price

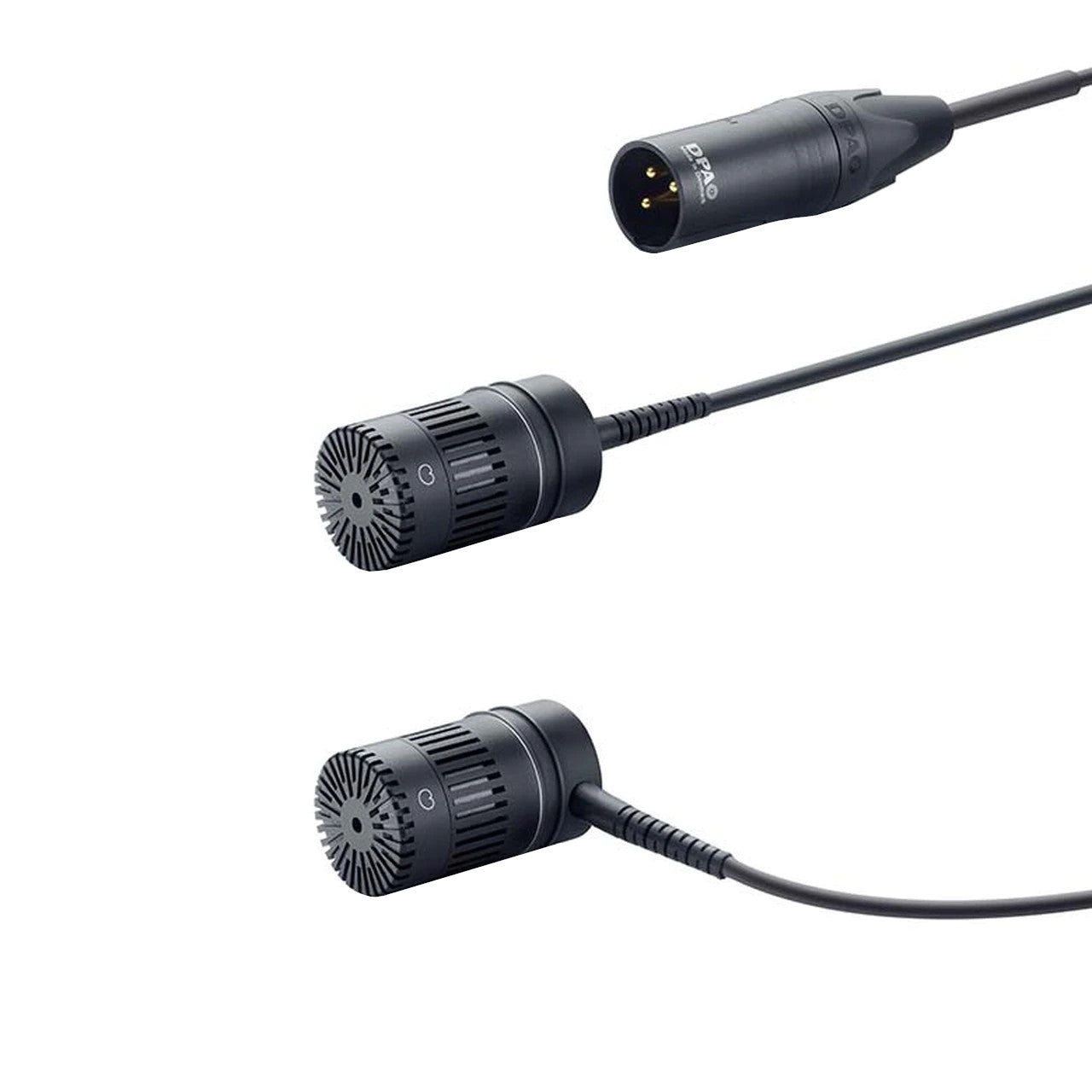

The 4011ES from DPA Microphones is a side cable for the 4011E cardioid microphone.

Ideal for unobtrusive spot miking, such as hanging or table use, the d:dicate™ 4011E Cardioid Microphone, Active Cable is an ultra-compact cardioid microphone from the modular d:dicate Microphones Series. The mic has a length of only 3.5 cm (1.4 in) and a low-key appearance.

The d:dicate 4011E Omnidirectional Microphone features an integrated cable solution with either side (4011ES) or rear (4011ER) cable entry. This allows the mic to be hung from the ceiling and create precise and repeatable positions and angles when spot miking orchestra sections or ambience atmospheres.

View full details
  • Directional patternCardioid
  • Principle of operationPressure gradient
  • Cartridge typePre-polarized condenser
  • Frequency response20 Hz - 20 kHz
  • Effective frequency range, ±2 dB, at 30 cm (11.8 in)40 Hz - 20 kHz
  • Sensitivity, nominal, ±2 dB at 1 kHz10 mV/Pa; -40 dB re. 1 V/Pa
  • Equivalent noise level, A-weightedTyp. 18 dB(A) re. 20 µPa (max. 20 dB(A))
  • Equivalent noise level, ITU-R BS.468-4Typ. 25 dB (max. 27 dB)
  • Distortion, THD < 1%136 dB SPL RMS, 139 dB SPL peak
  • Dynamic rangeTyp. 121 dB
  • Max. SPL, THD 10%144 dB SPL peak
  • Rated output impedance100 Ω
  • Minimum load impedance2 kΩ
  • Cable drive capability100 m (328 ft)
  • Output balance principleImpedance balancing
  • Common mode rejection ratio (CMRR)> 40 dB
  • Power supply (for full performance)P48 (Phantom Power)
  • Current consumption3.5 mA
  • ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • ColorMatte black
  • Weight109 g (3.8 oz)
  • Microphone diameter19 mm (0.75 in)
  • Capsule diameter19 mm (0.75 in)
  • Microphone length35 mm (1.38 in)
  • Maximum output voltage, RMS2.2 V
  • Polarity+V at pin 2 for positive sound pressure
  • Temperature range-40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH)Up to 90%
  • Matching tolerance (frequency response and sensitivity)±1 dB
  • Phase deviation for kit< 10°
