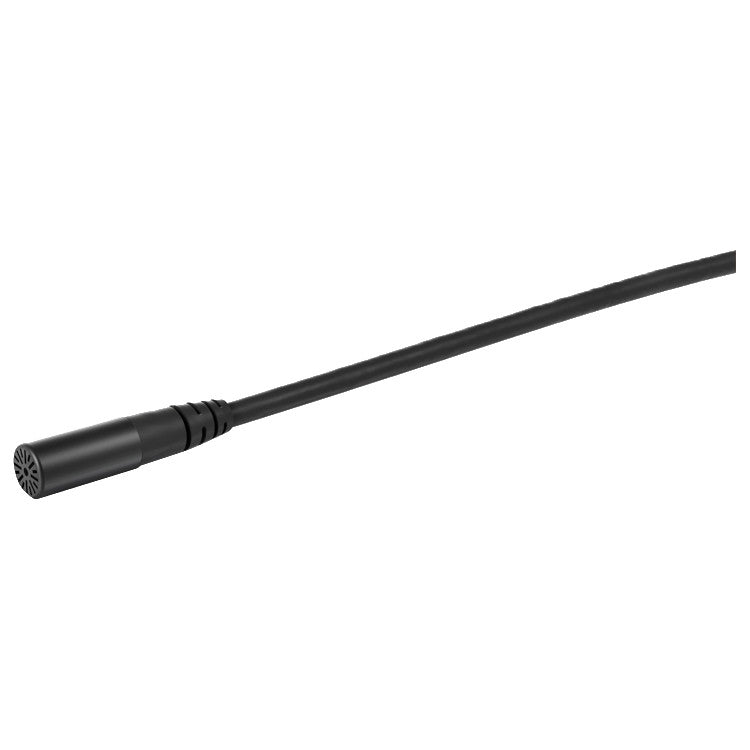

DPA Microphones 6060 CORE Omni Subminiature Lavalier Mic | TA4F Mini-XLR | Black
DPA Microphones 6060 CORE Omni Subminiature Lavalier Mic | TA4F Mini-XLR | Black
SoundPro Item: 34999 | Part Number: 6060-OC-U-B10
Usually ships in 5-7 business days
- CORE Technology Reduces Self-Noise And Expands Headroom For Clean Dialog In RF-Dense Environments
- IP58 Environmental Sealing Protects Against Perspiration And Moisture During Extended Wear
- Modular MicroLock Connector Enables Tool-Free Swaps Across Wireless Transmitter Platforms
- Omnidirectional Polar Pattern Maintains Consistent Timbre Regardless Of Talent Movement
- 102 dB Dynamic Range Captures Whispers To Peaks Without Clipping Or Noise Compromise
The DPA 6060 CORE series redefines what's possible in subminiature lavalier design for broadcast, theater, and film production. At just 3 mm in diameter, the capsule vanishes on camera yet delivers the sonic signature DPA is known for: flat frequency response, low self-noise, and high SPL handling that rivals larger microphones. CORE technology reduces distortion and noise floor, giving you clean dialog capture even in challenging RF environments or when concealed under wardrobe.
Built for the demands of professional production, the capsule carries an IP58 rating for sweat and moisture resistance, while the modular TA4F Mini-XLR connector allows fast, secure attachment to a wide range of wireless transmitters through DPA's adapter system. The 1.8 m cable provides routing flexibility without adding bulk, and the omnidirectional polar pattern ensures consistent pickup regardless of talent movement or mic placement.
Where other 3 mm capsules sacrifice headroom or introduce noise, the 6060 maintains 102 dB of usable dynamic range and handles peak SPLs up to 134 dB—ideal for live performances, reality TV, and location sound where you need reliable capture without resorting to larger, more visible solutions.
- Directional patternOmnidirectional
- Principle of operationPressure
- Cartridge typePre-polarized condenser
- Frequency response20 Hz - 20 kHz
- Effective frequency range ±2 dB40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
- Sensitivity, nominal, ±2.4 dB at 1 kHz20 mV/Pa; -34 dB re. 1 V/Pa
- Equivalent noise level, A-weightedTyp. 24 dB(A) re. 20 μPa (max. 26 dB(A))
- Distortion, THD < 1%123 dB SPL RMS, 126 dB SPL peak
- Dynamic rangeTyp. 102 dB
- Max. SPL, THD 10%134 dB SPL peak
- Rated output impedance30 - 40Ω
- Cable drive capabilityUp to 300 m (984 ft) with DAD6001-BC XLR Adapter
- Power supply (for full performance)
- For wireless systems: Min. 5V - max. 10V through DPA adapter
- With DAD6001-BC: P48 (Phantom Power). Will work from 12V
- Current consumptionTyp. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
- ConnectorMicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
- ColorBlack, beige, brown or white
- Weight8 g (0.29 oz) incl. Cable and MicroDot connector
- Microphone head size (HxWxD)3.4 / 14.4 mm (0.13 / 0.57 in)
- Capsule diameter3 mm (0.12 in)
- Cable length1.8 m (5.9 ft)
- PolarityPositively increasing sound pressure produces positive going voltage on MicroDot pin
- Temperature range-40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH)Up to 90%
