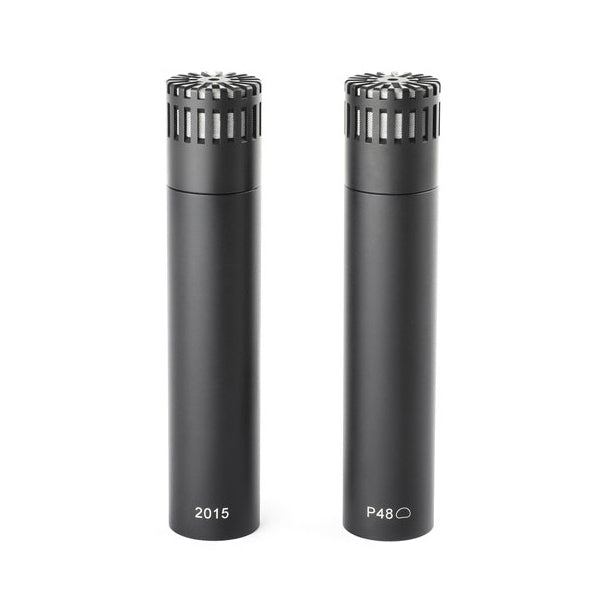

DPA Microphones 2015 Wide Cardioid Microphone

DPA Microphones 2015 Wide Cardioid Microphone

SoundPro Item: 203341 | Part Number: 2015

$895.00
$895.00 $895.00
Your Price Sold out
MSRP: $895.00 | MAP: $895.00

Usually ships in 5-7 business days

  • Durable, reinforced construction
  • Uniform wide cardioid directionality
  • Spacious sound due to a wide cardioid pick-up pattern
  • Natural and precise sound reproduction
  • Compact design for unobtrusive placement on stage
Log in or register for YOUR best price

The 2015 Wide Cardioid Microphone’s wider pick-up pattern offers an innovative way to pick-up the spacious and natural sound of the total drum kit or other instrument group. Its compact design, combined with its wide pickup area makes it an unobtrusive solution for live stage placement.

View full details

Specifications

GENERAL SPECIFICATIONS
Directional Pattern
Wide cardioid
Principle of Operation
Pressure gradient
Cartridge Type
Pre-polarized condenser
FREQUENCY & PERFORMANCE
Frequency Response
20 Hz - 20 kHz
Effective Frequency Range (±2 dB @ 30 cm)
40 Hz - 18 kHz
Sensitivity (±2 dB @ 1 kHz)
12 mV/Pa
Equivalent Noise Level (A-weighted)
Typ. 18 dB(A) re 20 µPa; max. 20 dB(A)
Distortion (THD < 1%)
147 dB SPL; 150 dB SPL peak
Dynamic Range
Typ. 132 dB
Max SPL (THD 10%)
153 dB SPL peak
Maximum Output Voltage (RMS)
8.7 V; 21 dBu
ELECTRICAL SPECIFICATIONS
Rated Output Impedance
60 Ω
Minimum Load Impedance
2 kΩ
Cable Drive Capability
100 m (328 ft)
Output Balance Principle
Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR)
>60 dB
Power Supply
P48 (Phantom Power)
Current Consumption
0.7 mA
Connector
XLR-3M; Pin 1: shield; Pin 2: signal + phase; Pin 3: - phase
Polarity
+V at pin 2 for positive sound pressure
PHYSICAL SPECIFICATIONS
Weight
83 g (2.9 oz)
Microphone Diameter
19 mm (0.75 in)
Capsule Diameter
17 mm (0.67 in)
Microphone Length
94 mm (3.7 in)
ENVIRONMENTAL
Temperature Range
-40°C to 45°C (-40°F to 113°F)
Relative Humidity
Up to 90%
