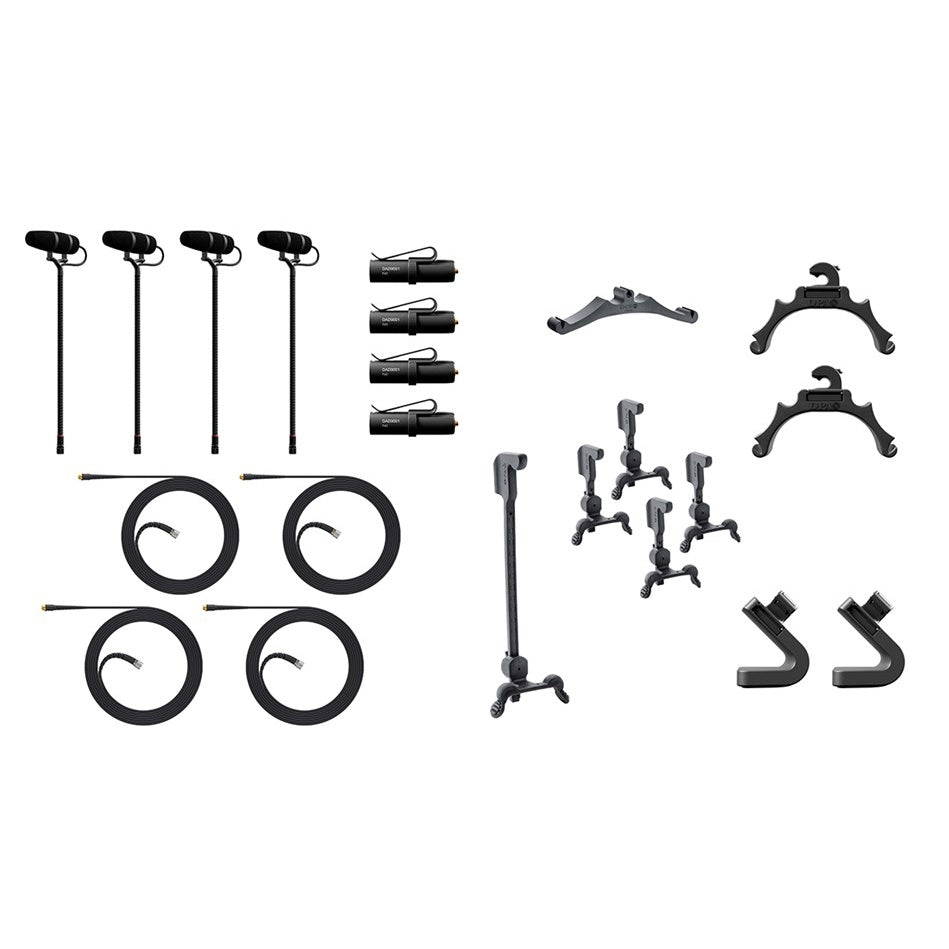

DPA Microphones KIT-4099 Touring Kit With Case | 4-Pack with Case

DPA Microphones KIT-4099 Touring Kit With Case | 4-Pack with Case

SoundPro Item: 152382 | Part Number: KIT-4099-DP-4C-C

$3,080.00
$3,080.00 $3,080.00
Your Price Sold out
MSRP: $3,080.00 | MAP: $3,080.00

Usually ships in 5-7 business days

  • CORE+ Technology Delivers Extended Clarity And Detail Across The Entire Dynamic Range
  • IP58 Certification Protects Against Water And Dust Ingress During Outdoor And High-Humidity Performances
  • Supercardioid Polar Pattern Provides Superior Gain-Before-Feedback For Stage And Orchestral Pit Applications
  • MicroLock Connector Enables Quick Wireless Transmitter Pairing Or XLR Adapter Integration
  • Advanced Flexible Clip Program Accommodates Drums, Brass, Woodwinds, And Strings Without Custom Hardware
  • 140 mm Gooseneck Positions Capsule At Optimal Distance For Natural Tone Without Performer Obstruction
  • 145 dB Peak SPL Handling Captures Percussion And Brass Transients Without Distortion Or Compression
Log in or register for YOUR best price

The 4099 CORE+ series brings IP58-rated protection and MicroLock connectivity to multi-channel miking for orchestras, touring bands, and theater productions where reliable instrument capture under demanding environmental conditions is non-negotiable. DPA's pressure gradient capsule design delivers a supercardioid pattern with superior gain-before-feedback, making these condensers the first choice for live sound engineers working festival stages, arena tours, and house-of-worship installations where high SPL instruments require consistent polar response across the frequency spectrum.

Each microphone features a 140 mm gooseneck that positions the 5.7 mm capsule precisely at the sweet spot of drums, brass, woodwinds, and stringed instruments without obstructing the performer. The advanced clip program accommodates nearly every instrument family, while the 1.8 m integrated cable with MicroLock termination pairs seamlessly with wireless transmitters or DAD series XLR adapters. With 118 dB of usable dynamic range and THD under 0.5% at 135 dB SPL, these mics handle everything from intimate jazz ensembles to symphony percussion sections without compression or distortion.

The ten-piece configuration includes a protective flight case designed for rapid deployment across multi-night tours or repertory theater runs where crew efficiency and equipment reliability determine production success. Engineers who need matched sensitivity within ±1 dB across all ten capsules will appreciate the factory calibration that ensures uniform coverage whether you're miking a drum kit, string quartet, or full brass section.

View full details

Specifications

Certifications
Capsule IP Rating
IP58
Audio
Directional Pattern
Supercardioid
Principle Of Operation
Pressure gradient
Cartridge Type
Pre-polarized condenser
Frequency Response
20 Hz - 20 kHz
Effective Frequency Range ±2 dB, At 20 cm
80 Hz - 17 kHz with 2 dB soft boost at 10-12 kHz
Sensitivity, Nominal, ±3 dB At 1 kHz
6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent Noise Level, A-weighted
Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Distortion, THD < 0.5%
135 dB SPL RMS, 138 dB SPL peak
Distortion, THD < 1%
138 dB SPL RMS, 141 dB SPL peak
Dynamic Range
Typ. 118 dB
Max. SPL, THD 10%
145 dB SPL peak
Rated Output Impedance
From MicroLock: 30 - 40 Ω. From DAD9099 or DAD9001: 100 Ω
Cable Drive Capability
Up to 300 m (984 ft) with DAD9001/DAD9099 XLR Adapter
Output Balance Principle
Signal balanced with DAD9099 or DAD9001 XLR Adapter
Common Mode Rejection Ratio (CMRR)
> 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR Adapter
Polarity
+V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)
Sensitivity Selection Tolerance (at 1 kHz)
±1 dB
Power
Power Supply (For Full Performance)
For wireless systems Min. 5 V - max. 10 V through DPA adapter. With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12 V
Current Consumption
Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 or DAD9001 XLR Adapter
Connectivity
Connector
MicroLock
Construction
Color
Black
Microphone Diameter
5.7 mm (0.22 in)
Microphone Length
50 mm (1.97 in)
Cable Length
1.8 m (5.9 ft)
Cable Diameter
1.6 mm (0.06 in) / 2.2 mm (0.09 in)
Gooseneck Length
140 mm (5.5 in)
Environmental
Temperature Range
-40°C to 45°C (-40°F to 113°F)
Relative Humidity (RH)
Up to 90%
