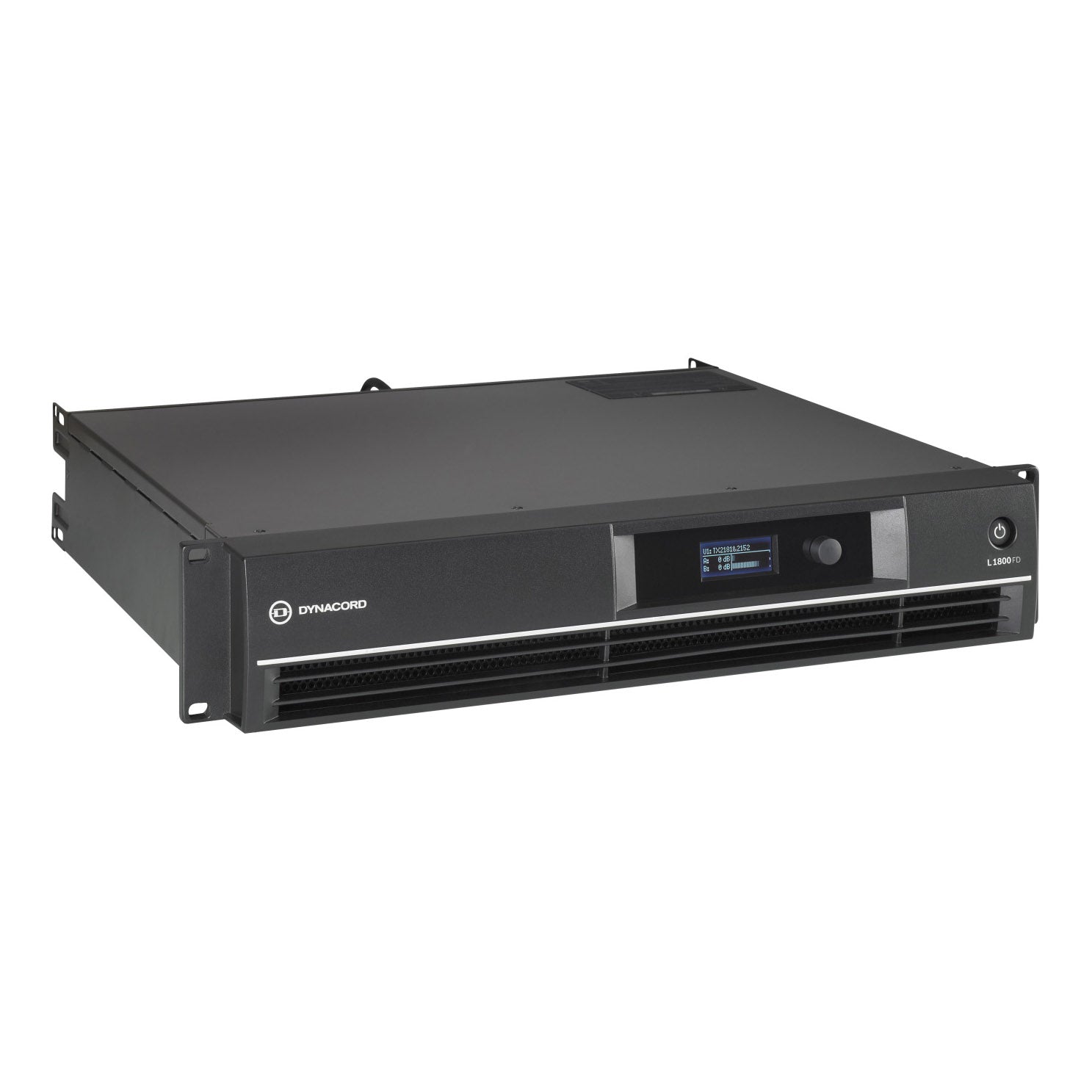

• Dynacord L1800FD-US 2 x 950W DSP Power Amplifier
1 1

Dynacord L1800FD-US 2x950W DSP Power Amplifier

Dynacord L1800FD-US 2x950W DSP Power Amplifier

SoundPro Item: 16290 | Part Number: L1800FD-US

$1,229.00
$1,540.00 $1,229.00
Your Price Sold out
MSRP: $1,540.00 | MAP: $1,229.00

Usually ships in 5-7 business days

  • DSP 2 x 950 w power amplifier
  • For live and mobile application
  • Fully integrated professional speaker processing with FIR drive technology
  • Market-leading acoustic performance and rock solid reliability
  • Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0
Log in or register for YOUR best price

The Dynacord L1800FD-US 2x950W DSP Power Amplifier is a professional dual channel audio amplifier for live and mobile applications. Integrated digital signal processing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.

View full details
  • Max. Output Power, Single Channel
    • 2Ω: 1600W
    • 2.6Ω: 1300W
    • 4Ω: 950W
    • 8Ω: 480W
  • Max. Output Power, Dual Channel
    • 2Ω: 1400W
    • 2.6Ω: 1200W
    • 4Ω: 850W
    • 8Ω: 450W
  • Max. Output Power, Bridged
    • 4Ω: 2800W
    • 8Ω: 1700W
  • Max. RMS Voltage Swing THD = 1%, 1kHz65.1 V
  • Voltage Gain Ref. 1kHz32 dB
  • THD at 600 W/4 Ω MBW = 80 kHz, 1kHz< 0.05%
  • IMD-SMPTE, 60 Hz, 7 kHz< 0.1%
  • DIM30, 3.15 kHz, 15 kHz< 0.05%
  • Max. Input Level+21 dBu
  • Crosstalk ref. 1 kHz, at 100W/4 Ω< -80 dB
  • Frequency Response, ref. 1 kHz10 Hz to 21 kHz (±1 dB)
  • Input Impedance, Active Balanced20 k Ω
  • Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 Ω>105 dB
  • Output Noise, A-weighted< -68 dBu
  • Output Stage TopologyClass AB
  • Power Requirements240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
  • Power Consumption 1/8 MaximumOutput Power @ 4 Ω700W
  • Mains Fuse240 V/230 V: T12AH; 120 V/100 V: T25AH
  • ProtectionAudio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
  • CoolingFront-to-rear, 3-stage-fans
  • Ambient Temperature Limits40°F to +105°F (5°C to 40°C)
  • Safety ClassI
  • Signal ProcessingFIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance
  • Remote ControlSONICUE sound system software (requires firmware 2.0)
  • Dimensions (WxHxD)19.02" x 3.46" x 18.21"
  • Weight33.5 pounds
