- Source

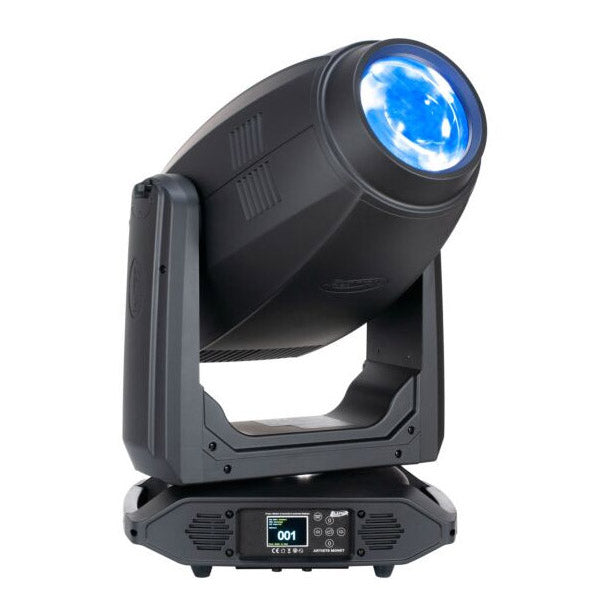

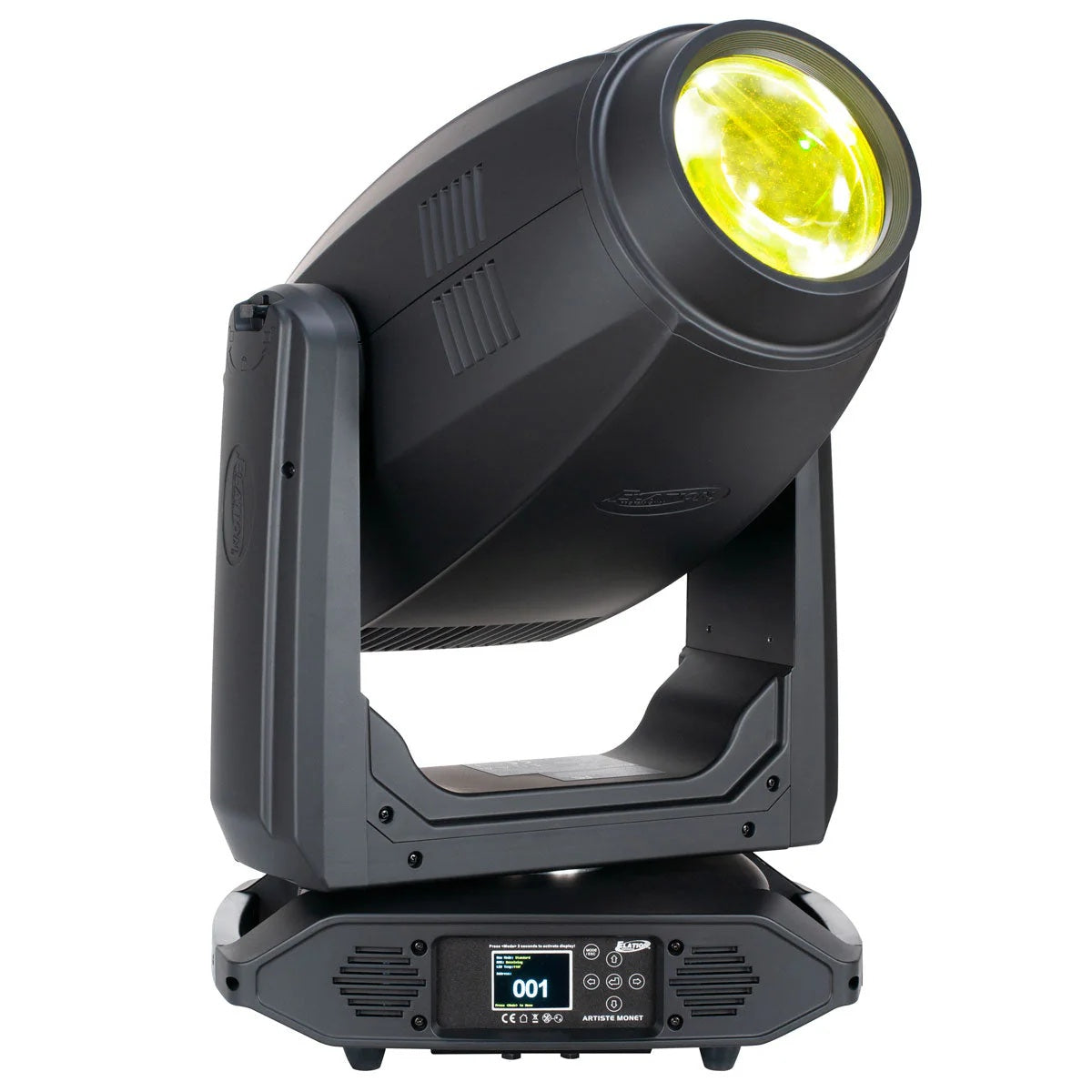

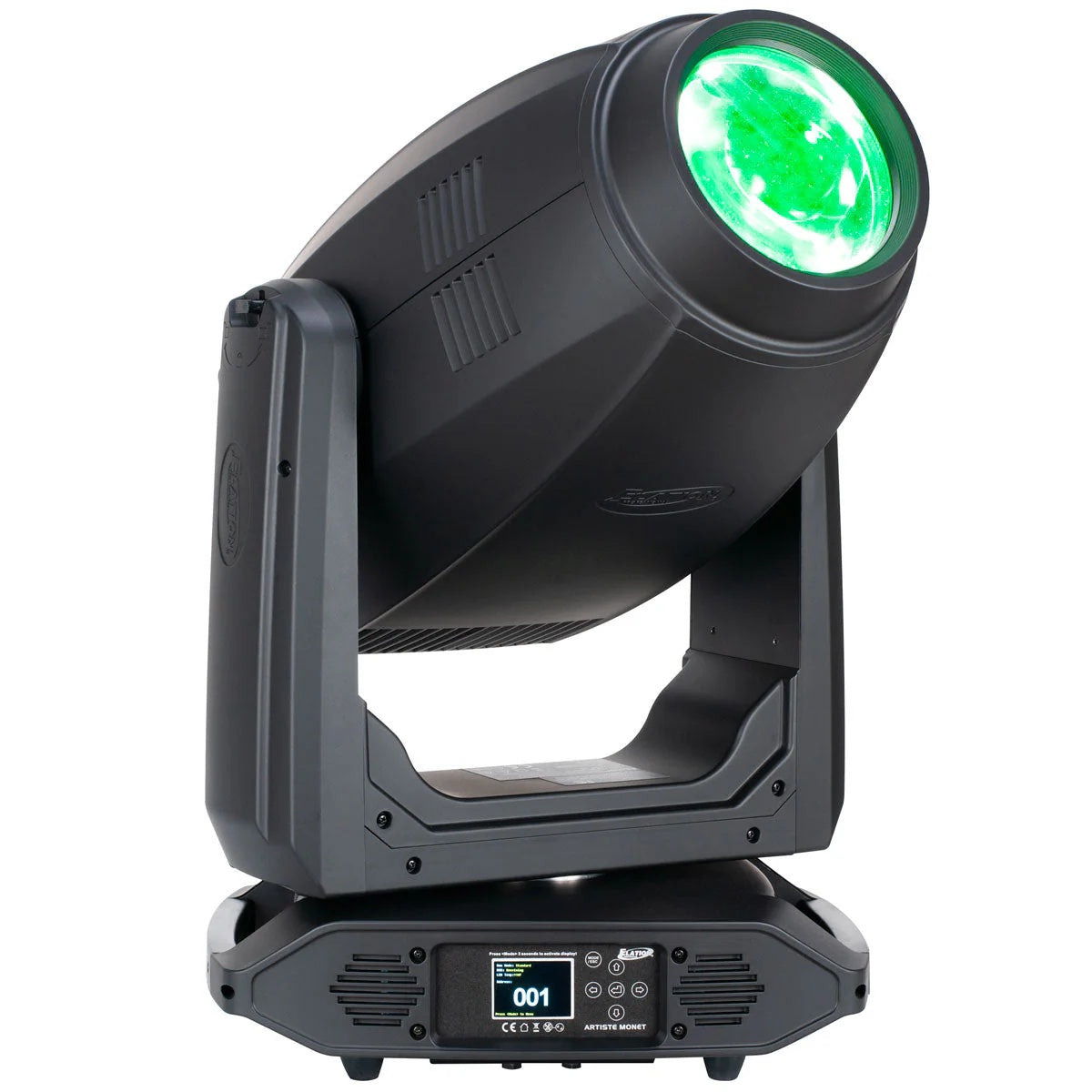

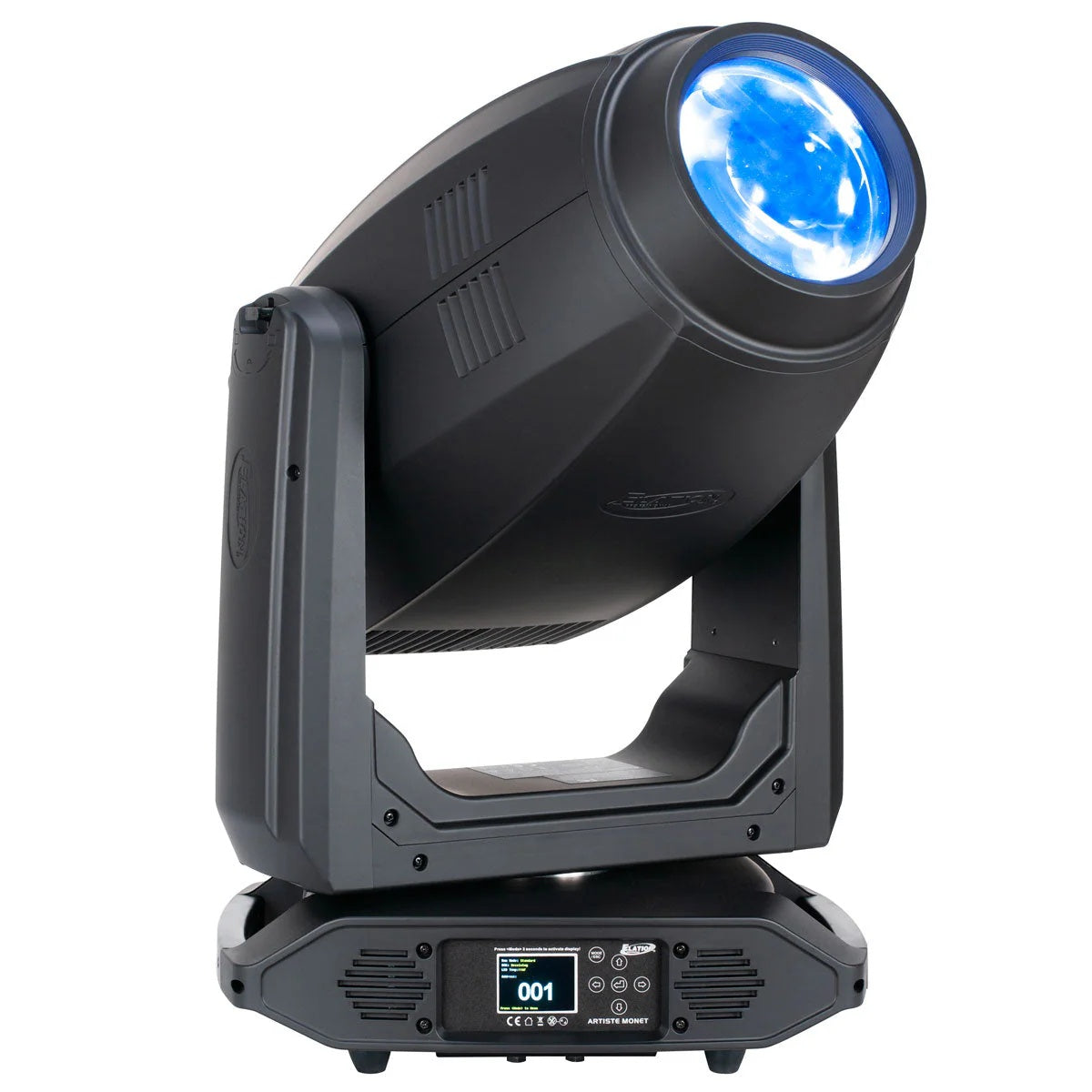

- 950W 6500K bright white LED engine
- 30,000 hour average LED life
- Photometric Data
- Total Lumen Output: 45,000
- CRI: 72+ (84 with HCRI Filter)
- Zoom Range: 6.8° - 55°
- Beam Angle: 4.8° - 41.2°
- Field Angle: 6.1° - 51°
- Effects
- Motorized zoom (large 160mm front lens)
- 4 rotating full blackout framing blades
- 360° continuous framing index and rotation
- Full 360° bidirectional animation wheel
- 4-facet and linear rotating prisms
- 2 variable frost filters (light and wash)
- Internal color, framing, prism, and frost macros
- Motorized iris with variable pulse effects
- Variable 16-bit dimming curve modes
- High-speed electronic shutter and strobe
- DMX controllable LED refresh rate
- Pan Angle: 540° / 630°
- Tilt Angle: 250°
- Color
- SpectraColor CMY + RGB color mixing array
- 6 dichroic colors including high CRI filter and UV
- Linear CTO color correction
- Gobos
- 2 Gobo wheels
- 7 rotating/indexing interchangeable glass gobos
- 7 static interchangeable glass gobos
- Control / Connections
- 2 DMX channel modes (40 / 67)
- 16-bit pan, tilt and dimming control
- Motorized focus and auto-focus presets
- DMX controllable variable fan modes
- DMX, RDM, Art-NET, sACN protocol support
- (6) button touch control panel
- Full color 180° reversible LCD menu display
- Hibernation mode (power save)

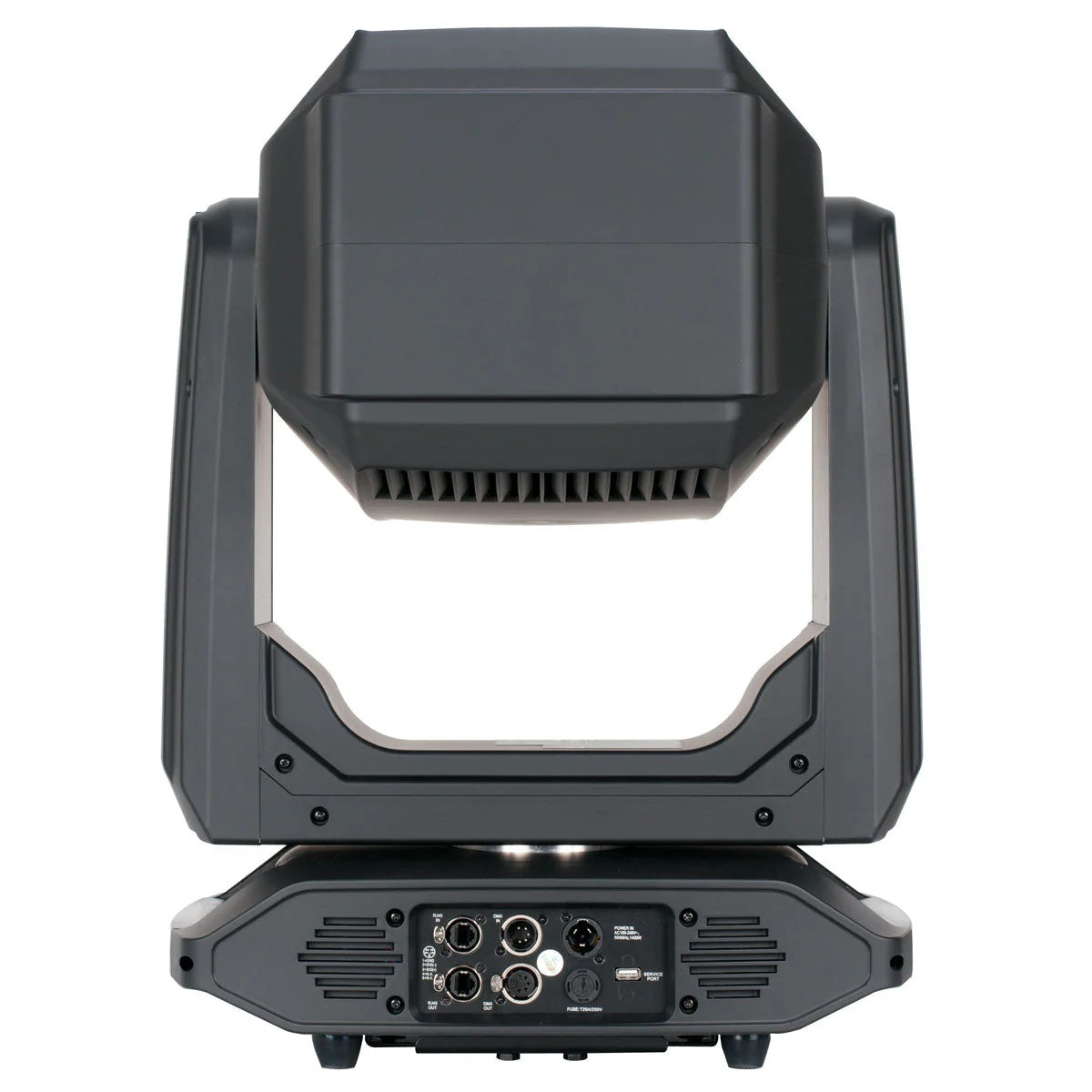

- Locking 5pin XLR DMX, RJ45 Ethernet, and power
- USB connection (firmware updates)
- With wired digital communication network
- Electrical / Thermal
- AC 100-240V 50/60Hz
- Max. Power Consumption: 1400W
- BTU/hr (+/- 10%) 4456.87
- Dimensions (LxWxH)18.55" x 22.97" x 31.51"
- Weight94 pounds
