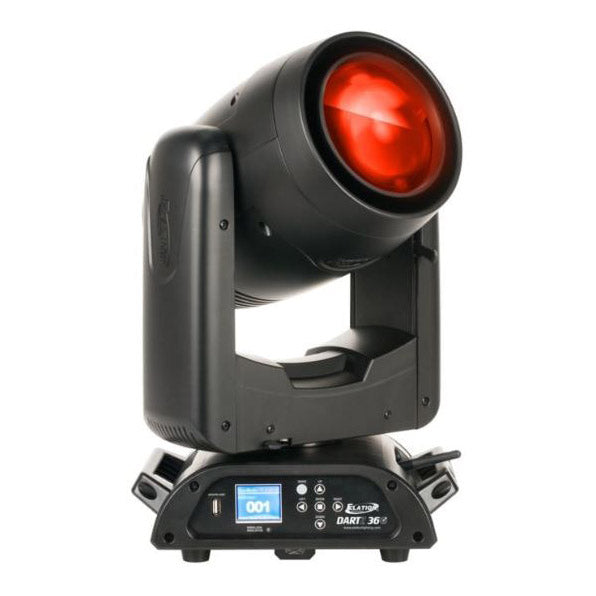

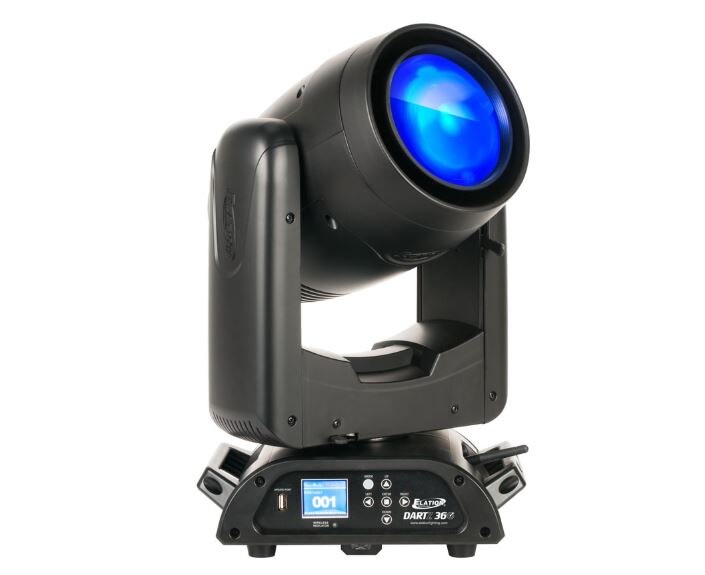

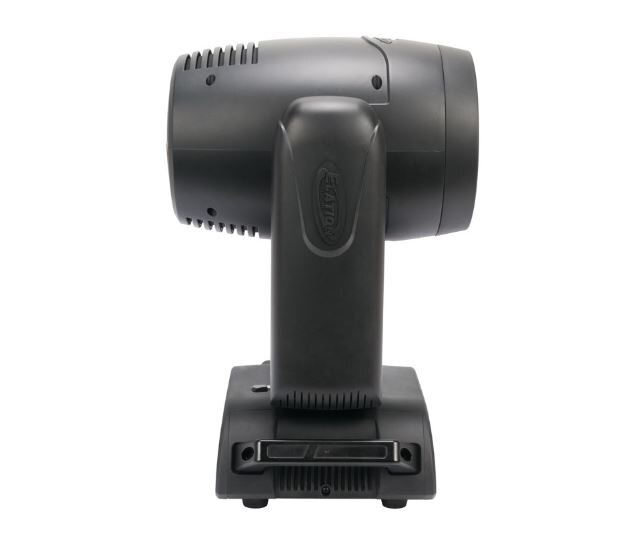

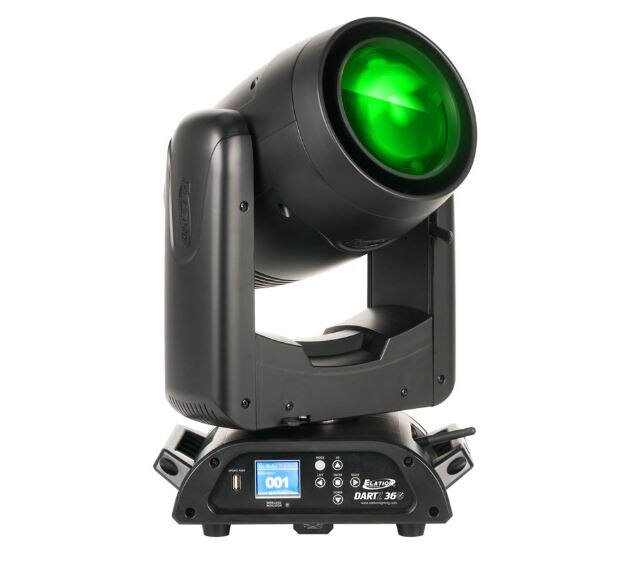

Elation DARTZ 360 LED Moving Head
Elation DARTZ 360 LED Moving Head
SoundPro Item: 10032 | Part Number: DARTZ 360
Usually ships in 5-7 business days
- Compact precise 360° pan/tilt moving beam luminaire
- Patent pending single source 50W RGB LED engine
- No minumum safe project distance like discharge fixtures
- 3° sharp aperture with motorized focus
- Fast and precise 16-bit continuous 360° pan/tilt rotation
- 14 static-stamped metal gobos
- 6 Linear and 8 facet independent rotating prisms
- 0-100% linear frost filter for wash effects
- High speed electronic shutter and strobe
- Electronic dimming and variable dimming curve modes
- DMX, RDM, Kling-Net, Art-NET, and sACN protocol support
- Elation's E-FLY™ internal wireless DMX transceiver
- Adjustable refresh rate frequency and gamma brightness
- Flicker free operation for TV and film
The DARTZ 360™ from Elation is a unique, compact, narrow beam luminaire featuring a new patent pending single source 50W RGB LED engine producing an impressive 3° aperture, amazing high output level, and smooth color-mixed effects that can be used in a variety of applications requiring no minimum safe project distance as with typical discharge lamp beam fixtures, fast and precise 16-bit continuous 360° pan and tilt rotation, 14 static-stamped metal gobos, 6-facet linear and 8-facet independent rotating prisms, 0-100% linear frost filter for wash effects, high speed electronic shutter and strobe, electronic dimming and variable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX, RDM (Remote Device Management), Kling-Net, Art-NET, and sACN protocol support, Elation's E-FLY™ internal wireless DMX transceiver, 5pin XLR, RJ45 ethernet, and Locking Power Cable in/out connections, full color 180° reversible menu display with multi-button control panel, battery backup for display power, and a multivoltage universal auto switching power supply (100-240v).
- SourcePatent Pending 50W RGB LED Engine with 50,000 Hour Average LED Life
- Photometric Data29,562 LUX 2,746 FC @16.4’ (5m) (3° Full ON)
- Effects
- Motorized Focus
- 6 and 8 Facet Independent Rotating Prisms
- 0-100% Linear Frost Filter for Wash Effects
- High Speed Electronic Shutter and Strobe
- 16-Bit Variable Dimming Curve Modes
- Adjustable LED Refresh Rate and Gamma Brightness
- ColorRGB Smooth Color Mixing
- GOBOs14 Static-Stamped Metal Gobos
- Control / Connections
- (3) DMX Channel Modes (19 / 22 / 25)
- 360° Continuous Pan and Tilt 8 / 16 Bit Movement
- Adjustable Refresh Rate (900-25,000 (Hz)
- Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
- 6 Button Menu Control Panel
- Full Color 180° Reversible LCD Menu Display
- DMX, RDM, Kling-net, Art-NET and sACN Protocol Support

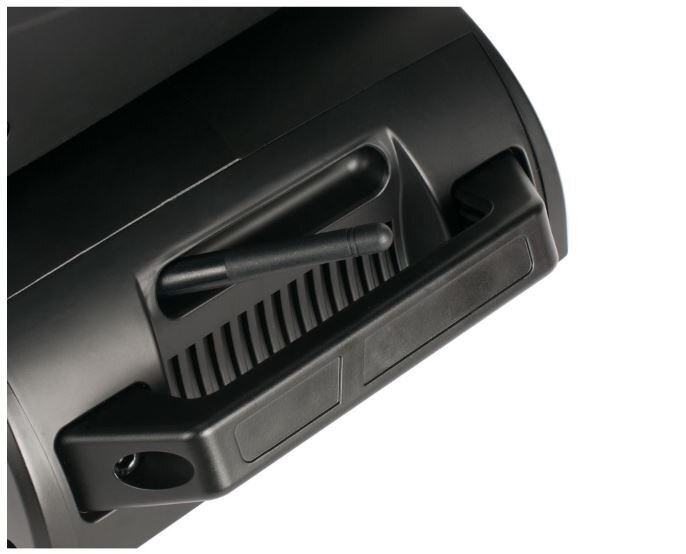

- Elation E-FLY™ Internal Wireless DMX Transceiver

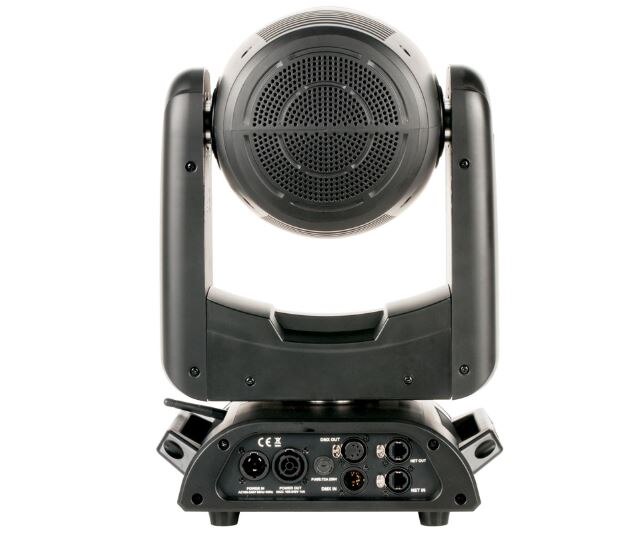

- 5pin DMX, RJ45 Ethernet In/Out
- Locking Power Cable In/Out
- With Wired Digital Communication Network
- Electrical / Thermal
- AC 100-240V - 50/60Hz
- 154W Max Power Consumption
- 14°F to 113°F (-10°C to 45°C)
- BTU/hr (+/- 10%) 525.14
- Dimensions (LxWxH)11.2" x 7.7" x 17.9"
- Weight28 pounds
