Elation PIXEL BAR 30IP IP65 LED Linear Fixture

Elation PIXEL BAR 30IP IP65 LED Linear Fixture

SoundPro Item: 31693 | Part Number: PIX200

$210.00
$210.00 $210.00
Your Price Sold out
MSRP: $210.00 | MAP: $210.00

Usually ships in 5-7 business days

  • Outdoor IP65 Rated
  • (30) RGB SMD LEDs | 0.5 meter / 1.6 feet
  • 16mm Pixel Pitch | 44,000Hz PWM
  • Flicker Free Operation for Broadcast TV and FILM

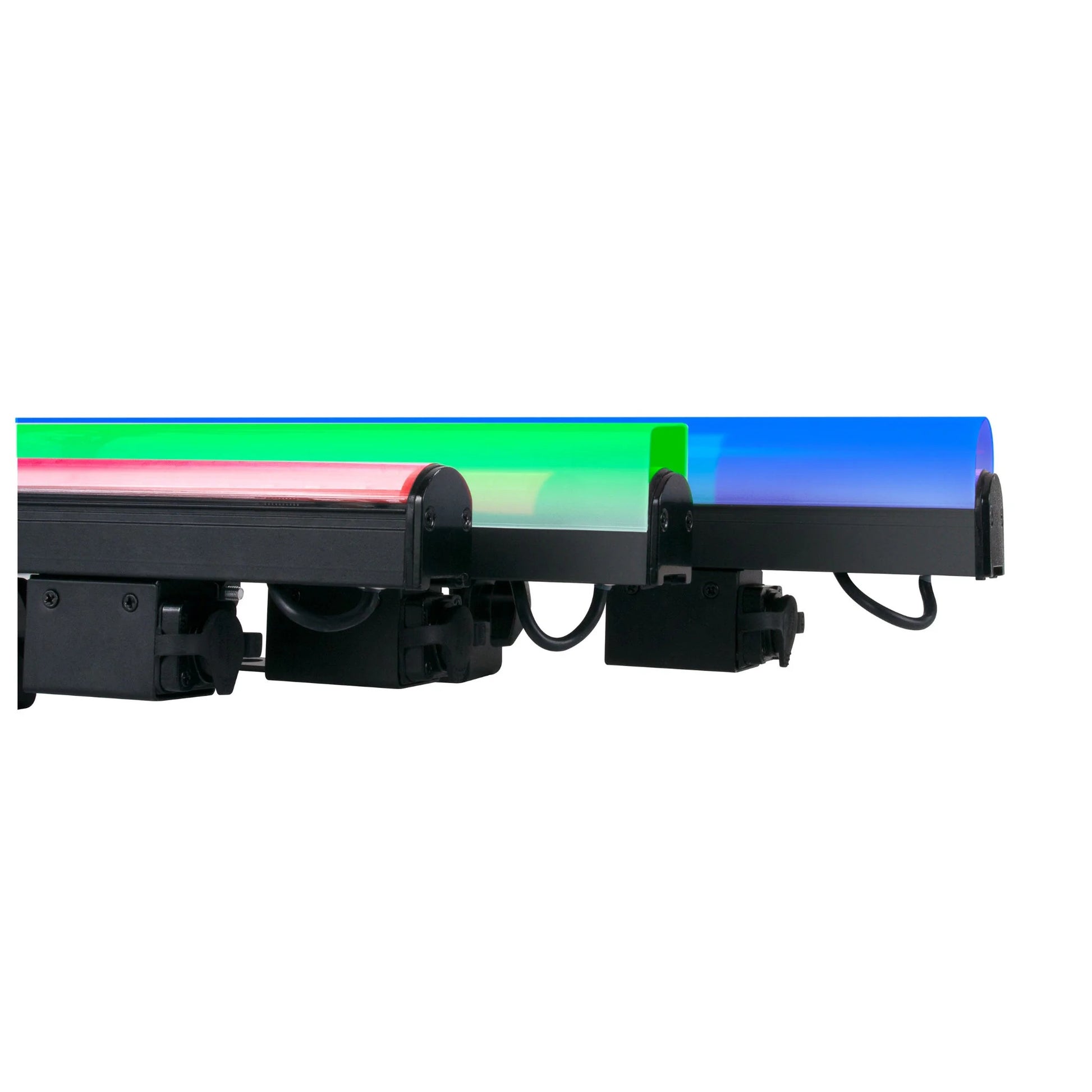

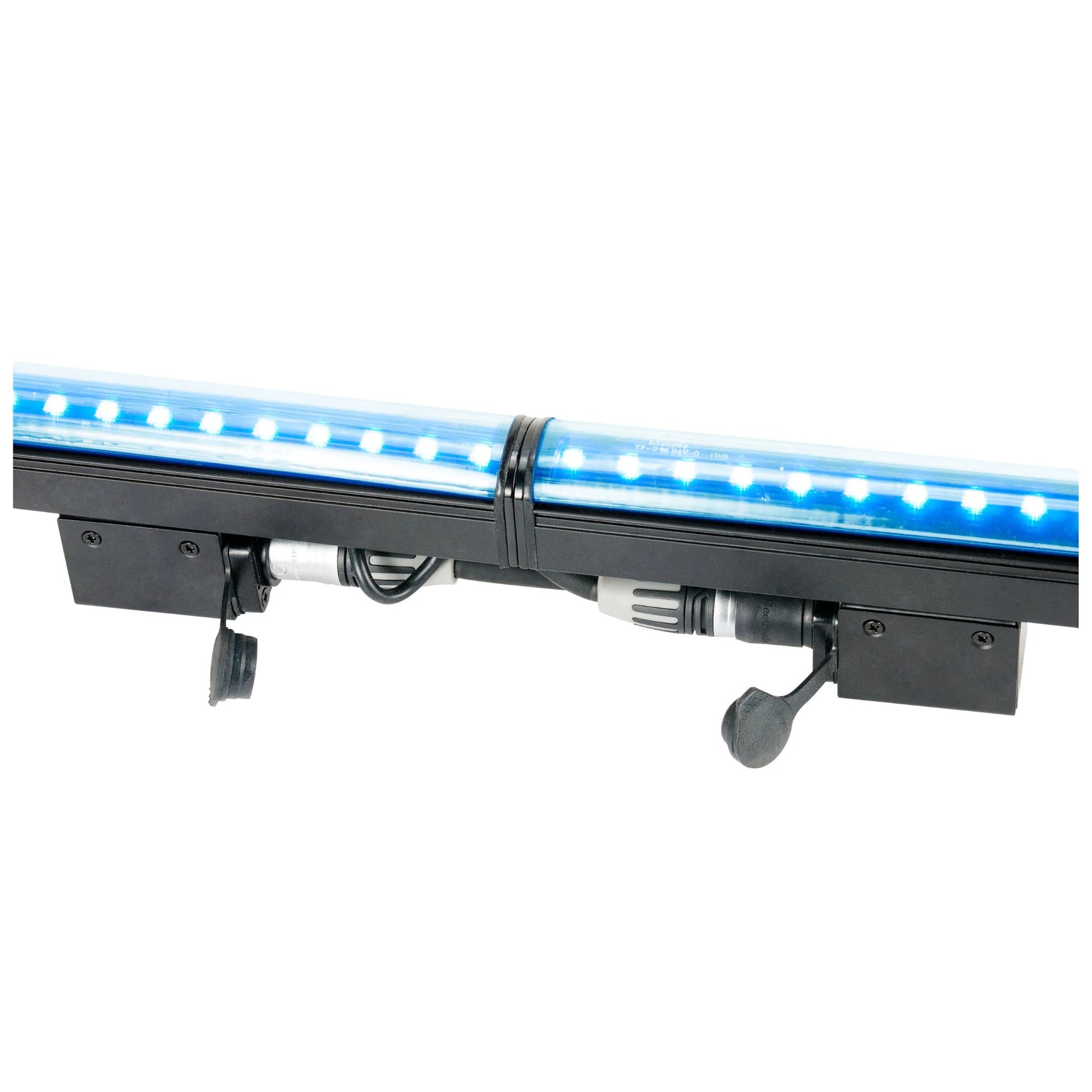

  • Magnetic End Caps - Seamless End-to-End Spacing
  • Integrated Adjustable Mounting Bracket

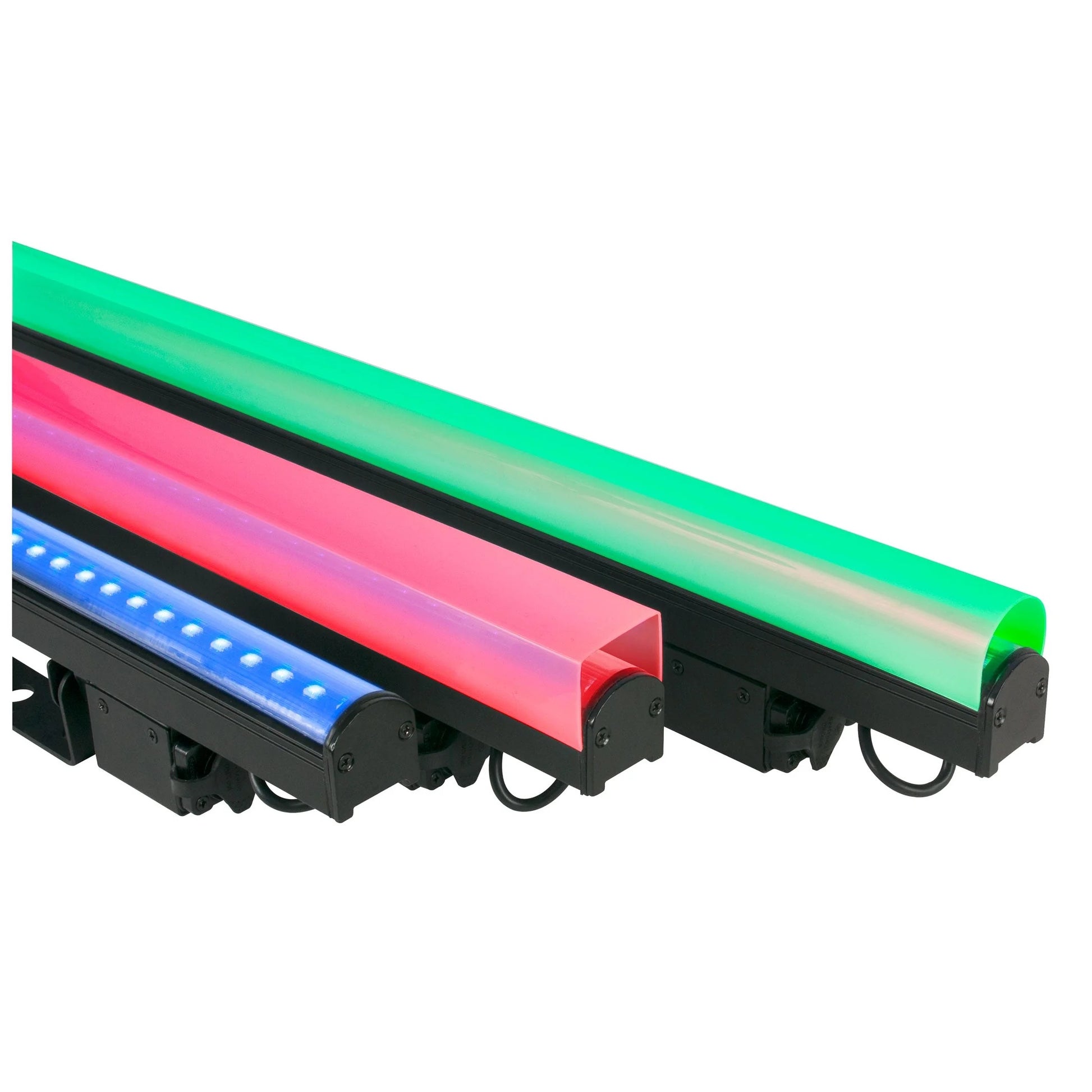

  • Square and Rounded Frosted Lens Included
  • 2ft (0.6m) Power/Data Jumper Cable included
  • Proprietary IP Rated Power/Data Combo Cables available in 2/3/5/10/12/15/20/25/30/50 Meter Lengths
  • PIXEL DRIVER 4000 V2™ Controller (sold separately)
  • PIXEL DRIVER 1000IP™ Controller (sold separately)
  • Manual Dimming and Strobe Control
  • Full Pixel Mapping Control
  • 4,080 Max Pixels via Kling-Net
  • 680 Max Pixels via Art-Net and sACN (streaming ACN)
Log in or register for YOUR best price

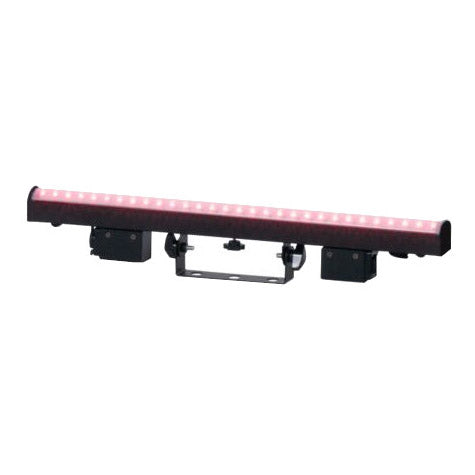

The PIXEL BAR 30IP™ is an outdoor IP65 rated LED pixel bar featuring (30) tri-color RGB SMD LEDs with a 16mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 0.5 meter (1.6 feet) in length. Each pixel bar is housed in a lightweight IP65 rated aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.

Easy and versatile control options are handled by the PIXEL DRIVER 4000 V2™ and PIXEL DRIVER 1000IP™ (sold separately) which provides simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net and 680 max pixels via Art-Net and sACN (streaming ACN) protocols. Power and data are supplied via proprietary IP rated 4pin combo cables (sold separately) which are available in lengths from 2 to 50 meters.

View full details
  • SOURCE
    • 0.2 SMD RGB 3-in-1 LEDs
    • Color Resolution: 8 bits per color (24 bits per pixel)
    • Viewing Angle: 120 x 120 degrees
    • Pixels Per Meter: 60 pixels
    • Pixel Pitch (pixel center-to-center) 16mm
    • PWM (Pulse Width Modulation): 44,000Hz

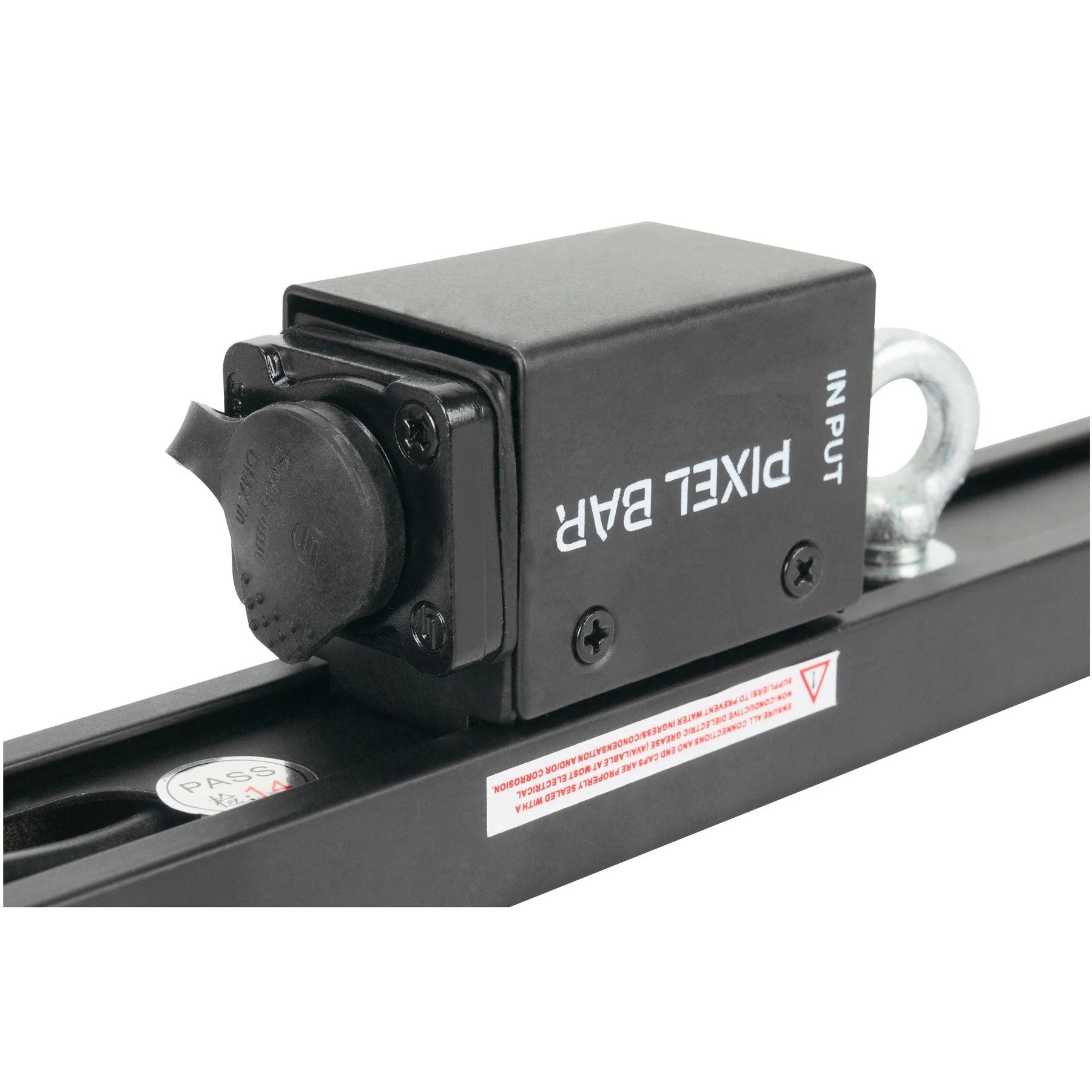

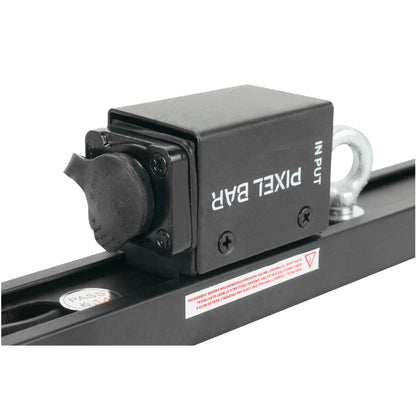

  • CONNECTIONS4pin Power/Data In/Out
  • SIZE / WEIGHT
    • Length: 19.2” (488mm)
    • Width: 1.3” (34mm)
    • Height: 3.3” (83mm)
    • Weight: 1.5 lbs. (0.7kg)
  • ELECTRICALMax Power Consumption: 6W
