Elation SEVEN BATTEN 72 Professional 72-Inch LED Wash Light

Elation SEVEN BATTEN 72 Professional 72-Inch LED Wash Light

SoundPro Item: 13458 | Part Number: SEVEN BATTEN 72

$5,136.00
$6,420.00 $5,136.00
Your Price Sold out
MSRP: $6,420.00 | MAP: $5,136.00

Usually ships in 5-7 business days

  • 60 x 25W RGBAW+Lime+UV LEDs With 50,000 Hour Average Lifespan
  • Individual Hue, Saturation, And Intensity Control Per LED
  • 10 Pixel Mapping Zones With Pixel Flip Mode For Dynamic Effects
  • 10 DMX Channel Modes Supporting Art-Net, Kling-Net, And RDM Protocol
  • 180° Reversible OLED Menu Display With 4-Button Control Panel

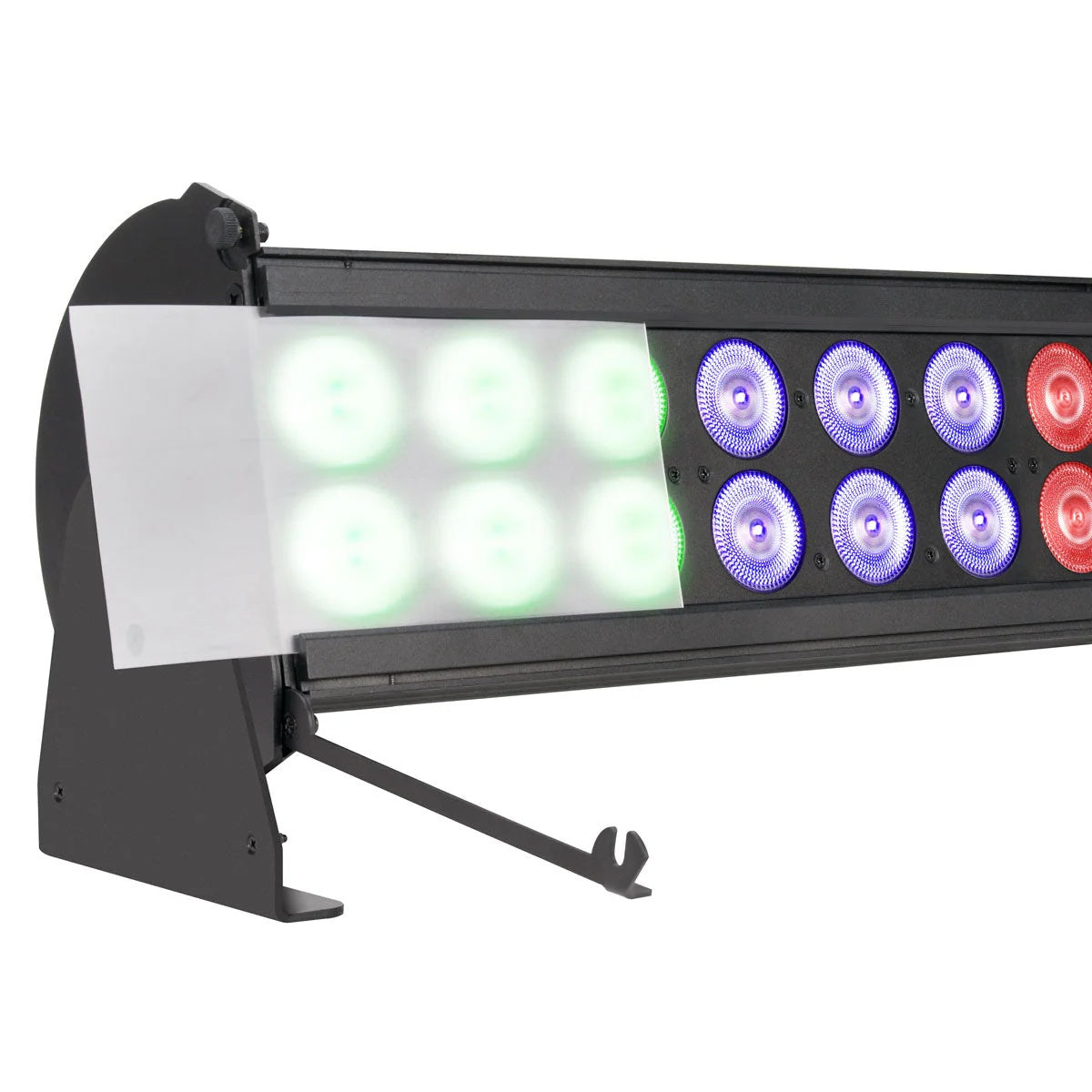

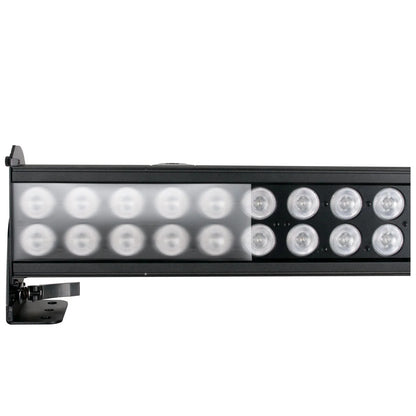

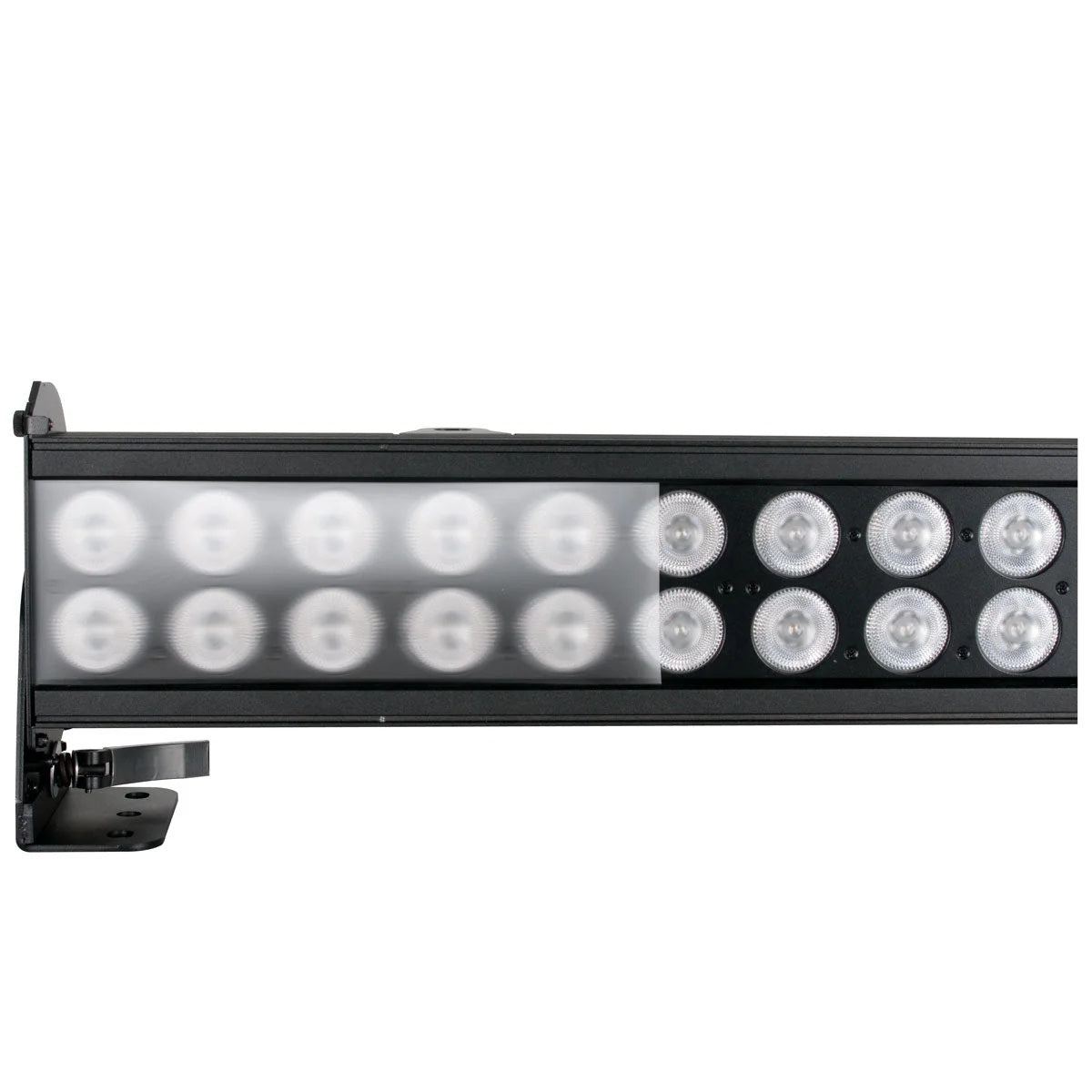

  • Integrated Gel And Frost Filter Slot For Optical Refinement
  • Adjustable Refresh Rate And Gamma Brightness For Consistent Color Rendering
Log in or register for YOUR best price

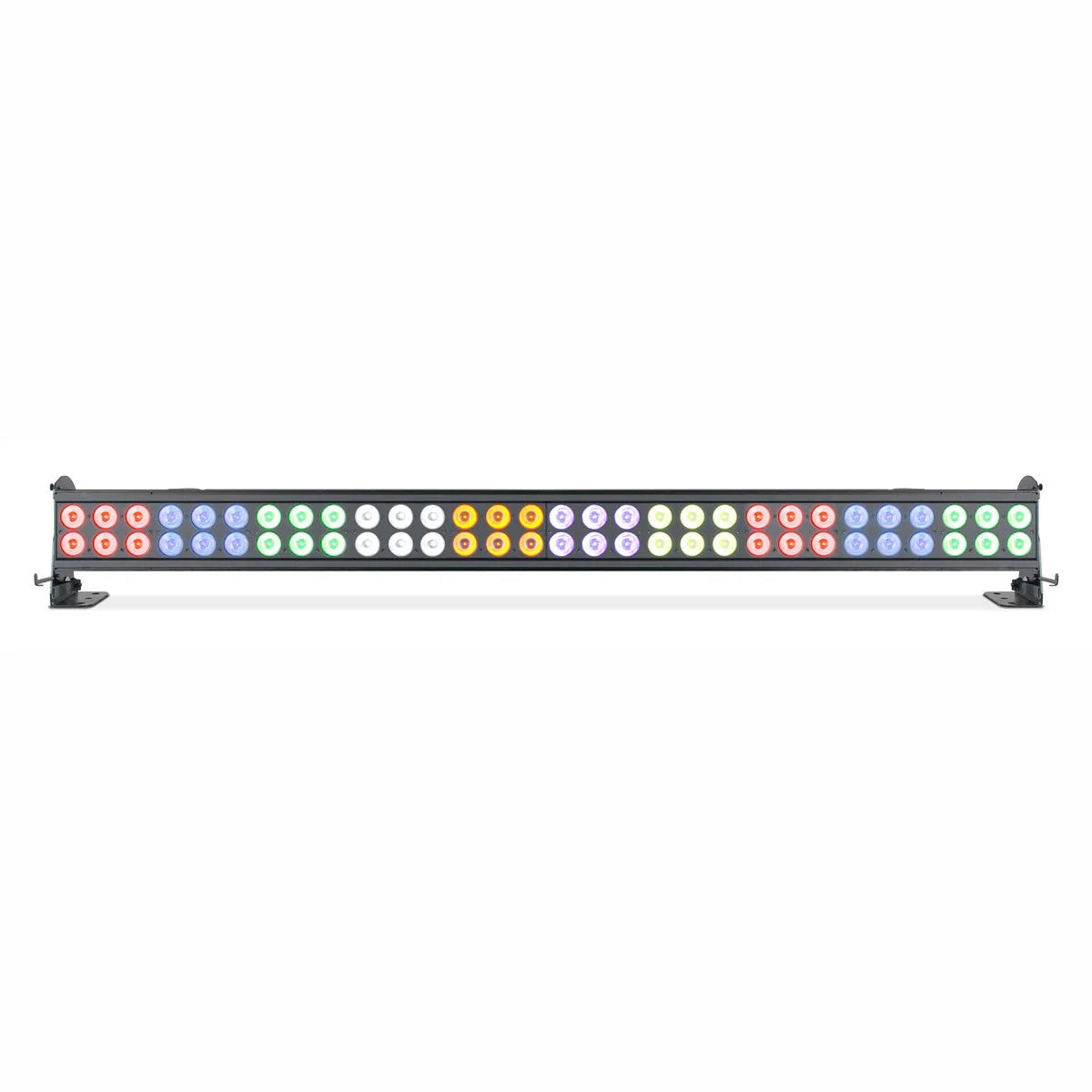

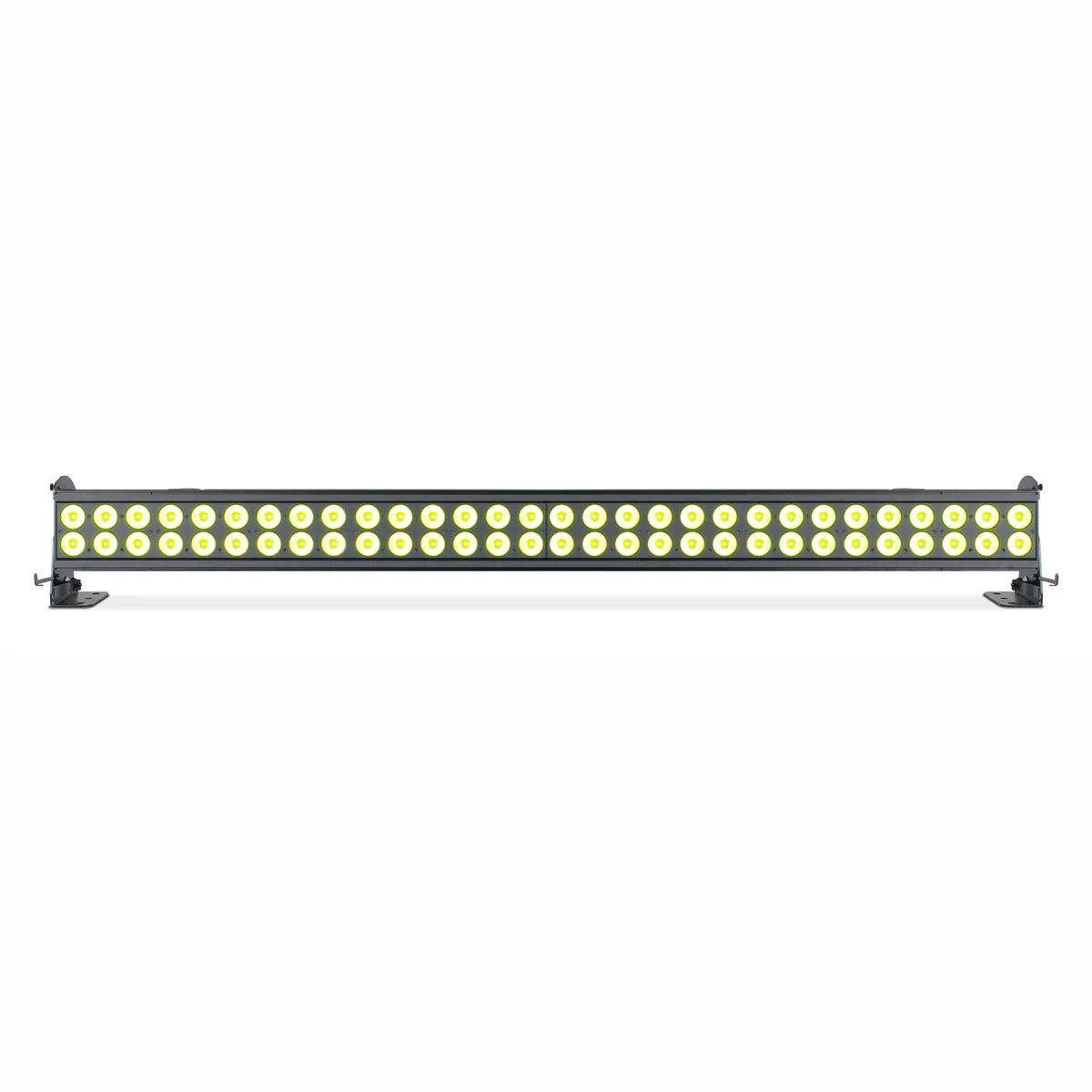

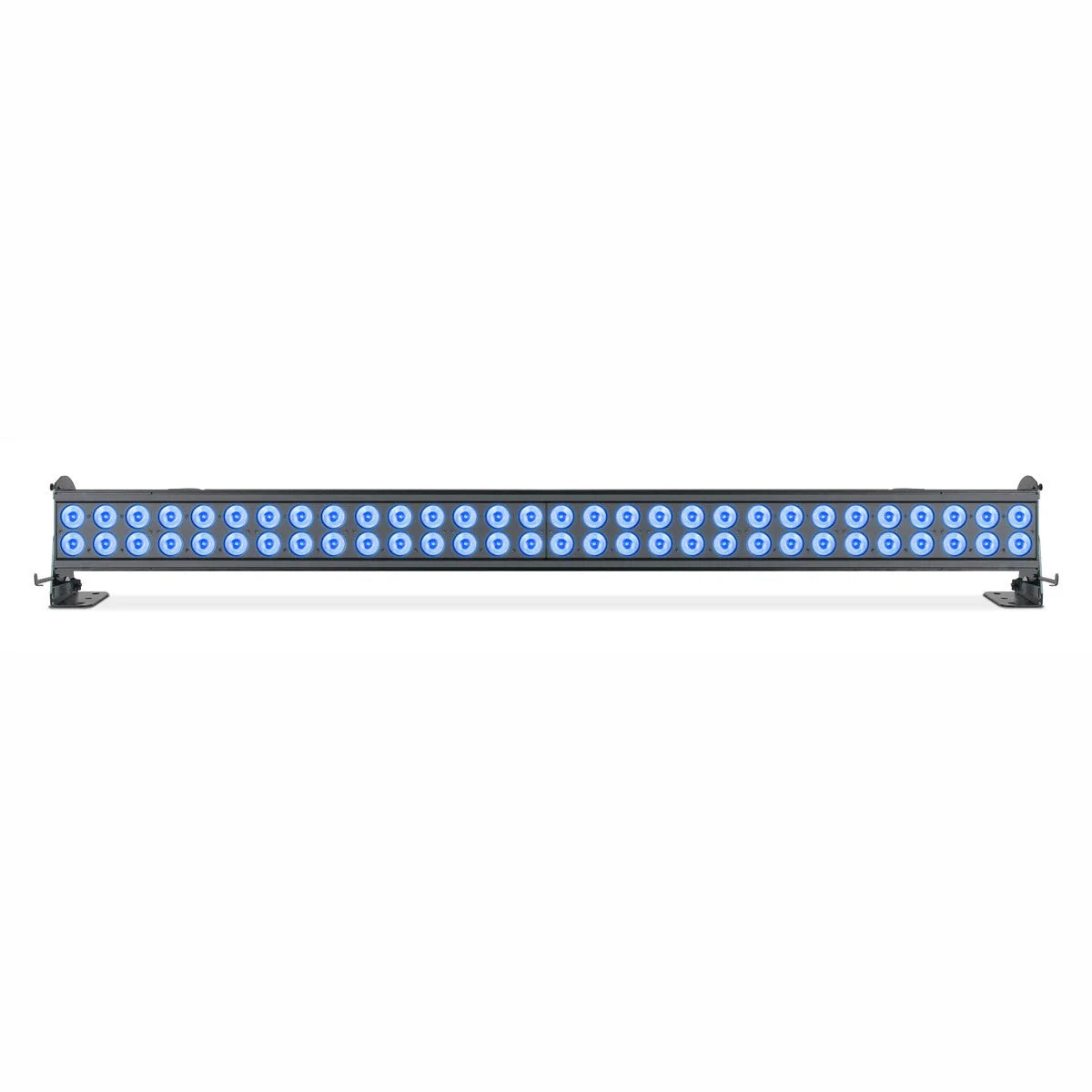

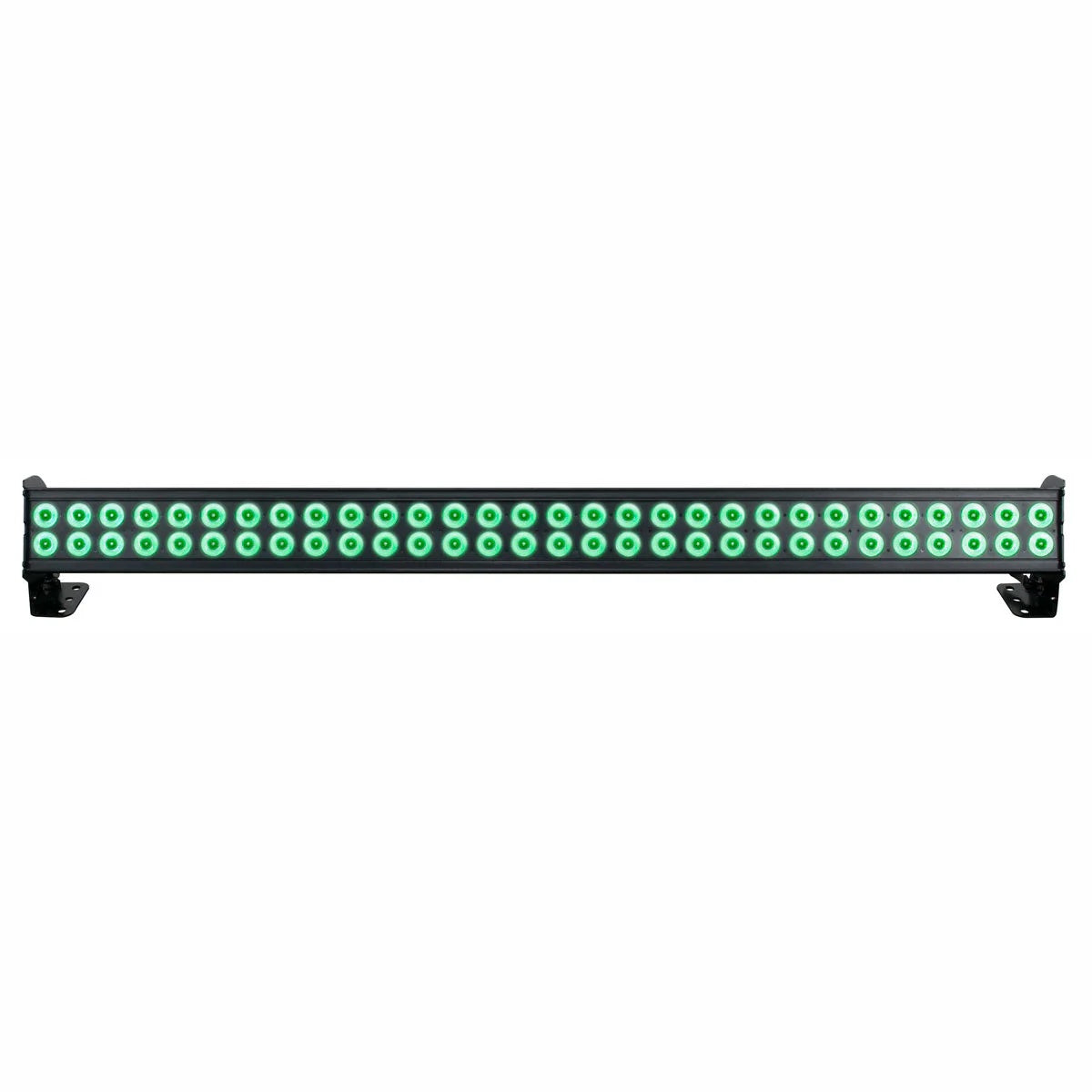

The Elation SEVEN BATTEN 72 is a professional static wash light engineered for touring productions, arena installations, and theater venues requiring high-output linear color mixing across wide stages. Its 60 25W RGBAW+Lime+UV LED source delivers 50,000-hour average lamp life and eliminates hot-spot concerns inherent in traditional discharge-based battens, making it ideal for both front-of-house and special effects applications.

Built for real-world production demands, the batten supports 10 pixel mapping zones with pixel flip capability, 12 internal program macros, and 64 unique 7-color presets. Engineers can select from 10 DMX channel modes (78 total channels), Art-Net, Kling-Net, and RDM protocols, with both 3-pin and 5-pin DMX plus ethernet connectivity. The 180° reversible OLED menu display and 4-button control panel enable fast programming during load-in, while adjustable refresh rates (900–25,000 Hz) and gamma brightness curves (2.0, 2.2, 2.4, 2.8) optimize color consistency across wide viewing angles.

At 72 inches long and 58 pounds, the batten mounts efficiently in touring rigs and fixed ceiling grids. Its compact 4.5-inch width and 9-inch vertical profile minimize sightline impact while the IP20 rating and integrated gel/frost filter slot preserve versatility in both outdoor and climate-controlled venues. AC 100–240V, 50–60 Hz operation with maximum 1000W power draw supports global deployment.

View full details

Specifications

Source
LED Count
60
LED Wattage Per Unit
25W
Color Array
RGBAW+Lime+UV
UV Wavelength
395nm
Average LED Life
50,000 hours
Effects & Control
Pixel Mapping Zones
10
Internal Program Macros
12
Unique 7-Color Macros
64
DMX Channel Modes
10 (78 total channels)
Control Methods
DMX, Manual, Art-Net, Kling-Net, RDM
Refresh Rate Range
900–25,000 Hz
Gamma Brightness Options
2.0, 2.2, 2.4, 2.8
Dimensions
Length
72.0"
Width
4.5"
Height
9.0"
Weight
Product Weight
58.0 lbs
Electrical
Input Voltage
AC 100–240V, 50–60 Hz
Maximum Power Consumption
1000W

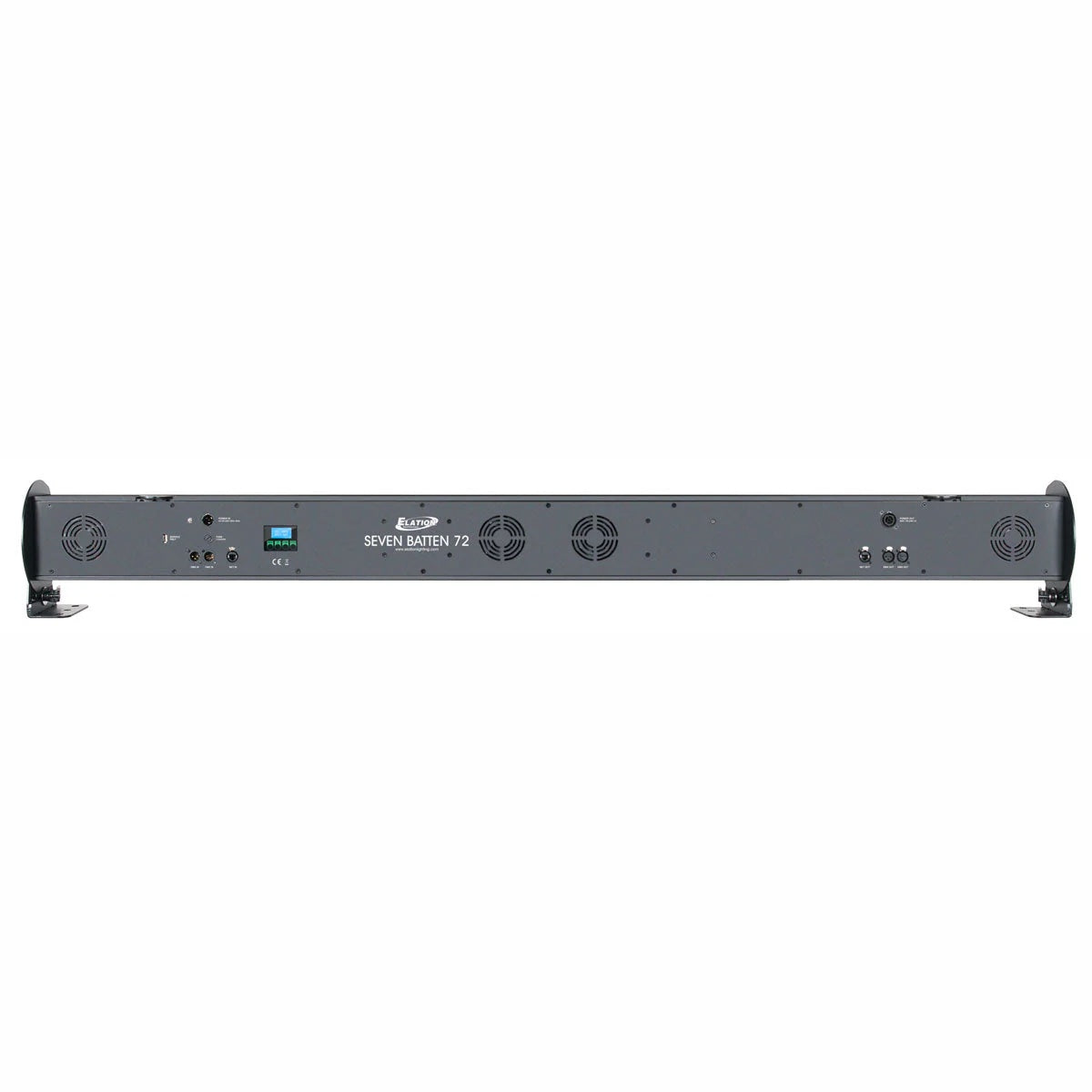

Connectivity
DMX Connectors
3-pin and 5-pin XLR
Ethernet
RJ45
Power
Locking Cable In/Out
Environmental
Operating Temperature Range
14°F to 113°F (-10°C to 45°C)
IP Rating
IP20
Certifications
Approvals
CE, cETLus
Identifiers
UPC
837874006919
Software Version
V1.15
