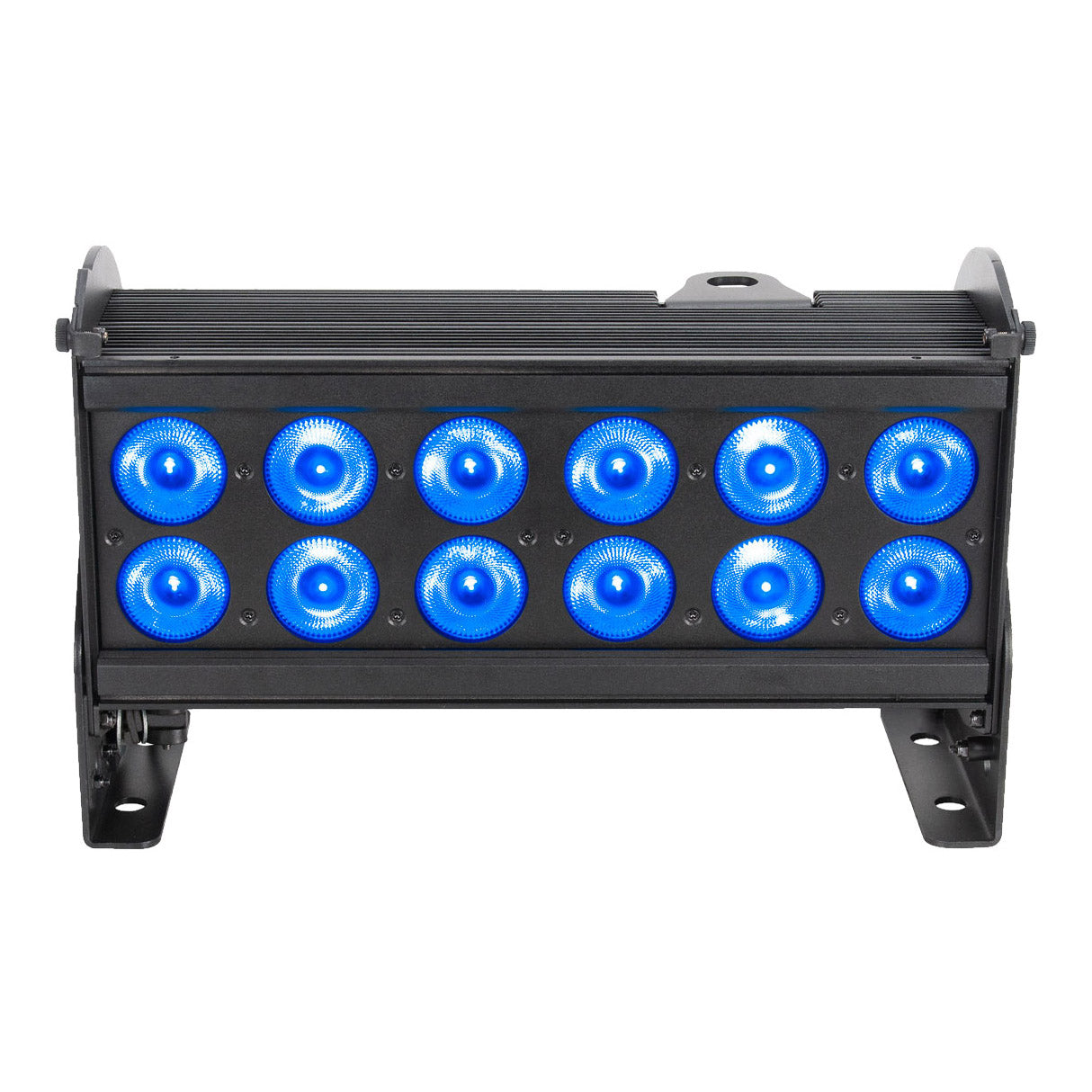

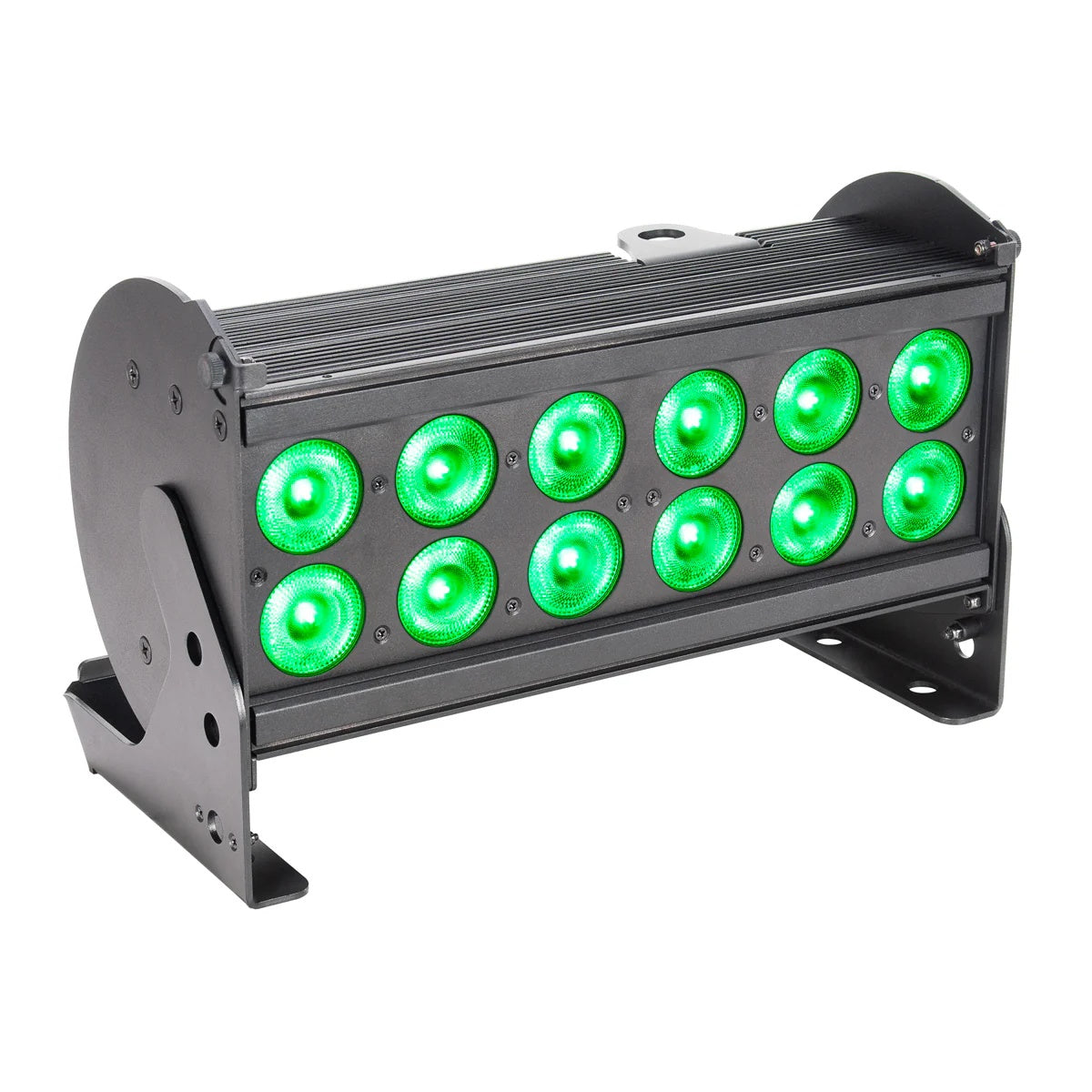

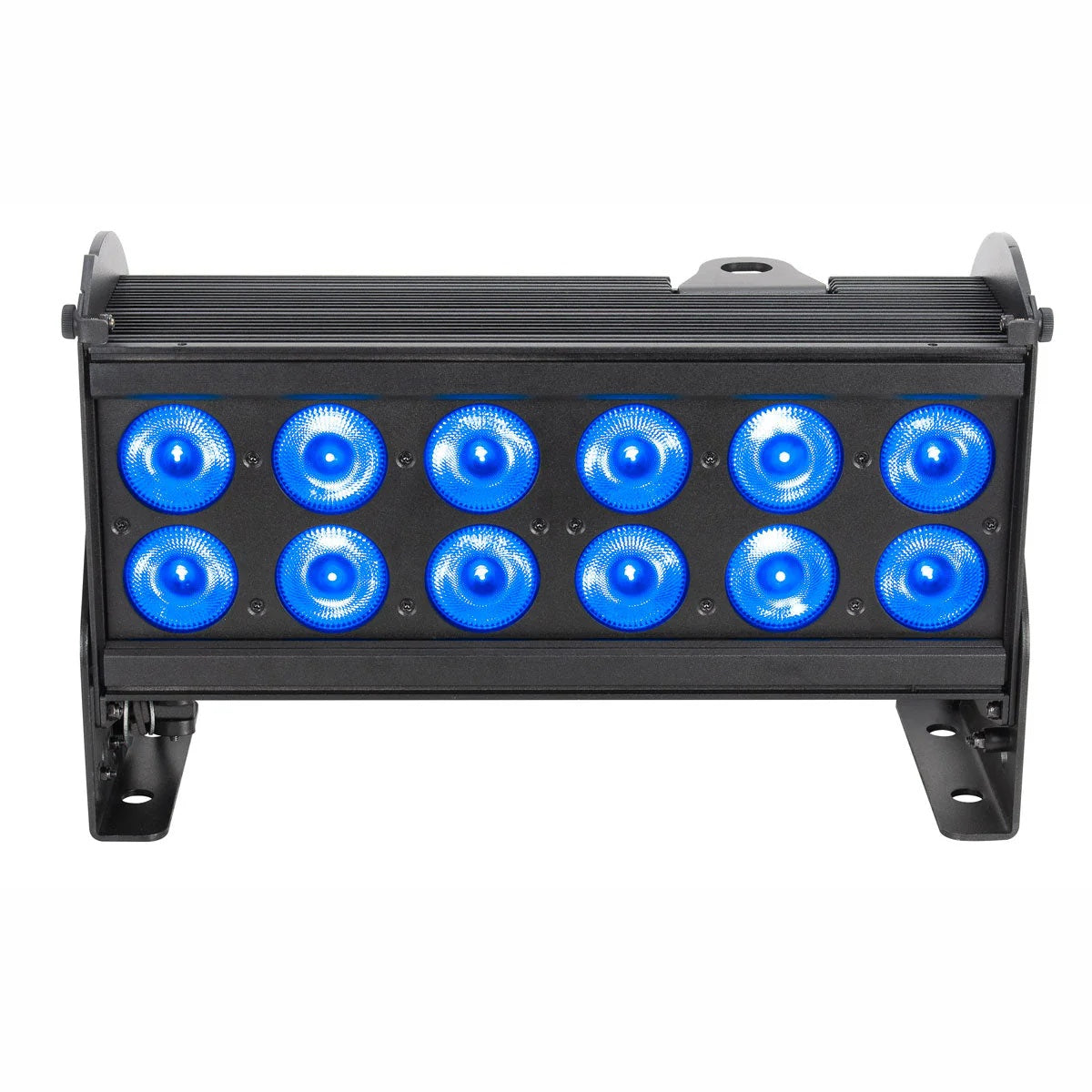

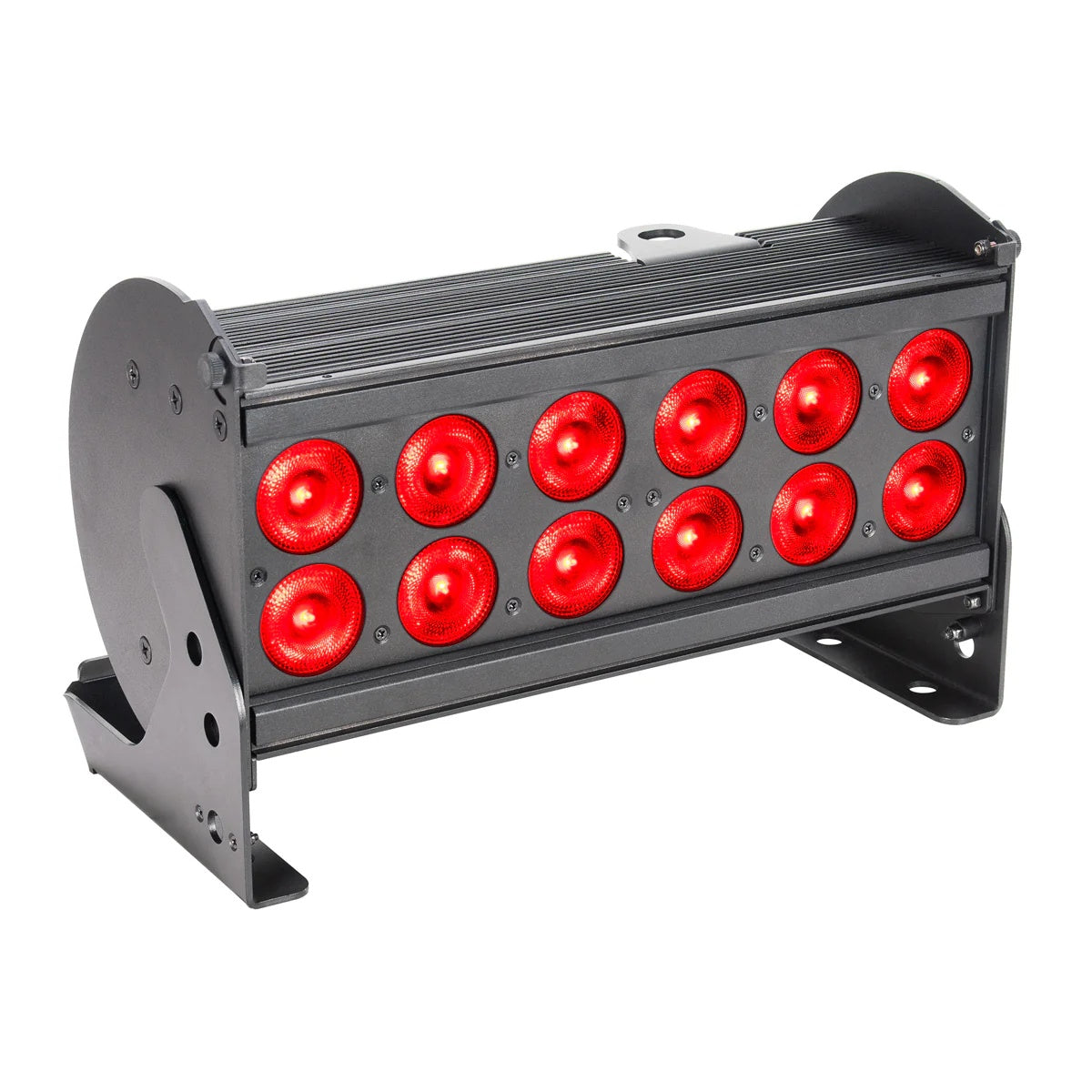

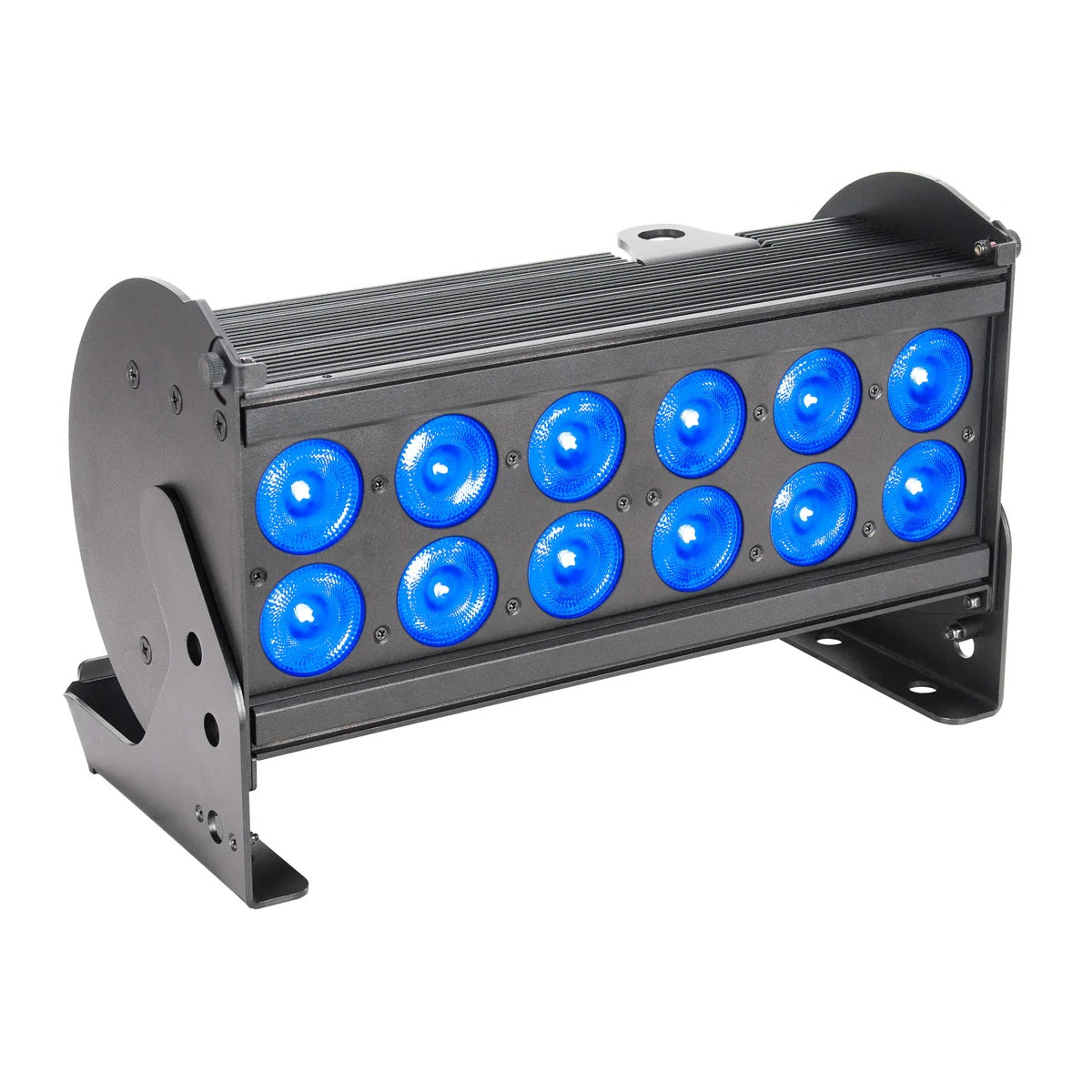

Elation SEVEN Batten 14 25W RGBAWL+UV LED Batten Wash Fixture
Elation SEVEN Batten 14 25W RGBAWL+UV LED Batten Wash Fixture
SoundPro Item: 13456 | Part Number: SEV014
Usually ships in 5-7 business days
- 1.2 Foot (0.4m) Seven Color Batten Wash Luminaire
- (12) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
- Individual Hue, Saturation, and Intensity Control
- Special RGB SEVEN 3 Channel Mode (RGB + Dynamic White, Amber, Lime, UV)

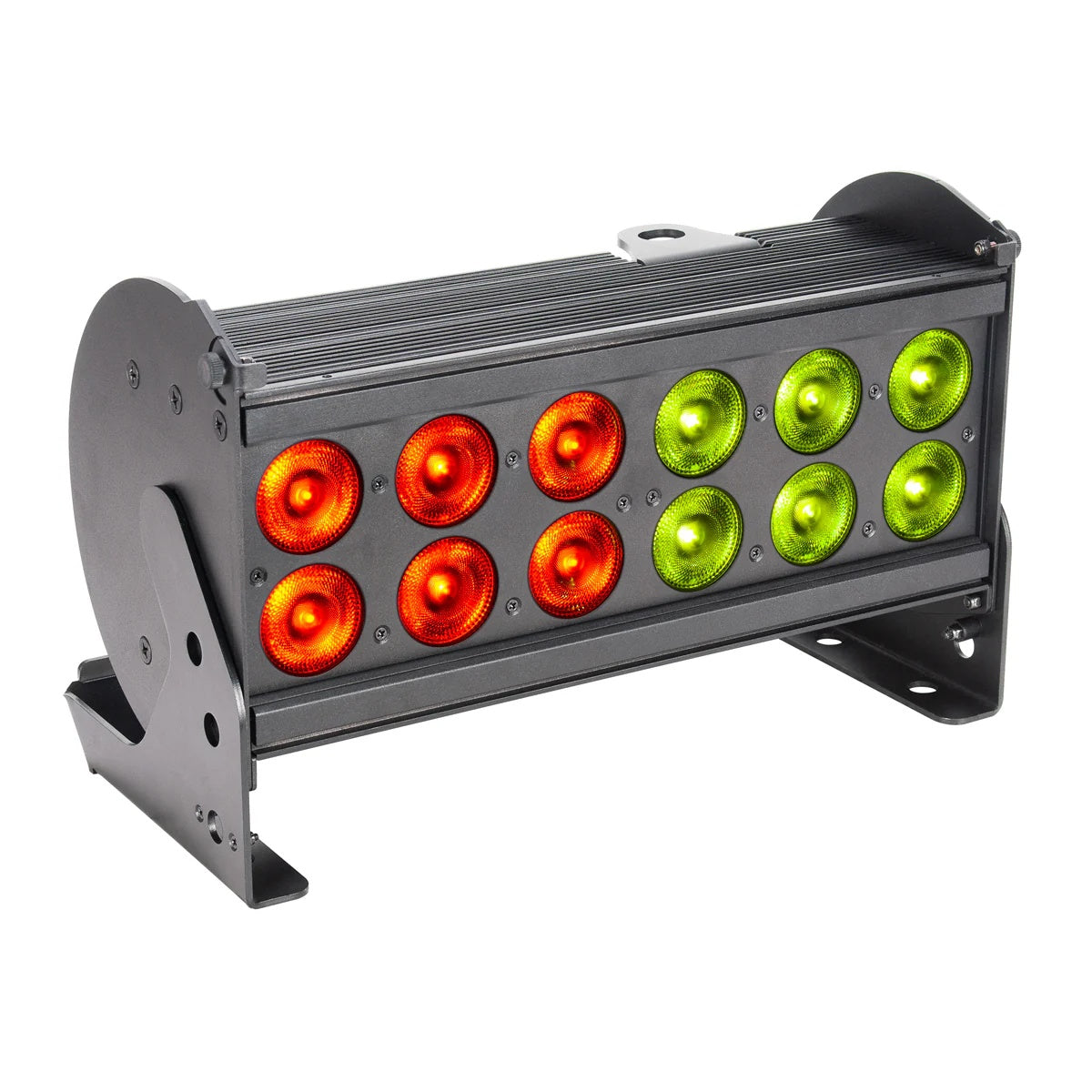

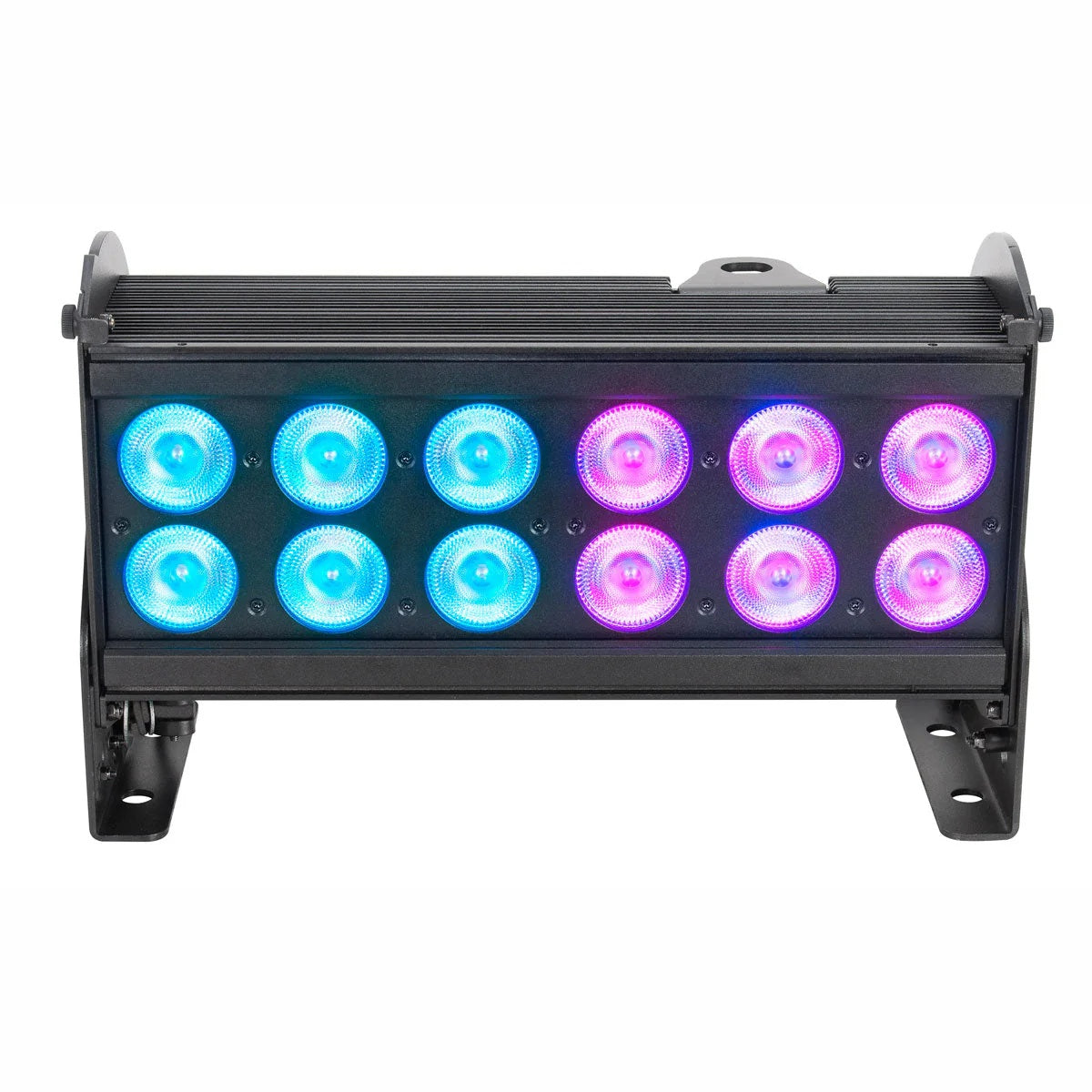

- 2 Pixel Mapping Zones with Pixel Flip Mode
- Smooth Color Mixing, Internal Programs with Speed and Fade Control
- 64 Unique 7-Color Macros
- Selectable 16-bit Dimming Curve Modes
- DMX Adjustable LED Refresh Rate
- Adjustable LED Gamma Brightness
- Flicker Free Operation for TV and FILM
- Art-Net, Kling-Net, and RDM Protocol Support

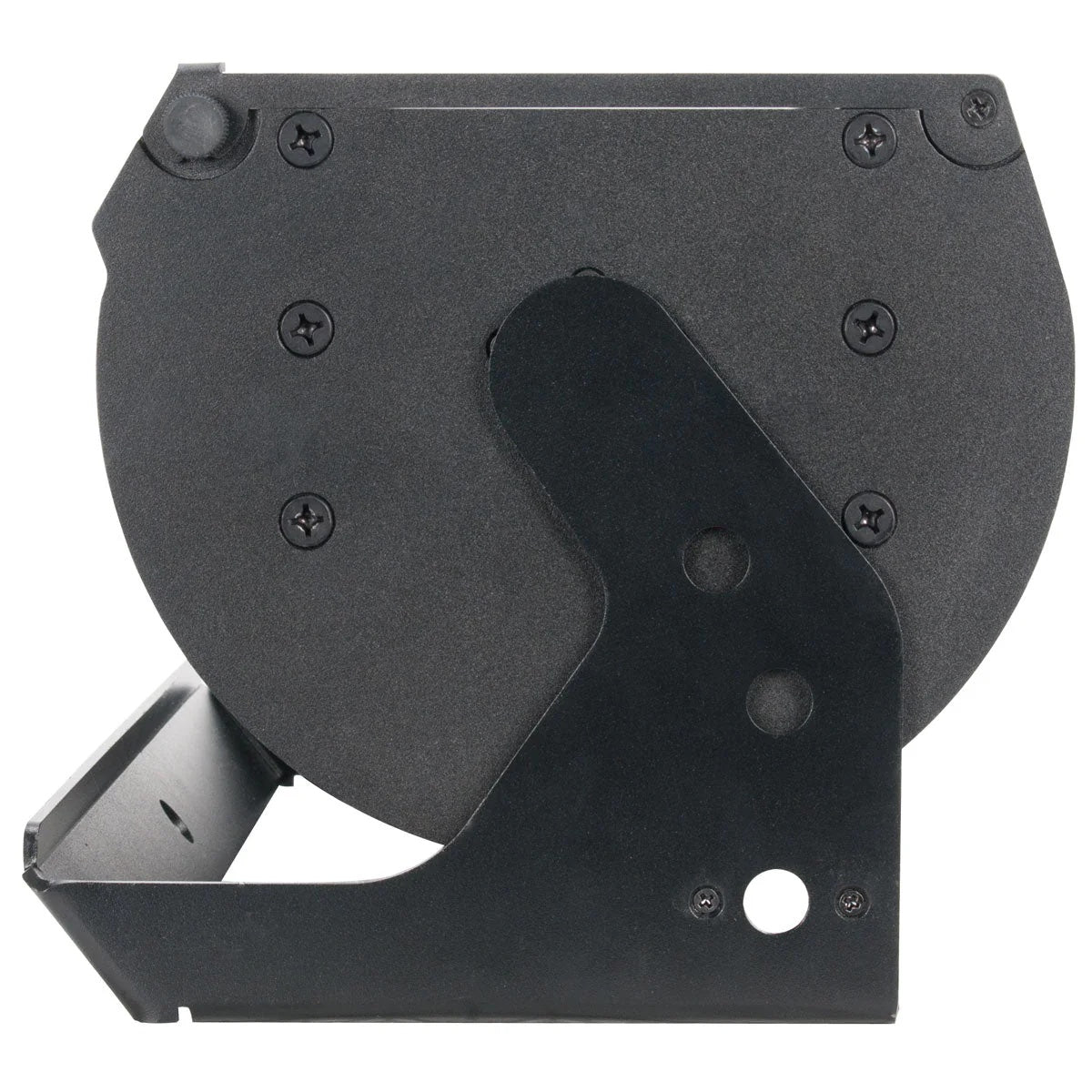

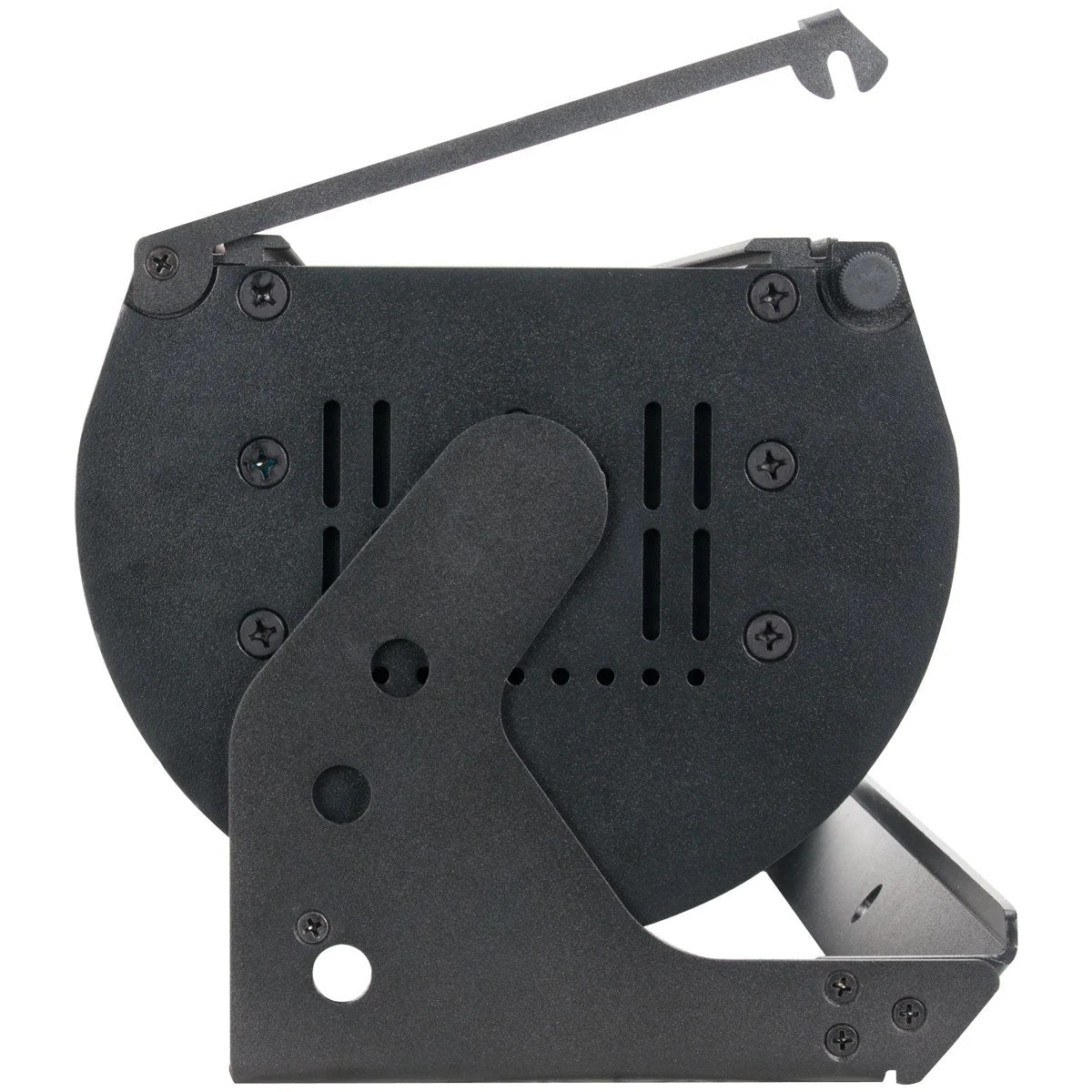

- 220° Manual Tilt Adjustable Mounting Bracket
- Rugged Powder Coated Die-Cast Aluminum Exterior

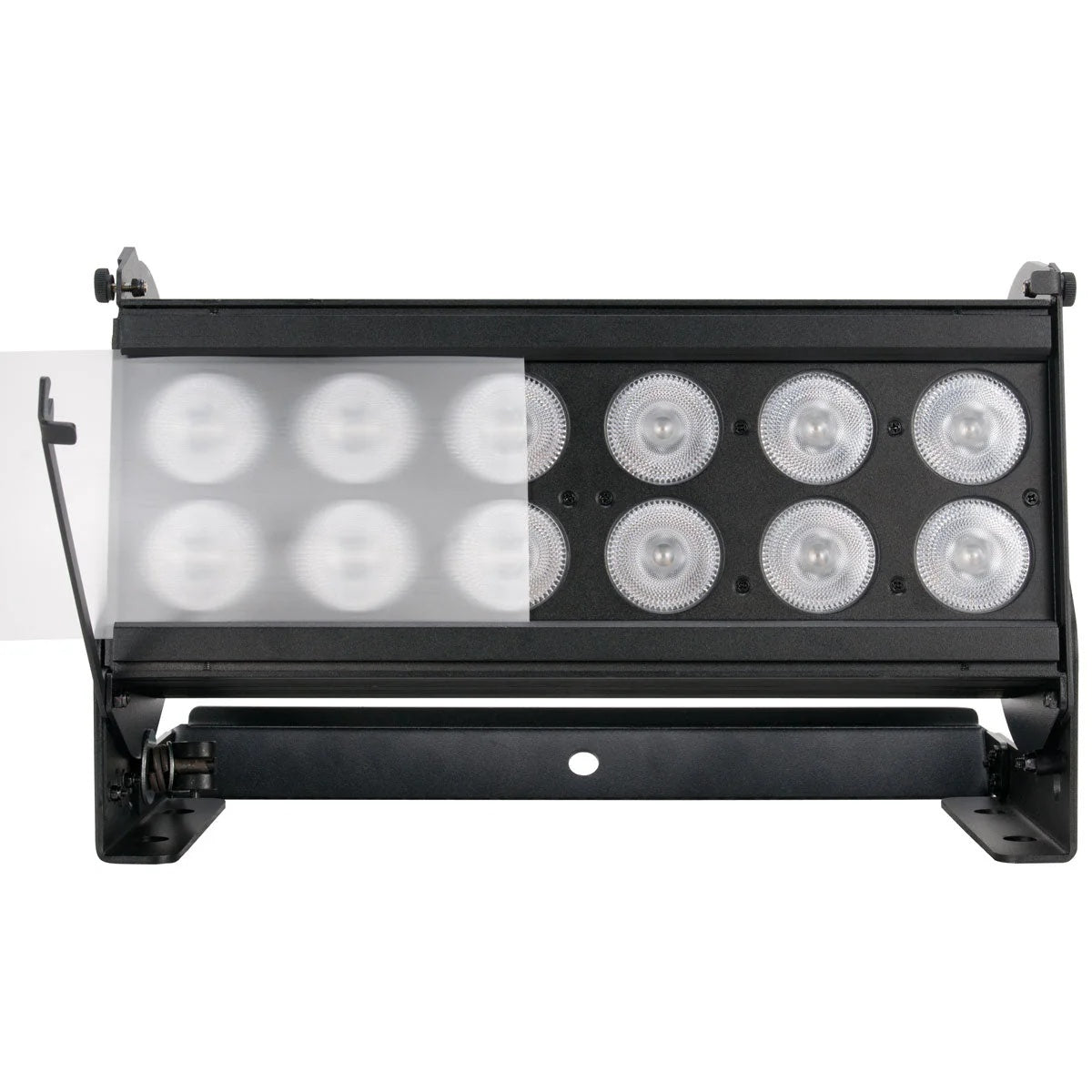

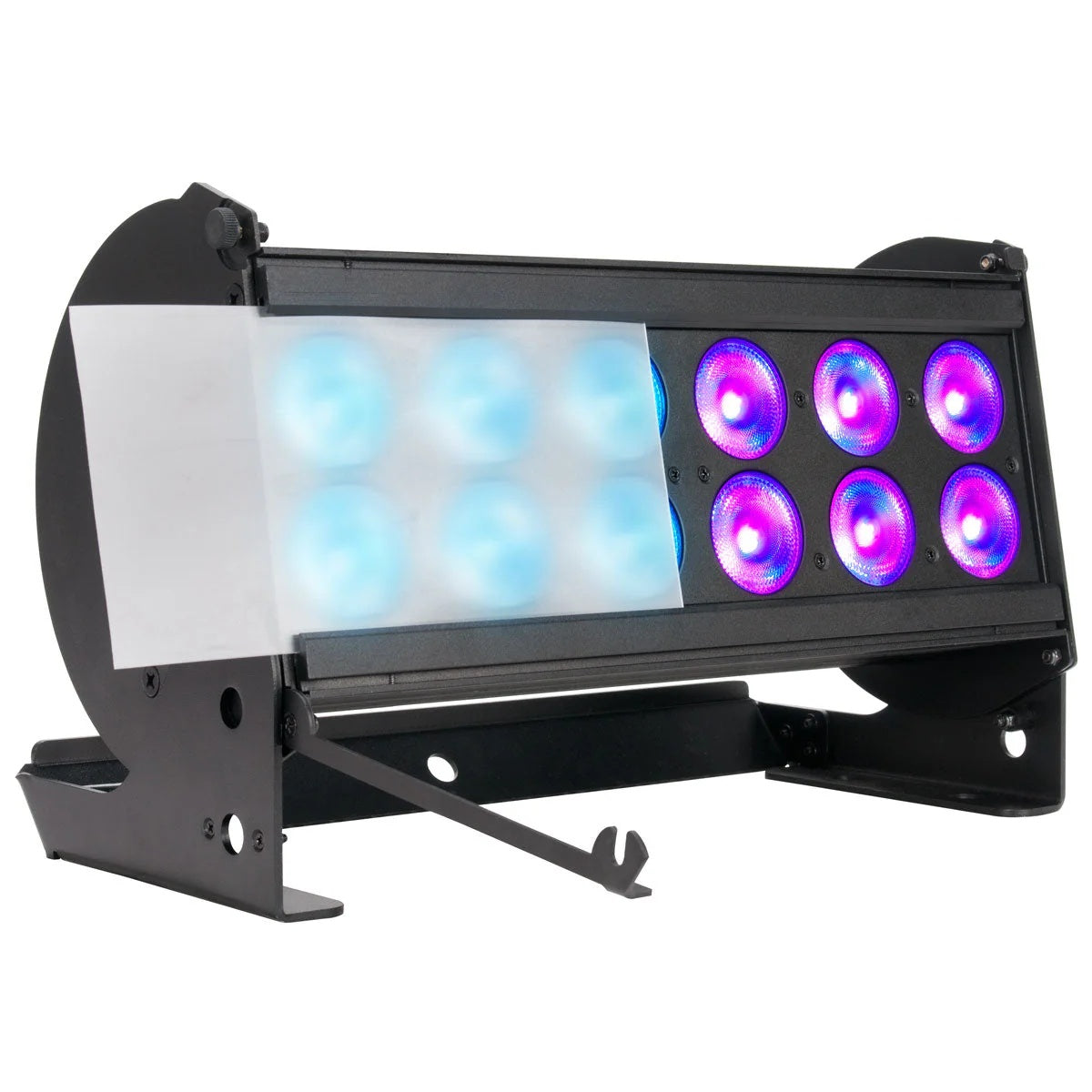

- Integrated Gel / Frost Filter Slot
The SEVEN Batten 14™ is a seven color 1.2 foot (0.4m) long batten wash luminaire with (12) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Features include individual hue, saturation, and intensity control, special RGB SEVEN 3 channel mode (RGB + dynamic white, amber, lime, and UV), 2 pixel mapping zones with pixel flip mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX Art-Net, Kling-Net, and RDM (Remote Device Management) protocol support, 3/5pin DMX, RJ45 ethernet, and Locking Power in/out connections, a 220° manual tilt adjustable mounting bracket, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), a rugged powder coated die-cast aluminum exterior, and an integrated gel / frost filter slot.
- Source
- (12) 25W 7-IN-1 RGBAW + Lime + UV LEDs
- 50,000 Hour Average LED Life (May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.)
- Effects
- Individual Hue, Saturation, and Intensity Control
- Special RGB SEVEN 3 Channel DMX Mode (RGB + Dynamic White, Amber, Lime, UV)
- 2 Pixel Mapping Zones with Pixel Flip Mode
- 12 Internal Program Macros with Speed and Fade Control
- 64 Unique 7-Color Macros
- Selectable 16-bit Dimming Curve Mode
- ColorRGBAW + Lime + UV (395nm)
- Control/Connections
- 12 DMX Channel Modes (22 total channels)
- DMX and Manual Control
- 4 Button Control Panel
- 180° Reversible OLED Menu Display
- DMX Adjustable LED Refresh Rate (900-25,000 (Hz)
- Adjustable LED Gamma Brightness (2.0, 2.2, 2.4, 2.8)
- Art-Net, Kling-Net, and RDM Remote Device Management) Protocol Support

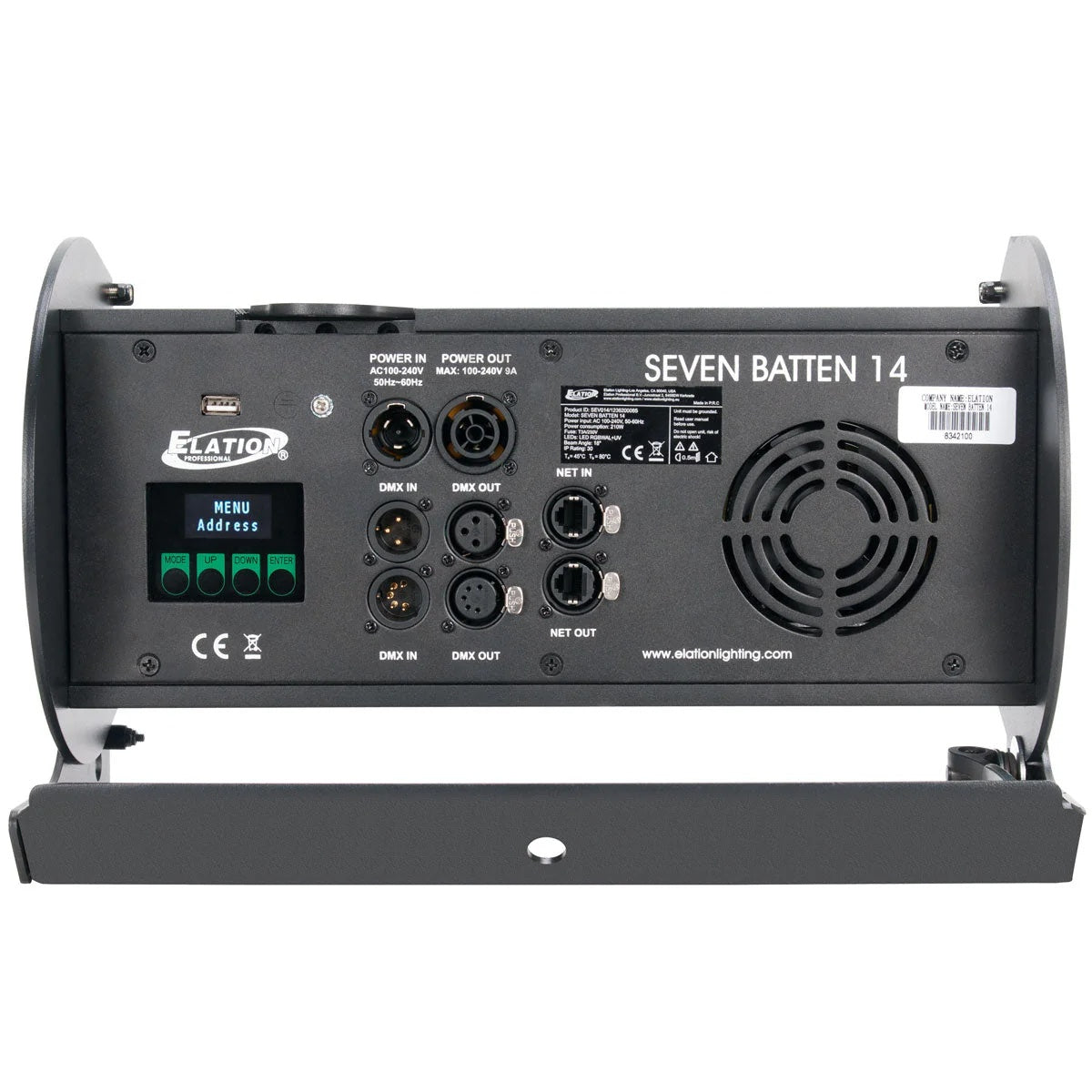

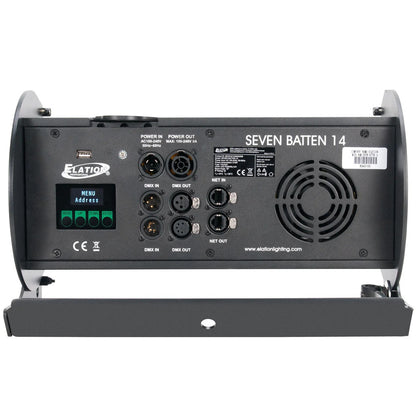

- 3/5pin DMX, RJ45 ethernet, and Locking Power In/Out
- With Wired Digital Communication Network
- Dimensions
- Length: 14.0” (355.6mm)
- Width: 4.5” (114.3mm)
- Vertical Height: 9.0” (228.6mm)
- Weight17 lbs (7.7kg)
- Electrical/Thermal
- AC 100-240V - 50/60Hz
- 201W Max Power Consumption
- 14°F to 113°F (-10°C to 45°C)
- Approvals/RatingsCE | cETLus | IP20
