• Elation Uni Bar
1 1

Elation Uni Bar DMX Channel Dimmer

Elation Uni Bar DMX Channel Dimmer

SoundPro Item: 28928 | Part Number: UNI BAR

$120.00
$150.00 $120.00
Your Price Sold out
MSRP: $150.00 | MAP: $120.00

Usually ships in 5-7 business days

  • 5-pin XLR DMX IN/OUT ports
  • Serves as a Switch or Dimmer Pack depending upon operating mode
  • USITT Standard DMX512
  • 4 digits Segment Display shows current activity and function state
  • Power failure memory
  • Dimmer Preset and Dimmer Limit settings
  • 120VAC-60Hz power input
  • 10 Amp maximum channel output
  • 10 Amp 250V 5x20mm fuse
  • Weight - 2.5lbs.
  • Dimensions - 7.90 x 3.250 x 2.650
  • On board HTP dimmer control
  • Input for optional analog HTP dimmer controller
Log in or register for YOUR best price

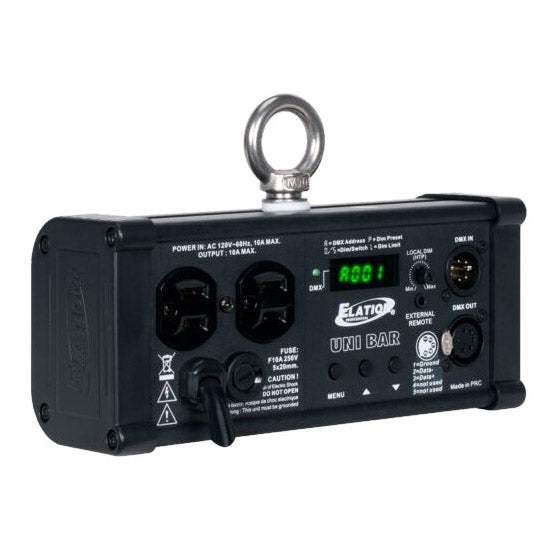

The UNI BAR is a compact single DMX channel dimmer featuring 10 amps of maximum channel output, dimmer or switch pack modes, dimmer preset and limit settings, and more!

Other functions include local HTP dimmer control, input for an optional analog HTP dimmer controller, power failure memory, 3pin DMX in/out (5pin effective May 1, 2019), (2) Edison 3-prong outputs, 3-button control panel and LCD display, and can be easily mounted using standard truss clamps or couplers.

View full details

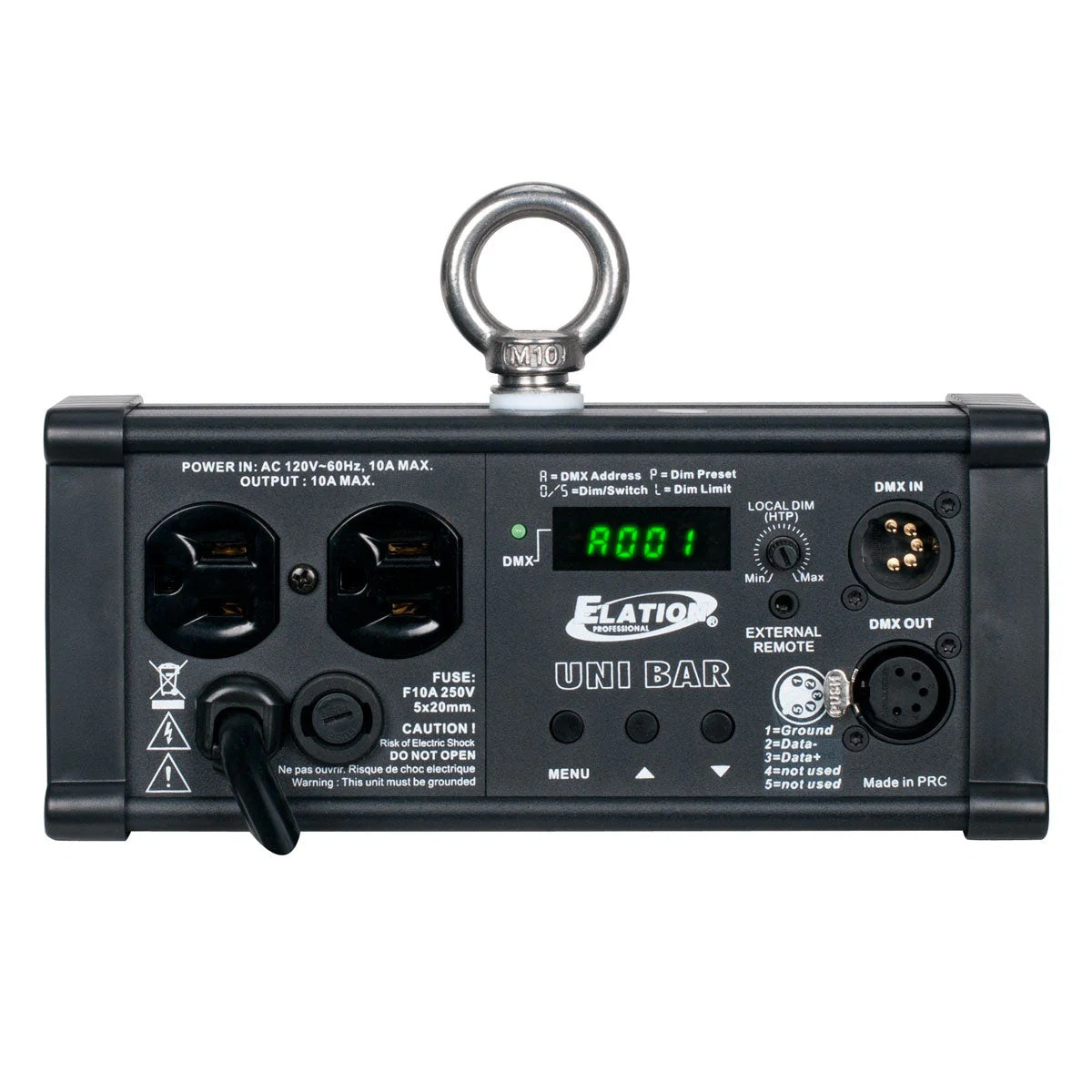

  • CONTROL / CONNECTIONS
    • 1 DMX Channel
    • 3-Button Control Panel
    • LCD Menu Display
    • On-board HTP Dimming Control Dial
    • Input for Optional Analog HTP Dimmer
    • 2 Edison 3-prong Outputs (10A Max Total Output)
    • 5pin DMX In/Out*
  • SIZE / WEIGHT
    • Length: 7.83” (200mm)
    • Width: 3.23” (82mm)
    • Vertical Height: 2.63” (66.8mm)
    • Weight: 2.4 lbs. (1.1 kg)
  • ELECTRICALAC 120V - 60Hz / 10A Max Total Output
