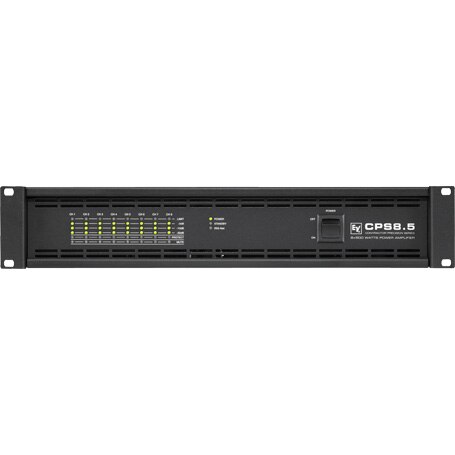

Electro-Voice CPS8.5 8-Channel 500W 70/100V Power Amplifier
Electro-Voice CPS8.5 8-Channel 500W 70/100V Power Amplifier
SoundPro Item: 45352 | Part Number: CPS8.5 120V
Usually ships in 5-7 business days
- Eight channels in one compact rack-efficient unit
- 500 W per channel
- 70/100 V operation for distributed systems
- Class-D design for optimum efficiency
- Slot for optional RCM-810 module, allowing IRIS-Net control and monitoring
- IRIS-Net selection of each channel's impedance (2-10 O in 0.1 O steps)
- Rear-mounted attenuators
- Switchable 50 Hz high-pass filter (Hi-Z mode)
- Complete protection: thermal, overload, shorts, HF, DC, back-EMF, inrush current
- Phoenix-type input and output connections
- Remote power-on/off contact
- Programmable power-on delay settings
- Front-to-rear fans
The Electro-Voice CPS8.5 amplifier offers eight independent Class-D Variable Load Drive (VLD) amp blocks, each one capable of delivering up to 500W into Low-Z or High-Z loads. Per default, each channel can be configured individually for max.power output into either 2Ω, 4Ω, 70V- or 100V-networks without involvement of any output transformers. Being designed for professional audio installation market, special care was taken for long term cost of ownership parameters: In addition to remarkably low current consumption and heat dissipation, the CPS8.5 provides remote standby switching with just 5 Watts consumption in standby mode.
An optional remote control module RCM-810 provides control and supervision features via IRIS-Net, including monitoring of amplifier status and real time load supervision. In addition, via RCM-810 the Variable Load Drive characteristics can be set for max. power output into any load between 2 Ω and 10 Ω, in steps of 0.1 Ω.
- Frequency Response (-3 dB)15Hz - 30,000Hz
- Coolingfront-to-rear, continuously variable fans
- THD0.05%
- Audio Networkno
- Slew Rate28V/µs
- Variable Load Driveyes
- DIM 300.02%
- TopologyClass D
- Signal-to-Noise Ratio (A-weighted)100 dB
- Impedance2/4/8/8 VLD/71 V/100VΩ
- Input Impedance (balanced)20kΩ
- Input Sensitivity0 dBu (.775V)-2ω, +3 dBu (1.1V)-4/8ω, +6 dBu (1.55) 70V/100V
- Network Control (IRIS-Net)optional (RCM-810 card)
- Amplifier Gain32 dB (Lo-Z), 33 dB (70V), 36dB ((100V))
- Continuous Rated Power
- (1 kHz, THD 1%) 4Ω: 500 watts
- (1 kHz, THD 1%) 100V: 500 watts
- (1 kHz, THD 1%) 70V: 500 watts
- (20-20 kHz, THD<0,2%) 100V: 500 watts
- (20-20 kHz, THD<0,2%) 4Ω: 450 watts
- (20-20 kHz, THD<0,2%) 70V: 450 watts
- (1 kHz, THD 1%) 2Ω: 500 watts
- (1 kHz, THD 1%) 8Ω: 250 watts
- (20-20 kHz, THD<0,2%) 8Ω: 225 watts
- Electronics Typeamplifier
- Analog Inputs8, electronically balanced, Phoenix-type
- Max. Input Voltage+22 (9.76 Vrms)
- Mains Voltage220 - 240 V, 50 - 60 Hz or 120 V, 50 - 60 Hz, 50 - 60 Hz
- CAN Bus Interfaceoptional (RCM-810 card)
- Max. Bridged Output 8Ω1000 watts
- Max. Bridged Output 4Ω1000 watts
- Dimensions (HxWxD)3.47" x 19" x 16.59"
- Weight30.64 pounds
