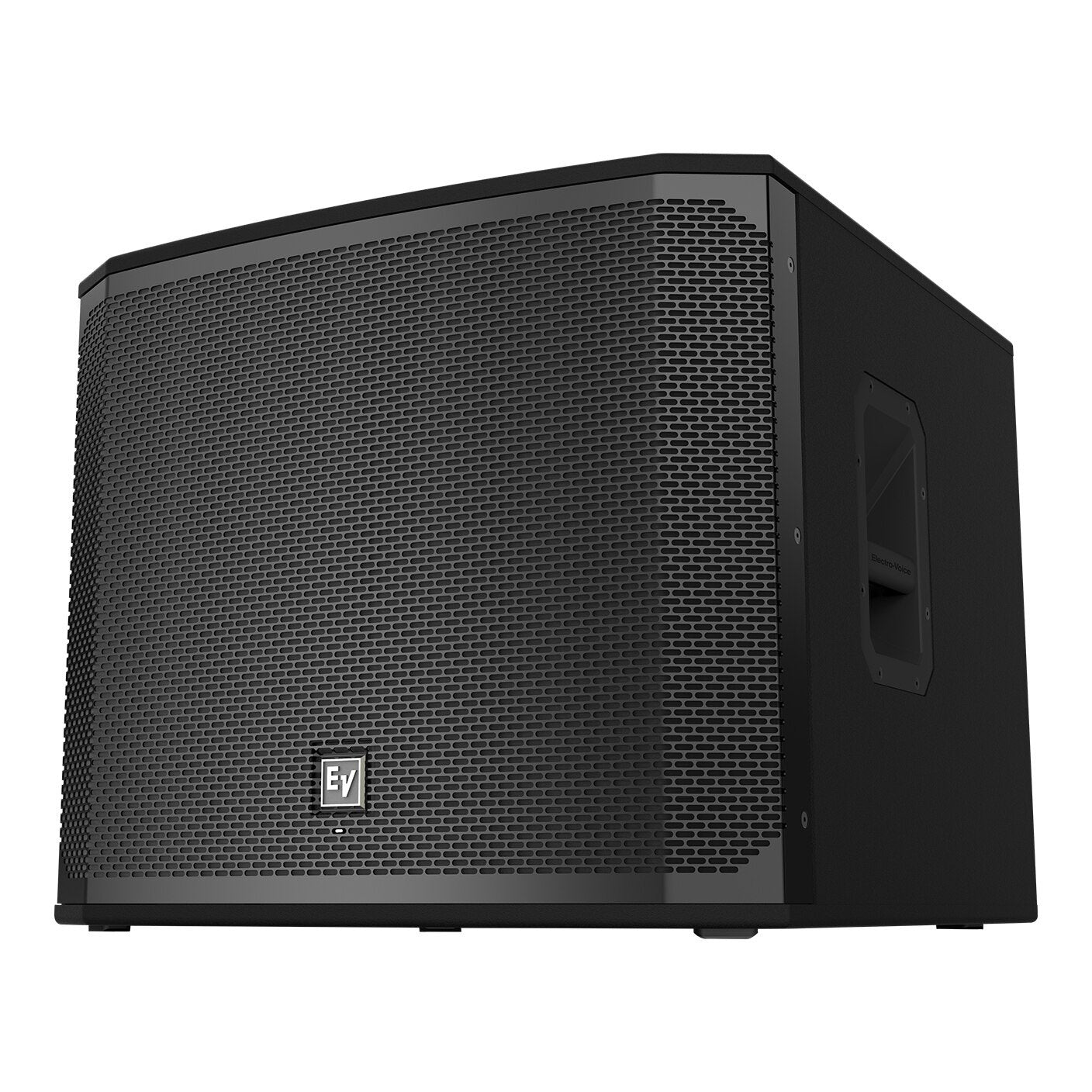

Electro-Voice EKX-18S 18-Inch Passive Subwoofer
Electro-Voice EKX-18S 18-Inch Passive Subwoofer
SoundPro Item: 21890 | Part Number: EKX-18S
Usually ships in 5-7 business days
- 1600W (peak), 134 dB peak SPL
- Lightweight, compact 15mm wood enclosure with internal bracing, and durable EVCoat finish
- Large slot ports for low distortion and excellent bass extension
- Metal grille reinforcement bar (two bars on the EKX-18S)
- M20 threaded pole mount plate
The EKX-18S 18” passive subwoofer combines quality and reliability in a compact package suitable for a wide range of sound reinforcement scenarios. Ideal for musicians, DJs and live performance, and installed sound applications, the innovative EKX-18S is equipped with features that optimize performance and versatility, including EV-engineered speaker and amplifier components and on-board signal processing with user-friendly single-knob control and application presets for easy set-up. Electro-Voice’s award-winning industrial design – incorporating robust wood enclosures, premium-quality hardware, and durable EVCoat finish – ensures that this sub looks as great as it sounds.
- Frequency Range (-10 dB) 35 Hz - 300kHz (Half Space Measurement)
- Minimum Impedance 7.0Ω
- Speaker Type Subwoofer
- Woofer Size 18inch
- Powered or Passive Passive
- Frequency Response (-3 dB) 50 Hz - 100Hz (Half Space Measurement)
- Max. SPL/1m (calc) 134dB
- LF Transducer EVS-18C 457 mm (18 in)
- Power Rating 1600W
- Connector Type Dual NL4
- Enclosure Material 15 mm, plywood with EVCoat
- Grille 18 AWG steel with powdercoat
- Height 20.47" (520mm)
- Width 23.86" (606mm)
- Depth 24.09" (612mm)
- Recommended High-Pass Frequency 30Hz
- Weight Net 70.11lbs (31.8kg)
- Shipping Weight 88.41lbs (40.1kg)
- Family EKX
- Power Handling (Continuous / Peak) 400 W/1600W
- Maximum SPL 134dB
- Passive Power Handling 1600W peak
- Nominal Impedance 8Ω
- Axial Sensitivity (SPL, 1W @ 1 m) 96dB
