• Electro-Voice ELX200-12 12'' 2-Way Passive Speaker
1 1

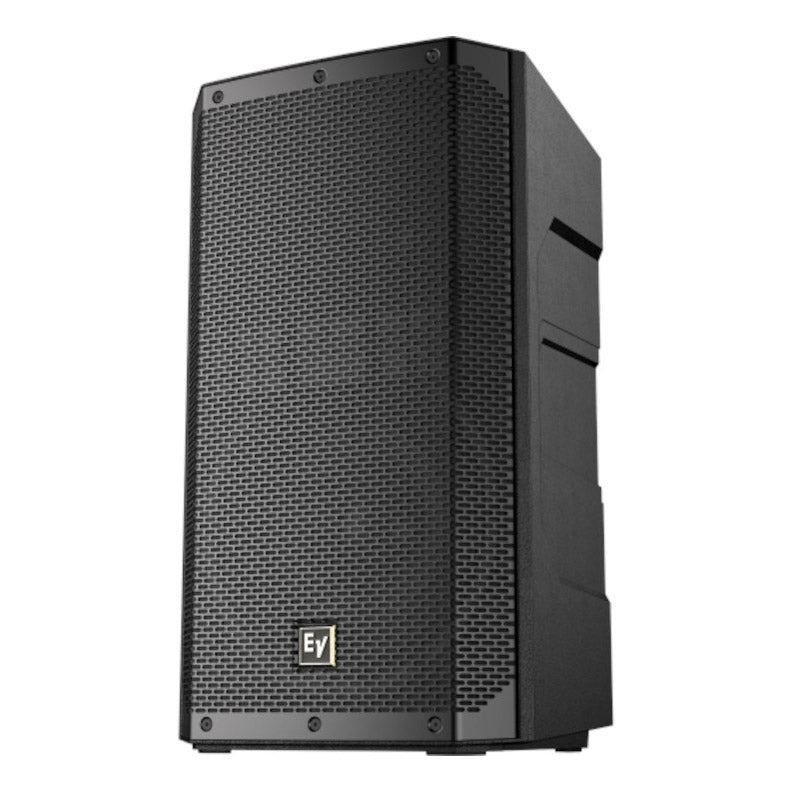

Electro-Voice ELX200-12 12-Inch Passive Speaker | Color: Black

Electro-Voice ELX200-12 12-Inch Passive Speaker | Color: Black

Soundpro Item: 16265 | Part Number: ELX200-12

$1,129.00
$1,129.00 $1,129.00
Your Price Sold out
MSRP: $1,129.00 | MAP: $1,129.00
  • 1200W (peak), 128 dB peak SPL system
  • 1.4" DH-1C (1 inch exit) titanium compression driver
  • High-output EVS-12M woofer for superior durability and exceptional low-frequency reproduction
  • SST waveguide provides consistent coverage, minimal distortion, and maximized acoustical loading
  • Three-handle design for easy lifting
Log in or register for YOUR best price

The ELX200-12 passive speaker from Electro-Voice’s Live X (ELX) 200 series delivers an unprecedented combination of sound quality, portability, and durability. Unified in a sturdy, full-range enclosure, the ELX200-12 is characterized by strength and efficiency both acoustically and physically and features a Signal Synchronized Transducers (SST) waveguide that allows for reliable, accurate coverage while simultaneously minimizing distortion and maximizing acoustic loading. Every aspect of ELX200 speaker series is designed for ideal results as part of the whole: acoustical, electrical, and mechanical components integrate seamlessly, making this speaker a robust workhorse capable of handling real-world abuse and professional applications.

View full details

Specifications

  • Suspension (3) M10 suspension points
  • Minimum Impedance 7.5Ω
  • HF Transducer DH-1L 1-inch titanium compression driver
  • Speaker Type Full-Range
  • Woofer Size 12inch
  • Frequency Response (-3 dB) 77Hz - 17,000Hz
  • Frequency Range (-10 dB) 51Hz - 20,000Hz
  • Max. SPL/1m (calc) 128dB
  • Coverage (Nominal -6 dB) H 90°
  • Coverage (Nominal -6 dB) V 60°
  • LF Transducer EVS-12M 300 (12")
  • Power Rating 1200W
  • Crossover Frequency 1.7 kHz
  • Connector Type Dual NL4
  • Enclosure Material Polypropylene composite
  • Grille 18 AWG steel with powdercoat
  • Height 24.76" (629 mm)
  • Recommended High-Pass Frequency 50 Hz
  • Width 14.29" (363mm)
  • Depth 13.54" (344mm)
  • Net Weight 33.51 lbs (15.2 kg)
  • Family ELX200
  • Nominal Impedance 8Ω
  • Axial Sensitivity (SPL, 1W @ 1 m) 93dB
  • Power Handling (Continuous / Peak) 300W/1200W
