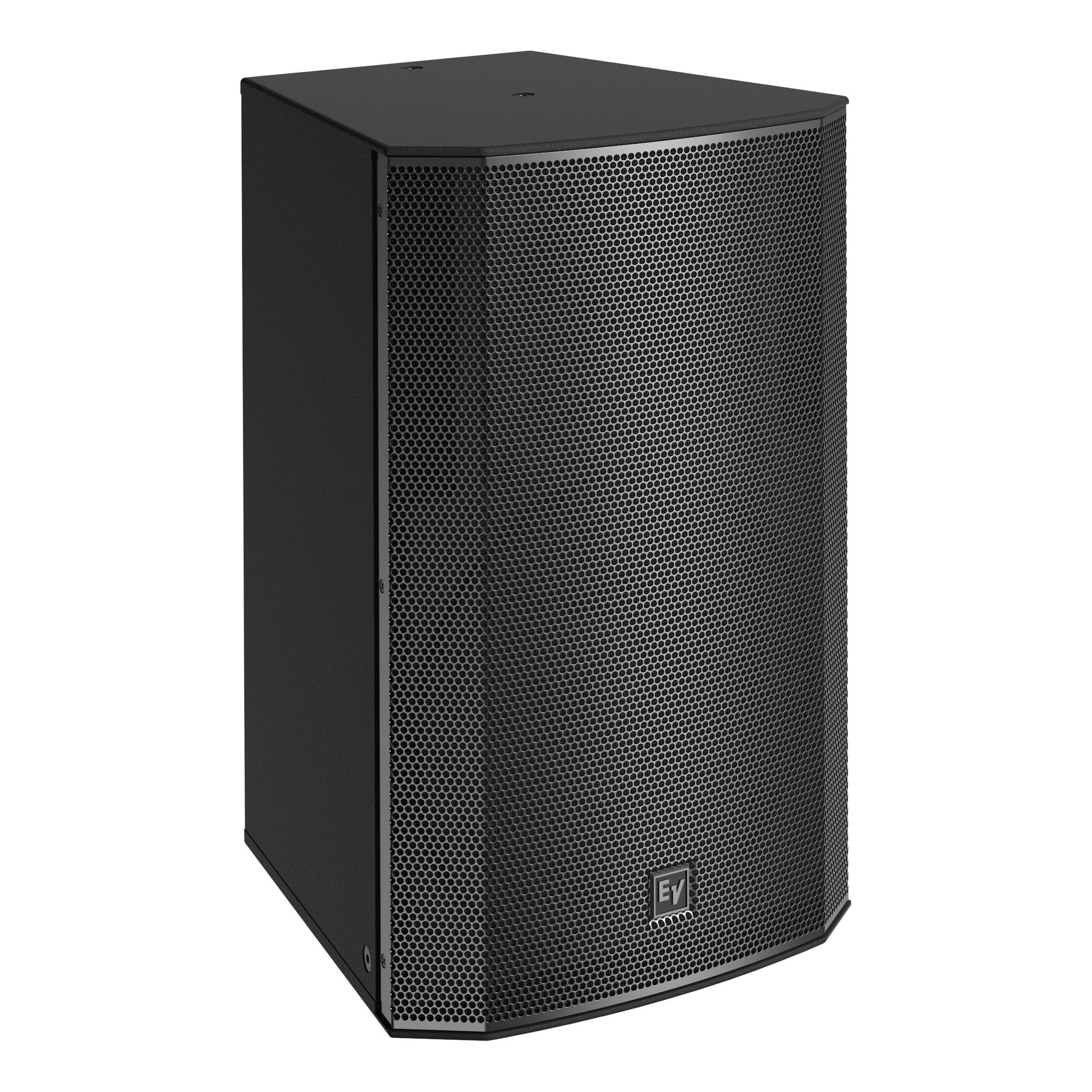

Electro-Voice EVC-1152 15-Inch Passive Speaker | Color: Black, Coverage: 90 x 55
Electro-Voice EVC-1152 15-Inch Passive Speaker | Color: Black, Coverage: 90 x 55
SoundPro Item: 18875 | Part Number: EVC-1152-95B
Usually ships in 5-7 business days
- 15-inch, two-way loudspeaker, with rotatable waveguide
- Power rating: 350W Continuous, (1400W Peak)
- Passive system: 98 dB, 129 dB maximum
- Gland nut cover and stainless-steel grille on PI versions
- Optional high-quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines
The EVC-1152 is a 15” two-way passive speaker that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, versatile, and cost-effective package.
The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.
EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU).
- Max Calculated SPL129dB
- Frequency Range (-10 dB)50Hz-25kHz
- SuspensionEight (8) M10 Suspension Points, optional U Bracket or pan/tilt wall mount
- Minimum Impedance6.7Ω
- HF TransducerDH-3
- Frequency Response (-3 dB)70Hz-21kHz
- LF TransducerEVS-15M
- Grille18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)
- Environmental SpecsIEC 60529, IP44 (IP55 for PI versions)
- Nominal Impedance8Ω
- Axial Sensitivity (SPL, 1 W @ 1 m)98dB
- Power Handling (Continuous / Peak)350/700/1400W
- ConnectorsDual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals
- Enclosure15mm weather-resistant plywood with EV Coat
- ColorBlack or White
- Passive crossover frequency1.6kHz
- Rec. high-pass frequency, 4th Order40 Hz for 8Ω (50 Hz with TK-150 transformer)
