Specifications
Dimensions
Dimensions (HxWxD)
15.75x10.83x10.71" (400x275x272mm)
Weight
Net Weight
16.8 lbs (7.6 kg)
Shipping Weight
24.3 lbs (11 kg)
Electrical
Power Consumption [4]
100 - 240 V~, 50 - 60 Hz, 0.8 - 0.6 A
Battery Capacity
86.4 Wh
Battery Run Time (at Max output) [5]
6+ hours
Battery Run Time (at Moderate output) [6]
12+ hours
Audio
Frequency Response (-3 dB) [1]
60 Hz to 20 kHz
Max. SPL [3]
121 dB
Crossover Frequency
2.5 kHz

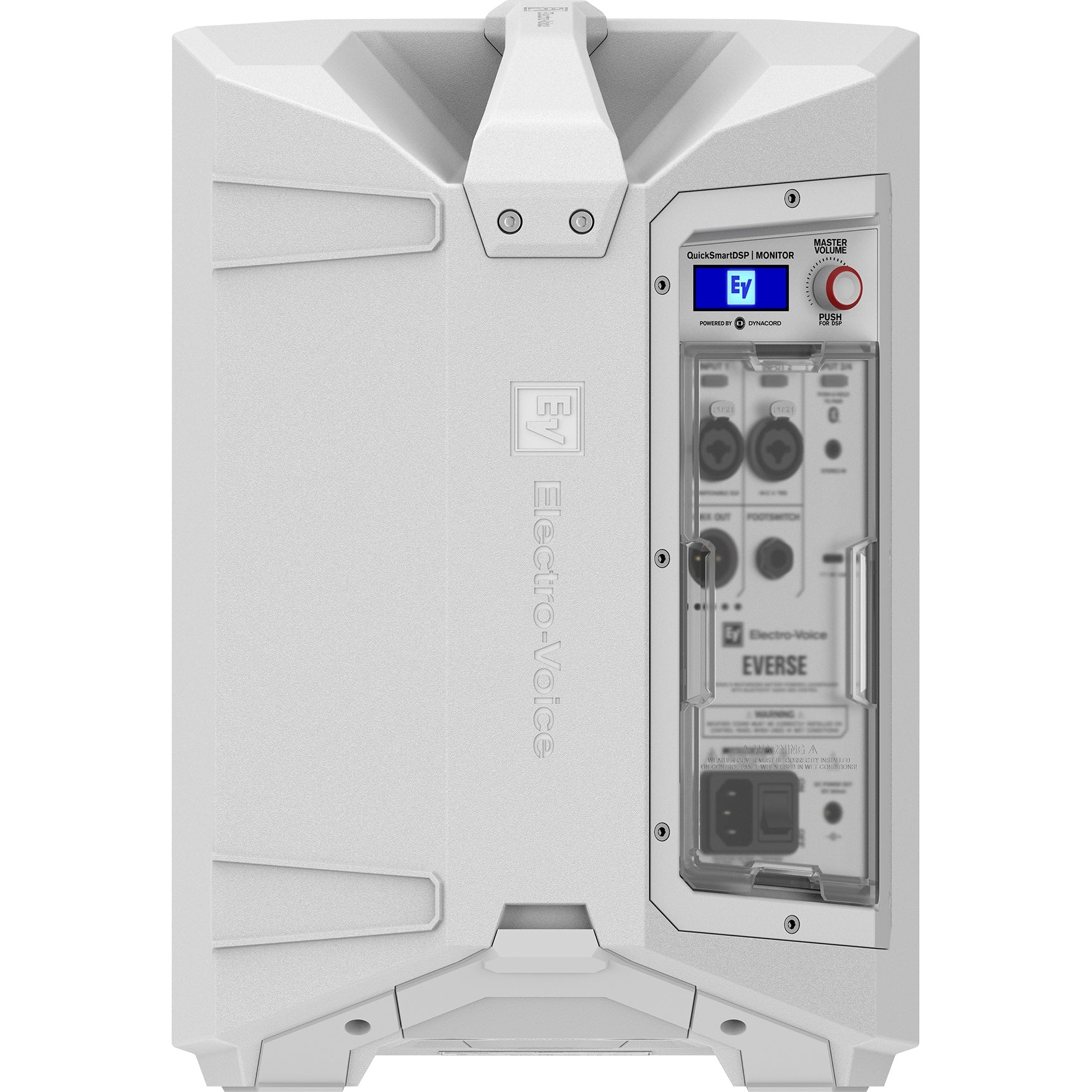

Connectivity
Connectors
2 - XLR/TRS Combo, 1 - 3.5mm Stereo, 1 - Charge port, 1 - TRS footswitch, 1 - 12 V DC power output
USB Charging
1.5 A max., device-dependent
Construction
Enclosure
Polypropylene
Grille Material
Powder coated steel
Available Colors
Black or white
General
Frequency Range (-10 dB) [2]
50 Hz to 20 kHz
Coverage Angle (HxV)
100°x100°
Amplifier Rating
400W
LF Transducer
8" woofer - ferrite magnet
HF Transducer
1" titanium dome, neodymium magnet, ferro-fluid cooled
Notes
[1] Full space measurement using music DSP preset., [2] Half-space measurement., [3] Maximum SPL is measured at 1 m using broadband pink noise at maximum output., [4] Current rating is 1/8 power., [5] Maximum output before loudspeaker limit indication, with typical program material., [6] Moderate output is approximately 95 dB SPL, with typical program material.
