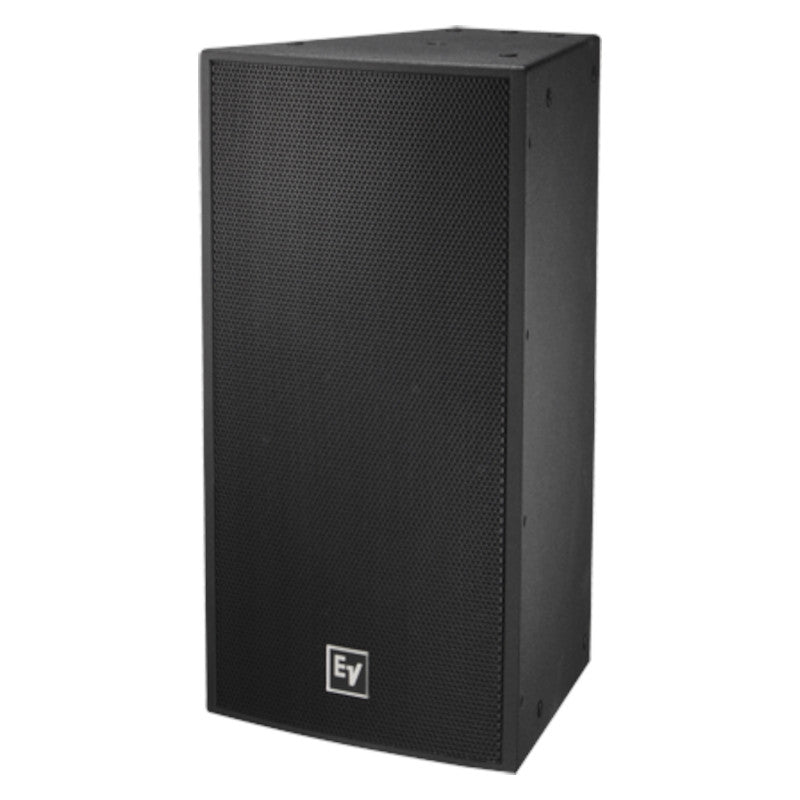

Electro-Voice EVF-1122S 12-Inch Passive Speaker | Color: Black, Coverage: 60 x 45
Electro-Voice EVF-1122S 12-Inch Passive Speaker | Color: Black, Coverage: 60 x 45
SoundPro Item: 45105 | Part Number: EVF-1122S/64-BLK
Usually ships in 5-7 business days
- 2-inch ND2B titanium HF compression driver
- Rotatable Constant-directivity waveguide
- Six available patterns with coverage from 60° to 120°
- 98 dB sensitivity, 131 dB maximum SPL
- Power handling: 500W continuous, 2000W peak
- 4th-order passive crossover with HF protection
- Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
Every EVF trapezoidal enclosure is constructed out of weather-resistant birch, and coated with EVCoat for maximum protection from the elements. Electro-Voice EVF-1122S 12-Inch Passive Speaker's unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget. EVF's innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.
- Frequency Range (-10 dB) 49 Hz – 19 kHz
- Suspension 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
- Weatherized No
- Minimum Impedance 6Ω
- Nominal Impedance (Passive) 8Ω
- HF Transducer 2" ND2B diaphragm compression driver
- Speaker Type Full-Range, Two-Way
- Frequency Response (-3 dB)¹ 58 Hz – 16 Hz
- Max. SPL/1m (calc)² 131 dBdB
- Coverage (Nominal -6 dB) H 120°
- Coverage (Nominal -6 dB) V 60°
- LF Transducer 12" SMX2121 driver
- System Power Handling (Continuous/Program/Peak) 500 , 1000 , 2000 Watts
- Crossover Frequency 1450Hz
- Enclosure Material 13-ply weather-resistant birch
- Grille Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
- Sensitivity 1 W/1 m 98 dBdB
- Height 30.26" (768.6mm)
- Width 16" (406.3mm)
- Recommended High-Pass Frequency 65Hz
- Depth 16.27" (413.3mm)
- Weight Net 63.05lbs (28.6kg)
- Internal Passive Crossover Frequency 1450Hz
- Passive Power Handling 2000W peak
- Net Weight 63.1 lb (28.6 kg)
- Dimensions (HxWxD) 30.26x16x16.27" (768.6x406.3x413.3mm)
- Input Connections Euroblock; PI and FG versions include dual-gland-nut input-panel cover
- Available Coverage Patterns (Nominal -6 dB) HxV120 x 60°
- Environmental SpecsStandard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
