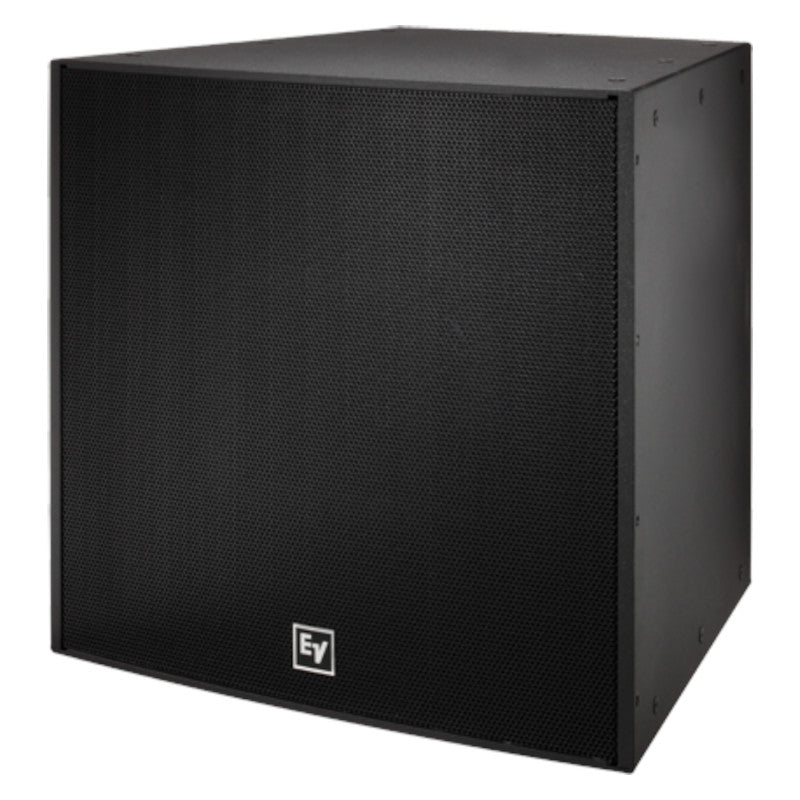

Electro-Voice EVH-1152S 15-Inch Passive Speaker | Color: Black, Coverage: 90 x 40
Electro-Voice EVH-1152S 15-Inch Passive Speaker | Color: Black, Coverage: 90 x 40
SoundPro Item: 45186 | Part Number: EVH-1152S/94-BLK
Usually ships in 5-7 business days
- Ideal for reverberant spaces
- Pattern control maintained down to 500 Hz
- 15-inch SMX2151 woofer
- 2-inch ND2B titanium HF compression driver
- Rotatable Constant-directivity waveguide
- Six available coverage patterns from 40x30 to 90x90
- 106 dB sensitivity, 139 dB maximum SPL
- Power handling: 500W continuous, 2000W peak
- 4th-order passive crossover with HF protection
- Trapezoidal enclosure in three finishes: EVCoat, FG or PI
- M10 threaded suspension points (28)
Electro-Voice EVH-1152S 15-Inch Passive Speaker employs an unmatched combination of superior acoustic design and rigging, allowing vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series. Twenty-eight suspension points for use with rated eyebolts or EV-I cluster hardware provide low-cost, simple rigging solutions.
- Frequency Range (-10 dB)50Hz - 16,000Hz
- Suspension(28) M10 threaded points
- Min. Impedance6 Ω
- Nominal Impedance (passive)8 Ω
- Frequency Response (-3 dB)60Hz - 15,000Hz
- Max. SPL/1m139 dB
- LF TransducerSMX2151, 15" 2000W peak
- HF TransducerND2B, 2" diaphragm compression driver
- System Power Handling
- Continuous: 500 watts
- Program: 1000 watts
- Peak: 2000 watts
- Crossover Frequency1300Hz
- Enclosure Material13 ply weather resistant birch
- Grille16 GA Galvanneal, Powdercoat, with Rotatable Logo
- Sensitivity 1 W/1m106 dB
- Recommended High-Pass Frequency60 Hz
- Dimensions (HxWxD)30.26" x 30.26" x 26.78"
- Weight143.08 pounds
- Input ConnectionsPhoenix/Euroblock style screw terminals
