• Electro-Voice EVID C4.2 4'' 2-Way Coaxial Ceiling Speaker
1 1

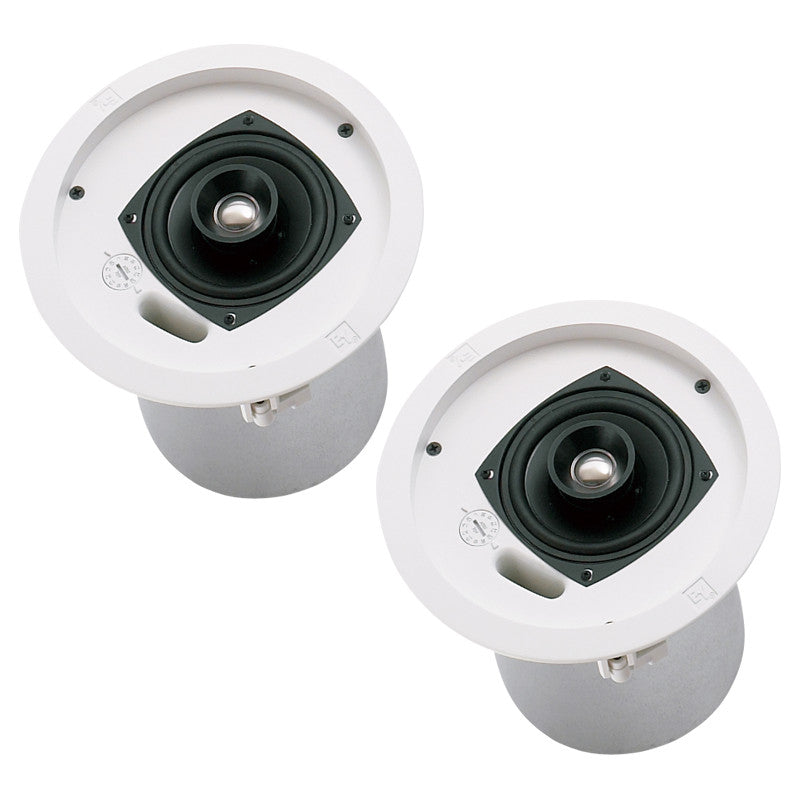

Electro-Voice EVID C4.2 4-Inch Ceiling Speakers (Pair)

Electro-Voice EVID C4.2 4-Inch Ceiling Speakers (Pair)

SoundPro Item: 42146 | Part Number: EVID C4.2

$394.00
$394.00 $394.00
Your Price Sold out
MSRP: $394.00 | MAP: $394.00

Usually ships in 5-7 business days

  • Designed for air-handling spaces
  • Ported enclosure for extended bass response
  • Waveguide-coupled 0.75-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Integrated transformer for 70V, 100V, or 8 Ohm use
  • Front-panel mode/wattage selector
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories
Log in or register for YOUR best price

The Electro-Voice EVID C4.2 system is a complete two-way ceiling loudspeaker package of two ceiling speakers. The package consists of a bezel assembly, grille, rear enclosure, 4-inch coax two-way loudspeaker and internal line-matching transformer. The louspeaker features a waveguide coupled titanium coated dome tweeter. The EVID C4.2 loudspeaker utilizes a 2nd order crossover network at 3.3kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The C.42 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the louspeaker system using eith 70-V or 100-V lines, or 8Ω bypass.

View full details
  • Frequency range (-10dB)65 - 20,000kHz
  • HF transducer0.75" (19 mm) Ti Mylar Laminate Dome
  • LF transducer4-inch polypropylene cone
  • Speaker typePorted cabinet, internally damped, two-way (passive crossover included)
  • System power handling (continuous/program/peak)50W (overload protected)
  • Sensitivity 1W/1 m86dB
  • Input formats8ω, 70V, 100V
  • Coverage (nominal -6dB)130 (conical)
  • Mounting systemsintegrated 3-point toggle anchors
  • Transformer taps (transformer version only)(1.88 - 70V only), 3.75, 7.5, 15, 30
  • Chassis size4 inches
  • Height6.93 inches
  • Diameter (max)7.13"
  • Weight5.95 lbs
