• Electro-Voice EVID C8.2HC 8'' 2-Way Coaxial Ceiling Speaker (Pair)
1 1

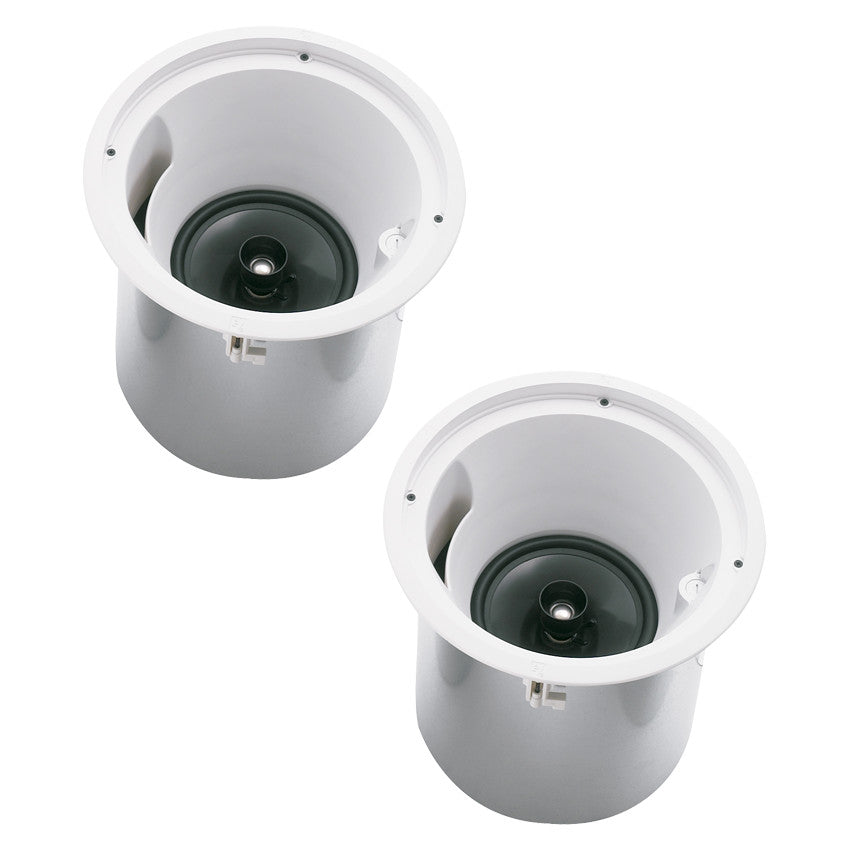

Electro-Voice EVID C8.2HC 8-Inch Ceiling Speakers (Pair)

Electro-Voice EVID C8.2HC 8-Inch Ceiling Speakers (Pair)

Soundpro Item: 45174 | Part Number: EVID C8.2HC

$764.00
$764.00 $764.00
Your Price Sold out
MSRP: $764.00 | MAP: $764.00
  • Maximum fidelity and intelligibility for high ceilings
  • Low-profile for rich sound in tight spaces
  • Ported enclosure for extended bass response
  • Waveguide-coupled 1-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Integrated transformer for 70V, 100V, or 8 Ohm use
  • Front-panel mode/wattage selector
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories
Log in or register for YOUR best price

The Electro-Voice ® EVID C8.2HC is an 8" coaxial transducer featuring an innovative waveguide (patent pending) that provides directivity control to 1 kHz. It provides much better music fidelity and speech intelligibility in spaces with high ceiling heights than typical flush units are capable of. Its 75° coverage pattern provides the same coverage area when used in a 21’ ceiling as a typical flush mount mounted unit in an 8’ ceiling.

The C8.2HC utilizes a transformer that offers a selection of 7.5 (70-V only), 15, 30, or 60 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front of the waveguide.

View full details

Specifications

  • Frequency Response (-10 dB)50Hz - 20,000Hz
  • Coverage (conical)75° nominal above 1kHz
  • Power Handling75W cont / 300W peak
  • Sensitivity (SPL 1W/1m)93 dB
  • Max. Calculated SPL112 dB cont / 118 dB peak
  • Impedance8 Ω nominal (transformer bypass)
  • Networknetwork and transducers protected, 12 dB/oct 2.6kHz
  • LF Transducer8" polypropylene cone in waveguide
  • HF Transducer1" ti mylar laminate
  • Transformer Taps
    • 70V: 7.5, 15, 30, or 60W
    • 100V: 15, 30, or 60W
    • Bypass: 8 Ω
  • ConnectorsPhoenix type removable, with screw terminals and "loop-thru", accepts 12 ga wire
  • Enclosure Material
    • Baffle: UL 94V-O rated ABS
    • Backcan: zinc plated steel
  • Grilleperforated powder coated steel with safety tether
  • Support Hardwaretile bridge, backing plate support, cutout template, paint shield
  • Dimensions
    • Height: 11.9"
    • Diameter: 12.6"
    • Cutout Size: 12.63"
  • Weight13.2 lbs
