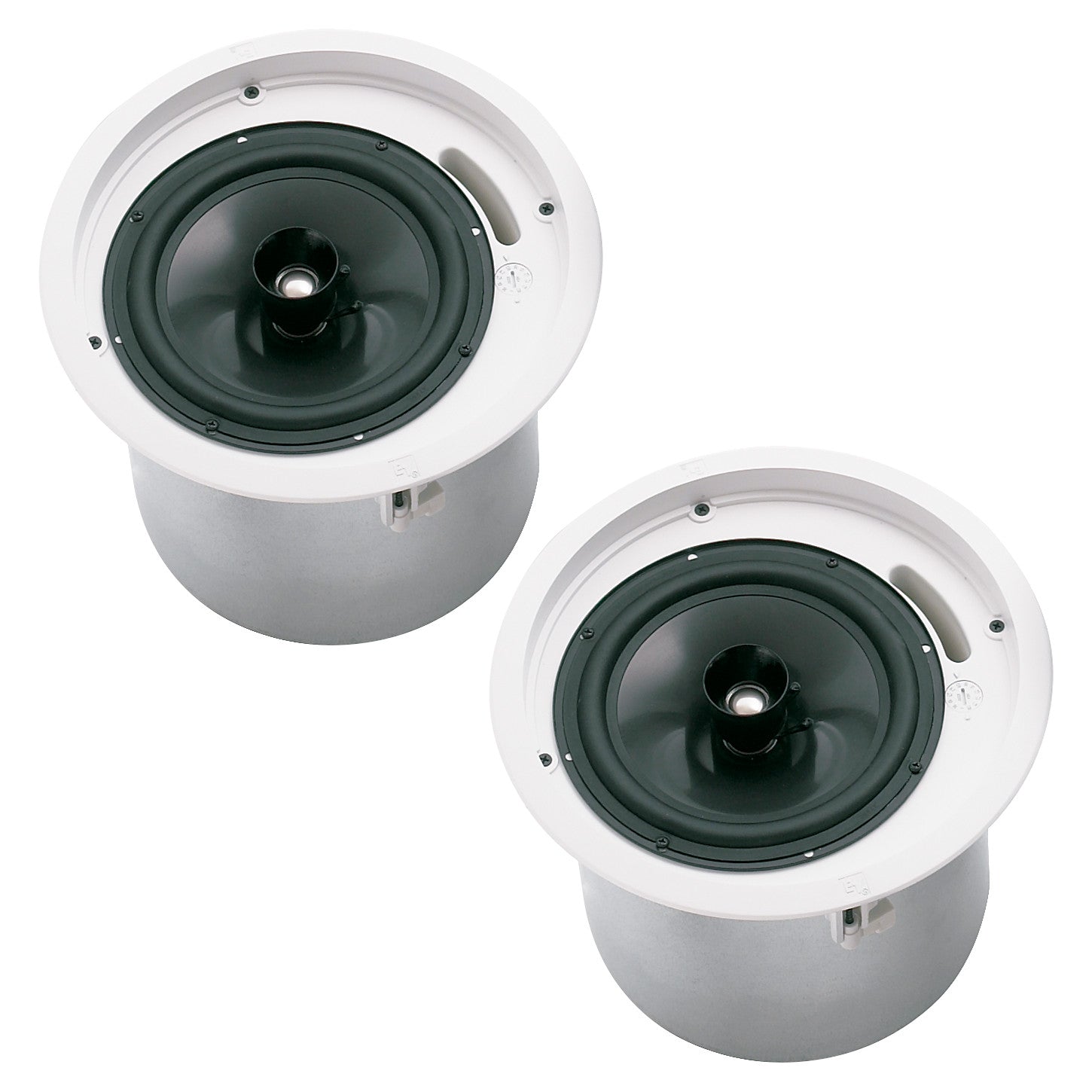

• Electro-Voice EVID C8.2LP 8'' 2-Way Coaxial Ceiling Speaker (Pair)
1 1

Electro-Voice EVID C8.2LP 8-Inch Ceiling Speakers (Pair)

Electro-Voice EVID C8.2LP 8-Inch Ceiling Speakers (Pair)

SoundPro Item: 45172 | Part Number: EVID C8.2LP

$546.00
$546.00 $546.00
Your Price Sold out
MSRP: $546.00 | MAP: $546.00

In stock and ready to ship

  • Low-profile for rich sound in tight spaces
  • Ported enclosure for extended bass response
  • Waveguide-coupled 1-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Integrated transformer for 70V, 100V, or 8 Ohm use
  • Front-panel mode/wattage selector
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories
Log in or register for YOUR best price

The Electro-Voice ® EVID C8.2LP loudspeaker system is a complete two-way ceiling loudspeaker in a low profile package. The package consists of a bezel assembly, grille, rear enclosure, coax two-way loudspeakers, and internal line-matching transformer. The loudspeakers feature a waveguide-coupled, titanium-coated dome tweeter.

The EVID C8.2LP loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The C8.2LP utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15, or 30 watts delivered to the loudspeaker system using either 70V or 100V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle.

View full details
  • Frequency Response (-10 dB)50Hz - 20,000Hz
  • Coverage (conical)110°
  • Power Handling75W cont / 300W peak
  • Sensitivity (SPL 1W/1m)91 dB
  • Max. Calculated SPL110 dB cont / 116 dB peak
  • Impedance8 Ω nominal (transformer bypass)
  • Networknetwork and transducers protected, 12 dB/oct 2.6kHz
  • LF Transducer8" polypropylene cone
  • HF Transducer1" ti mylar laminate
  • Transformer Taps
    • 70V: 1.88, 3.75, 7.5, 15 or 30W
    • 100V: 3.75, 7.5, 15 or 30W
    • Bypass: 8 Ω
  • ConnectorsPhoenix type removable, with screw terminals and "loop-thru", accepts 12 ga wire
  • Enclosure Material
    • Baffle: UL 94V-O rated ABS
    • Backcan: zinc plated steel
  • Grilleperforated powder coated steel with safety tether
  • Support Hardwaretile bridge, backing plate support, cutout template, paint shield
  • Dimensions
    • Height: 7"
    • Diameter: 10.6"
    • Cutout Size: 10.75"
  • Weight11 lbs
