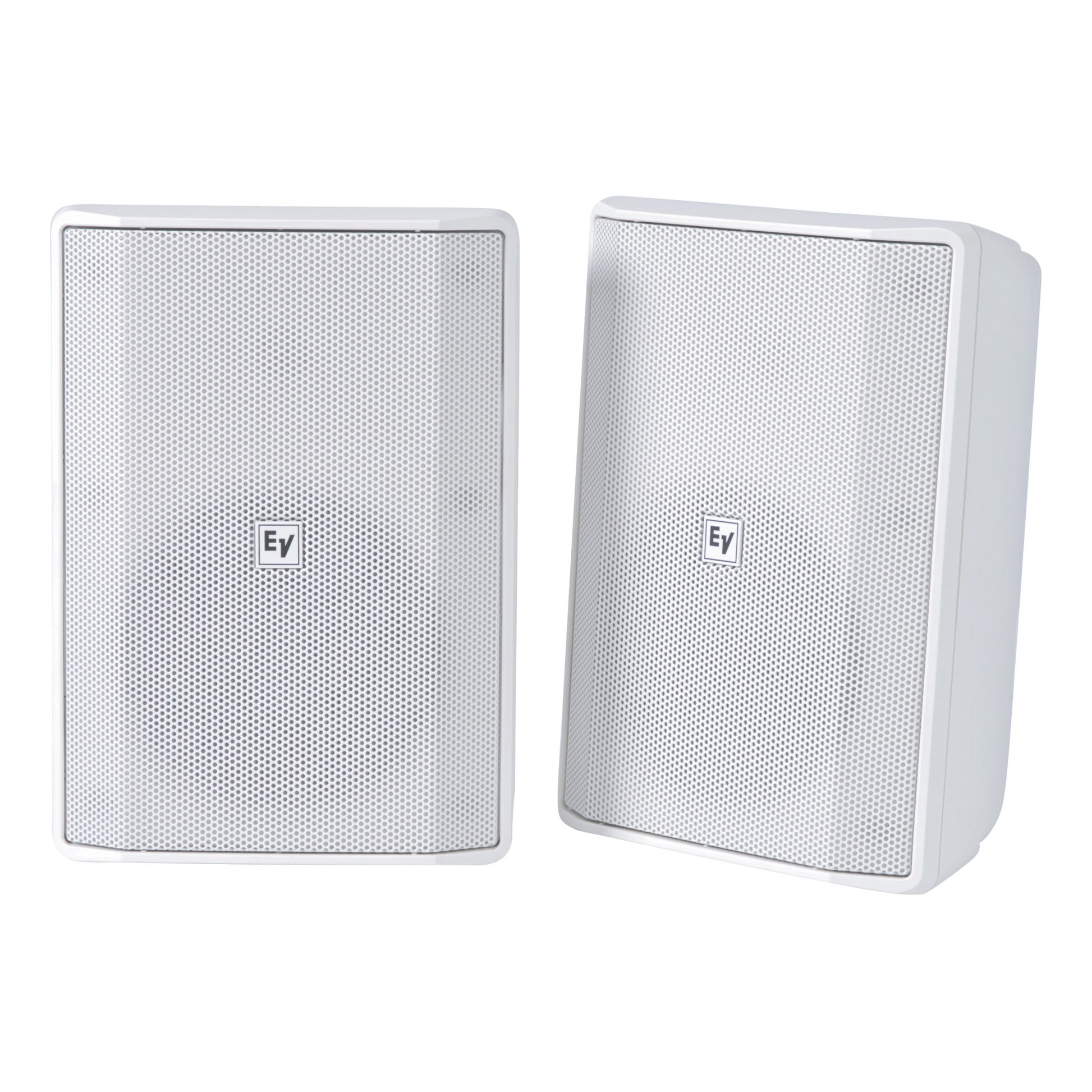

Electro-Voice EVID-S5.2X 5-Inch Surface Mount Speakers (Pair) | Color: White
Electro-Voice EVID-S5.2X 5-Inch Surface Mount Speakers (Pair) | Color: White
SoundPro Item: 16171 | Part Number: EVID-S5.2XW
Usually ships in 5-7 business days
- Sold in sets of two
- Carefully engineered for the toughest weather conditions (IP65)
- Long throw 5.25" (133 mm) woofer housed in a UL 94-5VB fire rated ABS plastic for extended LF performance down to 55 Hz
- 90W power handling provides for 108 dB maximum SPL (114 dB Peak)
- 60W transformer with 8O pass-through
Experience a superior solution to modern installation needs with this pair of EVID-S5.2X 5-Inch IP65 Surface Mount Speakers. Boasting Electro-Voice’s characteristic professional sound quality, a compact installation that seamlessly blends into your architecture, and set-it-and-forget-it reliable performance, these speaker models provide exceptional coverage and pristine intelligibility.
High power and high performance, EVID-S5.2X speakers are built using EV-engineered internal components that meet the industry’s highest standards of quality. Durable mounting hardware and enclosures enable these speakers to meet the rigors of their applications head-on.
The EVID-S5.2X utilizes a 60W transformer, that offers a selection of 7.5W (70V only), 15W, 30W or 60W delivered to the speaker system using either 70V or 100V lines, or 8-ohm bypass for low impedance lines. Selection is done with a convenient switch on the input panel located on the rear of the speaker.
- Frequency Range (-10 dB) 55 Hz – 20 kkHz
- Weatherized Yes
- Minimum Impedance 6Ω
- HF Transducer 0.75 inch (20 mm)
- Frequency Response (-3 dB) 90 Hz – 20Hz
- Max. SPL/1m (calc) 108dB
- Coverage (Nominal -6 dB) H 90°
- LF Transducer 5.25 inch (122 mm)
- Coverage (Nominal -6 dB) V 90°
- Connector Type Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)
- Available Color Black or White
- Sensitivity 1 W/1 m 90dB
- Height 10.04" (255mm)
- Width 7.09" (180mm)
- Recommended High-Pass Frequency 60Hz
- Depth 5.83" (148mm)
- Weight Net 7.05lbs (3.2kg)
- Shipping Weight 20.94lbs (9.5kg)
- Transformer 70V/100V (60W)
- Transformer Taps
- 70V: 60W, 30W, 15W, 7.5W, 8 Ω
- 100V: 60W, 30W, 15W, 8 Ω
- Environmental Specs IP-65 (per IEC-60529)
- Nominal Impedance 8Ω
