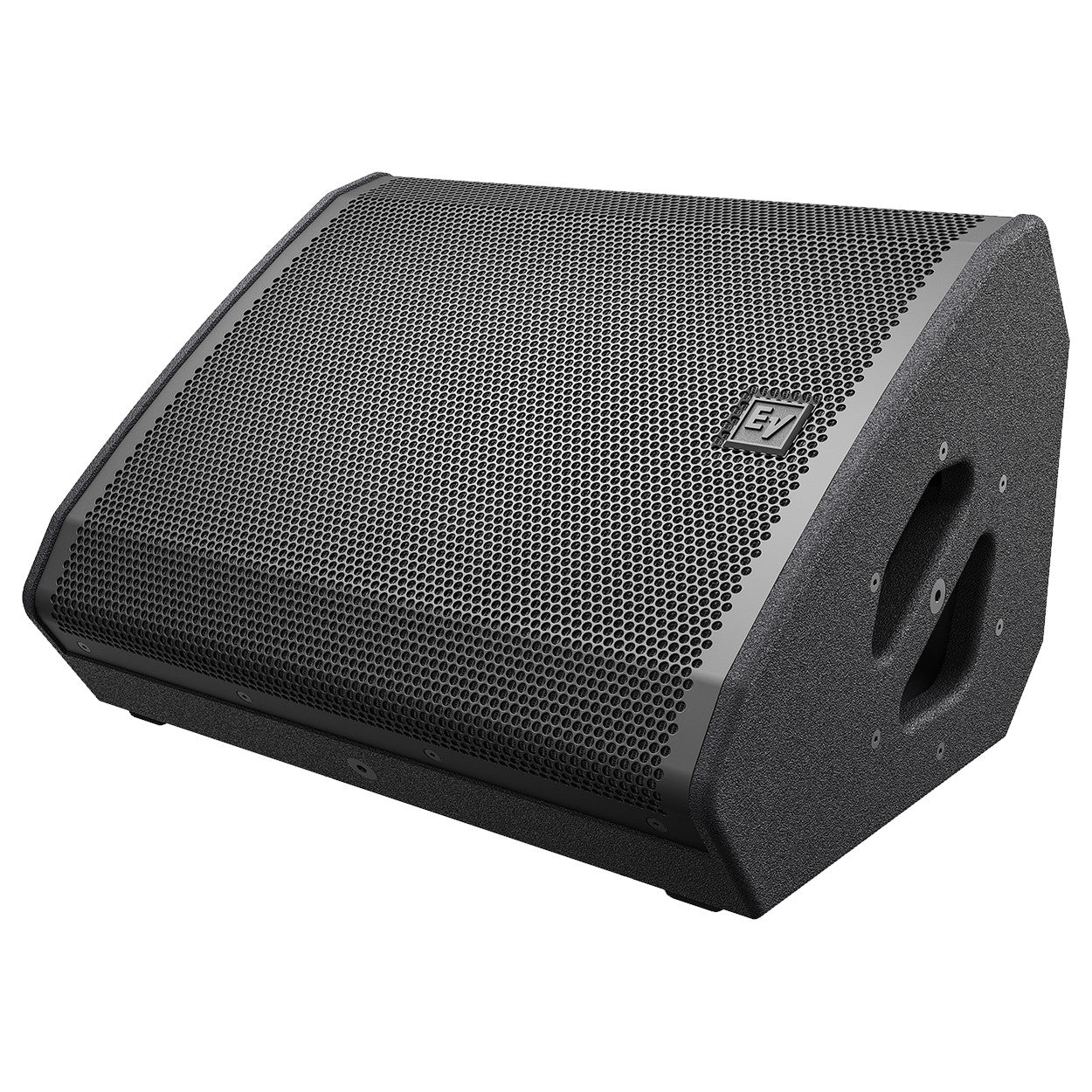

Electro-Voice MFX-12MC 12-Inch Stage Monitor | Color: Black

Electro-Voice MFX-12MC 12-Inch Stage Monitor | Color: Black

SoundPro Item: 45339 | Part Number: F.01U.360.527

$3,371.00
$3,371.00 $3,371.00
Your Price Sold out
MSRP: $3,371.00 | MAP: $3,371.00

Usually ships in 5-7 business days

  • Multi-functional, coaxial, short-throw point source for stage monitoring, FOH, front fill, and side fill
  • Rugged tour-grade durability in a lightweight, ergonomic design
  • Low profile maximizes audience sight lines
  • Switched passive or biamp operation with factory presets for any application
  • Range of mounting accessories for live sound and fixed installation
Log in or register for YOUR best price

Part of the MFX Series from Electro-Voice, the MFX-12MC is a 12-inch stage monitor that can also be used as a short-throw loudspeaker for sound-reinforcement applications.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
19.7x16.5x11.7" (500x420x298 mm)
Weight
Net Weight
41.9 lbs (19 kg)
Shipping Weight
46.7 lbs (21.2 kg)
Electrical
Nominal Impedance Passive
8Ω
Nominal Impedance Biamp LF
8Ω
Nominal Impedance Biamp HF
8Ω
Audio
Frequency Response (-3 dB)[1]
62 Hz - 18 kHz
Axial sensitivity[1]
97 dB (1 W/1 m)
Max. SPL[2]
135 dB
Connectivity
Connectors
Neutrik NL4 input with NL4 pass through
Construction
Enclosure
12-18-mm Baltic plywood with EVCoat
Grille
1.5-mm zinc plated steel with corrosion resistant coating
Handles
Two with integrated cup for standard 35-mm pole
Color
Black (RAL 9005) or white (RAL 9003)
General
Frequency Range (-10 dB)[1]
50 Hz - 19 kHz
Rotatable Coverage
60° x 40° FOH, 40° x 60° Monitor
Rec. High-pass Frequency
Use factory preset
Power handling[3]
450W (Continuous), 3000W (Peak)
Transducer
CXCA3128-1CA
Logo
Rotatable
Monitor Angles
35° and 55°
Suspension
Four M10 suspension points located to work with truss clamps, wall mounts, flying brackets and a full range of mounting accessories
Notes
[1] Half-space with monitor preset, [2] Measured one meter on-axis, free field with 12dB crest factor pink noise, [3] Continuous power EIA-426A, peak power 500-hour EV music abuse test
