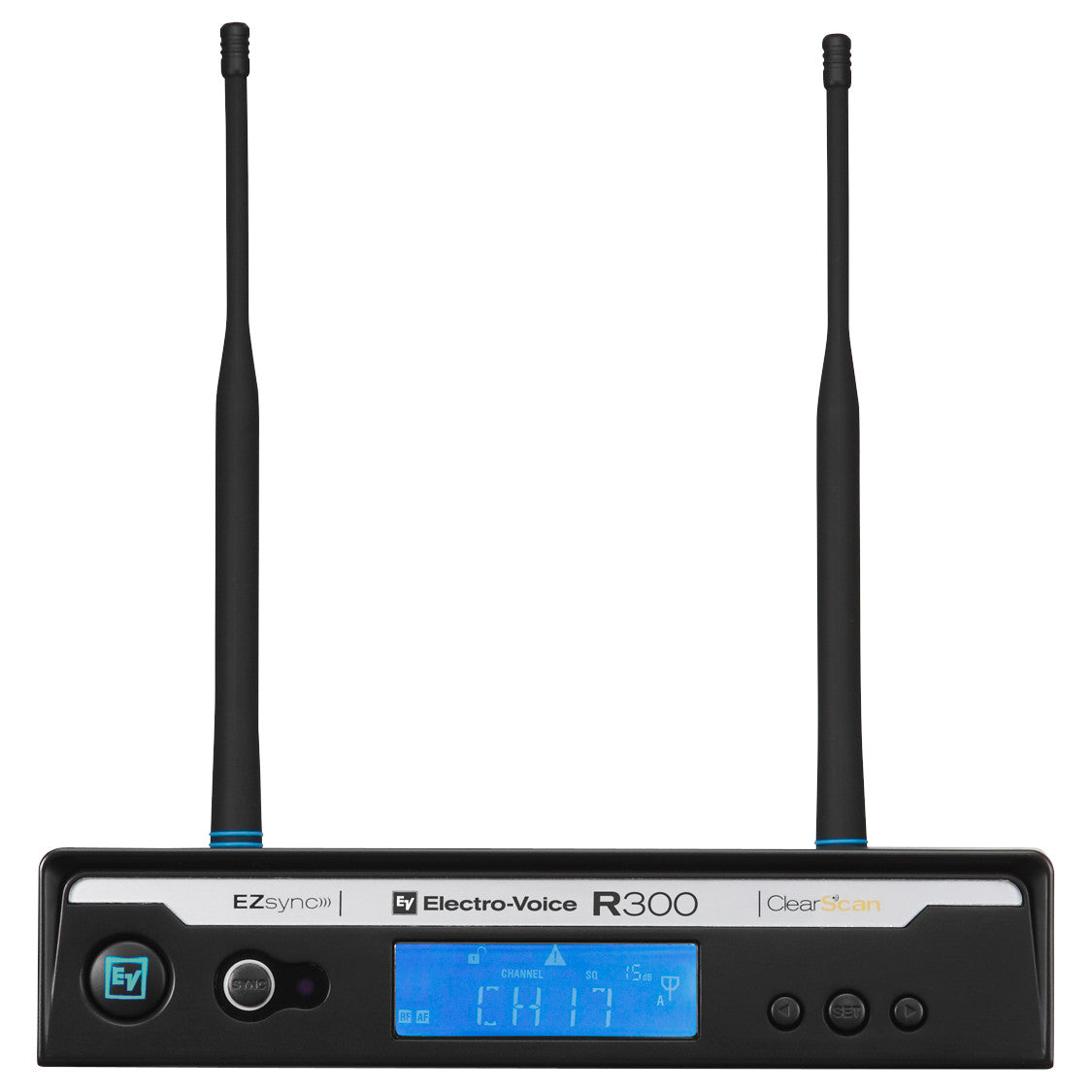

- Receiver TypeSynthesized PLL
- Frequency Range (RF)
- A Band: 618 - 634 MHz (Not Available in US or Canada)
- B Band: 678 - 694 MHz (Not Available in US or Canada)
- C Band: 516 - 532 MHz
- E Band: 850 - 865 MHz (Not Available in US or Canada)
- Number of Channels32
- Modulation± 40 kHz
- DiversityTrue Antenna
- RF Sensitivity<1.0 μV for 12 dB SINAD
- Image Rejection> 55 dB
- Squelch Tone Code plus Amplitude
- Power Requirements 12-16 VDC, 500mA max
- Operating Temperature 5°C to 45°C (41°F to 113°F)
- Dimensions (HxWxD)1.72x7.8x8" (43x206x210 mm)
- Audio Parameters
- Frequency Response: 80 Hz - 18 kHz ± 2 dB

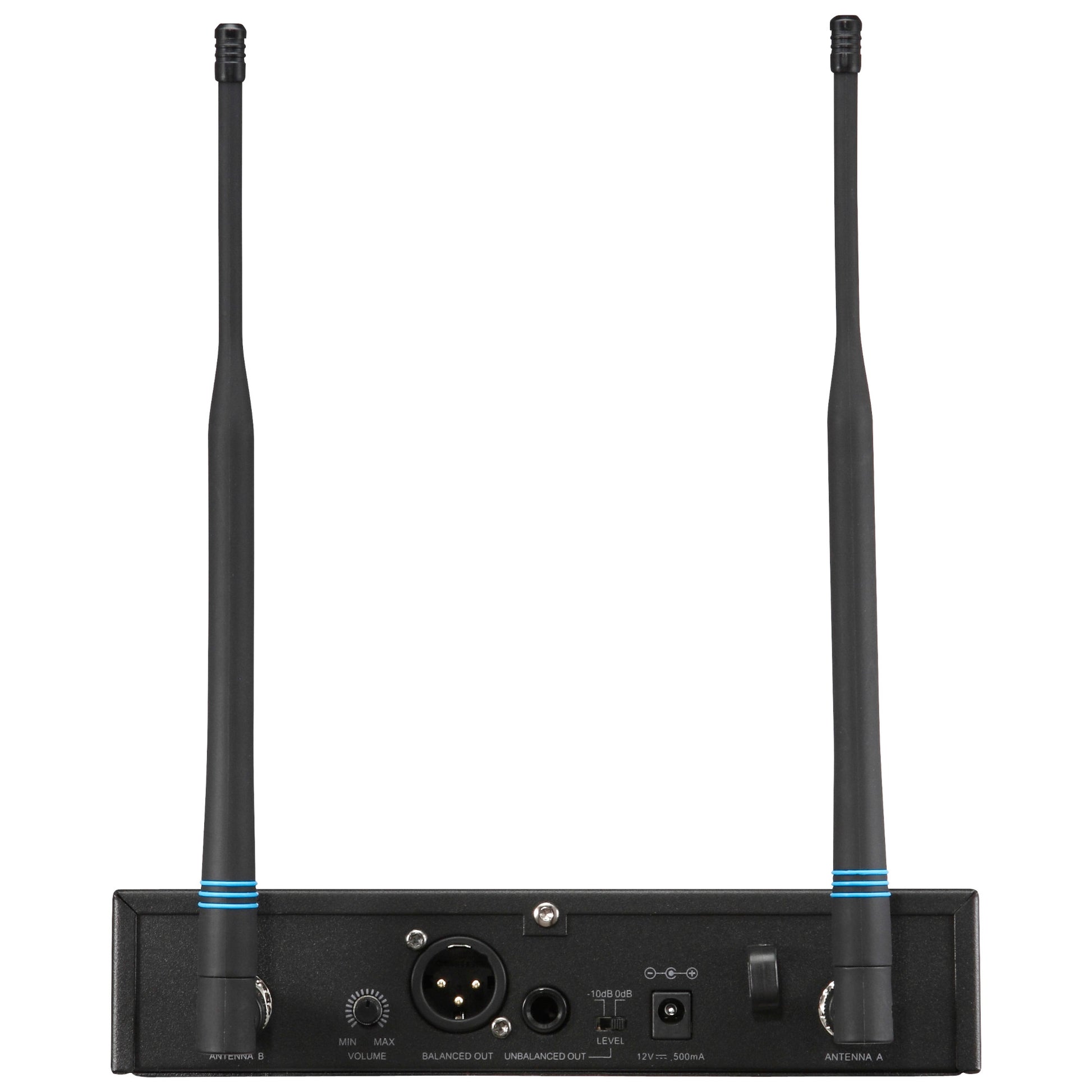

- Balanced Output: 20 dBV (max @ 40 kHz deviation)
- Unbalanced Output: Adjustable 8 mV to 0.755V RMS
- Distortion: < 1.0%, 0.4% typical (ref 1 kHz, 40 kHz deviation)
- Signal-to-Noise Ratio: > 100 dB A-Weighted
- Dynamic Range: > 95 dB

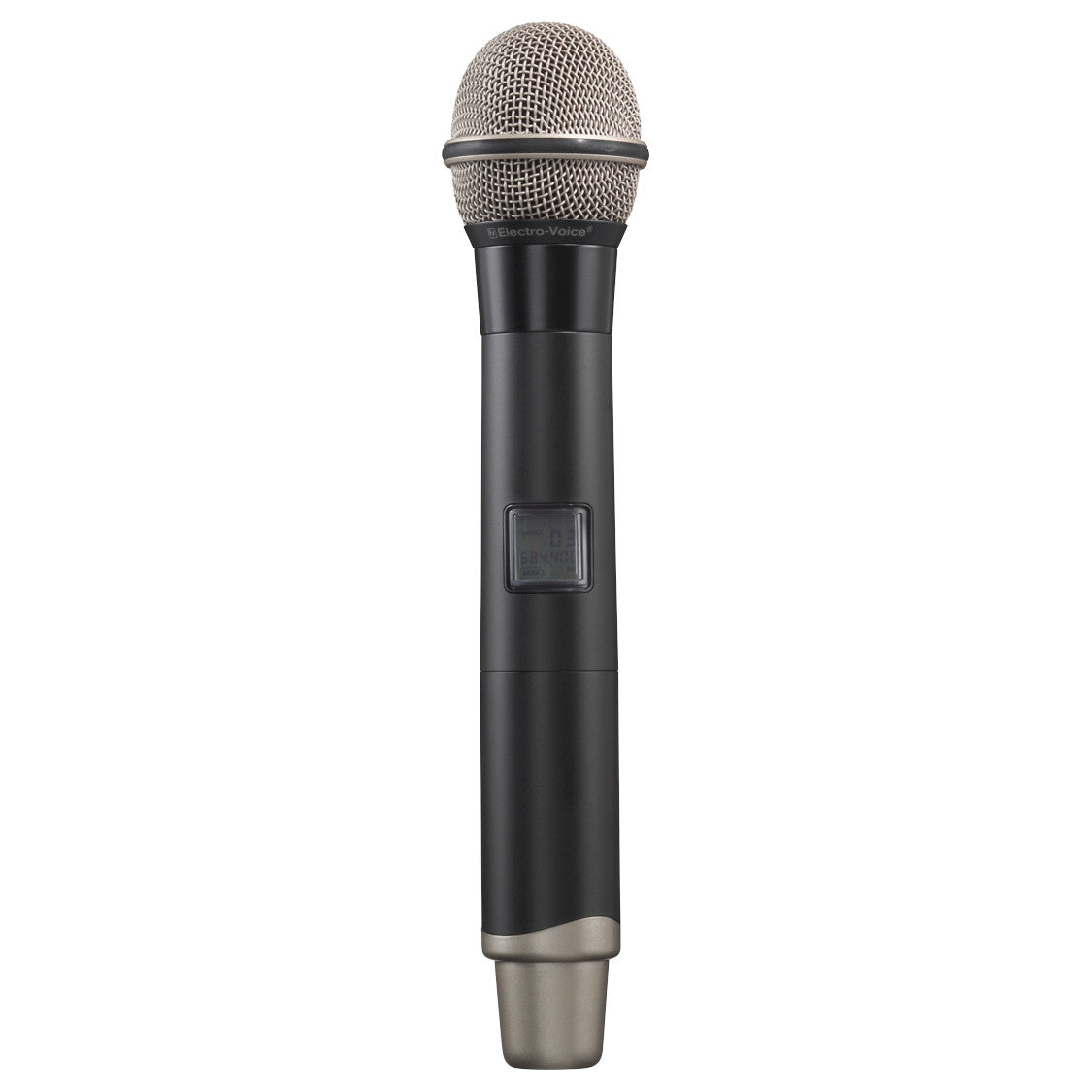

- BP-300 and HT-300 Transmitter
- Radiated Output: 8 mW typical
- Back Lit LCD Display: Channel, Frequency, Mute, and Battery Level
- Microphone Head: Electro-Voice PL22 Cardioid Dynamic
- Standard Lavalier Microphone: Electro-Voice ULM18 Uni-Directional Condenser
- TA4F Connector Wiring: Pin 1 Ground; Pin 2 Mic Input; Pin 3 +5V bias; Pin 4 +5V thru 2.2kΩ
- Power Requirement: Two AA batteries
- Battery Life (Typical): > 14 hours with AA alkaline typical
- Bodypack Antenna: Flexible external 1/4 wave
- Handheld Antenna: Internal proprietary
- Bodypack Dimensions (HxWxD): 3.3x2.6x0.89" (84x66x23mm)
- Handheld Dimensions (HxWxD): 26.7 cm (10.57 in) Long
