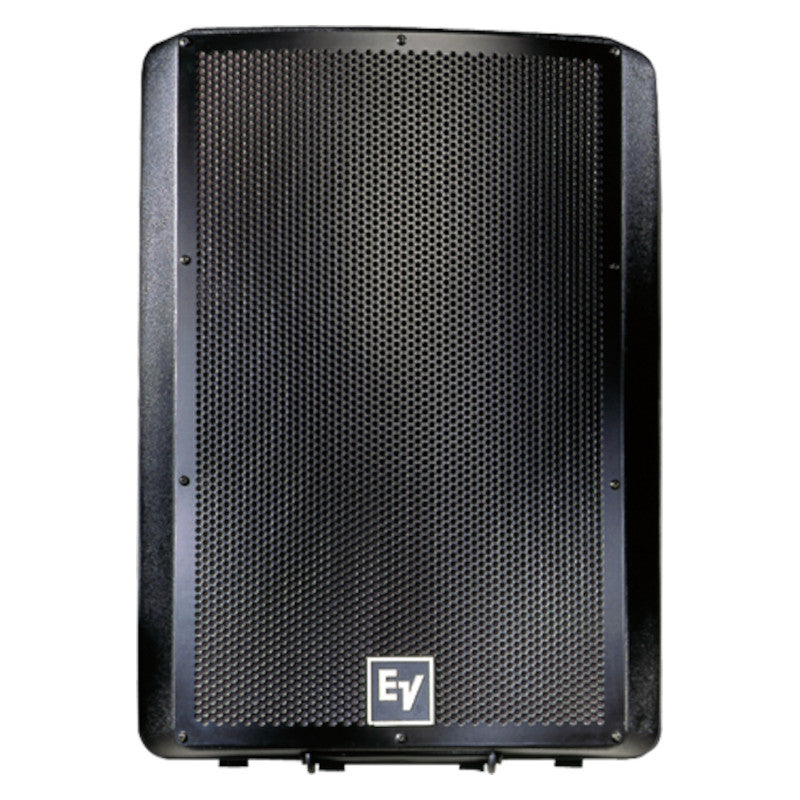

Electro-Voice SX300PIX 12-Inch Weather-Resistant Passive Speaker
Electro-Voice SX300PIX 12-Inch Weather-Resistant Passive Speaker
SoundPro Item: 42139 | Part Number: SX300PIX
Usually ships in 5-7 business days
- Sx300 performance with enhanced weather-resistance
- PIX version has multi-tap transformer for 70 or 100V use
- Ideal for installation, alone or in arrays
- 1.25" DH3/2010A titanium HF compression driver
- 65°x65° Constant-directivity Varipath™ horn
- Ring-Mode Decoupling (RMD™) for increased intelligibility
- Neutrik Speakon® (PI) or Phoenix (PIX) connectors
- Trapezoidal enclosure of high-impact polypropylene
- Rubber feet and mating sockets for stacking
- Integral handles, pole socket, suspension points
With a weather-resistant design that makes it a great choice for outdoor venues or events, The Electro-Voice SX300PIX is a 300-watt, 12-inch two-way, high-efficiency, constant-directivity compact speaker system with Ring-Mode Decoupling (RMDTM). Through the extensive use of computer-aided design and modeling, Electro-Voice engineers have developed a state-of-the-art professional loudspeaker system.
Passive speakers are ideal for when you need flexibility and customization options, such as in professional applications where the sound system needs to be scalable and versatile, or for audio projects that require the most accurate and reliable sound reproduction. With more space inside their housing, passive speakers can accommodate larger drivers, resulting in a more pristine, accurate sound reproduction where it’s needed most.
- Frequency range50 - 20000kHz (-10dB)
- Min impedance5Ω
- Nominal impedance (passive)8Ω
- HF transducer1.25" DH3/2010A
- Speaker typefull-range, mid-high, 2-way
- Woofer size12"
- Max SPL/1m131/123dB (Low Z/100V)
- Coverage (nominal -6dB)H 65°, V 65° (const. -dir. horn)
- LF transducer12" DL12BFH
- Power rating300W
- Crossover frequency1500Hz
- Sensitivity 1 W/1m99dB
- Input connections2x 4-pin Speakon
- Directivity index11.1dB (+2.4/-4.1 dB)
- Axial sensitivity (SPL, 1W @ 1m)99dB
- Chassis size12"
- Dimensions (HxWxD)23.1x16.9x12.3"
- Weight39 lbs
