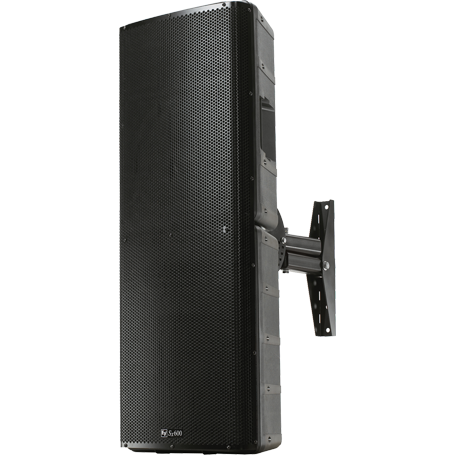

Electro-Voice Sx600 High Output 2-Way Loudspeaker | Model: PI

Electro-Voice Sx600 High Output 2-Way Loudspeaker | Model: PI

SoundPro Item: 71914 | Part Number: SX600PI

$5,749.00
$5,749.00 $5,749.00
Your Price Sold out
MSRP: $5,749.00 | MAP: $5,749.00

Usually ships in 5-7 business days

  • Very High Sensitivity, 105 dB 1 W/1 m (139 dB Peak SPL)
  • Easy, Versatile, SuperSAM Mounting System included
  • All Weather IEC 529 IP 44 & Mil Spec 810 Environmental Specs
  • Available 600 Watt Internal Transformer (Sx600PIX)
  • EN54-24 Type B certification 1438-CPD-0300
  • Waterproof connection by SJO cable with gland nut
Log in or register for YOUR best price

The Sx600 is a high-output, indoor/outdoor speaker system that features a dual-element vertical line array for clarity and intelligibility. The Sx600 handles 600-watts (2400 watts peak), and can be vertically mounted. The Sx600 is available as either a conventional 4 ohm low impedance system, the Sx600PI, or as a "constant voltage" system, the Sx600PIX. The PIX version features a 100% duty cycle rated 600 watt full isolation line transformer for operation with 70volt, 100volt, 140volt, or 200volt distributed systems.

View full details

Specifications

Frequency Range (-10 dB)
70 - 16000
Weatherized
Yes
Flying
Yes
Minimum Impedance
3.5
Nominal Impedance (Passive)
4
HF Transducer
2-inch DH2T
Specifications
Specifications
Speaker Type
Full-Range, Two-Way
MF Transducer
ND12A
Woofer Size
12
Max. SPL/1m (calc)
139
Coverage (Nominal -6 dB) H
65
Coverage (Nominal -6 dB) V
65
LF Transducer
One 12-inch DL12BFH (LF), one 12-inch ND12 (MB)
System Power Handling (Continuous/Program/Peak)
600//2400
Power Rating
2400
Crossover Frequency
1800
Enclosure Material
High Density Polymer (Composite)
Available Color
Black
Sensitivity 1 W/1 m
105
Height
1163
Recommended High-Pass Frequency
90 @Q=1.6
Width
429
Depth
312
Internal Crossover
Yes
Weight Net
36.3
Input Connections
SJO cable/gland nut
Directivity Index
11.3
Axial Sensitivity (SPL, 1 W @ 1 m)
105
Passive Power Handling
2400
Chassis Size
304.8
